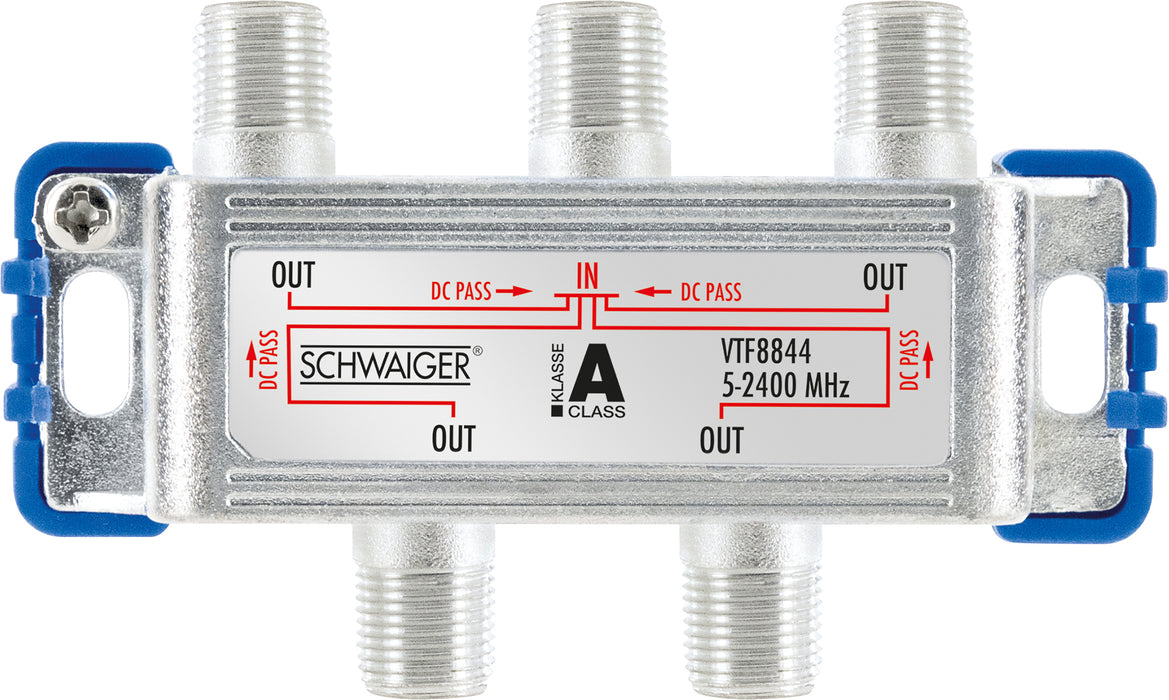

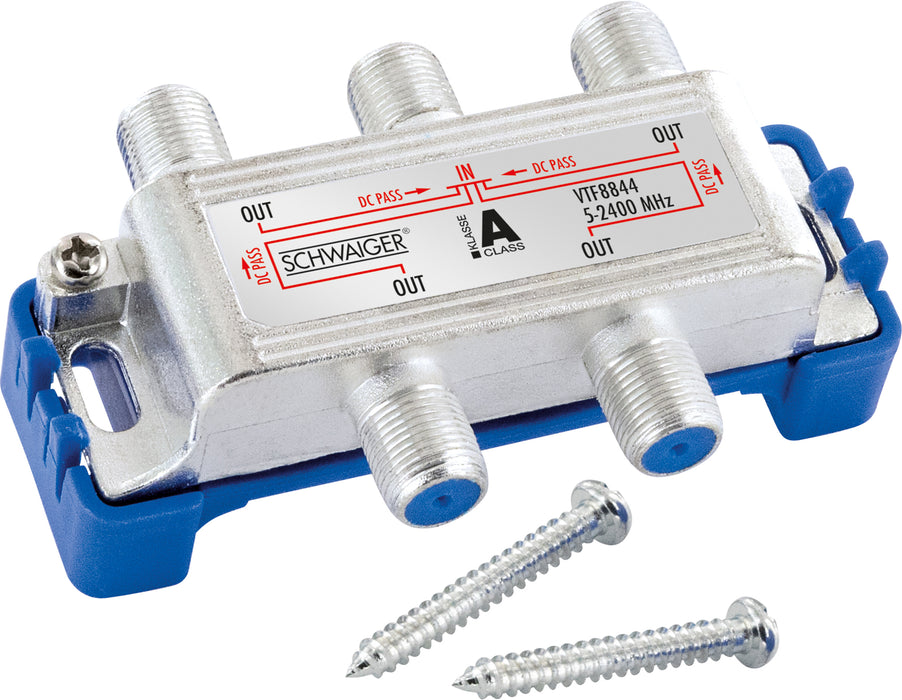

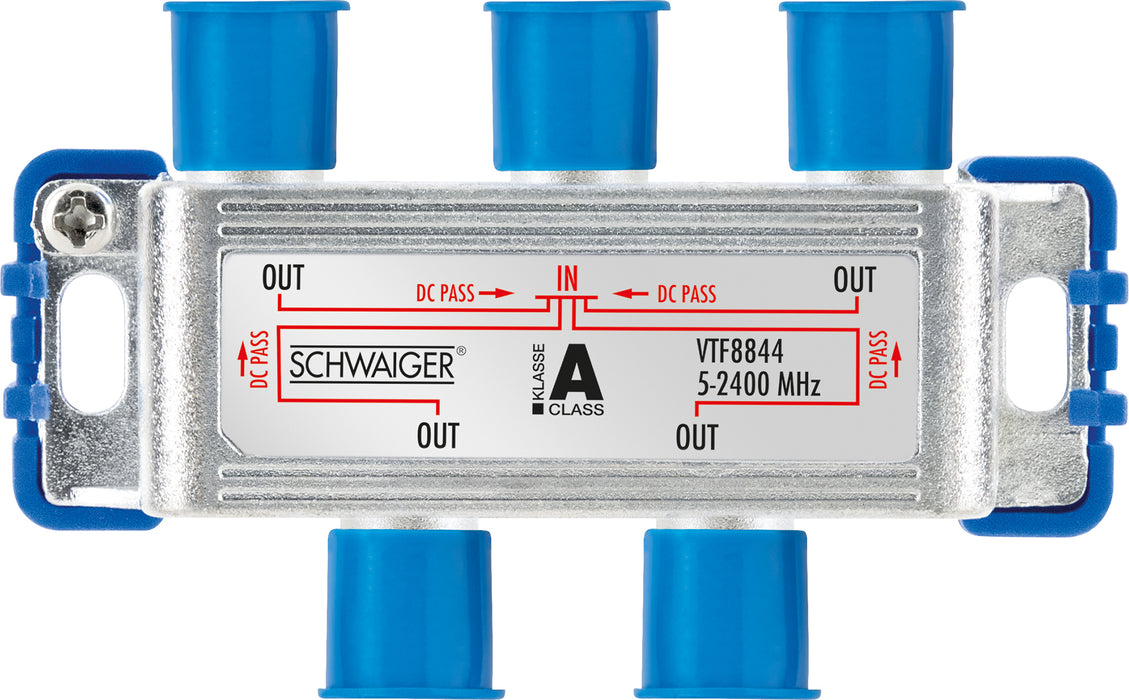

4-way distributor (9 dB)

4-way distributor (9 dB)

SKU VTF8844 241
Sold out
€15,99 - €15,99
€15,99
€15,99 - €15,99
€15,99
Availability:
Out of stock
  • PayPal
  • Apple Pay
  • Bancontact
  • EPS
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Distributor for cable, antenna and satellite systems
  • Light and compact design
  • Plastic spacer for cable entry
  • Direct current passage (DC)

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

The SCHWAIGER® 4-way distributor is designed for use in house distribution systems. Due to the direct current passage, the distributor is ideally suited for applications in SAT distribution systems. A plastic spacer enables optimal cable feedthrough.



distribution 4-way
classification Class a
Connections (input) 1 x F socket
Connections (output) 4 x F socket
Mounting type Surface-mounted
Frequency range 5 - 2400 MHz
Direct current passage Yes
Suitable for return channels Yes
Return loss > 10 dB
Distribution attenuation (typ.) 9 dB
Decoupling > 20 dB
Shielding measure 110 dB
Product material Die-cast aluminum protected against corrosion
Dimensions (width) 80 mm
Dimensions (height) 53 mm
Dimensions (depth) 28 mm
colour Silver blue
scope of delivery 1x distributor (4-way)
