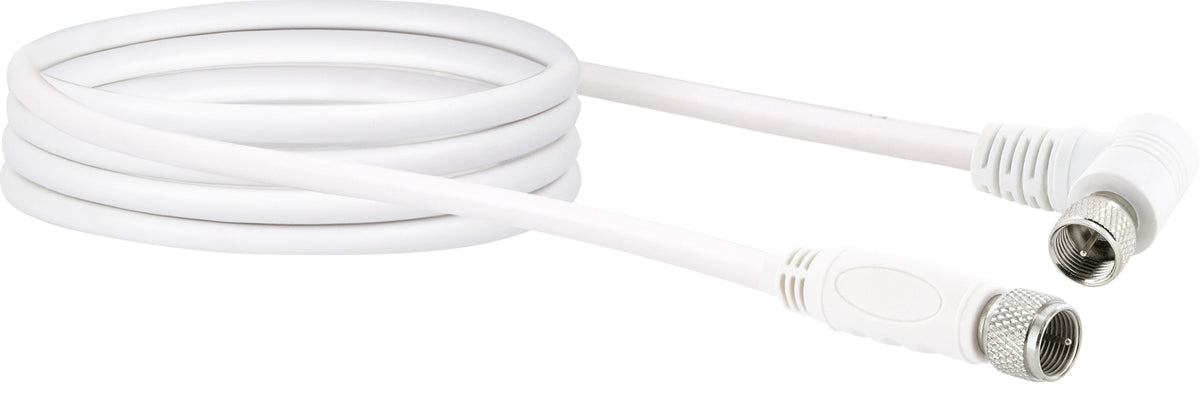

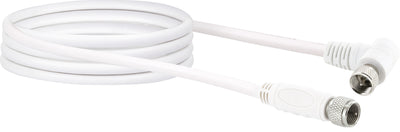

SAT connection cable (110 dB)
SKU KVCW15 532
- Particularly suitable for HDTV via satellite
- 4-fold shielding for a very good reduction of electromagnetic interference
- Copper inner conductor for good signal transmission
- Best conductivity and minimum transmission resistance thanks to gold-plated contacts
- Robust plugs with cable routing
Sichere Zahlung
Passend dazu
SAT connection cable (110 dB)
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung

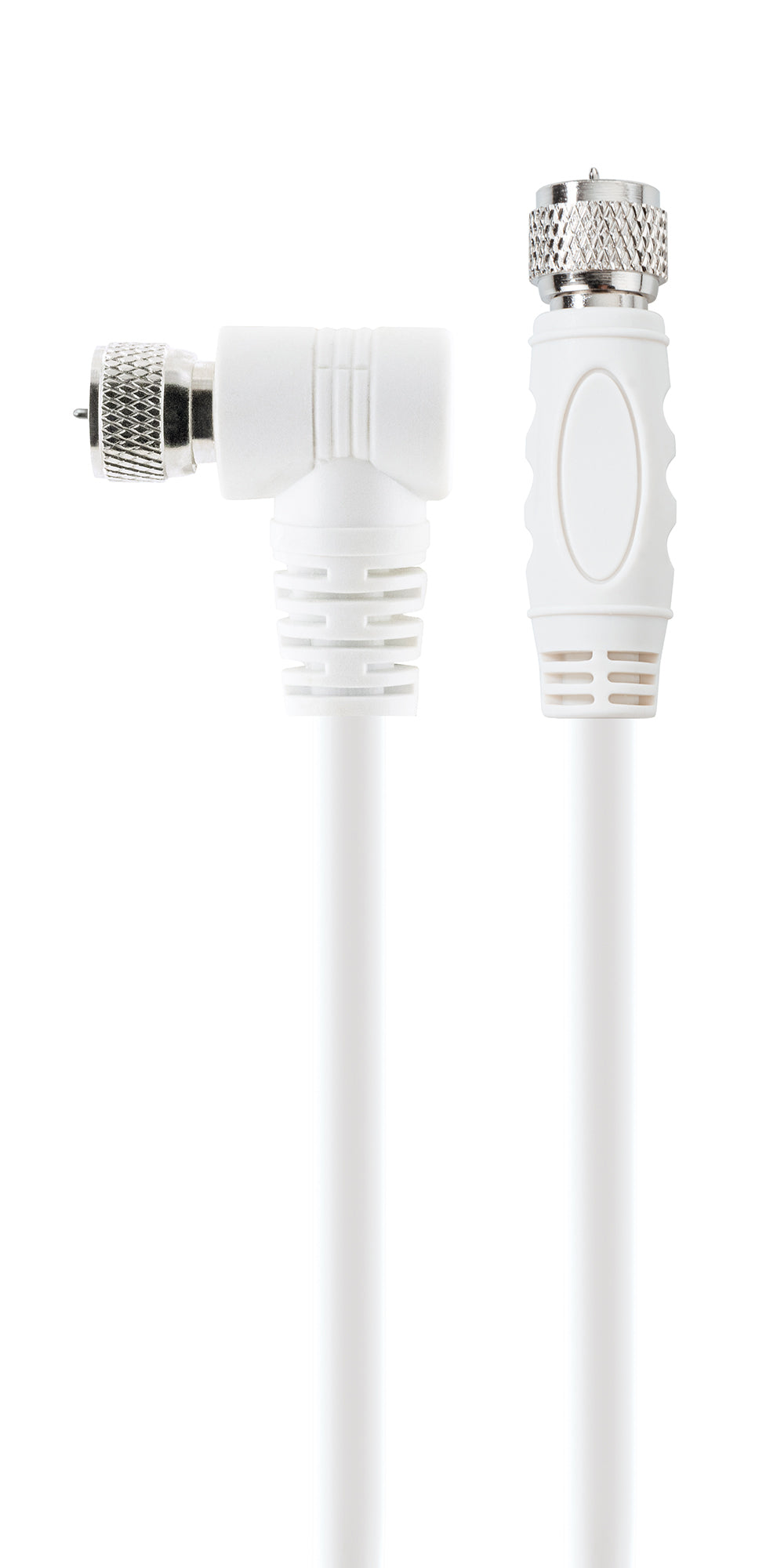

This SCHWAIGER® SAT connection cable is designed for higher requirements with high-resolution image and sound transmissions. It is ideally suited for the connection between satellite receiver and socket with an F connector. The cable offers the highest possible protection against electromagnetic interference and radio interference of all kinds thanks to the very high shielding dimension of 110 dB. It has a 90 ° angled plug on one side and the copper inner conductor ensures interference-free reception.
Technische Daten
| connections | 1 x F angle plug 1 x F connector |
| Impedance | 75 ohms |
| plug | Nickel-plated metal |
| Cable structure | 1 mm (inner conductor) 3.1 mm (dielectric) 6 mm (jacket) |
| Shielding | 4-fold shielded |
| Shielding measure | 110 dB |
| Shielding material | Aluminum composite foil 96 aluminum braid Aluminum composite foil 128 aluminum braid |
| Inner conductor | Cu |
| colour | White |
| scope of delivery | 1x SAT connection cable |
