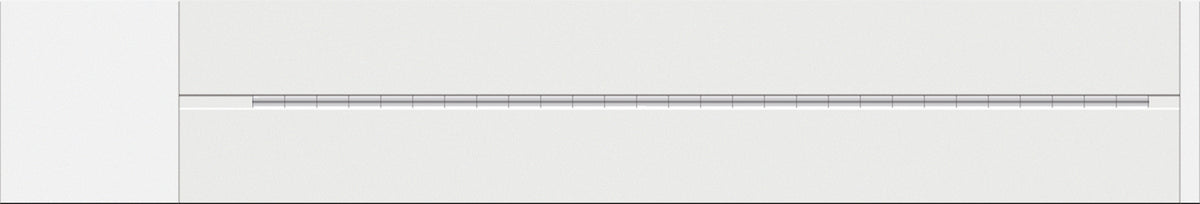

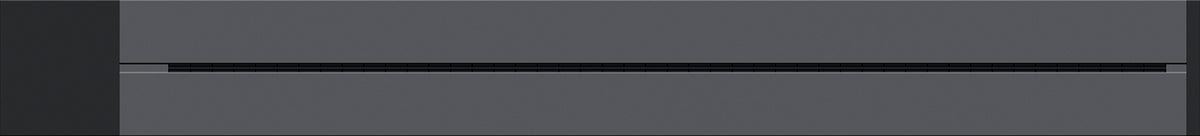

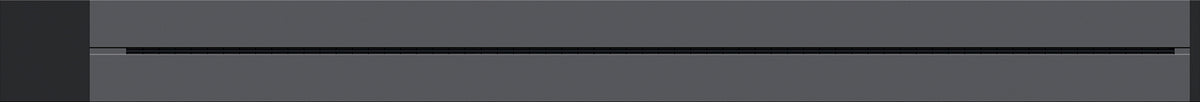

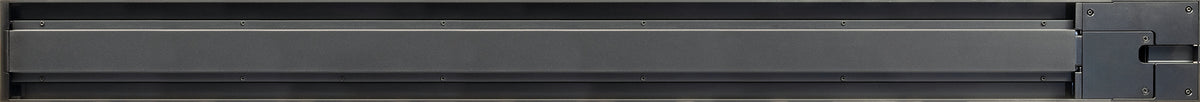

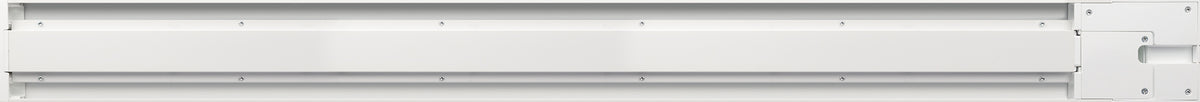

Modular busbar
SKU MSLW0750

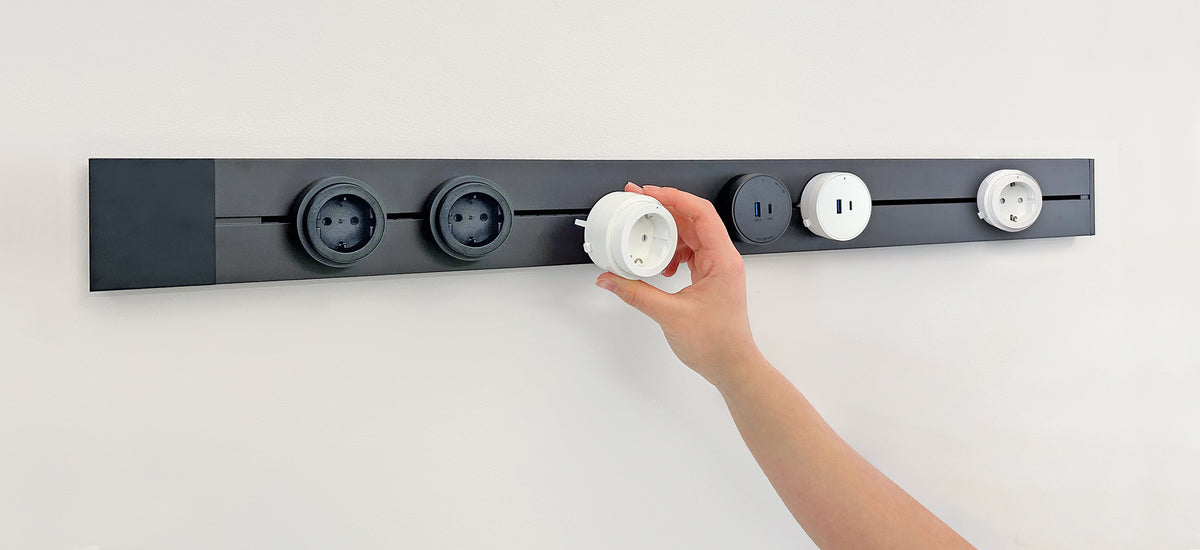

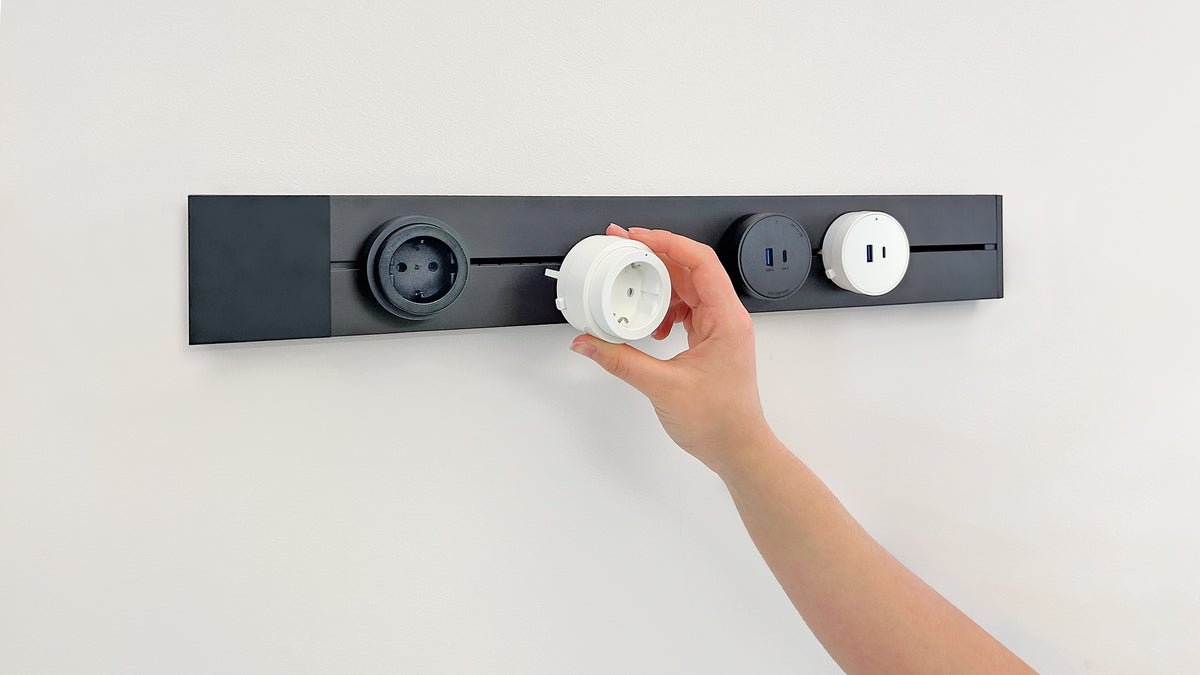

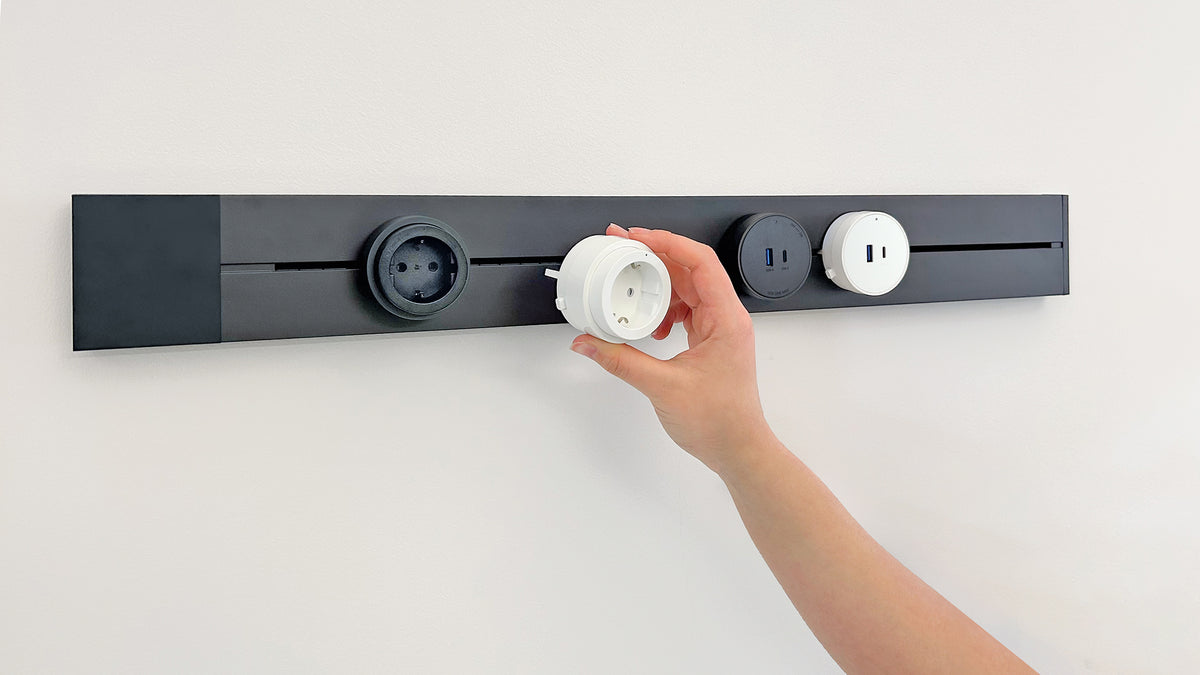

- Individually adaptable through various socket modules (household or USB plug), which can be placed anywhere
- VDE certification guarantees the highest safety and quality standards, with integrated touch protection for additional safety

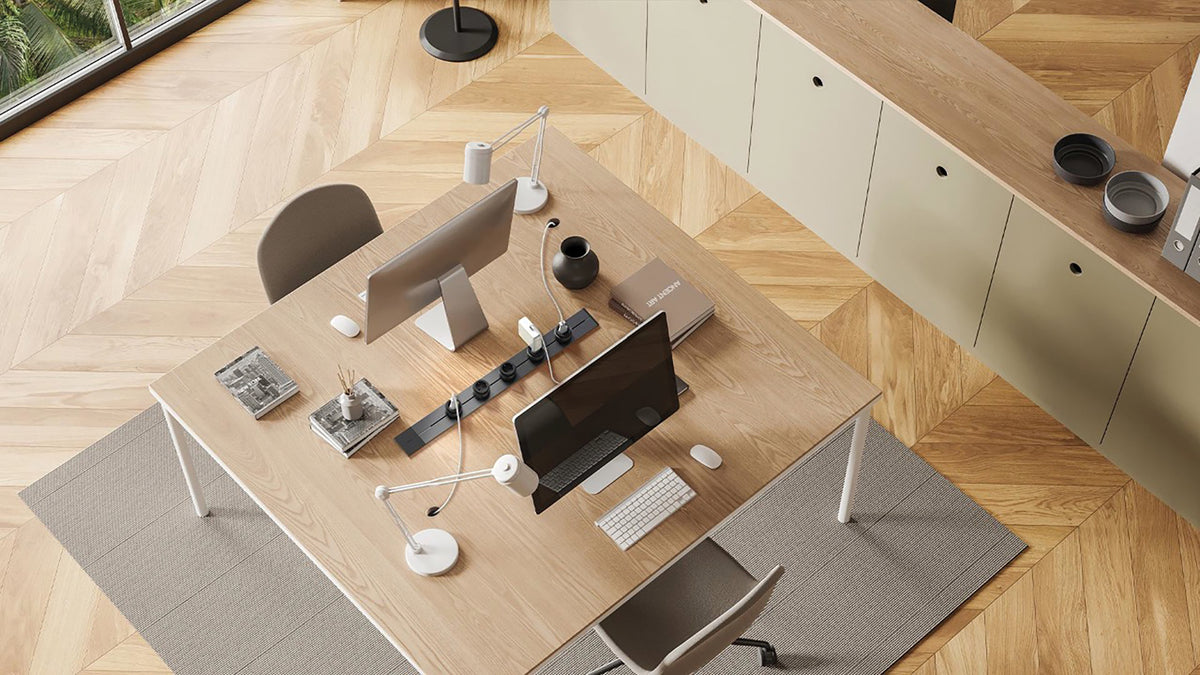

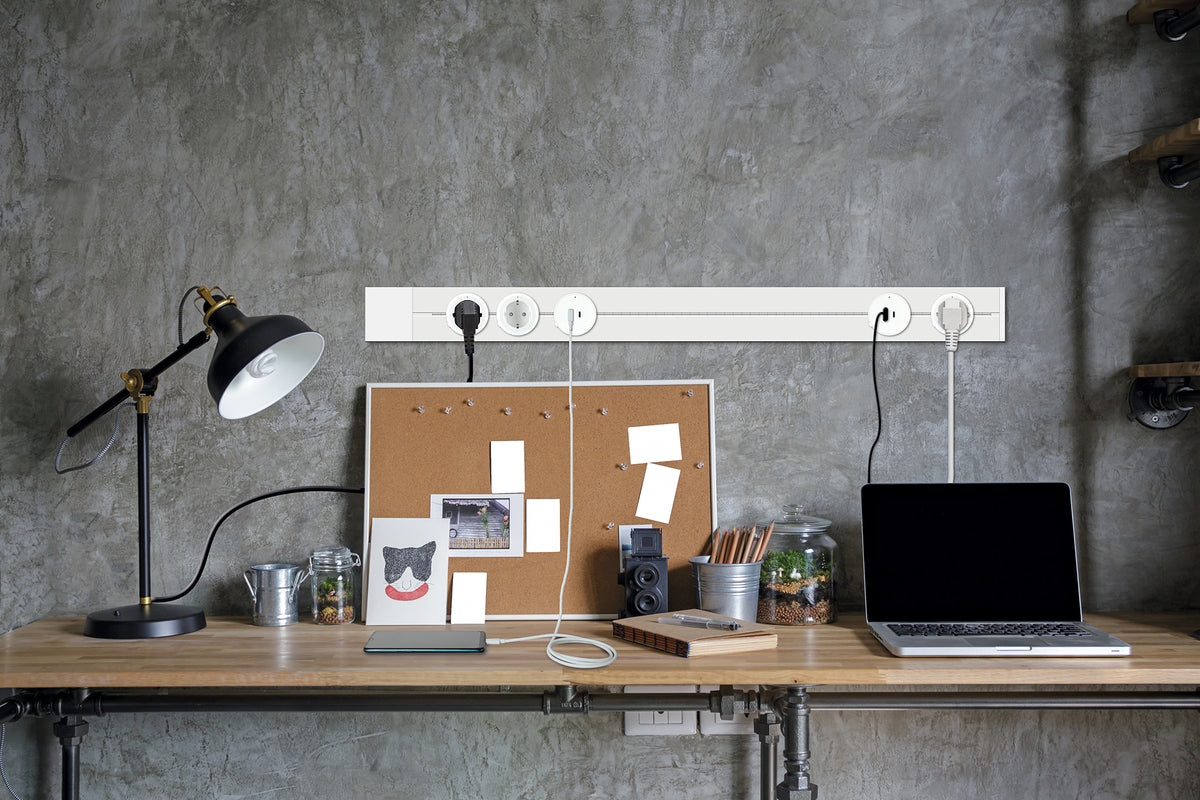

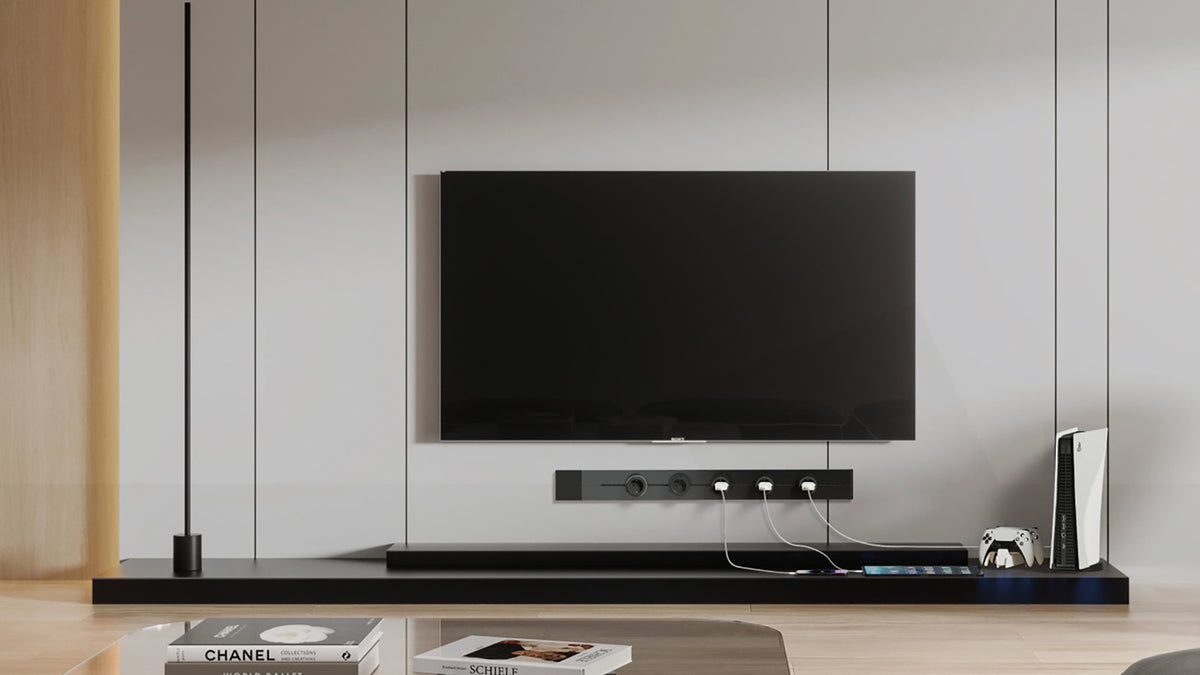

- Ideal for professional, permanent installations by permanently mounting on walls, tables or furniture

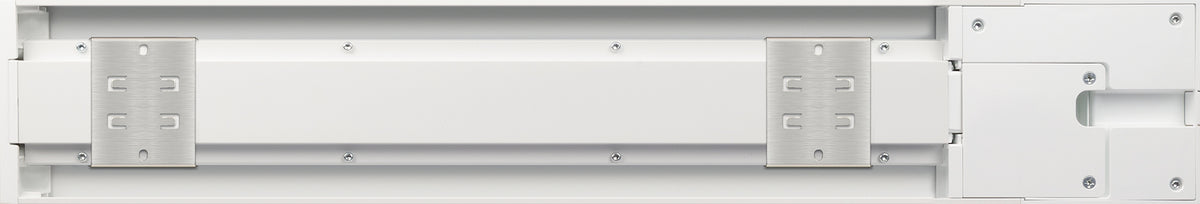

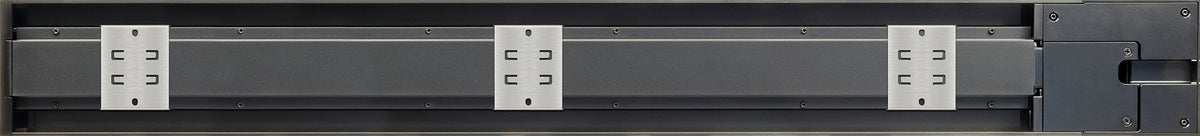

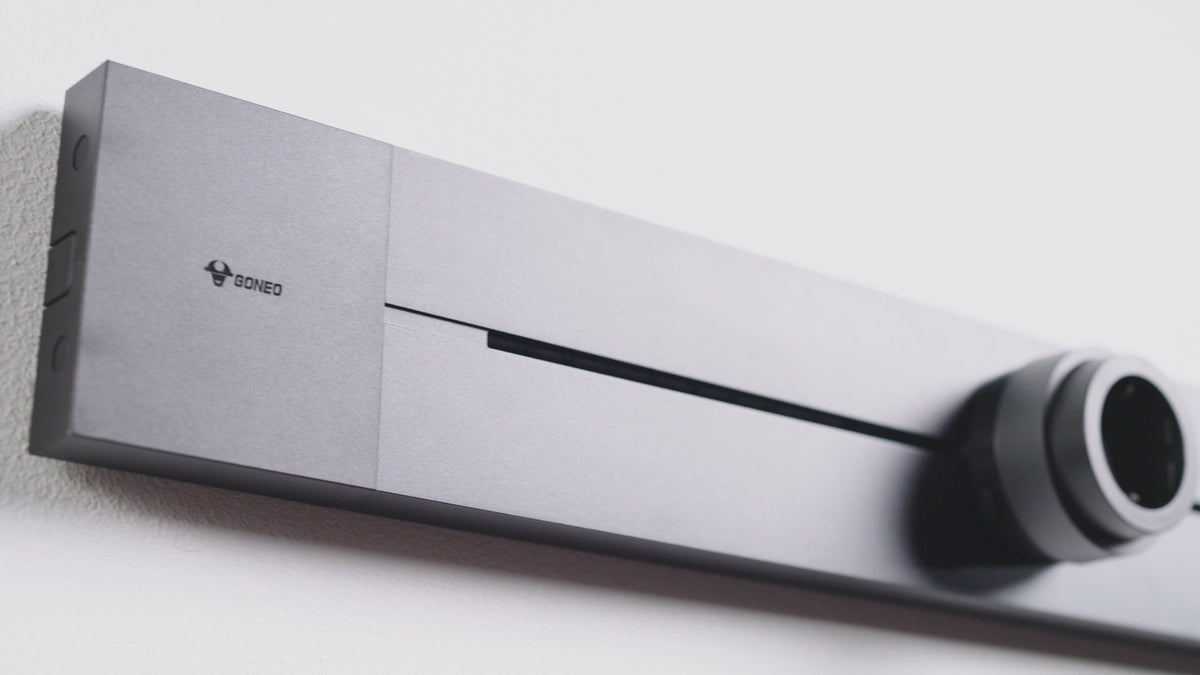

- High-quality aluminum construction for maximum stability and long-lasting use

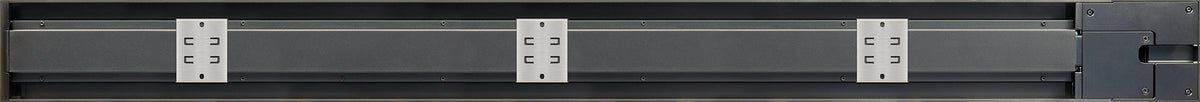

- Installed directly on the power line (L/N/PE) and available in 3 lengths and 2 colors
- (The adapters for the modular power rail are mandatory for use)
Sichere Zahlung
Passend dazu

Modular busbar
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung

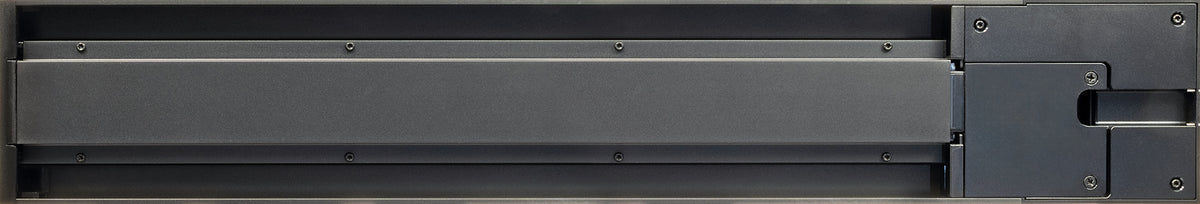

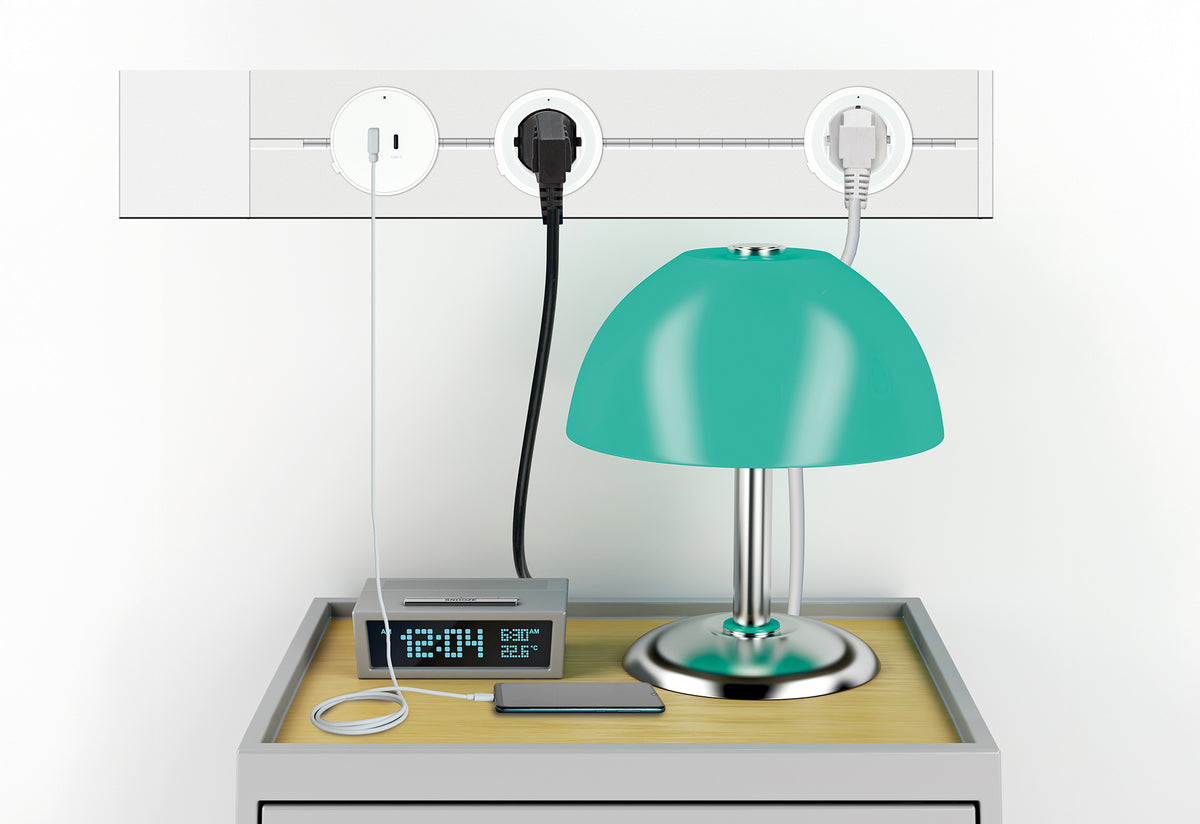

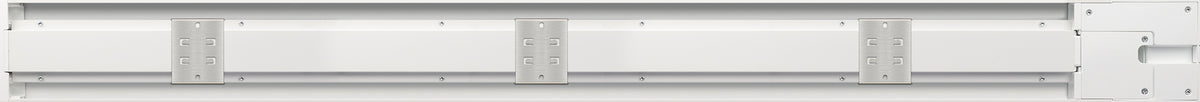

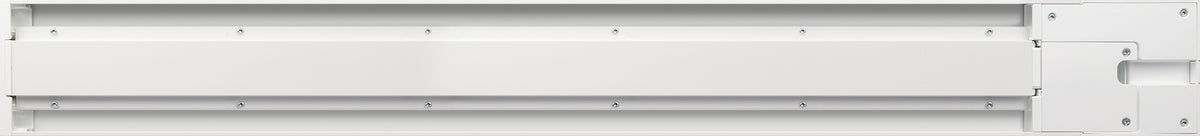

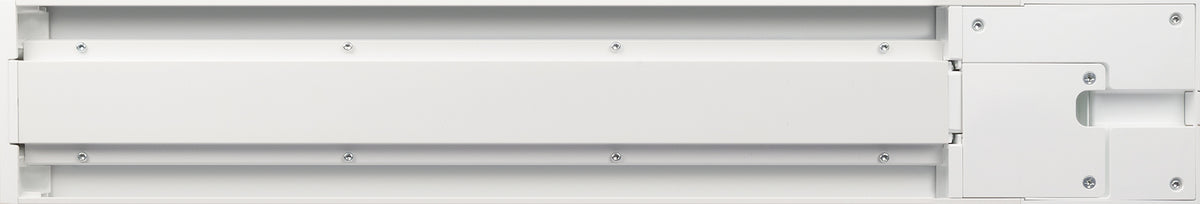

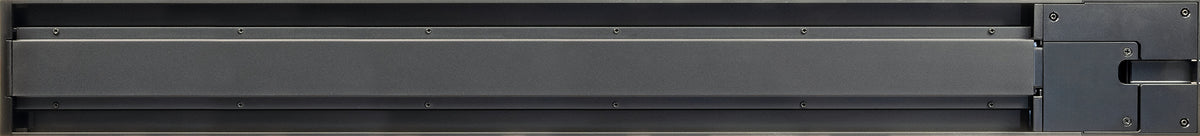

With the With the modular power track from SCHWAIGER® , you get a high-quality, flexibly configurable solution for a permanent power supply in work and living areas. The system allows for individual configuration with various socket inserts – whether household sockets or USB adapters. These adapters, like the track itself, are available separately in black and white. The power track, made of aluminum, is mounted as a replacement for a household plug and is installed directly on the power line (L/N/PE). It is mounted using screws or, optionally, for screwless installation, using the included adhesive (installation must be carried out by professionals). The materials and workmanship are of the highest quality to ensure maximum service life. VDE certification guarantees compliance with all safety and quality standards. The modular system is available in three lengths: 0.5 m, 0.75 m, and 1 m – suitable for various room concepts and requirements.
Technische Daten
| Lengths | 500 / 750 / 1000 mm |
| Width | 86 mm |
| Height | 22 mm |
| Color | White / Black |
| Nominal voltage | 250 V ~ |
| Nominal impulse withstand voltage | 4 kV |
| Nominal insulation voltage | 500 V ~ |
| Protection class | IP20 |
| Resistance to shocks | 2 years |
| Nominal frequency | 50 Hz |
| Wire thickness | 2.5 mm² |
| Rated current | 16 A |
| Max. power of the power strip | 3680 W |

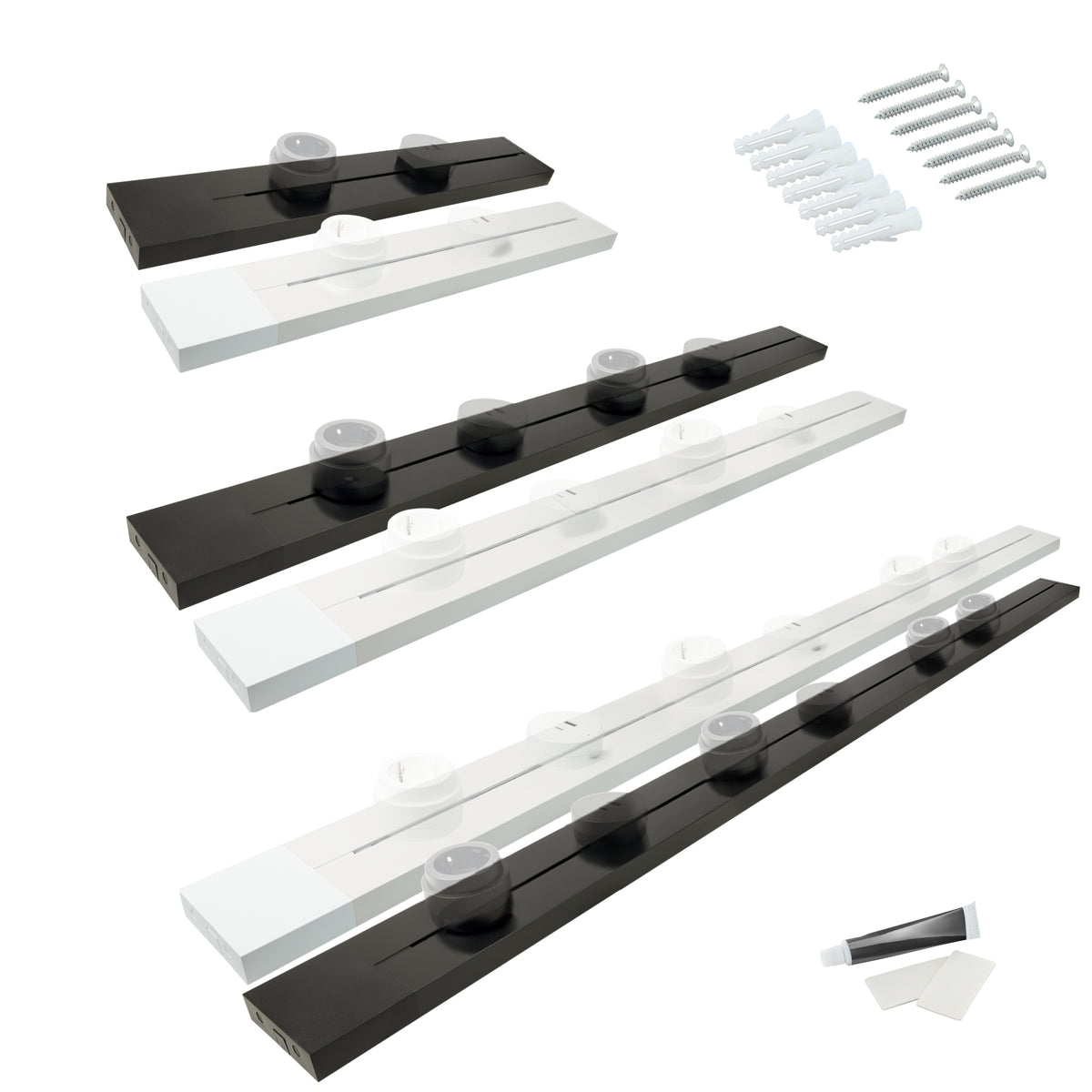

| Scope of delivery | Busbar, 7x screws, 7x dowels, 1x glue, 2x adhesive pads |
