PIR motion detector
SKU HGA300 532
- The alarm is triggered when there is movement in the detection area
- Securing the hallway or entrance area
- Large range of the radio signal
- Reliable detection of movement, thanks to the built-in PIR sensor
- Supplementary product for the SCHWAIGER® wireless alarm system "Green Guard"
Sichere Zahlung
Passend dazu
PIR motion detector
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung
This SCHWAIGER® PIR motion detector for indoor use is used to secure and monitor the home, e.g. in the hallway or entrance area. As soon as the motion detector detects a violation, a signal is sent to the control center, which then triggers an alarm. This is to deter unauthorized persons. The PIR motion detector is a supplementary product to the SCHWAIGER® wireless alarm system "Green Guard". The product only works in conjunction with a central unit (e.g. HG1000 or HG2000) and cannot be used individually.
Technische Daten
| Place of use | Indoor |

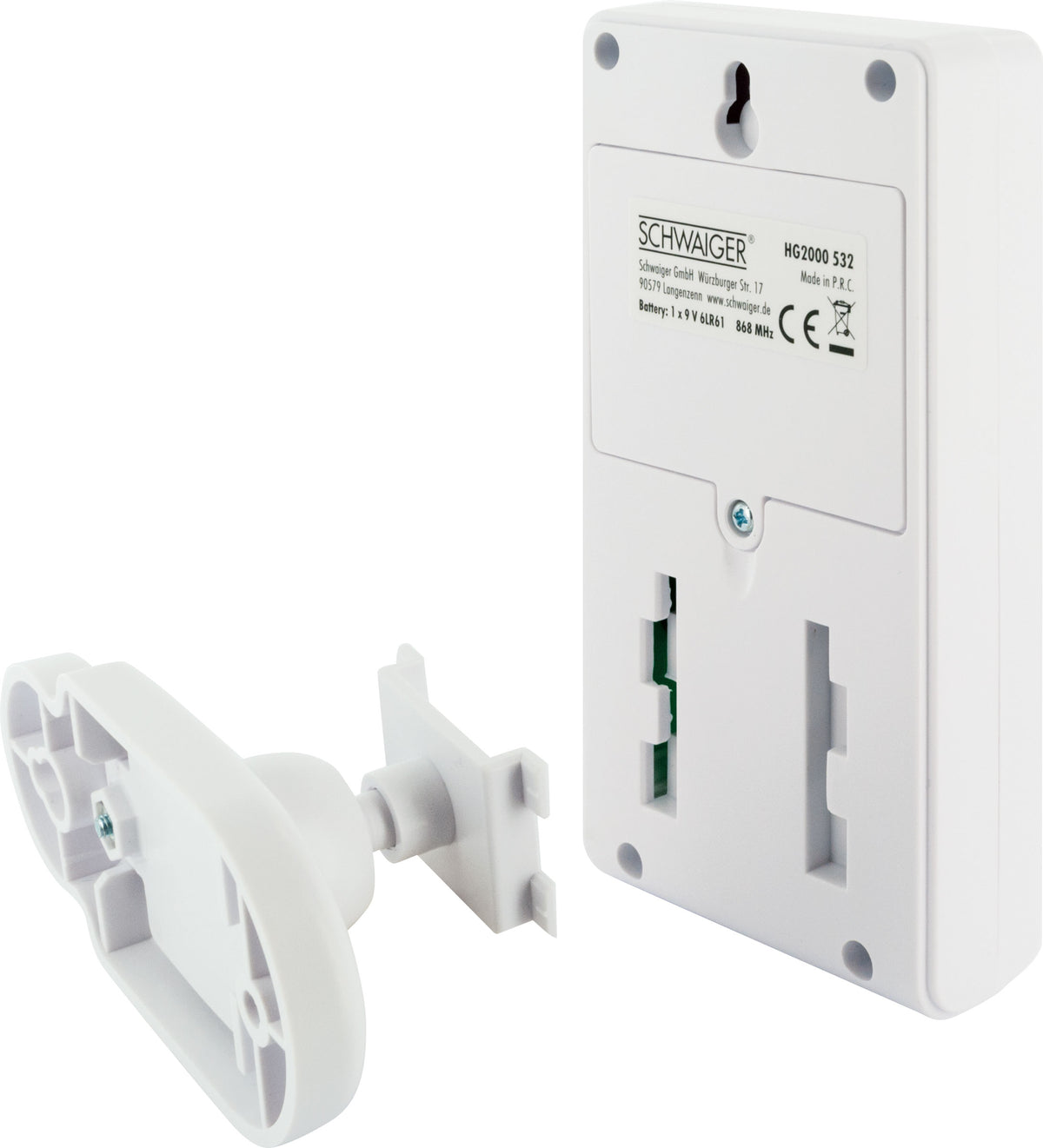

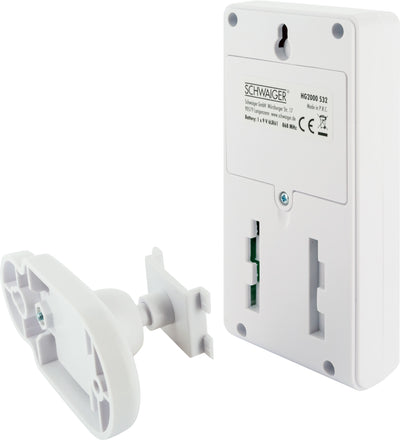

| Mounting type | with screws |
| Radio frequency | 868.35 MHz (+/- 0.5 MHz) |
| Detection angle (PIR) | 110° |
| Radio range | max. 250 m (open space) |
| Setting (code) | House security code: via 4-pin jumper |
| Zone code | via 8-pin jumper |

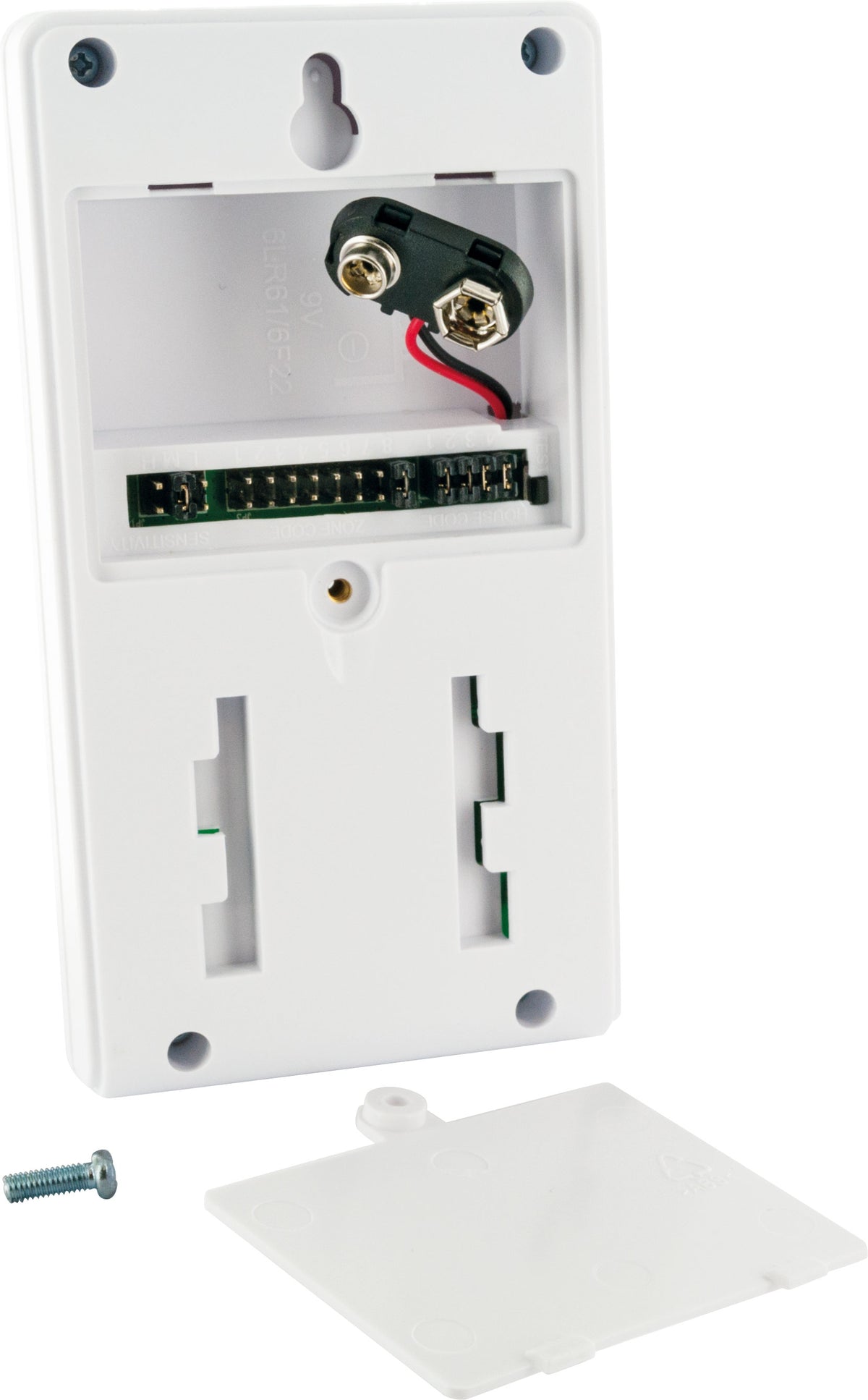

| Batteries | 1x 6LR61 (9 V block) |
| Power supply | about batteries |
| Product material | plastic |
| colour | White |

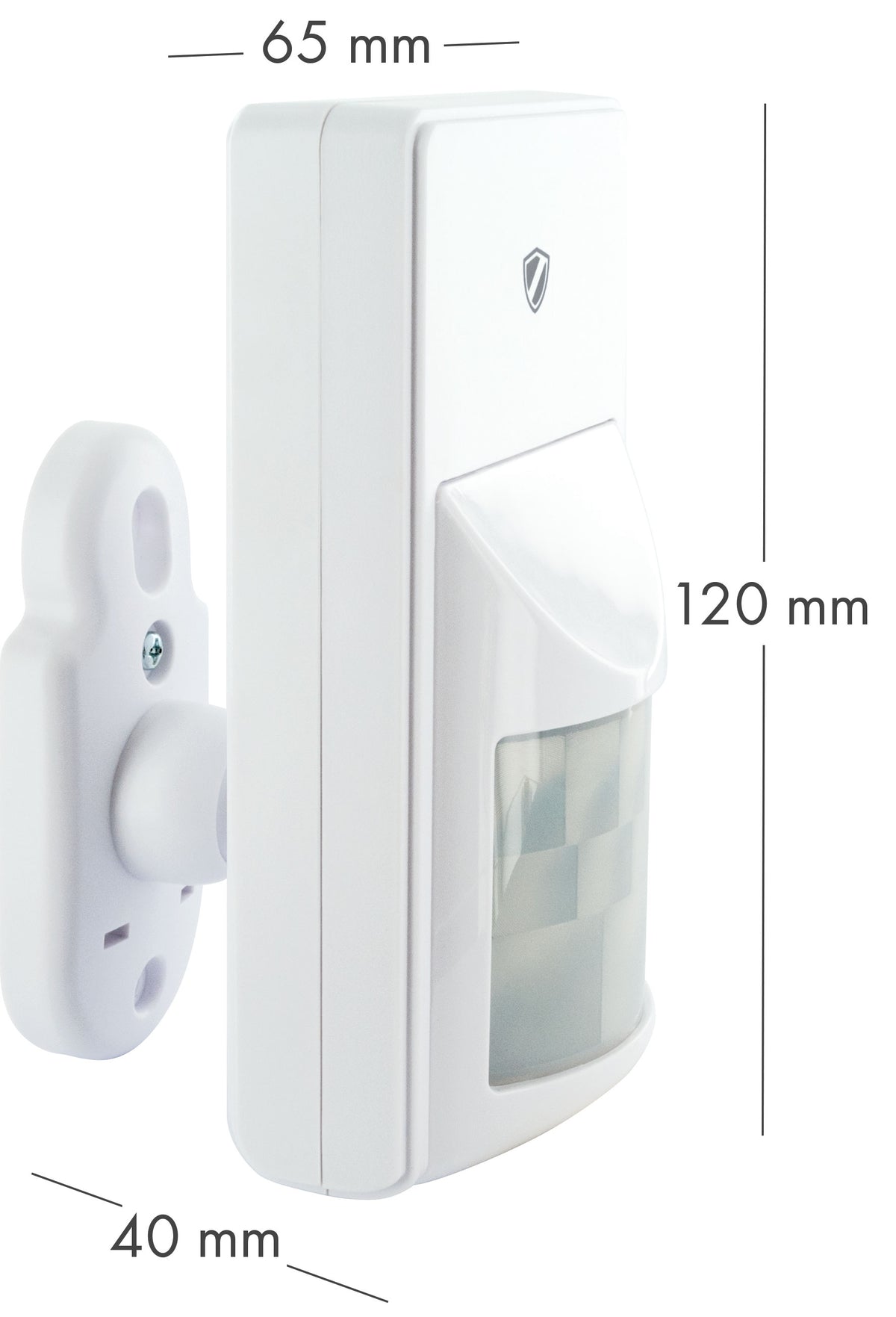

| Dimensions (width) | 65 mm |
| Dimensions (height) | 40 mm |
| Dimensions (depth) | 120 mm |
| scope of delivery | Motion detector, wall bracket, mounting material, operating instructions |
