Energy storage for solar systems 2.24 kWh

Energy storage for solar systems 2.24 kWh

SKU SOBS2240
Sold out
€599,00 - €599,00
€599,00
€599,00 - €599,00
€599,00
Availability:
Out of stock
  • PayPal
  • Apple Pay
  • Bancontact
  • EPS
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Stores excess energy from solar modules and makes it available when needed
  • 2240 Wh storage capacity - enough energy for 10 hours of television, 20 hours of laptop use, 30 hours of light and much more.

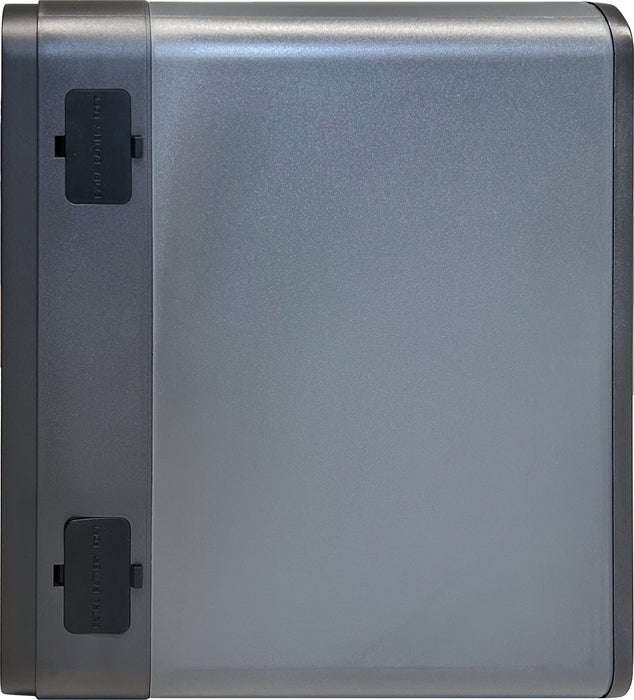

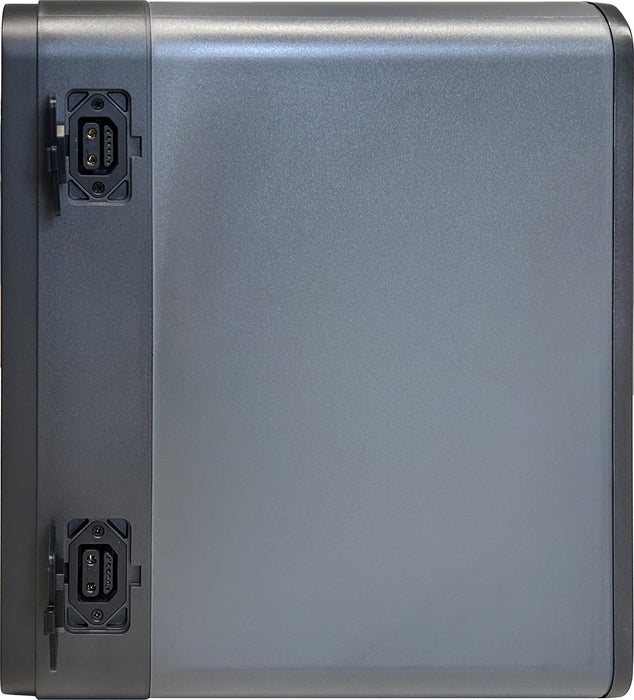

  • Expandable to a total of 6,720 Wh with a total of 3 storage units for even more independence from the power grid
  • Protection class IP65 - for outdoor use
  • Data can be accessed and parameters controlled via the free app "Marstek" for iOS and Android via Bluetooth and WiFi

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

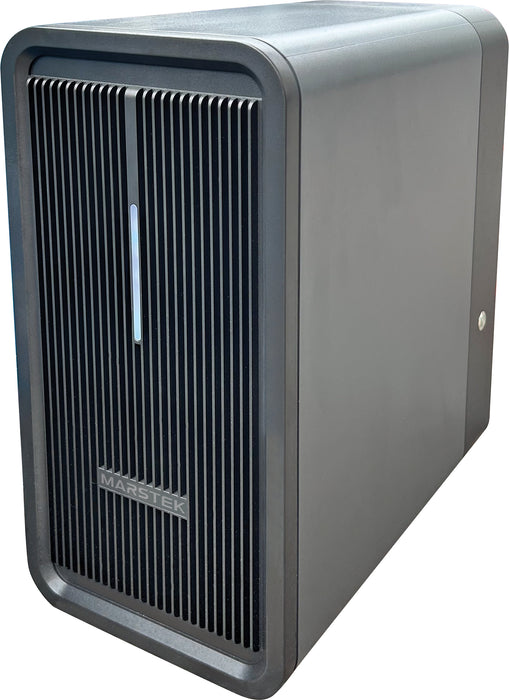

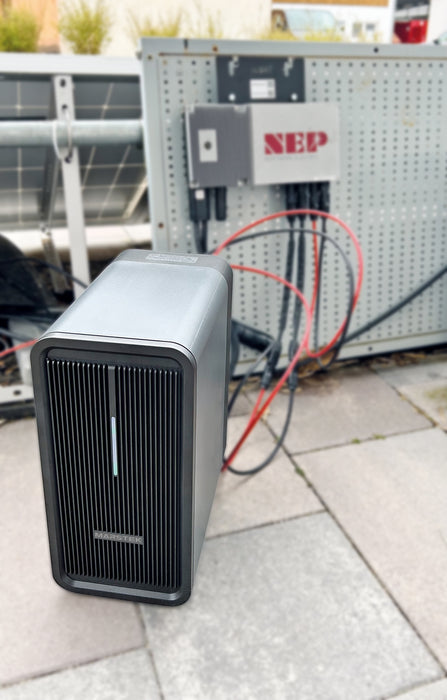

The SCHWAIGER® balcony power plant storage system with 2240 Wh storage capacity enables efficient use of self-generated solar power – it stores excess energy and makes it available when needed. It can be easily integrated into existing balcony power plants, increasing self-consumption and reducing grid consumption. Installation is straightforward – ideal for beginners and professionals alike. The storage system can be expanded to up to three units (totaling 6,720 Wh), making it a smart solution for greater independence.

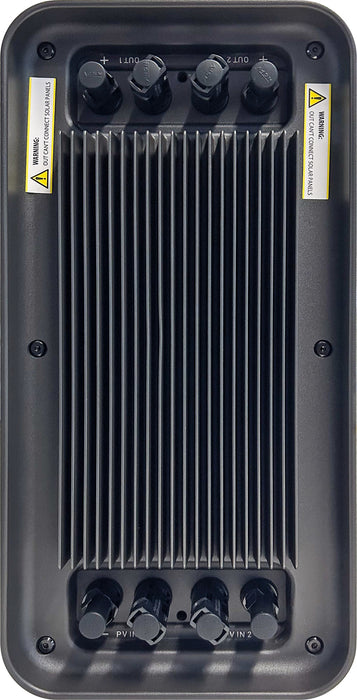

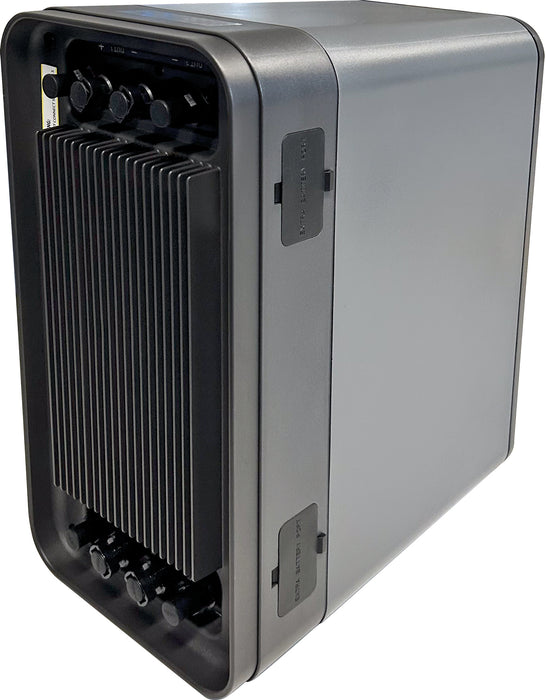

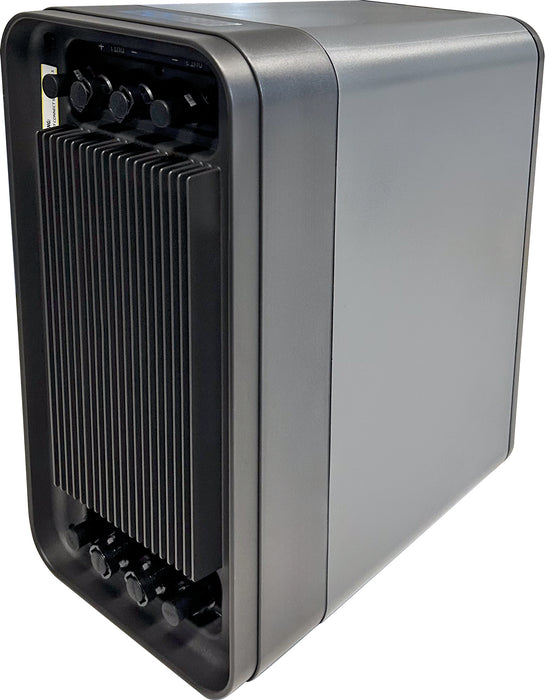

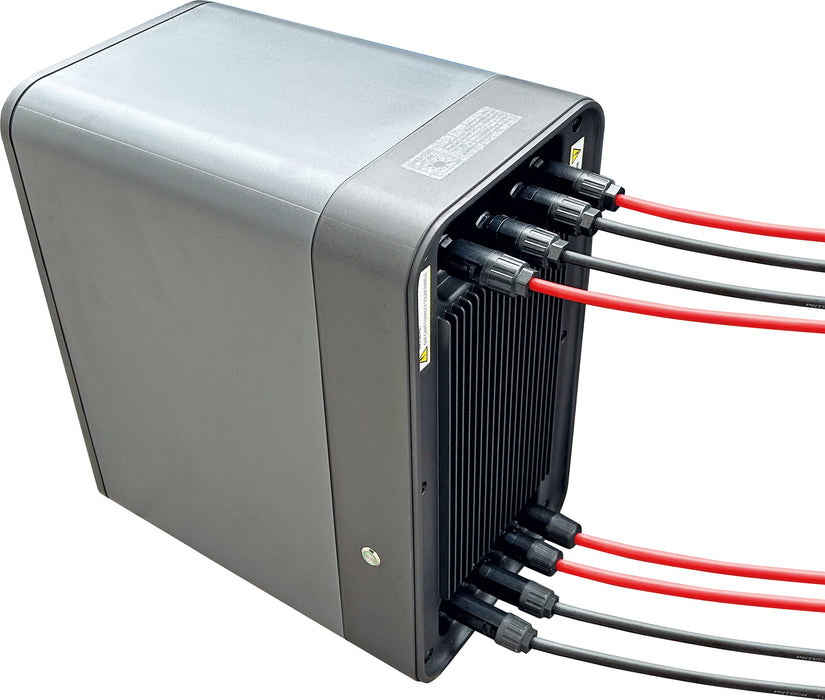

Connections 2x solar plug connection DC
1x solar plug connection DC (to micro inverter)
capacity 2240 Wh
Battery type LiFePO4
Power cycle Min 80% max. remaining capacity after 6000+ charging cycles
Operating temperature -10°C – 55°C
Storage temperature -10°C – 40°C
material ABS + PC + Metal
Weight 20 +/- 0.5 kg
Dimensions 295 x 175 x 350 mm
Controllable and data accessible via Bluetooth 5.2, WiFi 2.4 GHz
protective doctor IP65

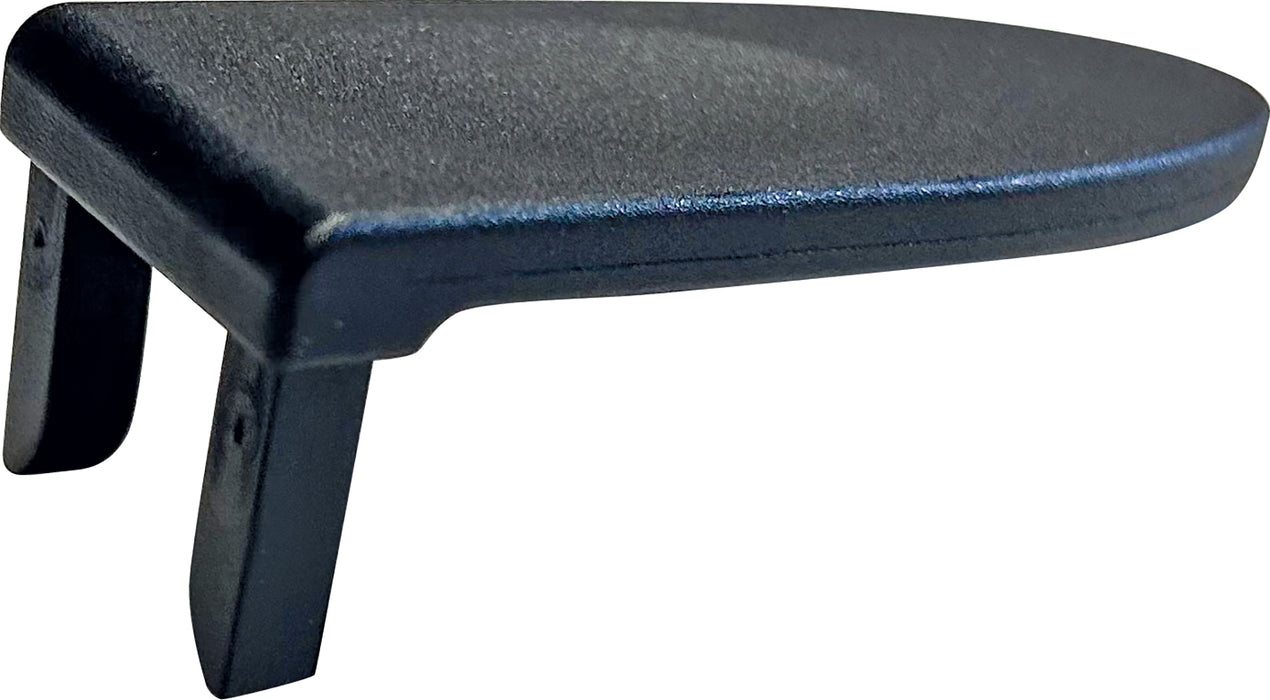

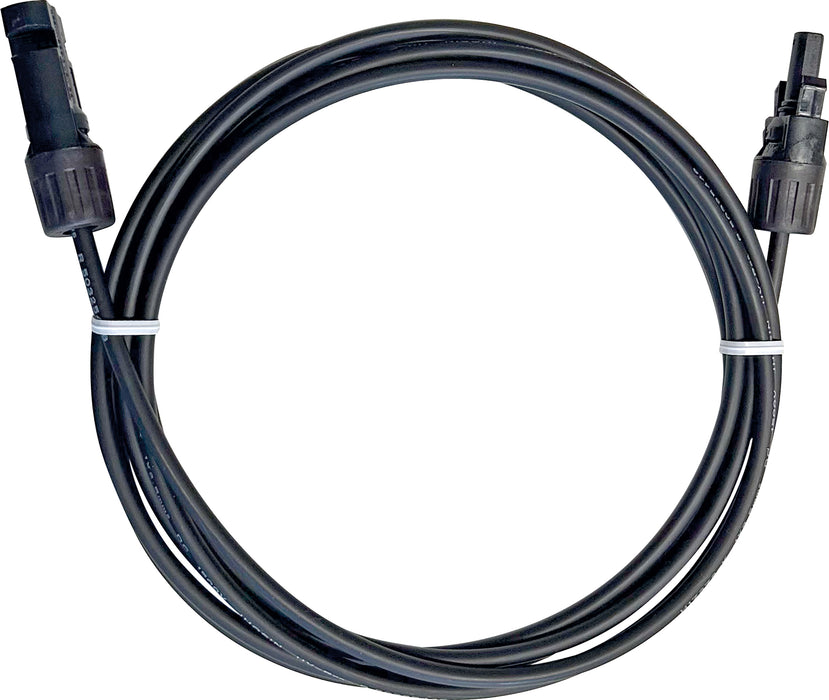

Scope of delivery Solar storage, 4x solar extension cables, tool for solar cables, operating instructions
PV INPUT
Input power Max. 2x 800 W
Input voltage range 12 V – 59 V
Max input current 2x 13.5 A
PV OUTPUT
Output power Max. 2x 400 W
Output voltage range 42 V - 50.4 V
Max. output current 2x 9.25 A
