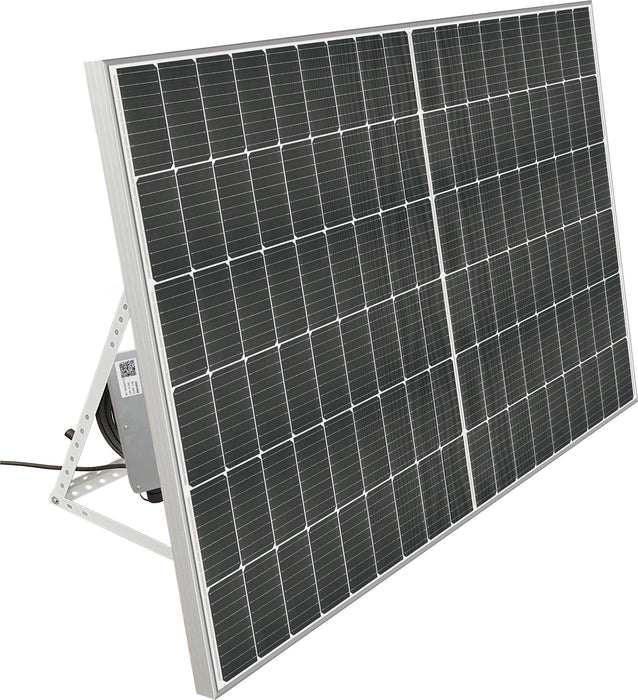

Compact solar system 800W

Compact solar system 800W

SKU SOKW0800
Save 89% Save 89%
€1.199,00
€1.199,00 - €1.199,00
€1.199,00
€129,00
€129,00 - €129,00
€129,00
Availability:
in stock, ready to be shipped
  • PayPal
  • Apple Pay
  • Bancontact
  • EPS
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • WiFi and APP control of the balcony power plant
  • Display of daily and total generated electricity in kWh
  • Current DC input and AC output
  • Display of the inverter temperature
  • Can be switched on/off online
  • 30-year guarantee on linear power output

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

The SCHWAIGER mini solar system, which is connected to the power grid of the house or apartment with a Schuko plug.

With the compact solar system, everyone who has a balcony or terrace has the opportunity to actively and responsibly participate in the process of sustainable electricity generation and to create their own personal
to make a significant contribution to the energy transition.


Buy a SCHWAIGER solar system, set it up, plug it into the socket, done! It's that easy to generate your own green electricity

PV modules 2x monocrystalline PV module (400-415 W)
type Monocrystalline Perc 182 x 91 mm
number of cells 2x 108 (6x18)
dimension 2x 1722 x 1134 x 35 mm
front 3.2 mm tempered glass with anti-reflective coating
Frame aluminum
IP protection class / location IP68 / outdoor area
Efficiency High module efficiency through innovative half-cut cell design and multi-busbar (MBB) cell technology
Color silver, blue
Weight 21.5 kg (per PV panel)
connection cable 5m
Inverter
Operating temperature range -20° C to +50° C
Size (L x W x H) 283 mm x 200 mm x 41.6 mm
Net weight 1.46 kg
IP protection class / location IP65 / outdoor
heat dissipation mode self-cooling
WiFi Info 2.4 Ghz / 802.11 b/g/n
power transmission mode reverse transmission, loading priority
System information available Smartphone app
Input parameters @ 120 V
Maximum input power 2x 415 W
output voltage mode 120/230 V
Automatic changes
PV open circuit voltage 33-60 V DC
operating voltage range 22-60 V
starting voltage 22-60 V
short-circuit current 2x 18.0 A
Maximum operating current 2x 16.0 A
Output parameters @ 120 V @ 230 V
peak output power 800 watts 800 watts
output current 85 - 160 V AC 180 - 265 V AC
AC voltage range 48~51 / 58~61 Hz 48~51 / 58~61 Hz
AC frequency range >95% >95%
power factor >95% >95%
Static MPPT efficiency 99.5%
Maximum efficiency 95%
electricity at night <0.5 W
current overshoots <5%
scope of delivery 2x solar panels á 415 Wp
1x inverter for 800 W / WiFi controllable
1 x Schuko connection cable 5 m

Mounting material:
for installation at a 30° angle on the balcony,
for stand installation e.g. in the garden
for vertical mounting on the facade
Datenblatt Produktunterlagen Icon Zu den Produktunterlagen
