Door and window sensor
SKU HGA100 532
€24,99
- Triggering the alarm by disconnecting the magnetic contacts (can be mounted on both sides)
- For securing windows or glass and sliding doors
- Large range of the radio signal
- With integrated status LED
- Supplementary product for the SCHWAIGER® wireless alarm system "Green Guard"
Sichere Zahlung
Passend dazu
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung

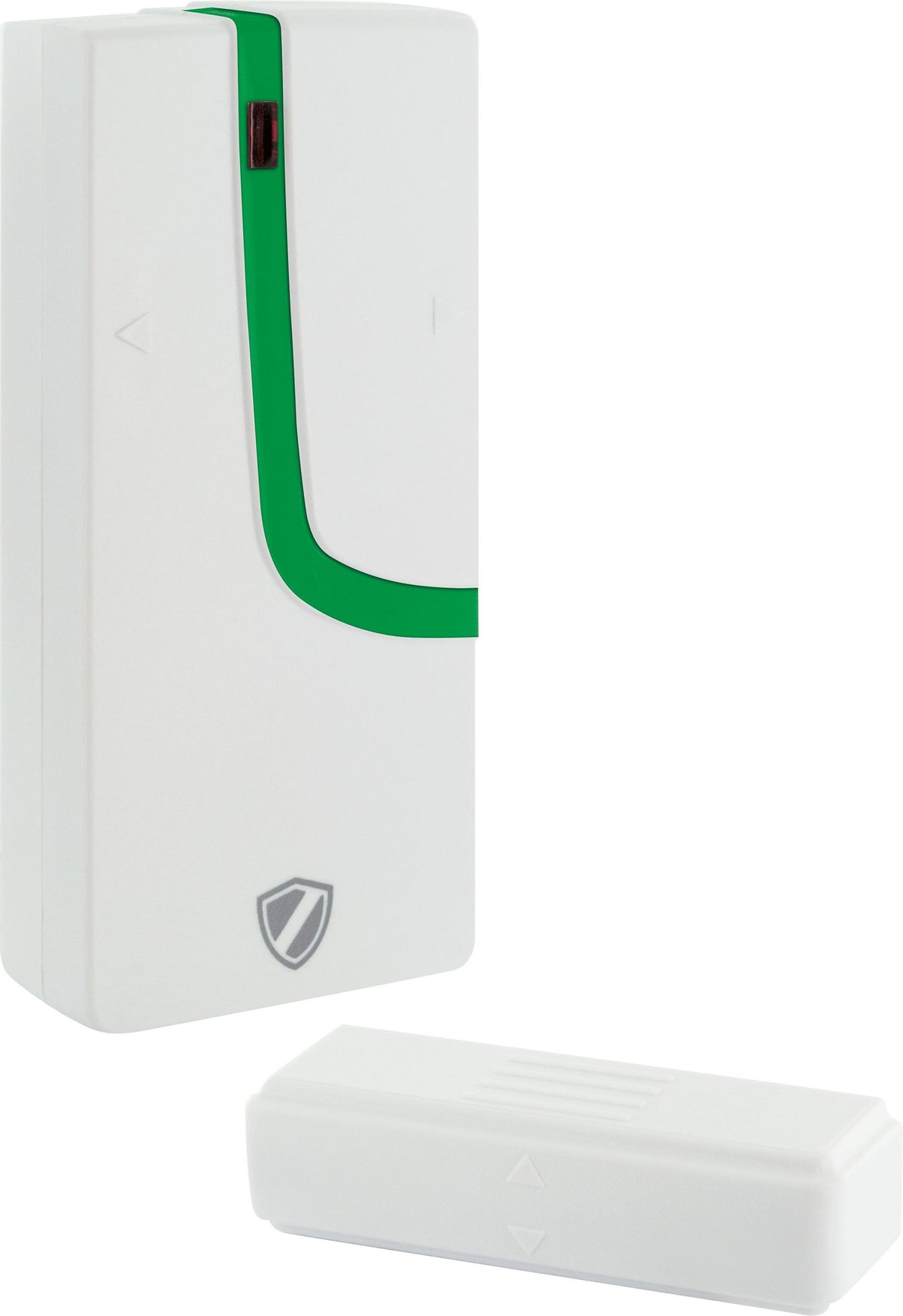

This SCHWAIGER® door and window sensor is used to protect windows, sliding or glass doors. If this is opened unauthorized, a signal is sent to the control center, which then triggers an alarm. This is to deter unauthorized persons. The door and window sensor is a supplementary product to the SCHWAIGER® wireless alarm system "Green Guard". The product only works in conjunction with a central unit (e.g. HG1000 or HG2000) and cannot be used individually.
Technische Daten
| Place of use | Indoor |

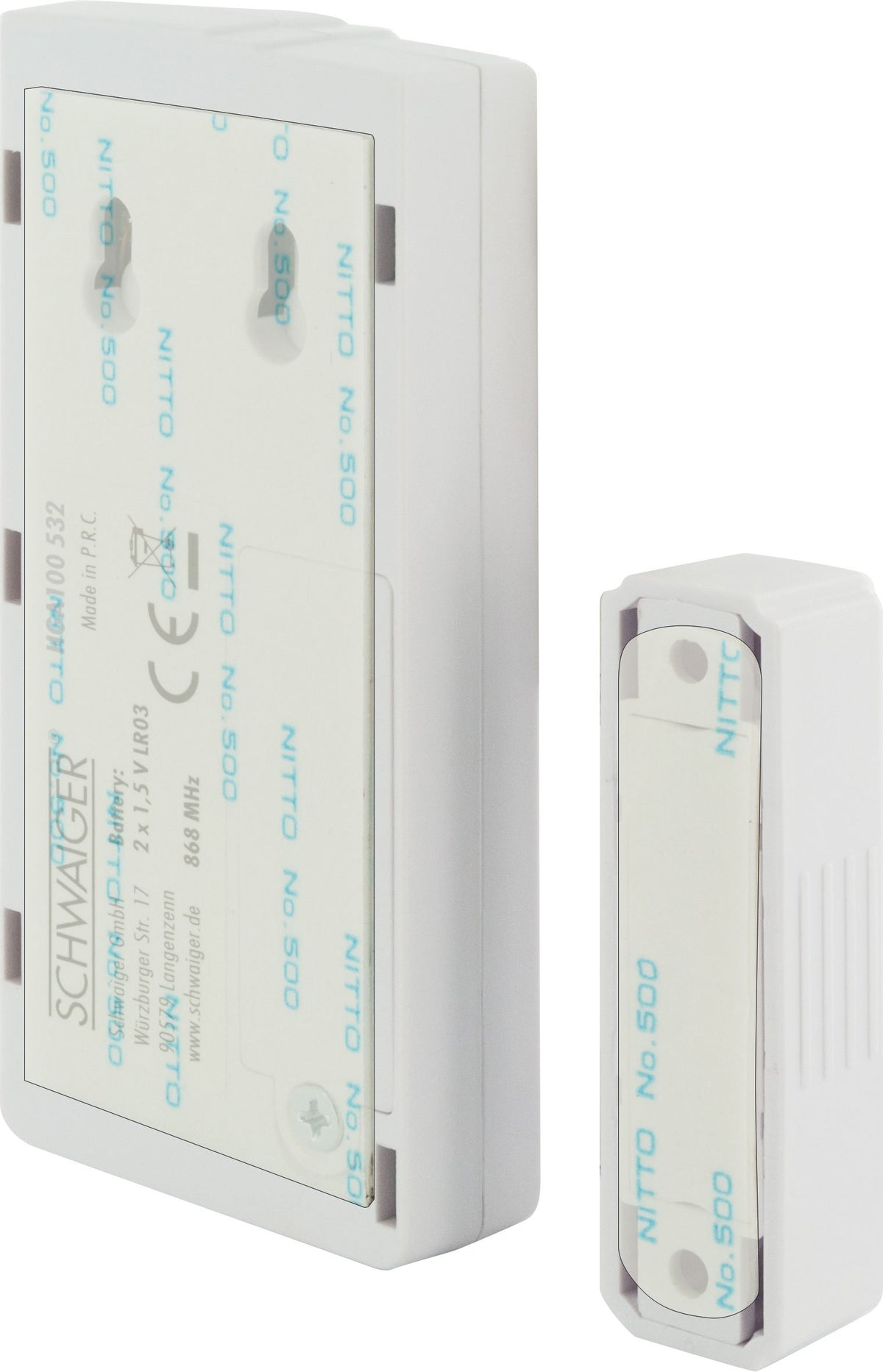

| Mounting type | with adhesive pad / screws |
| Radio frequency | 868.35 MHz (+/- 0.5 MHz) |
| Radio range | (max.) 250 m (open space) |

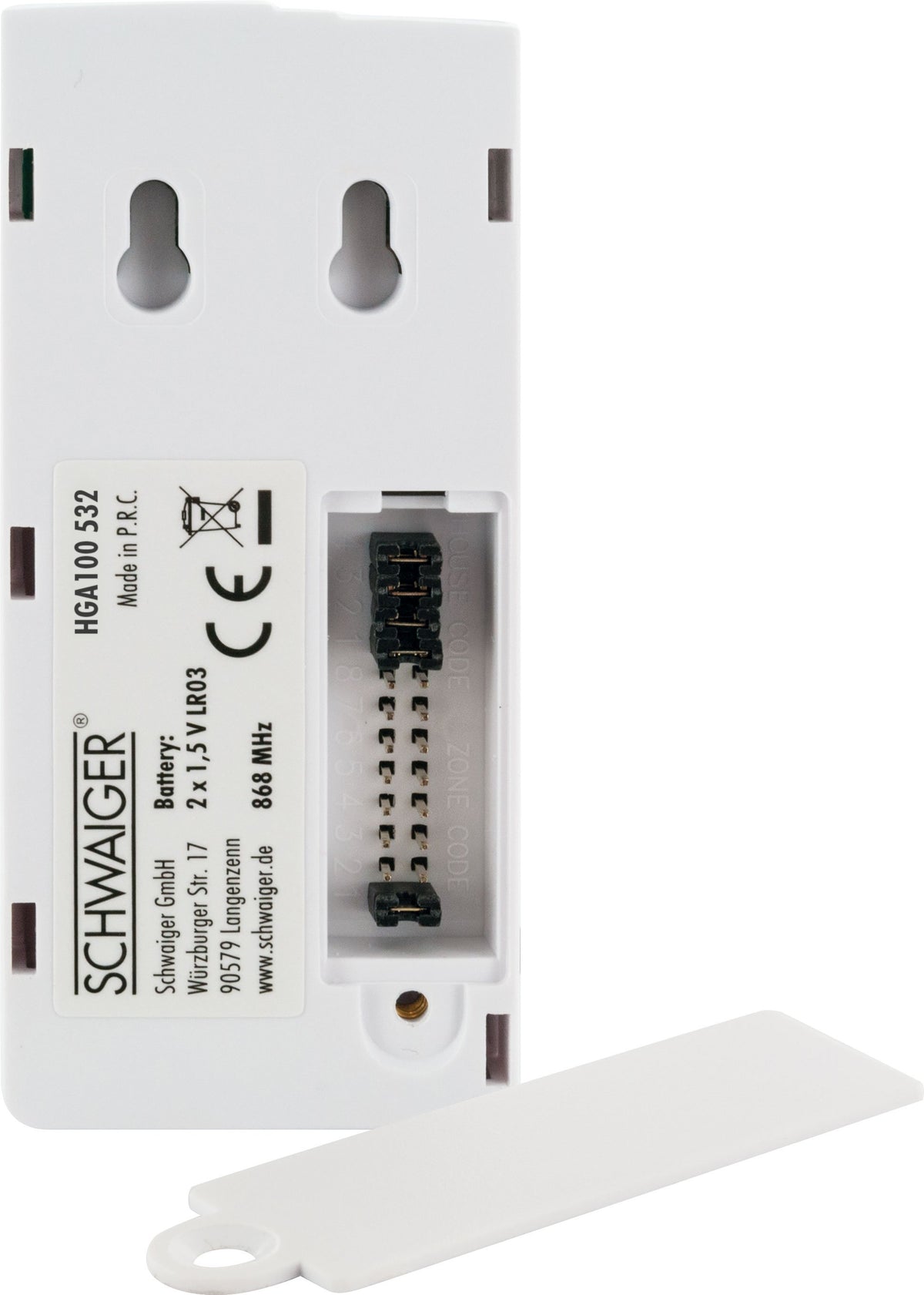

| Setting (code) | House security code: via 4-pin jumper |
| Zone code | via 8-pin jumper |

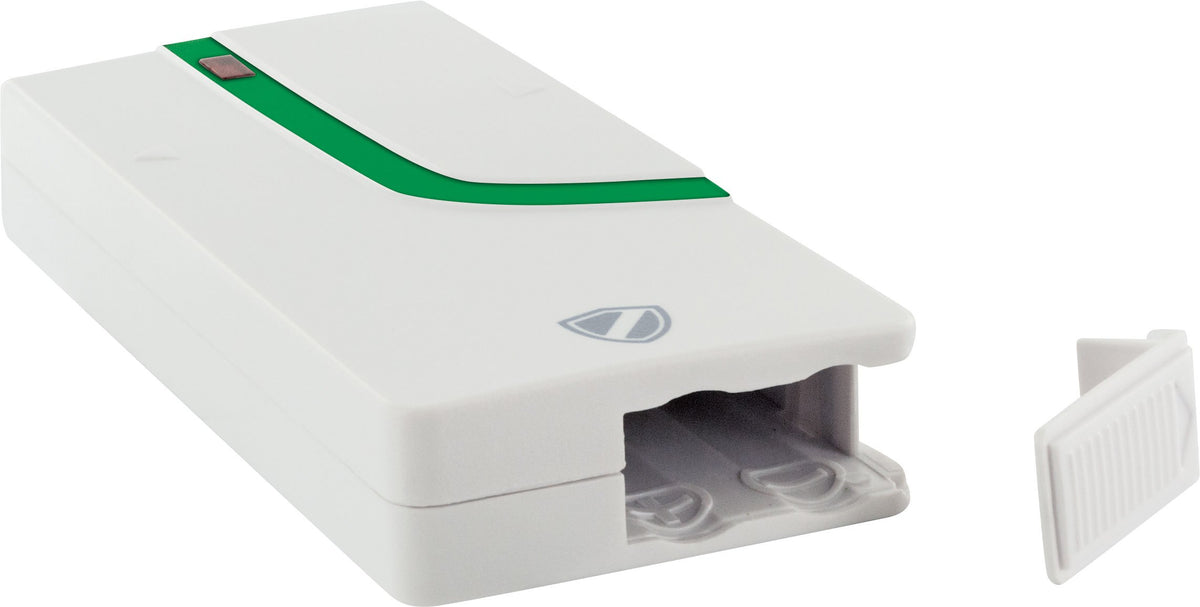

| Batteries | 2x LR03 (AAA) |
| Power supply | about batteries |
| Product material | plastic |
| colour | White |

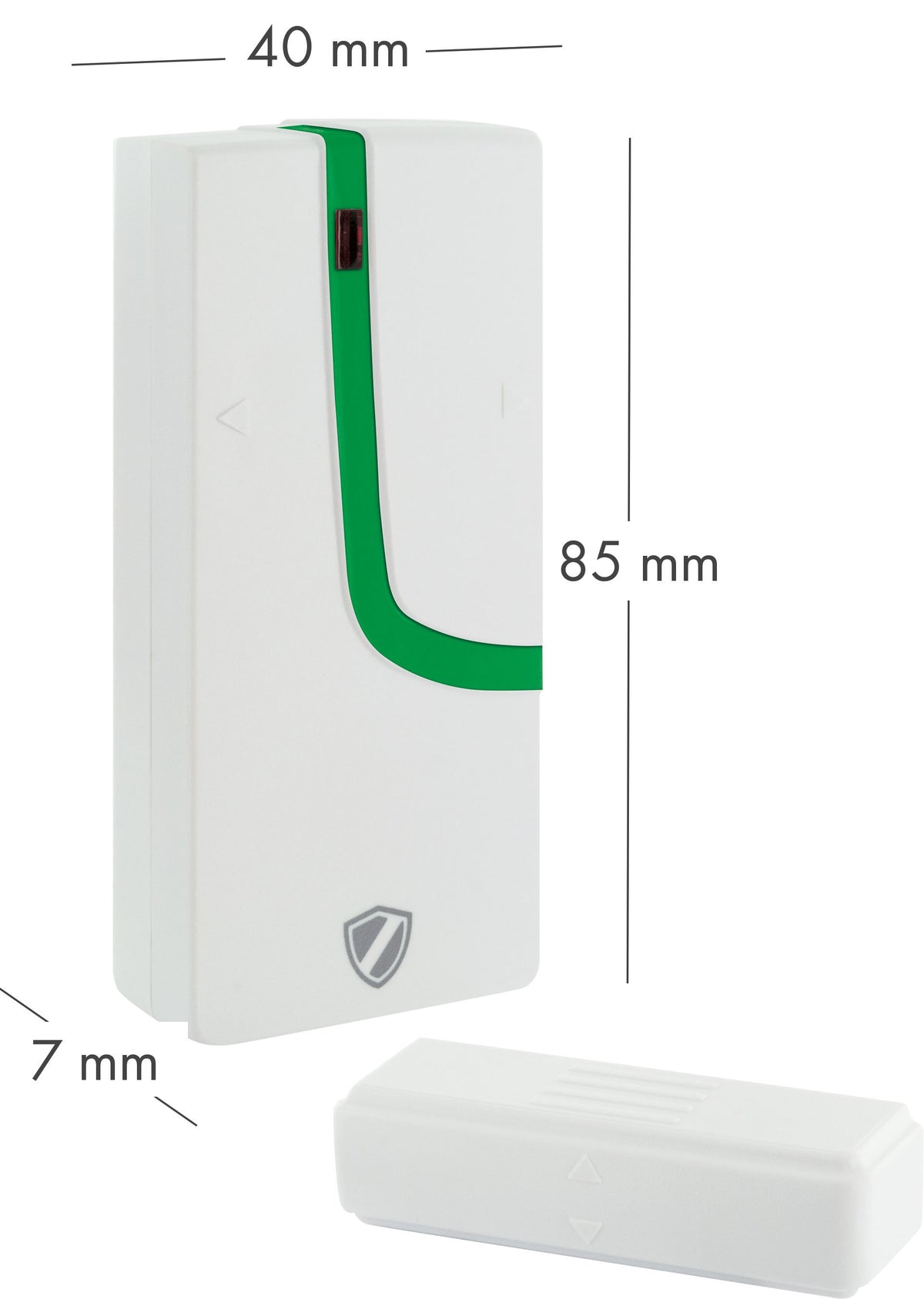

| Dimensions (width) | 40 mm |
| Dimensions (height) | 7 mm |
| Dimensions (depth) | 85 mm |
| Dimensions magnetic contact (WxHxD) | 15 x 15 x 55 mm |
| scope of delivery | Alarm sensor, magnetic contact, assembly material, operating instructions |
