2-way plug-on distributor (broadcast)

2-way plug-on distributor (broadcast)

SKU ASV43 531
€10,49 - €10,49
€10,49
€10,49 - €10,49
€10,49
Availability:
in stock, ready to be shipped
  • PayPal
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • SOFORT
  • Union Pay
  • Visa
  • Distribution of one radio connection to two radio outputs
  • Connection of two radios possible
  • Solid metal housing for high active and passive interference immunity

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

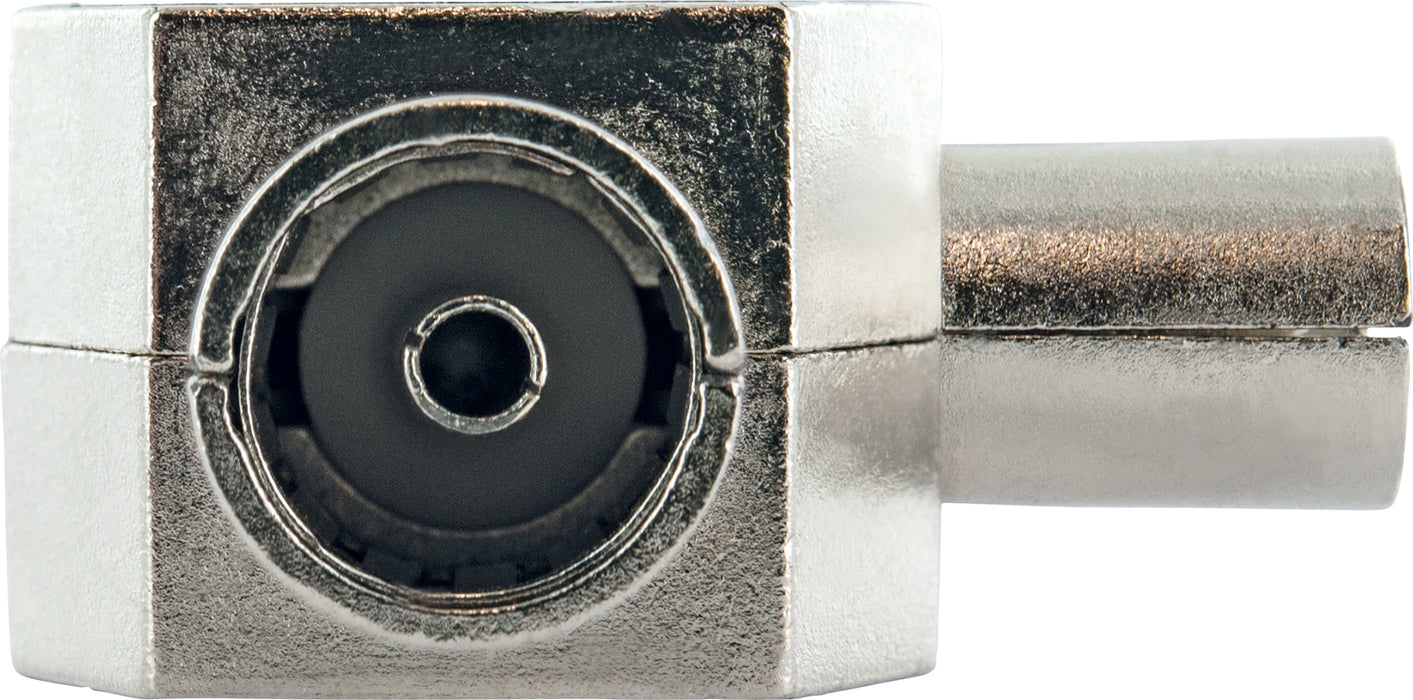

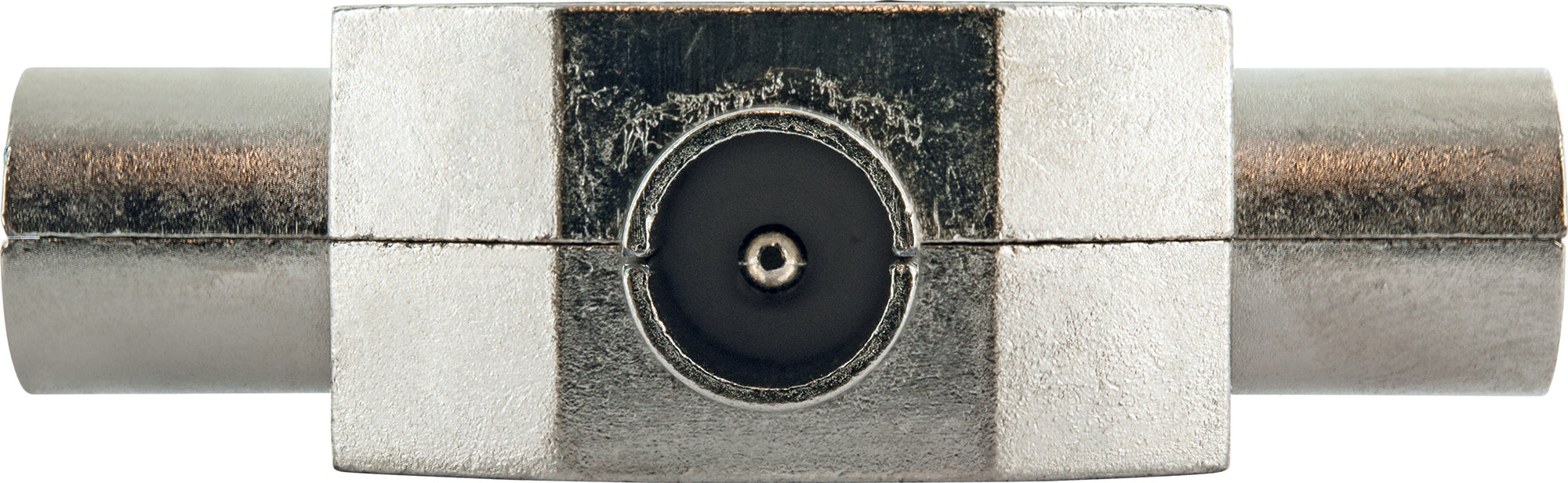

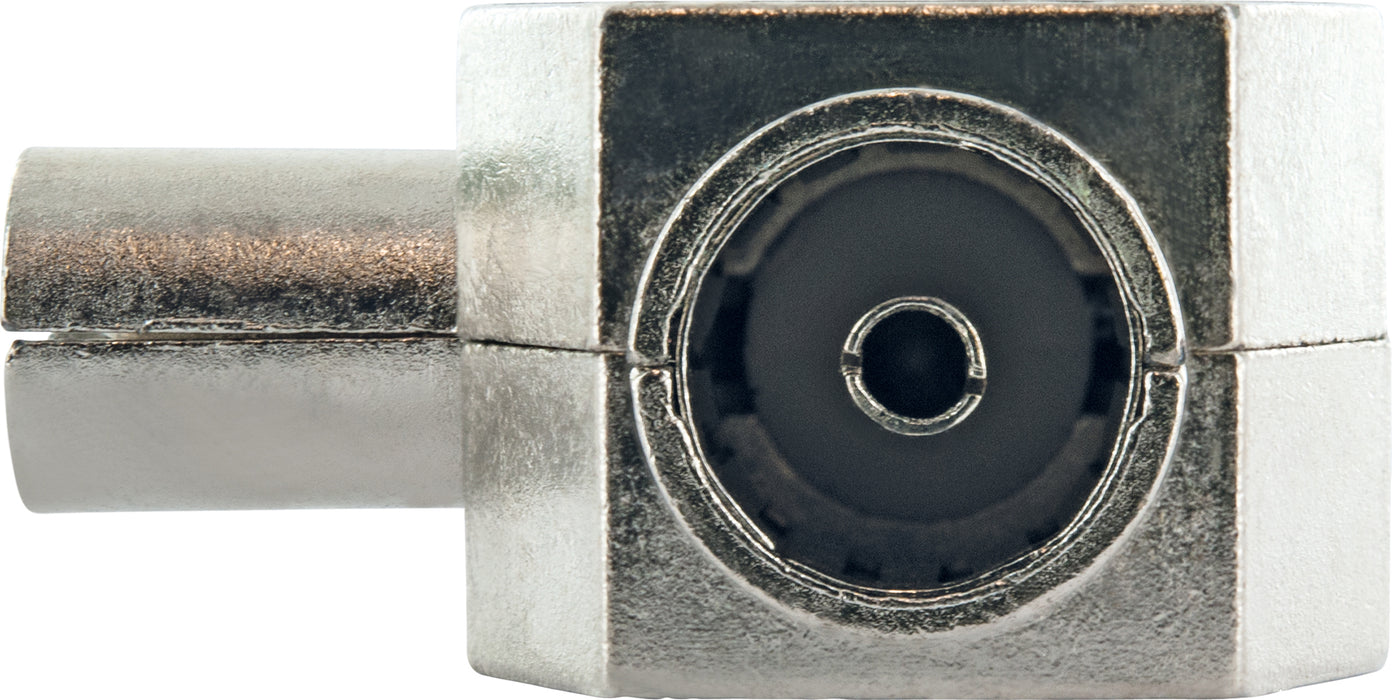

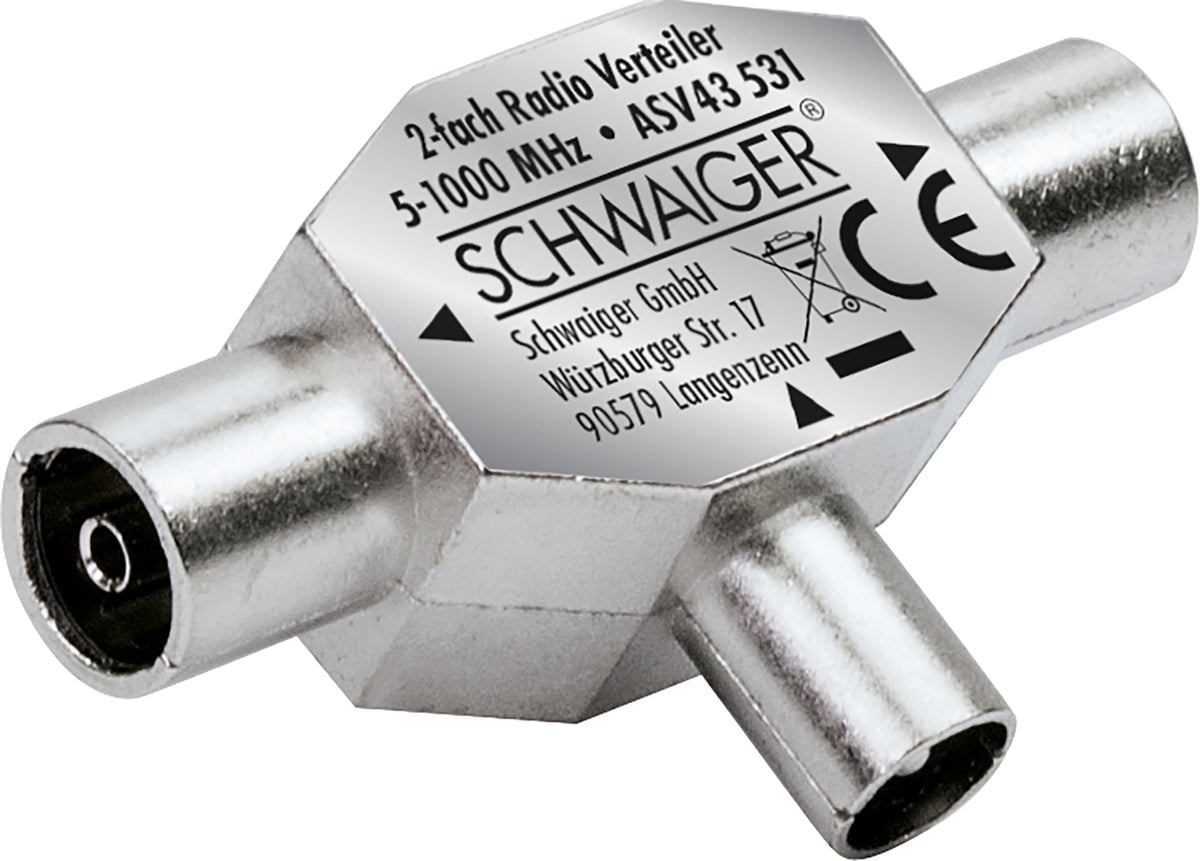

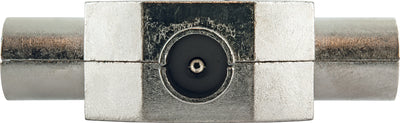

This SCHWAIGER® plug-on distributor is simply plugged into the RDF connection of an antenna socket and thus enables a second radio to be operated. The plug-on distributor consists of a robust metal housing for a high level of active and passive interference immunity.

distribution 2-way
Product material metal
Connections (input) 1 x IEC connector
Connections (output) 2 x IEC socket
Frequency range 5 - 1000 MHz
Distribution attenuation 4 dB
colour silver
Dimensions (width) 56 mm
Dimensions (depth) 35 mm
Dimensions (height) 17 mm
scope of delivery 1x connection distributor
Datenblatt
