Aluminium Offset Antenne (75 cm) Set
SKU 714630

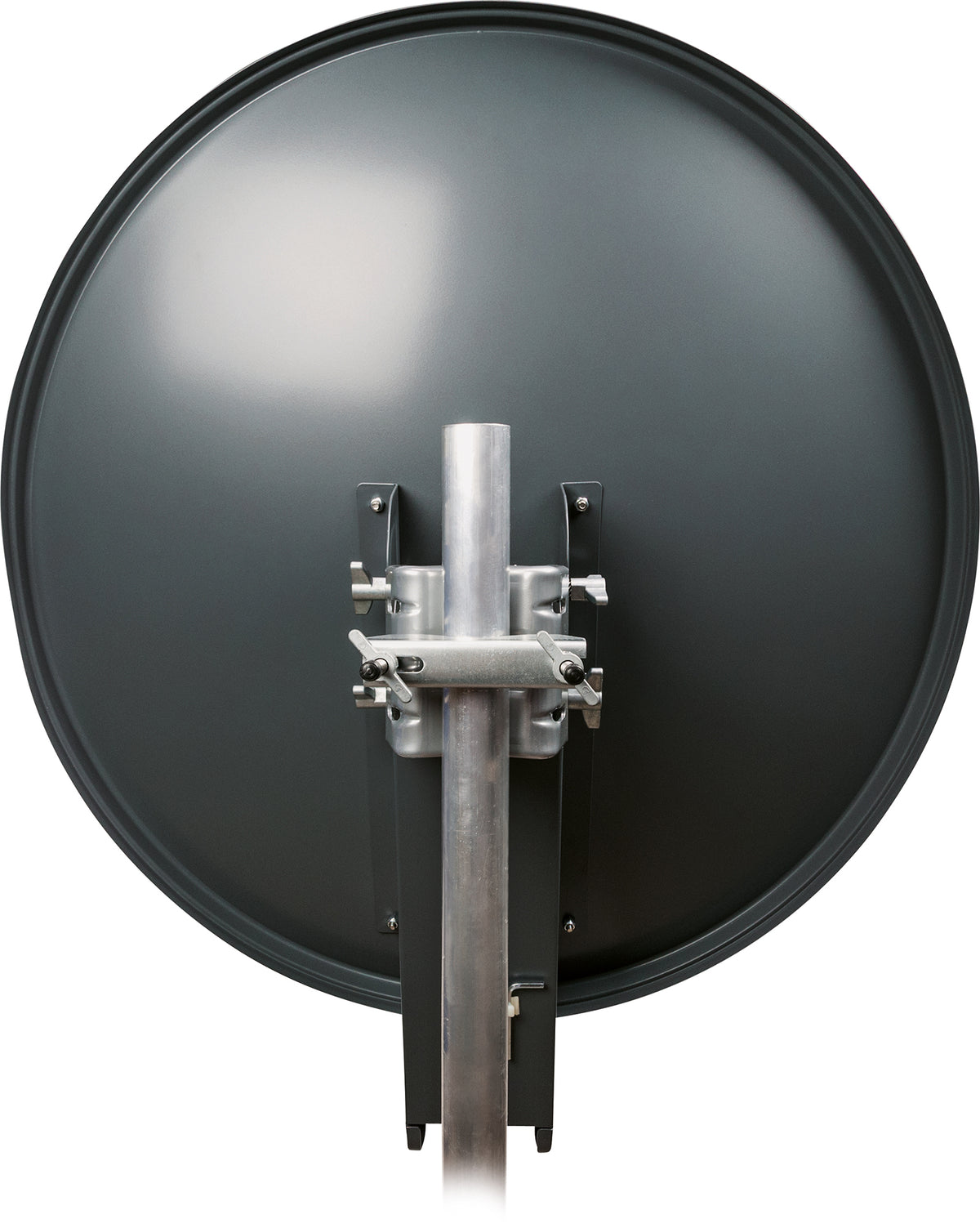

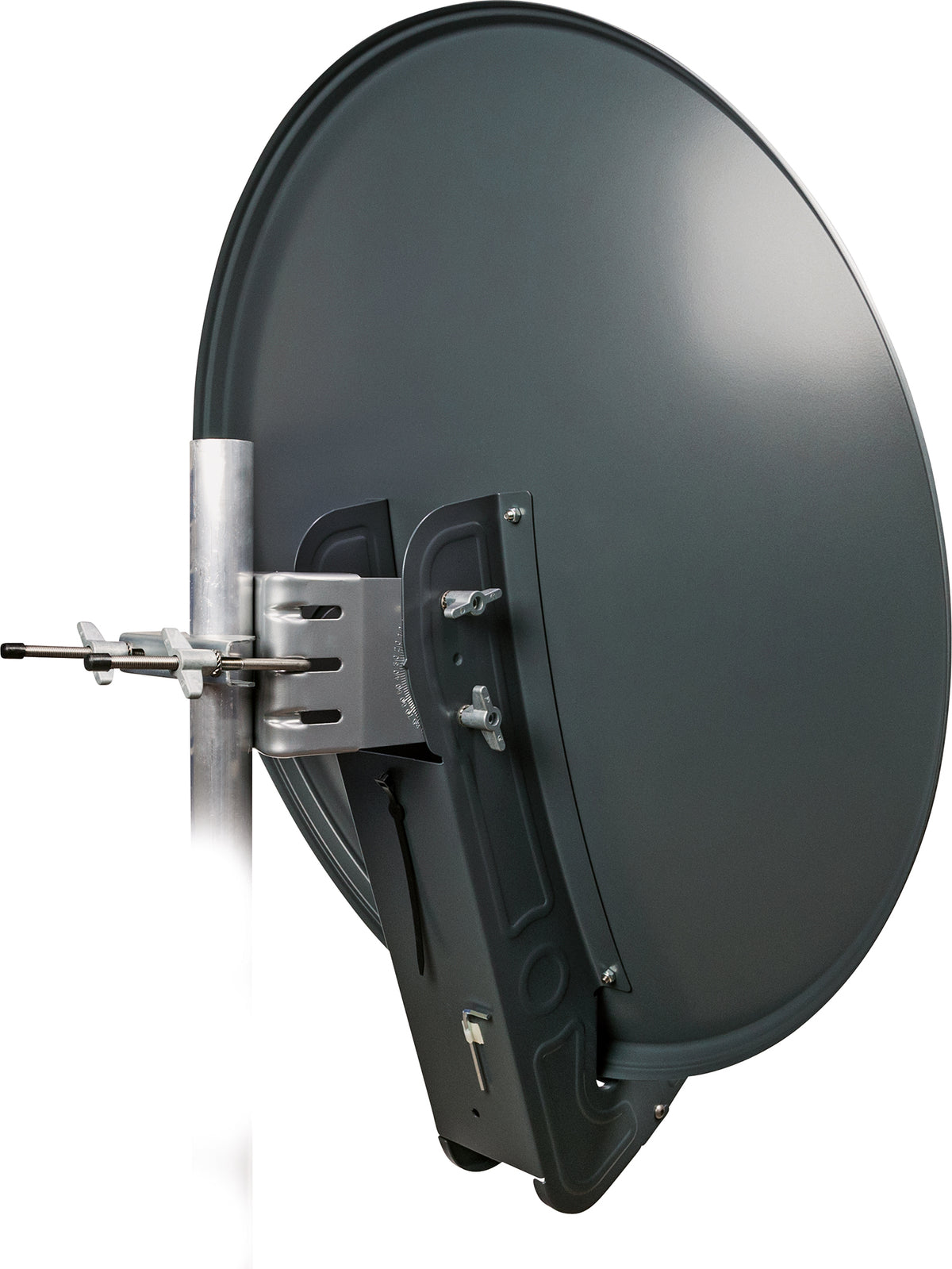

- Aluminum dish 75cm with mast mount and LNB support arm

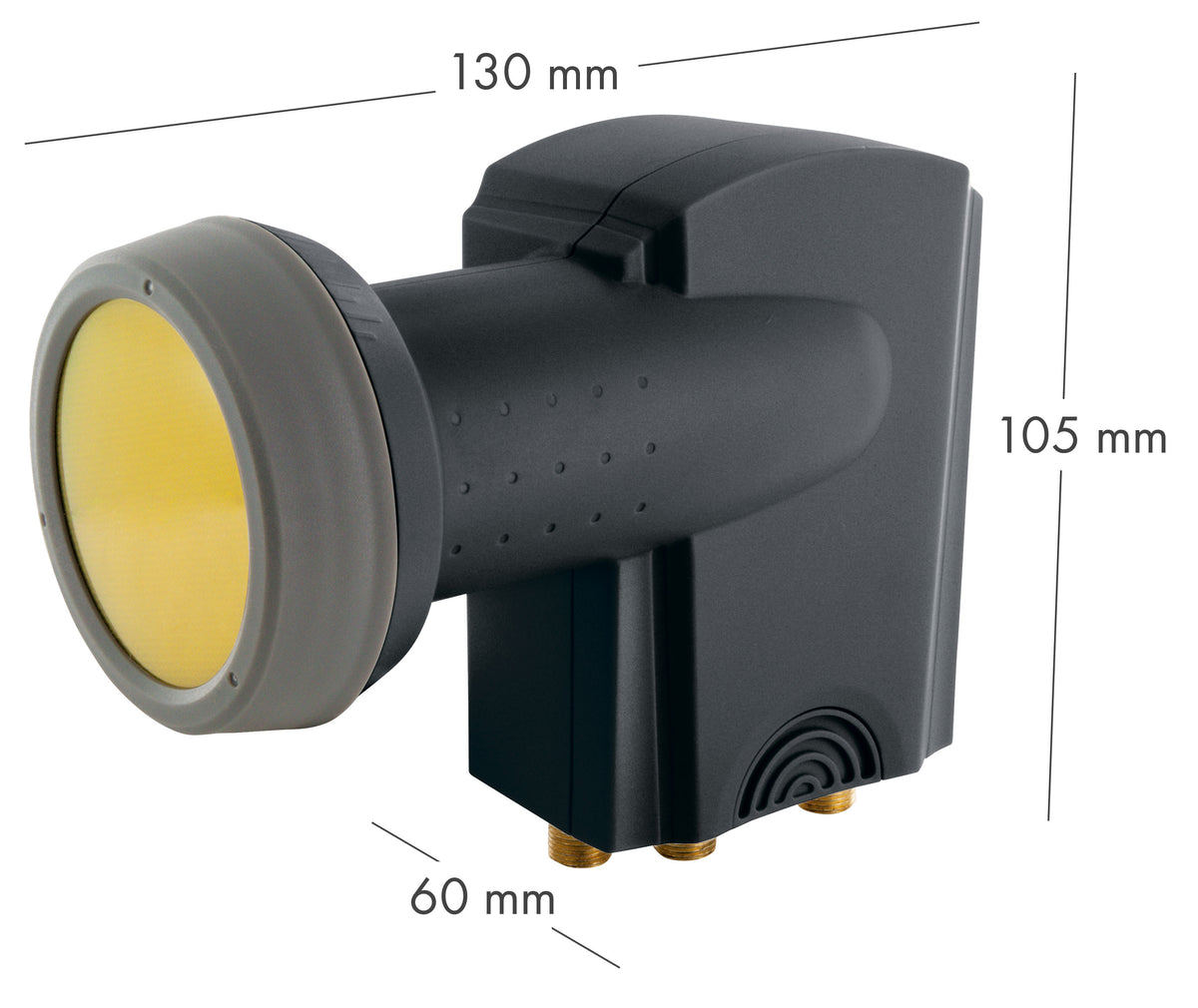

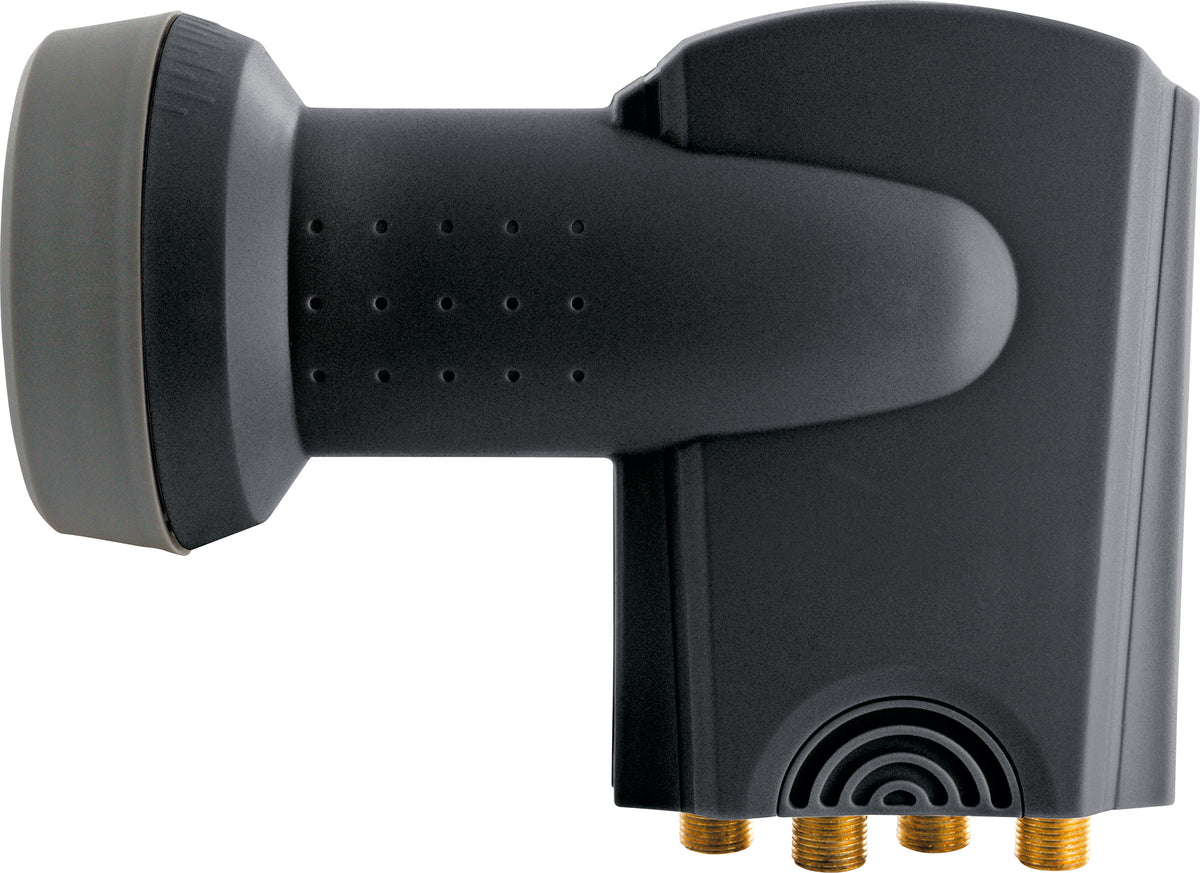

- Quad LNB (no multiswitch required) with weather protection cover
- For reception of all free and encrypted television and radio programs
- durability in extreme weather conditions

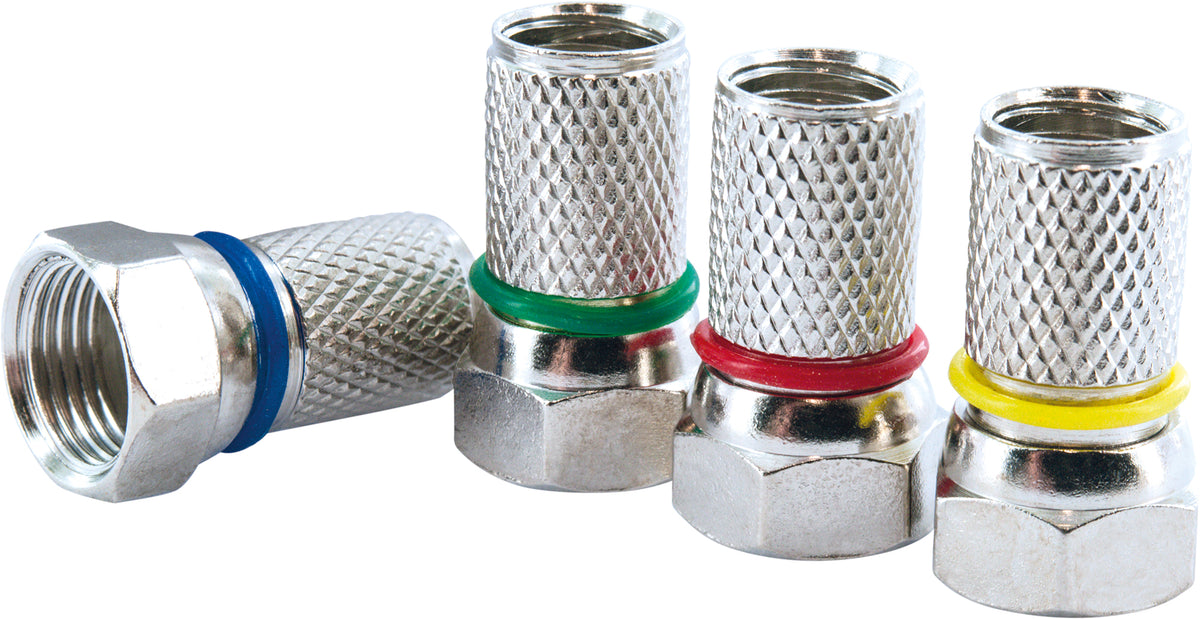

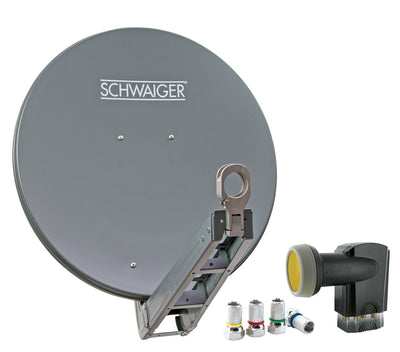

- Scope of delivery: Aluminium offset antenna, Quad LNB, mast mount, mounting accessories, 2 x 4 colour-coded F-connectors
Sichere Zahlung
Passend dazu
Aluminium Offset Antenne (75 cm) Set
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produkt Details

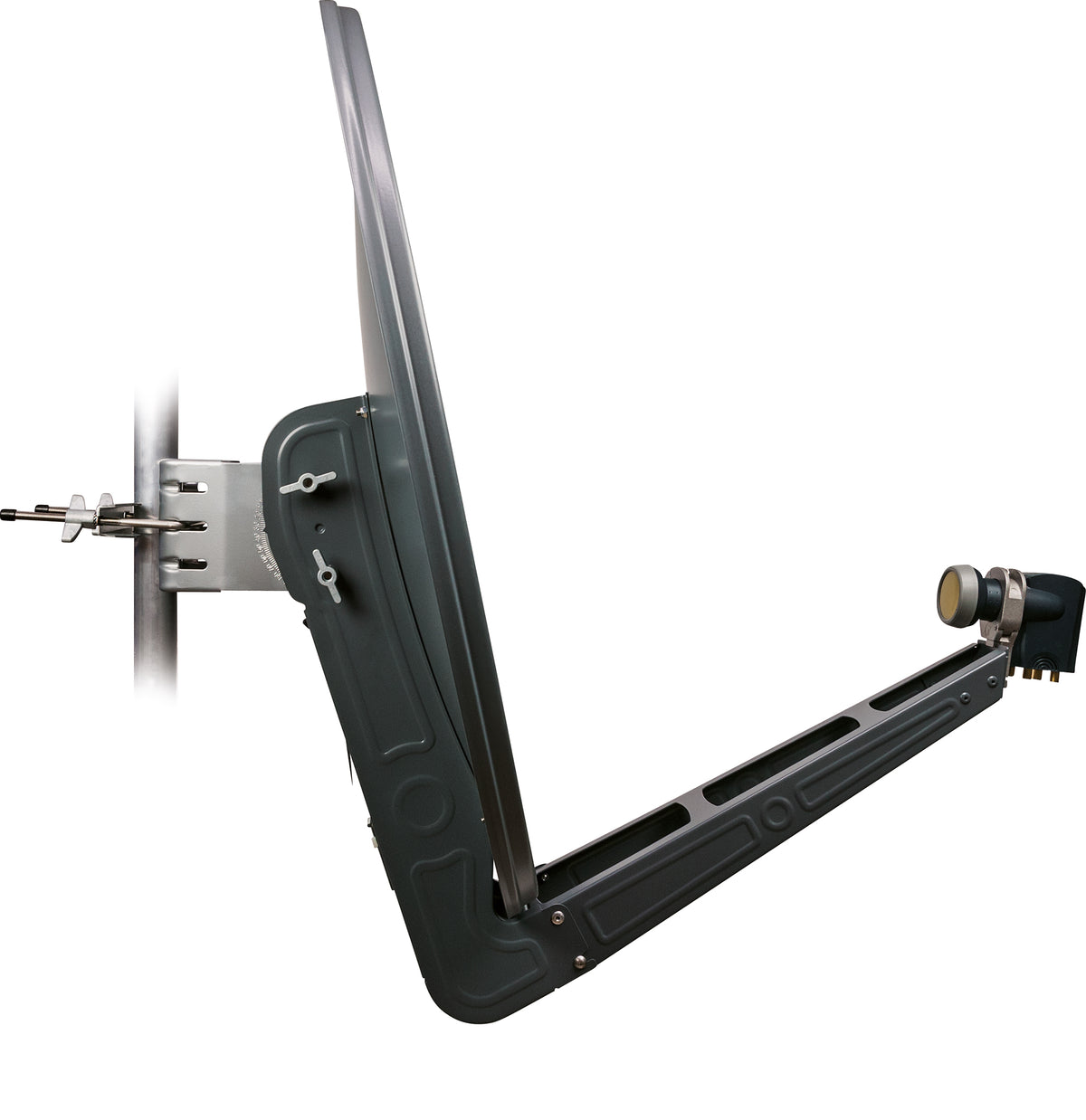

With this SCHWAIGER® offset antenna SET, all free and encrypted television and radio programs can be received via satellite. Thanks to the size of the offset antenna, there is a very good reception reserve in bad weather such as rain or snow. The LNB double support arm and the back part are coated in the respective reflector color. A special feature of this offset antenna is the scale on both sides for reading the elevation setting on the LNB double support arm. You also receive an extra digital quad LNB and two F-connectors, OD: 7mm.
Beschreibung
With this SCHWAIGER® offset antenna SET, all free and encrypted television and radio programs can be received via satellite. Thanks to the size of the offset antenna, there is a very good reception reserve in bad weather such as rain or snow. The LNB double support arm and the back part are coated in the respective reflector color. A special feature of this offset antenna is the scale on both sides for reading the elevation setting on the LNB double support arm. You also receive an extra digital quad LNB and two F-connectors, OD: 7mm.
Technische Daten

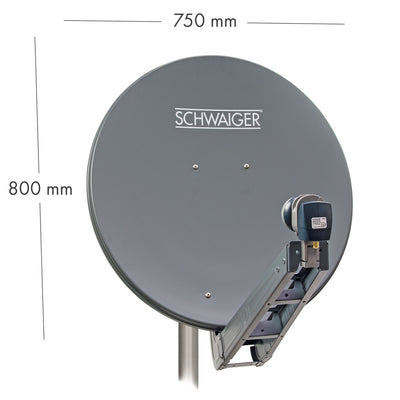

| reflector (width) | 750mm |
| reflector (height) | 800mm |
| feed intake | 40mm |
| reflector material | powder-coated aluminum |
| back material | powder-coated steel |
| LNB support arm | powder-coated steel |
| antenna gain (max.) | 38.2 dB |
| adjustment range elevation | 0 - 80° |
| offset angle | 21° |
| half-width | 2.3° |
| clamping range mast clamp | 30 - 90 mm |
| Color | anthracite (RAL7011) |
| scope of delivery | Aluminum dish, Quad LNB, 2x 4 F-connectors |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
