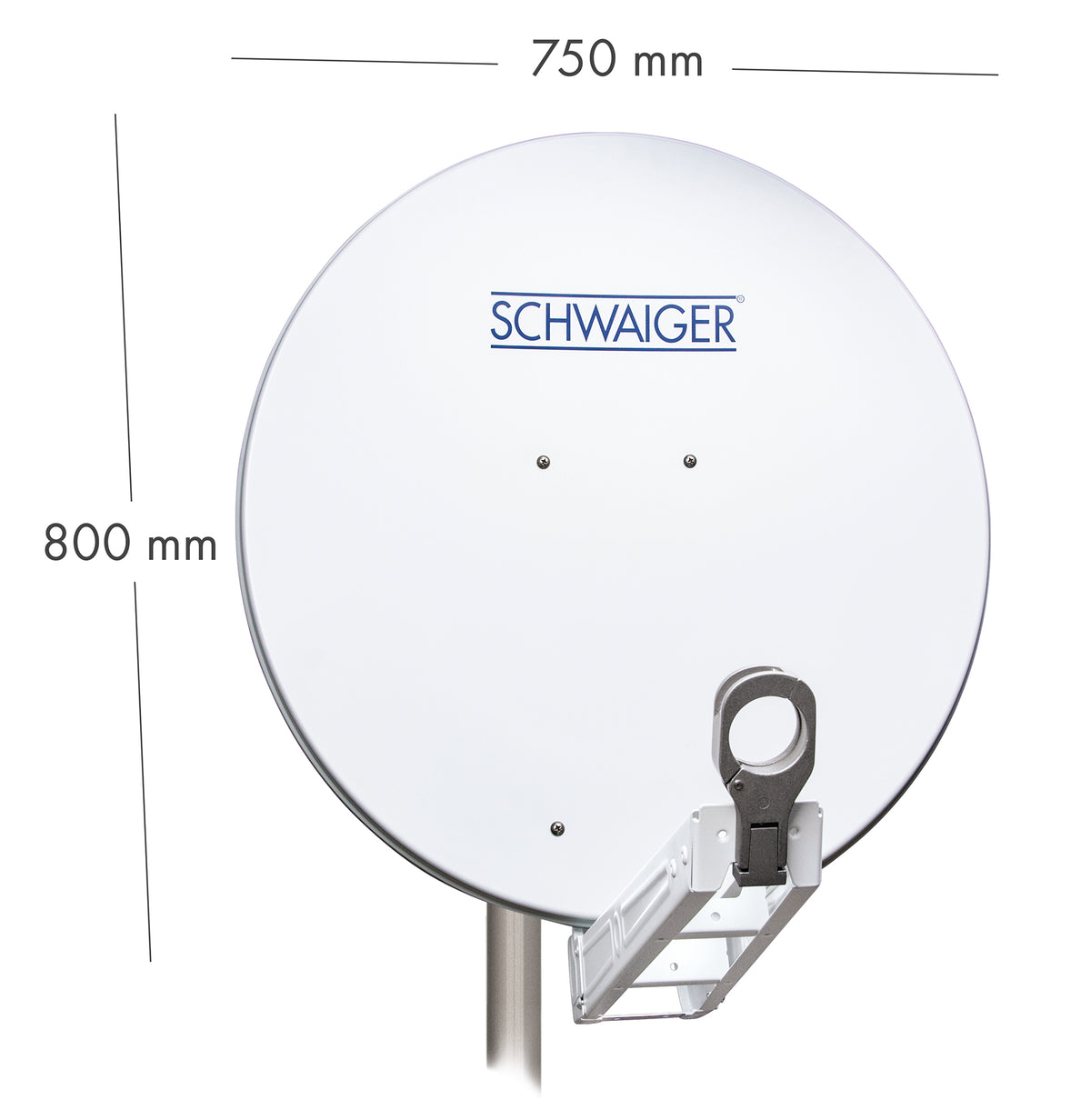

Aluminium Offset Antenne (75 cm) Set
SKU 714623
- Aluminum offset antenna with LNB support arm and integrated cable guide

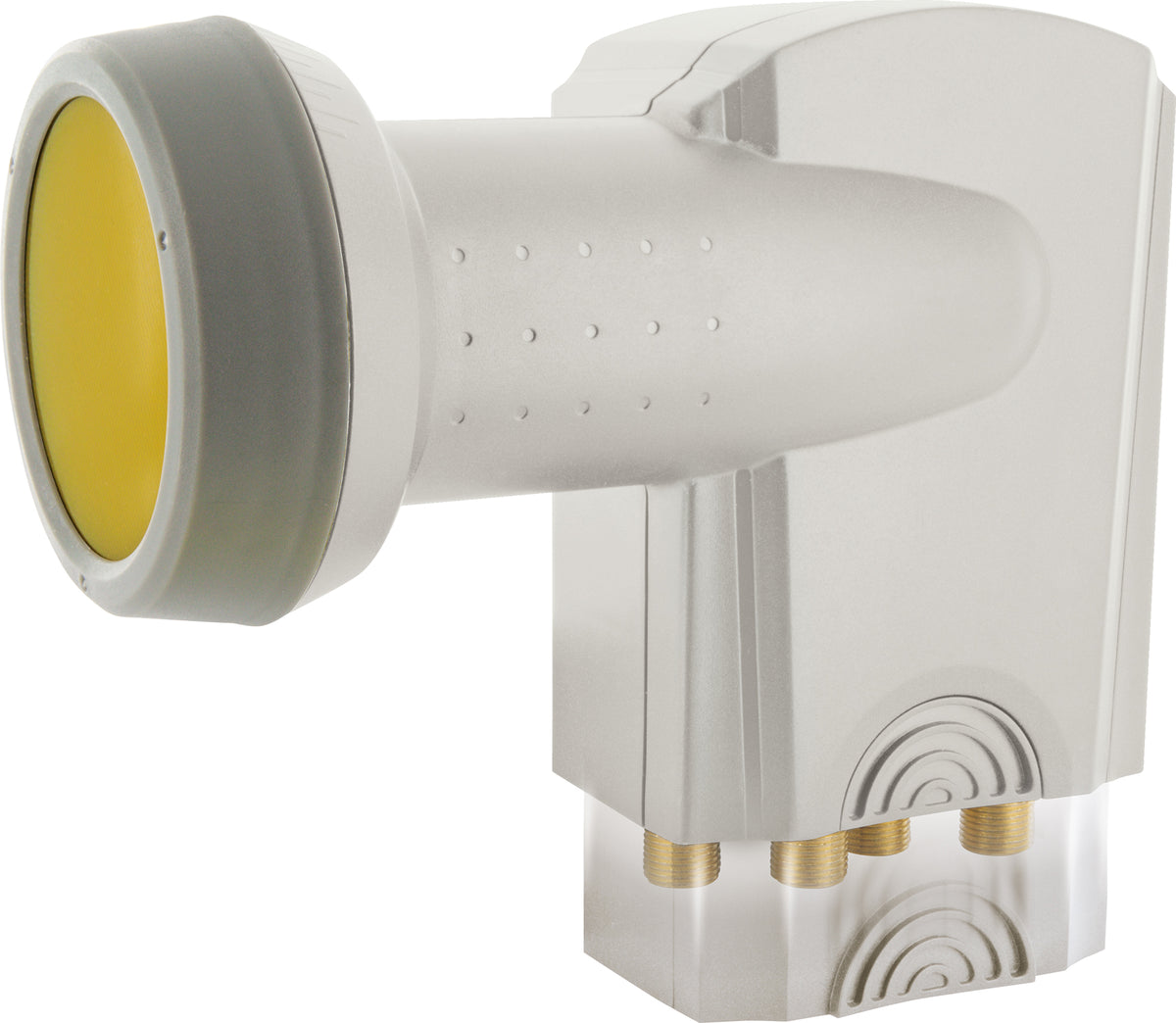

- Quad LNB (no multiswitch required) for 4 participants with extendable weather protection cover
- For the reception of all free and encrypted television and radio programs

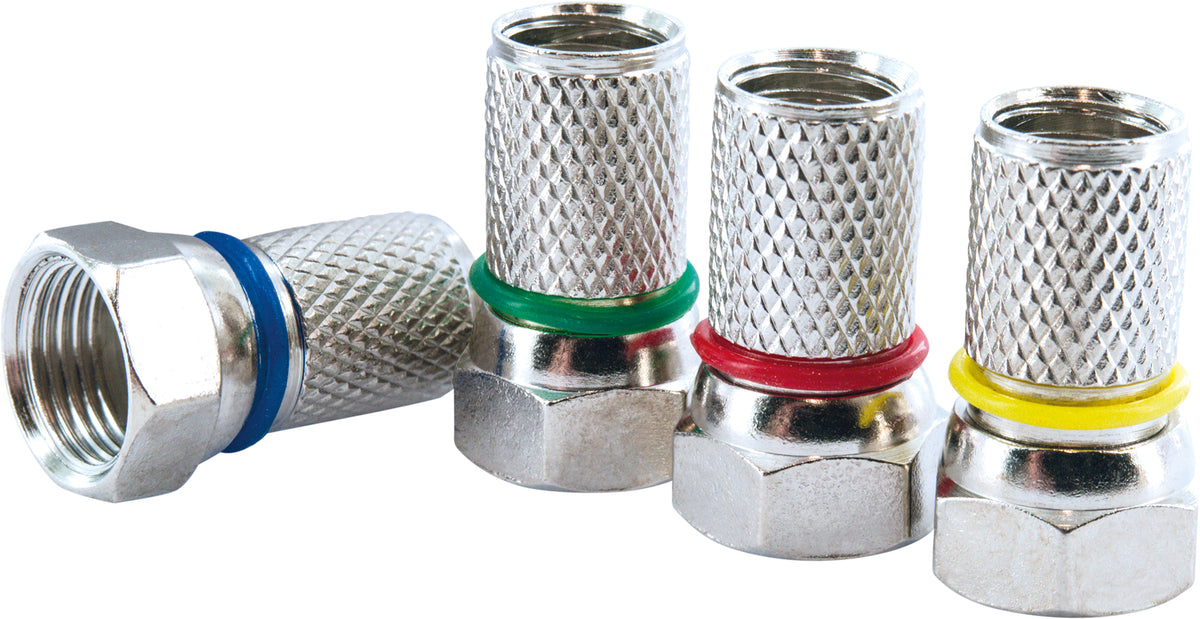

- With color-coded F-connectors for clear assignment of your cables
- Including mast mounting and mounting material
Sichere Zahlung
Passend dazu
Aluminium Offset Antenne (75 cm) Set
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produkt Details

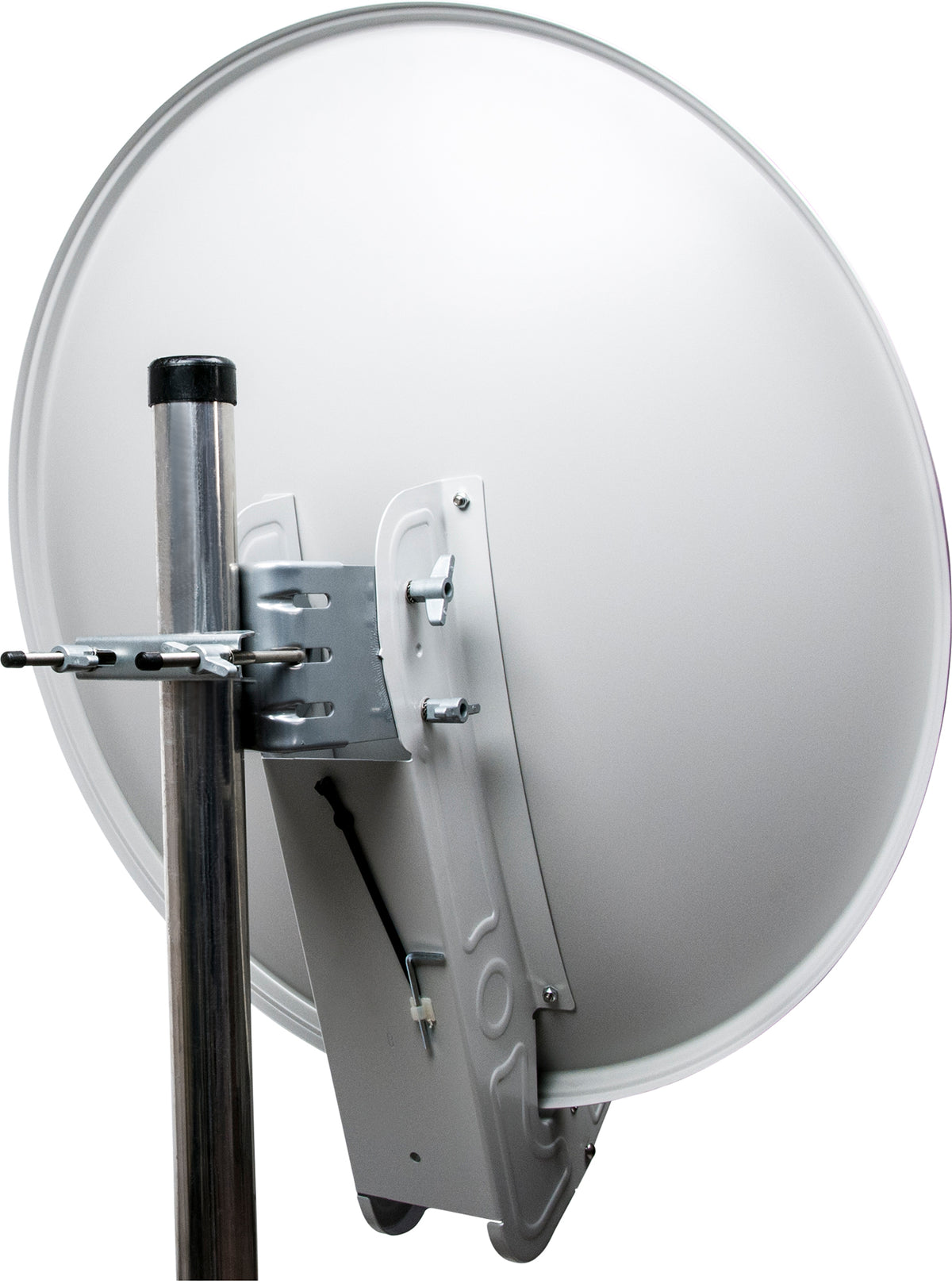

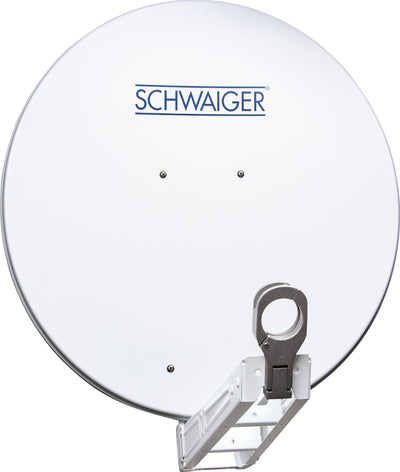

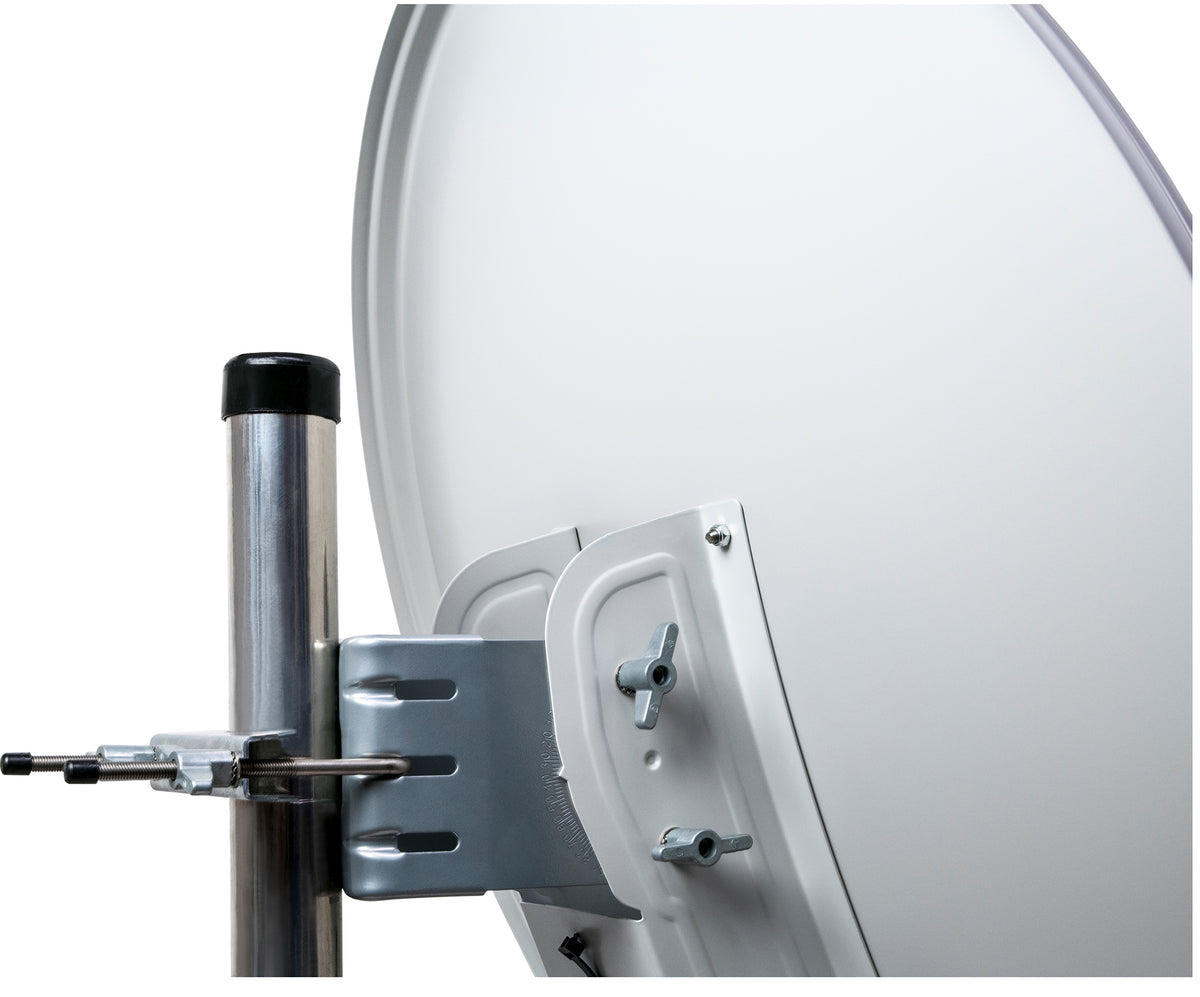

With this SCHWAIGER® offset antenna SET, all free and encrypted television and radio programs can be received via satellite. Thanks to the size of the offset antenna, there is a very good reception reserve in bad weather such as rain or snow. The LNB double support arm and the back part are coated in the respective reflector color. A special feature of this offset antenna is the scale on both sides for reading the elevation setting on the LNB double support arm. You also receive an extra digital quad LNB and two F-connectors, OD: 7mm.
Beschreibung
With this SCHWAIGER® offset antenna SET, all free and encrypted television and radio programs can be received via satellite. Thanks to the size of the offset antenna, there is a very good reception reserve in bad weather such as rain or snow. The LNB double support arm and the back part are coated in the respective reflector color. A special feature of this offset antenna is the scale on both sides for reading the elevation setting on the LNB double support arm. You also receive an extra digital quad LNB and two F-connectors, OD: 7mm.
Technische Daten
| offset antenna | |
| Quality | ULTIMATE |
| Antenna type | reflector |
| reflector (width) | 750mm |
| reflector (height) | 880mm |
| Frequency range | 10.7 - 12.75 GHz |
| feed intake | 40mm |
| material reflector | powder-coated aluminum |
| material back part | powder-coated steel |
| Material mast holder | powder-coated steel |
| Material LNB bracket | Weather-resistant die-cast aluminum |
| Material LNB support arm | powder-coated steel |
| antenna gain (max.) | 38.2 dB |
| adjustment range elevation | 0 - 80 ° |
| offset angle | 21 ° |
| clamping range mast clamp | 30 - 90 mm |
| half-width | 2.3 ° |
| number of mast clamps/brackets | 1 |
| Color | light gray (RAL7035) |

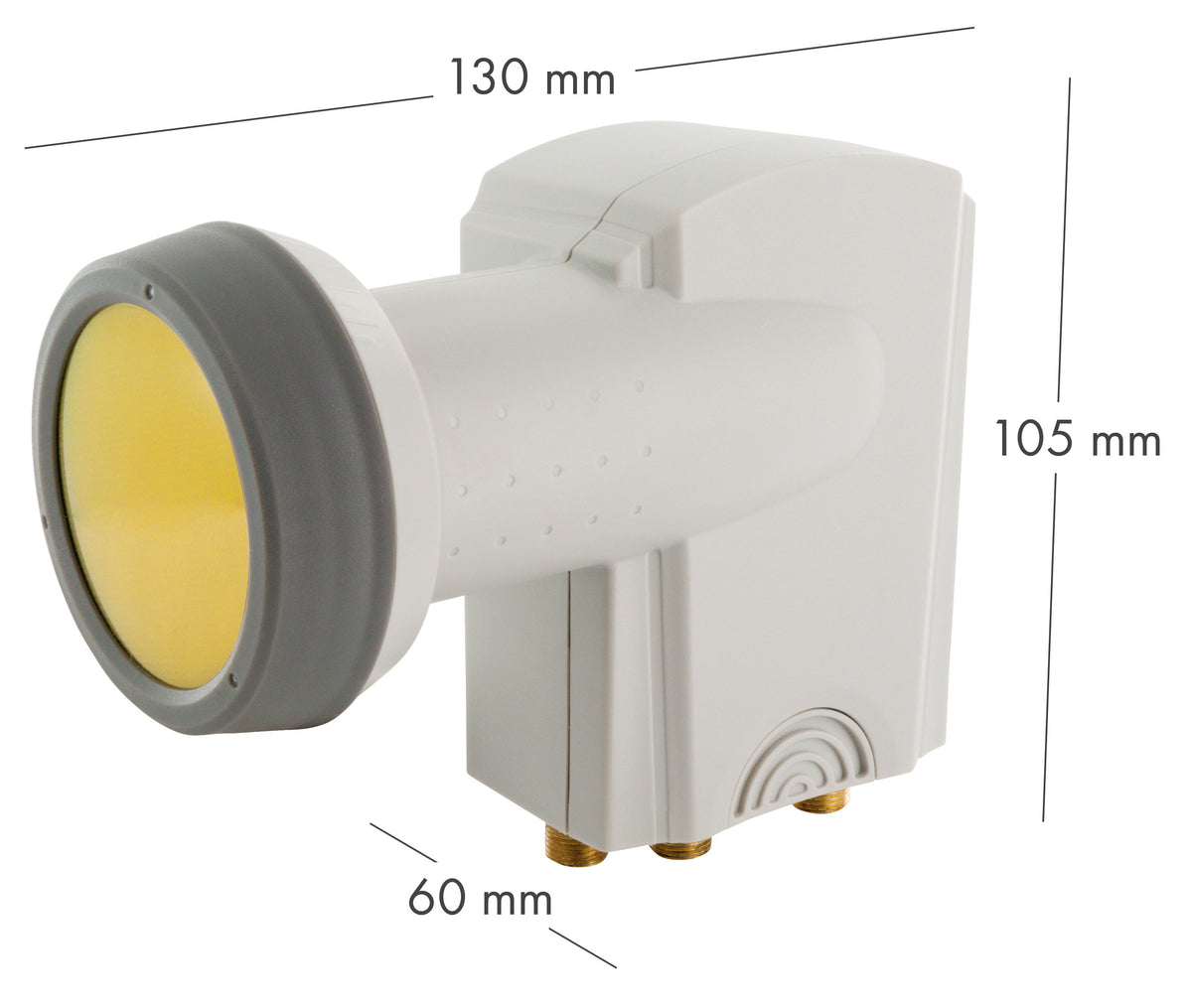

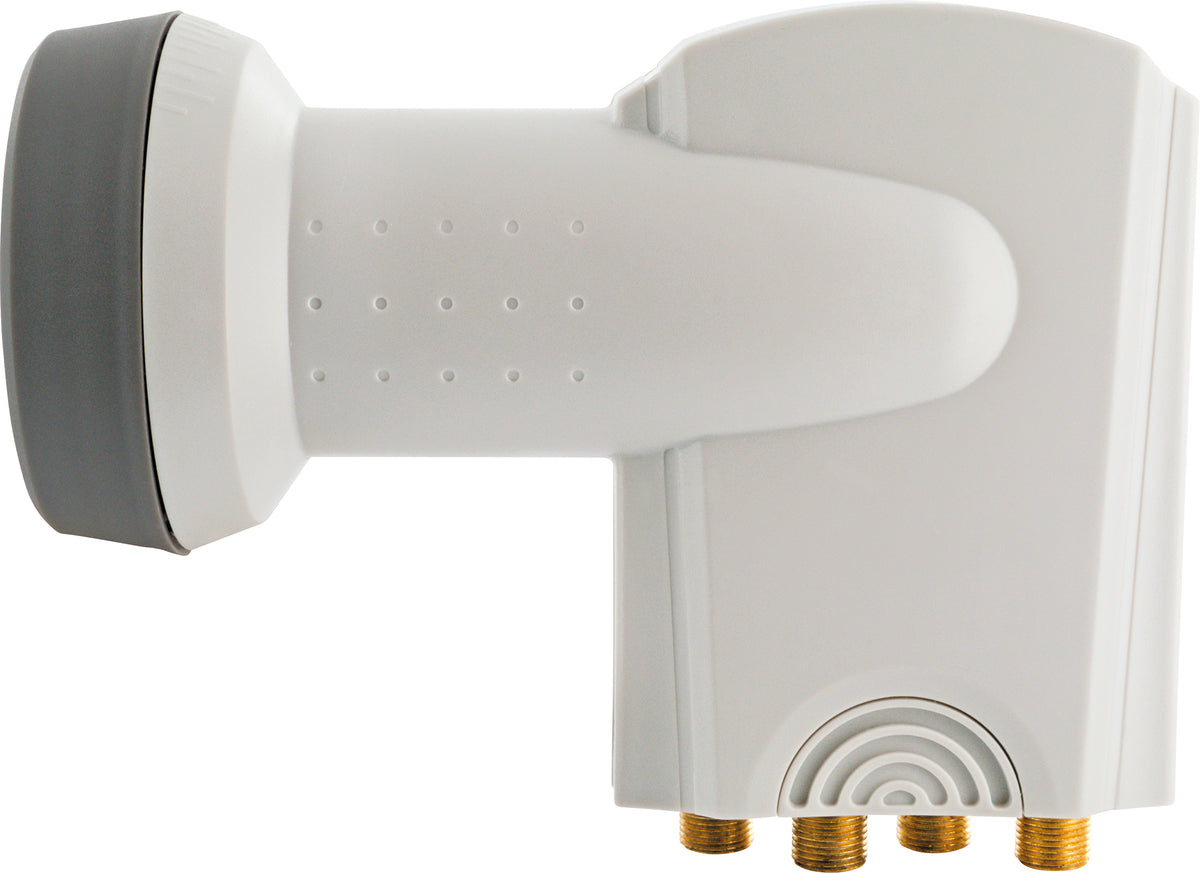

| LNB | |
| Quality | ULTIMATE |
| Connections | 4x F-socket |
| Plug | gold-plated metal |
| input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| output frequency | 950 - 2,150 MHz |
| decoupling | > 25 dB |
| oscillation frequency | 9.75 GHz (low) 10.6 GHz (high) |
| reinforcement (typical) | > 55 dB |
| control function | 0 kHz (low) 22 kHz (high) |
| Power supply | vertical: 10.5 - 14.0 V horizontal: 16.0 - 19.0 V |
| power consumption | typ. < 220 mA |
| feed intake | 40mm |
| product material | plastic weather-resistant |
| Color | Light grey |
| F-screw connector | |
| Quality | STANDARD |
| outer diameter | 7mm |
| Color | Silver |
| Contents (package) | 4 |
| Packaging | Cardboard |

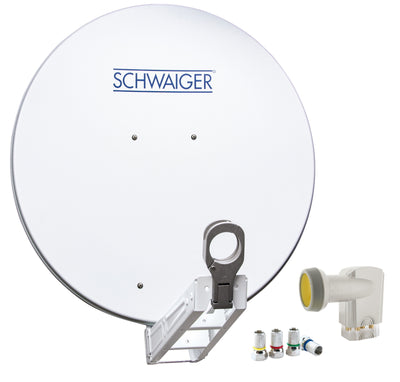

| scope of delivery | Aluminum offset antenna, quad LNB, mast mount, mounting accessories, 2 x 4 color-coded F-connectors |
