Aluminium Offset Antenne (80 cm) Set

Aluminium Offset Antenne (80 cm) Set

SKU 714531
Save 7% Save 7%
€110,99
€110,99 - €110,99
€110,99
€102,90
€102,90 - €102,90
€102,90
Availability:
in stock, ready to be shipped
  • PayPal
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • SOFORT
  • Union Pay
  • Visa
  • Aluminium offset antenna with LNB support arm and integrated cable routing
  • Including mast mounting and mounting material
  • Quad LNB (no multiswitch required) for 4 participants with extendable weather protection cover
  • For reception of all free and encrypted television and radio programs
  • With color-coded F-connectors for clear assignment of your cables

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

This Schwaiger SAT outdoor unit consists of an aluminum offset antenna and a quad LNB. The outdoor unit is suitable for setting up a 4-person satellite system. The aluminum offset antenna enables reception of all free and encrypted TV and radio programs via satellite. The quad LNB ensures that all programs can be received in digital quality. The set includes the appropriate mast holder and the corresponding mounting accessories. The mast holder is already pre-assembled. The individual components ensure very good reception in all seasons.

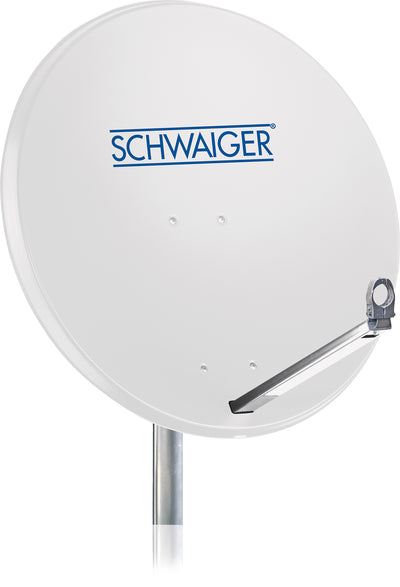

offset antenna
Quality PROFESSIONAL
Antenna type reflector

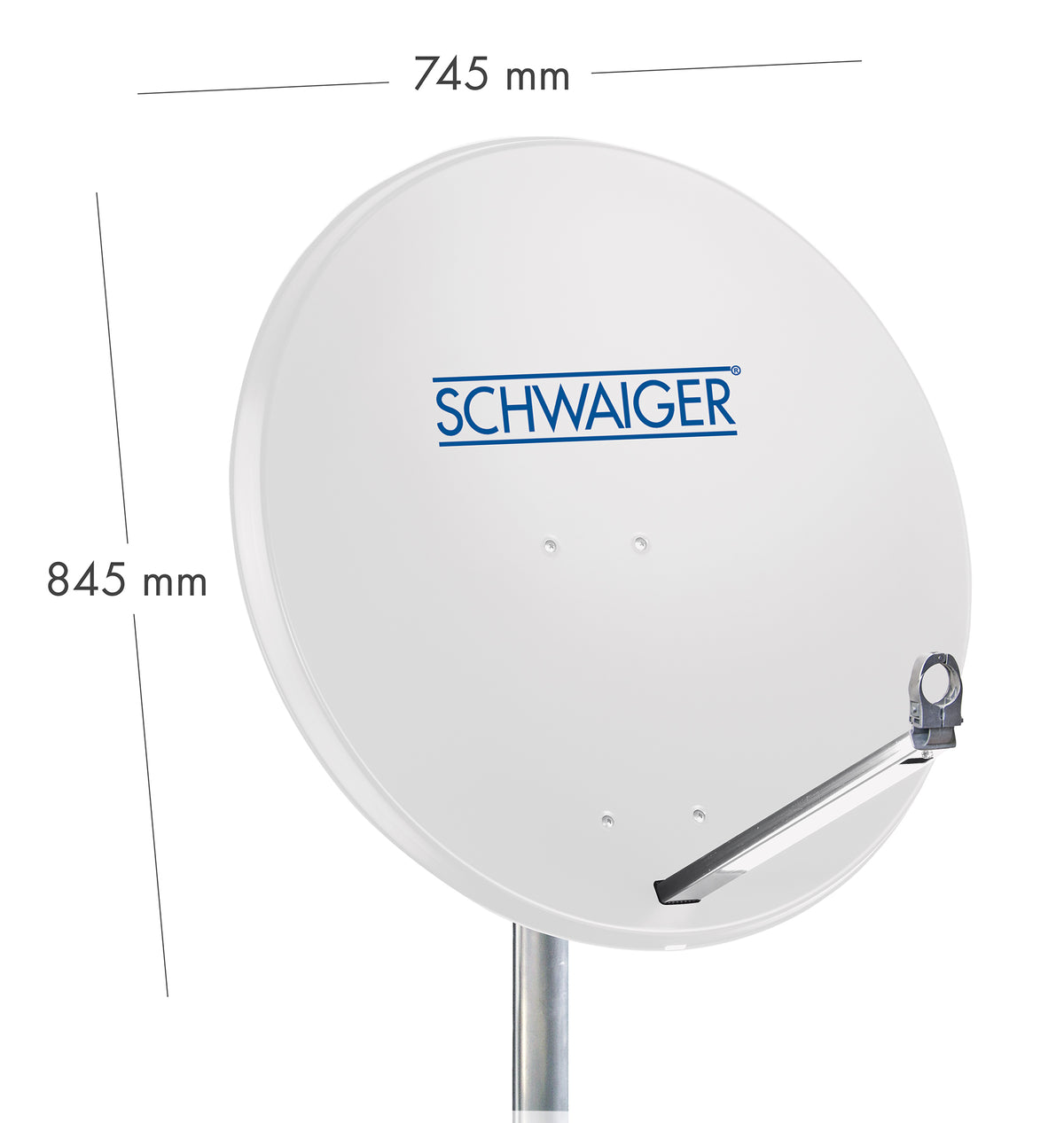

reflector (width) 745 mm
reflector (height) 845mm
Frequency range 10.7 - 12.75 GHz
feed intake 40mm
material reflector powder-coated aluminum
material back part plastic
Material mast holder galvanized steel
Material LNB bracket aluminum die-casting
Material LNB support arm aluminum square
antenna gain (max.) 38.5 dB
adjustment range elevation 5 - 48 °
offset angle 25 °
clamping range mast clamp 32 - 76 mm
half-width < 2.2 °
number of mast clamps/brackets 2
Cable routing 48 x 22 mm
Color light gray (RAL7035)

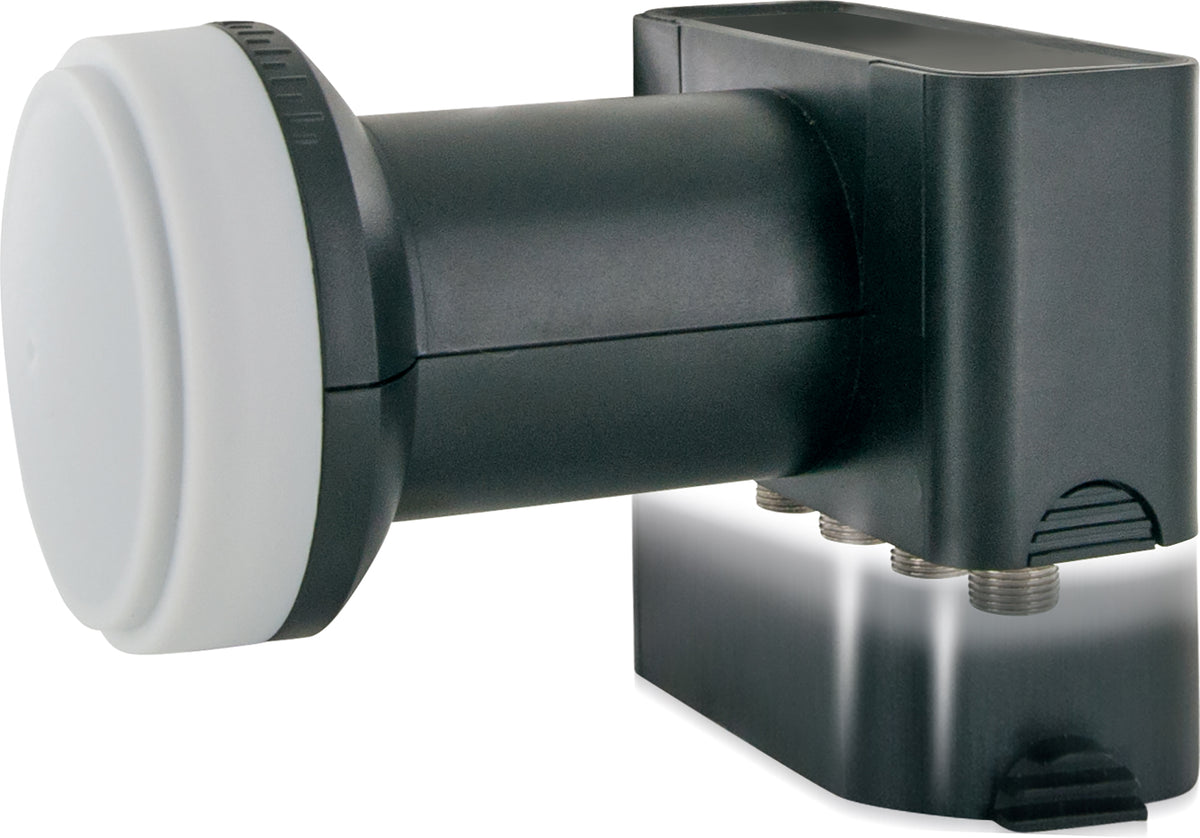

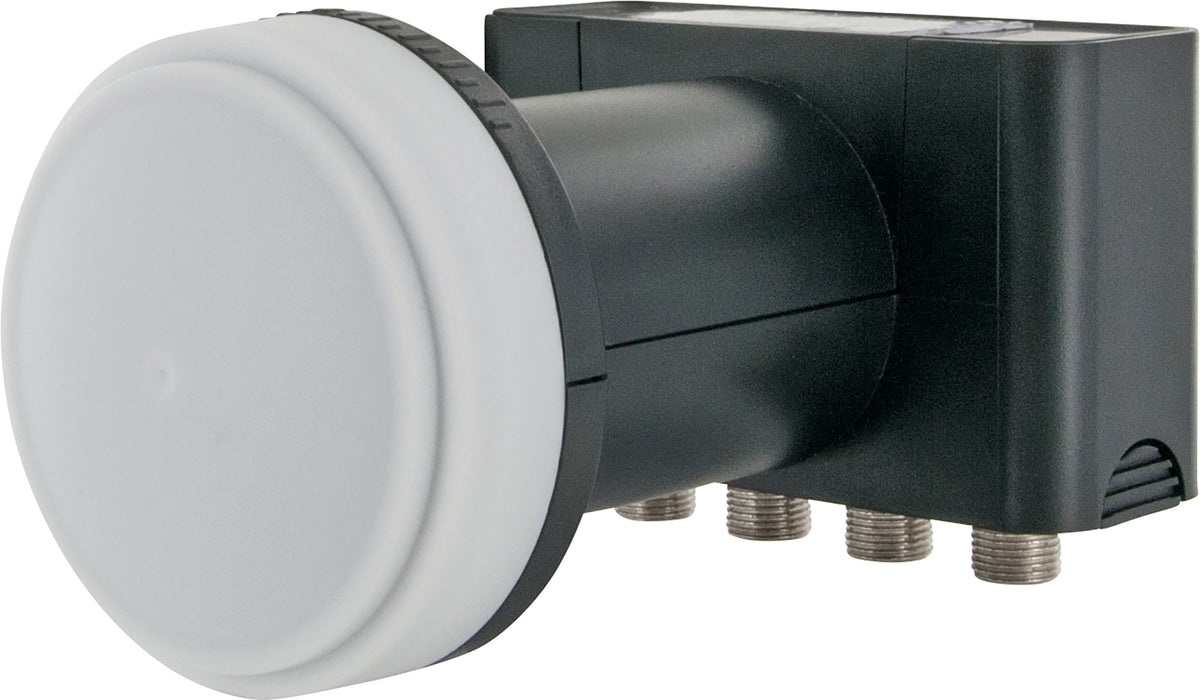

LNB
Quality STANDARD
reception system QUAD (4 participants)
Connections 4x F-socket
input frequency 10.70 - 11.70 GHz (low)
11.70 - 12.75 GHz (high)
output frequency 950 - 2,150 MHz
oscillation frequency 9.75 GHz (low)
10.6 GHz (high)
control function 0 kHz (low)
22 kHz (high)
polarization Decoupling: > 25 dB
Power supply vertical: 11.5 - 14.0 V supply voltage
horizontal: 16.0 - 19.0 V supply voltage
power consumption < 250 mA
feed intake 40mm
Color Light grey

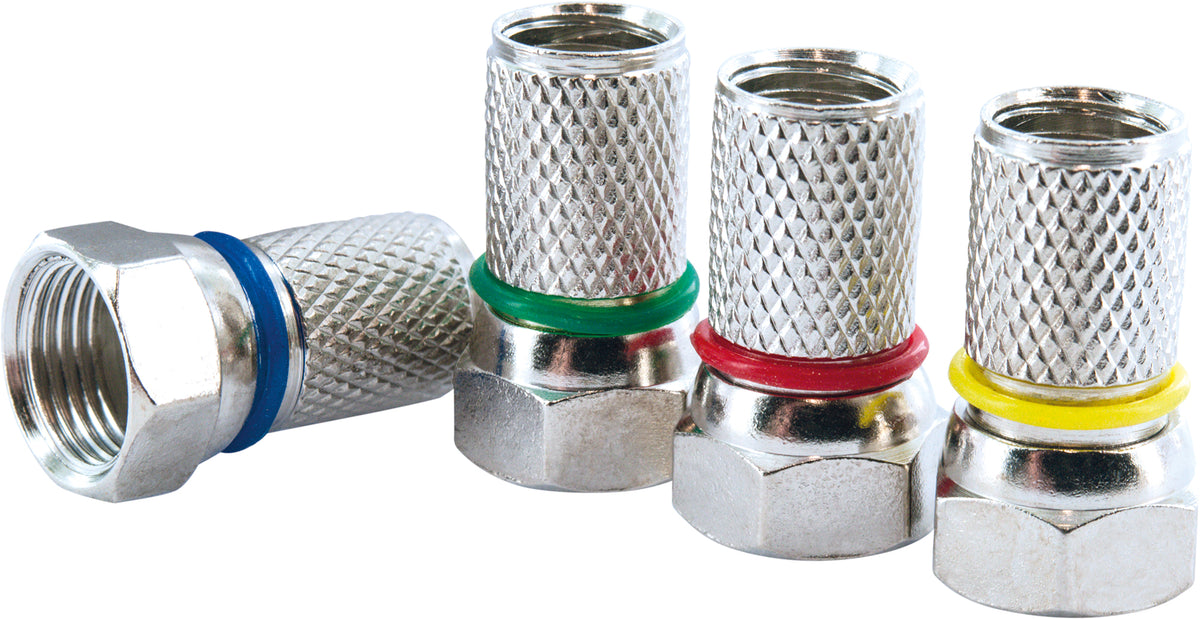

F-screw connector
Quality STANDARD
outer diameter 7mm
Color Silver

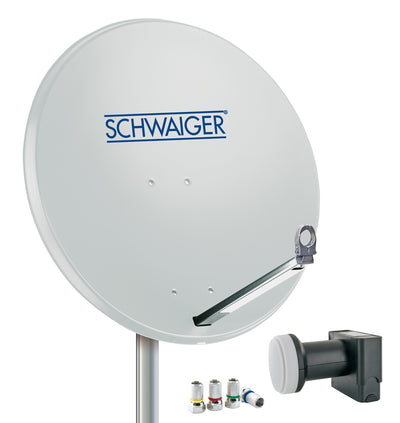

scope of delivery Aluminum offset antenna (80cm), Quad LNB, F-screw connector
