Aluminium Offset Antenne (80 cm) Set

Aluminium Offset Antenne (80 cm) Set

SKU 714548
€102,90 - €102,90
€102,90
€102,90 - €102,90
€102,90
Availability:
in stock, ready to be shipped
  • PayPal
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • SOFORT
  • Union Pay
  • Visa
  • SAT outdoor unit, consisting of aluminum offset antenna and quad LNB for setting up a 4-subscriber satellite system
  • Processing of high-quality materials in powder-coated aluminum offset antenna and quad LNB with robust plastic outer casing
  • Resistance to extreme weather conditions (heat and cold)
  • Suitability for multifeed systems
  • LNB support arm with integrated cable guide

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

With this SCHWAIGER® offset antenna, all free and encrypted television and radio programs can be received via satellite. Thanks to the size of the antenna, there is a good reception reserve in bad weather such as rain or snow. The Quad LNB is suitable for multifeed systems and can be used to set up a digital satellite system with up to 4 participants. The F-connectors are protected by a pull-out weather protection cover.

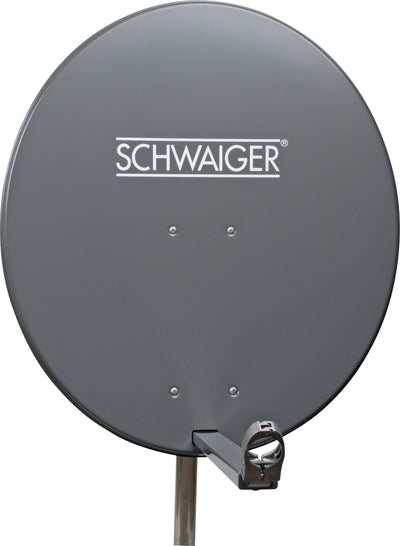

offset antenna
Quality PROFESSIONAL
Antenna type reflector

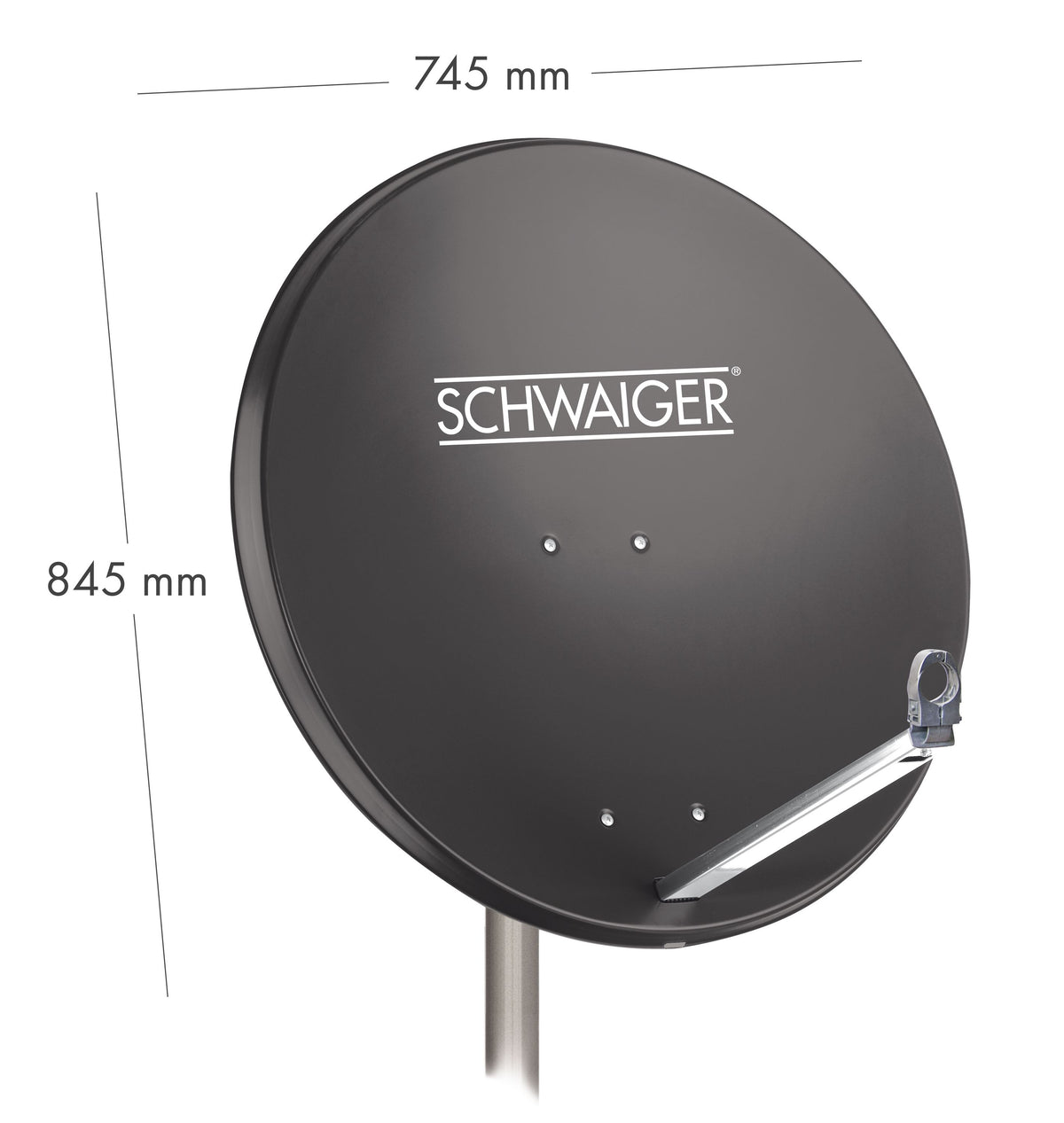

reflector (width) 745 mm
reflector (height) 845mm
Frequency range 10.7 - 12.75 GHz
feed intake 40mm
material reflector powder-coated aluminum
material back part plastic

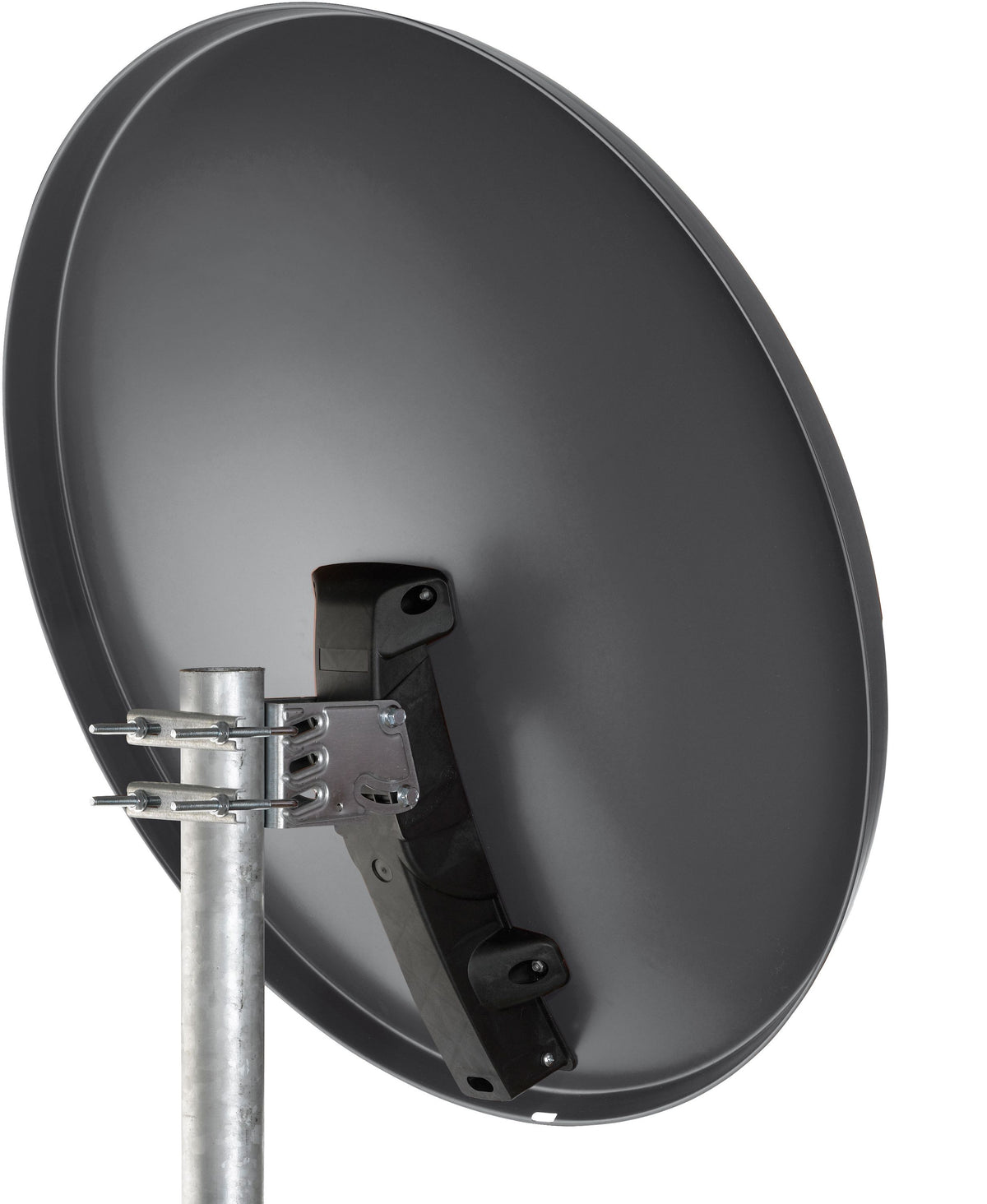

Material mast holder galvanized steel
Material LNB bracket aluminum die-casting
Material LNB support arm aluminum square
antenna gain (max.) 38.5 dB
adjustment range elevation 5 - 48 °
offset angle 25 °
clamping range mast clamp 32 - 76 mm
half-width < 2.2 °
number of mast clamps/brackets 2
Cable routing 48 x 22 mm
Color anthracite (RAL7011)

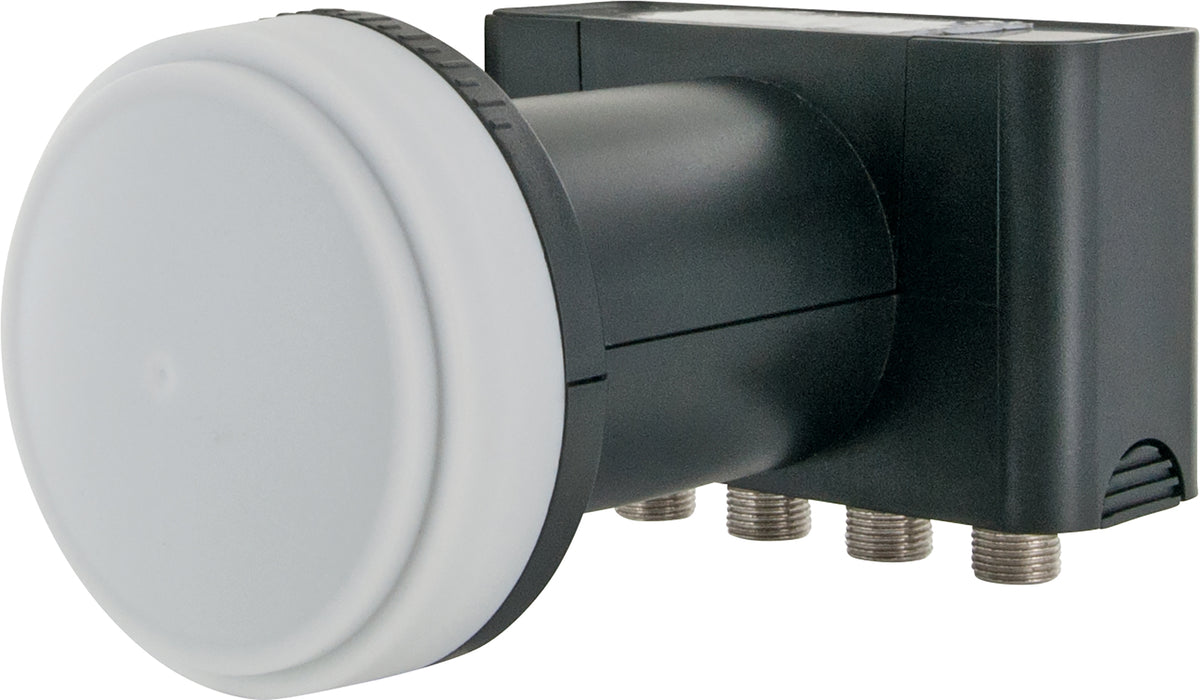

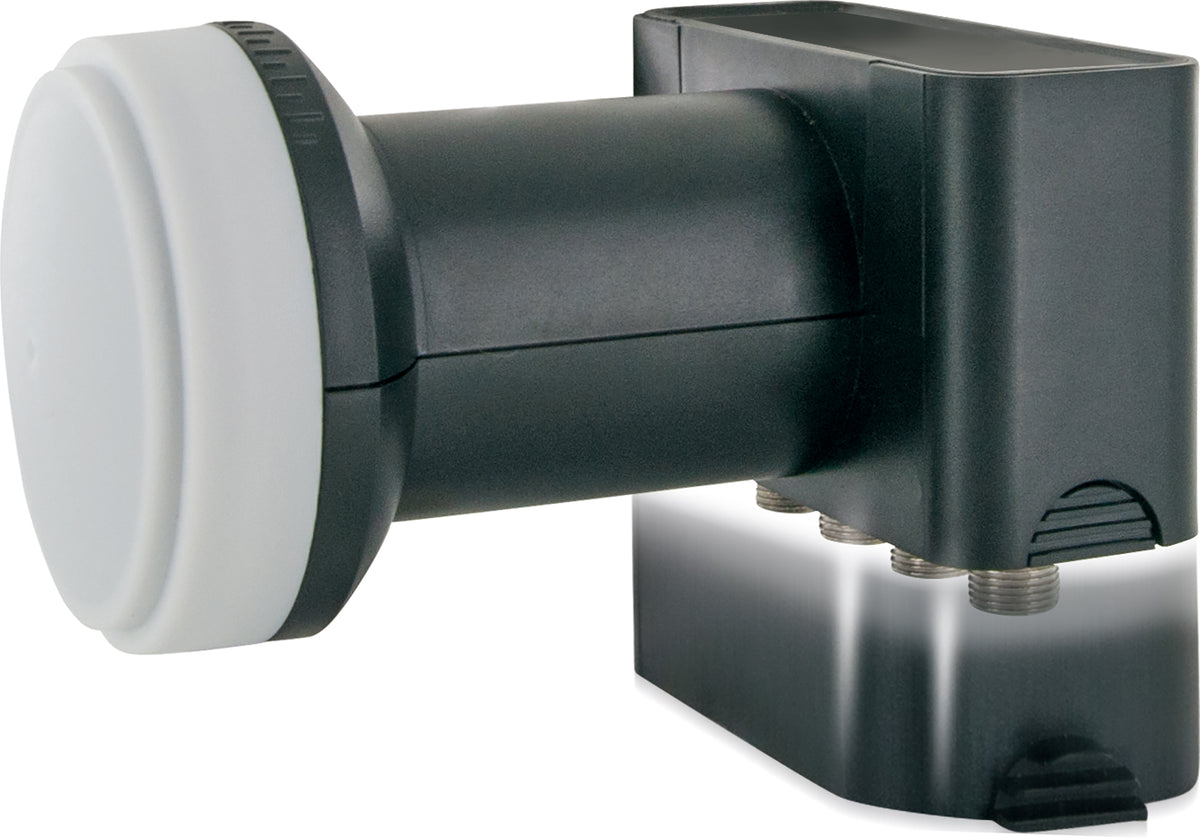

LNB
Quality STANDARD
reception system QUAD (4 participants)
Connections 4x F-socket
input frequency 10.70 - 11.70 GHz (low)
11.70 - 12.75 GHz (high)
output frequency 950 - 2,150 MHz
oscillation frequency 9.75 GHz (low)
10.6 GHz (high)
control function 0 kHz (low)
22 kHz (high)
polarization Decoupling: > 25 dB
Power supply vertical: 11.5 - 14.0 V supply voltage
horizontal: 16.0 - 19.0 V supply voltage
power consumption < 250 mA
feed intake 40mm
Color Light grey

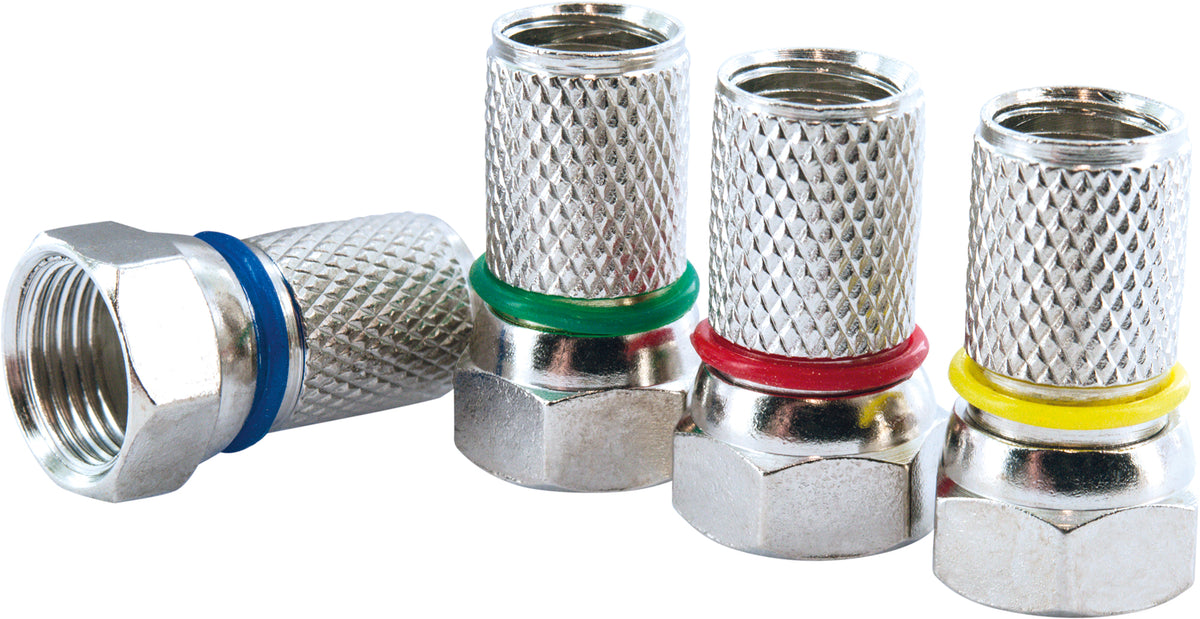

F-screw connector
Quality STANDARD
outer diameter 7mm
Color Silver
Contents (package) 4

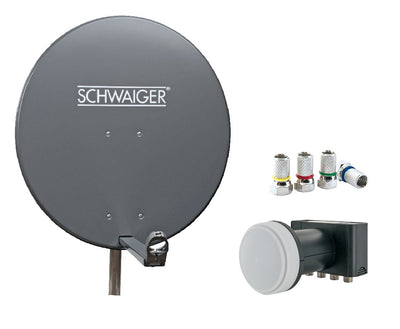

scope of delivery Aluminum offset antenna (80cm), Quad LNB, F-screw connector
Datenblatt
