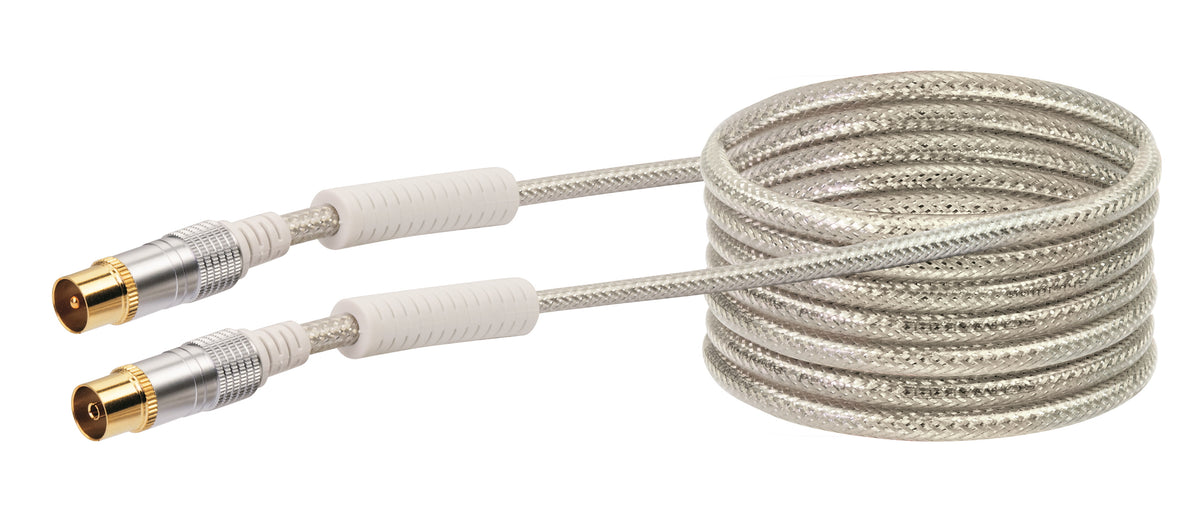

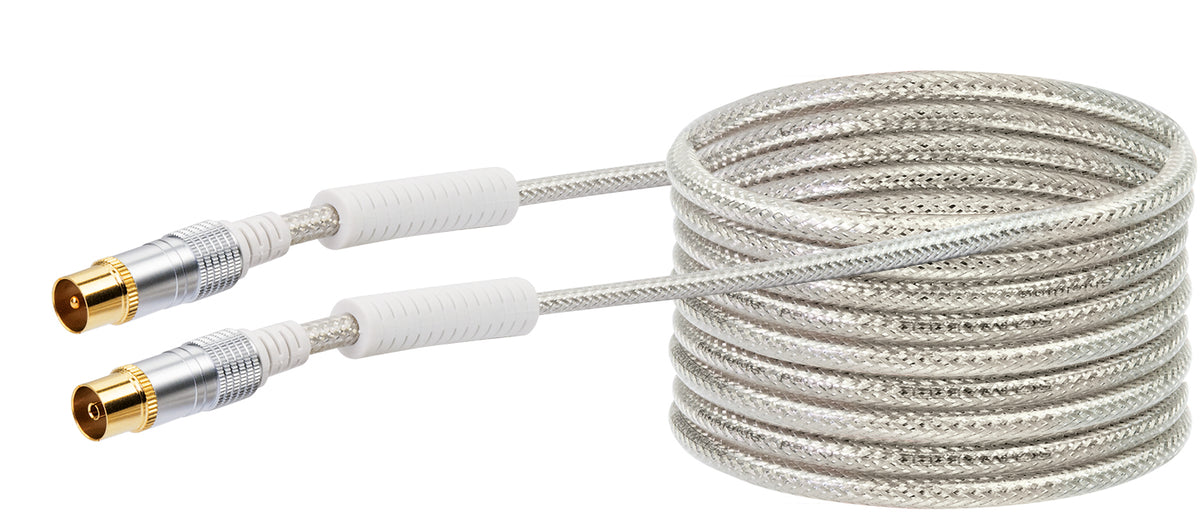

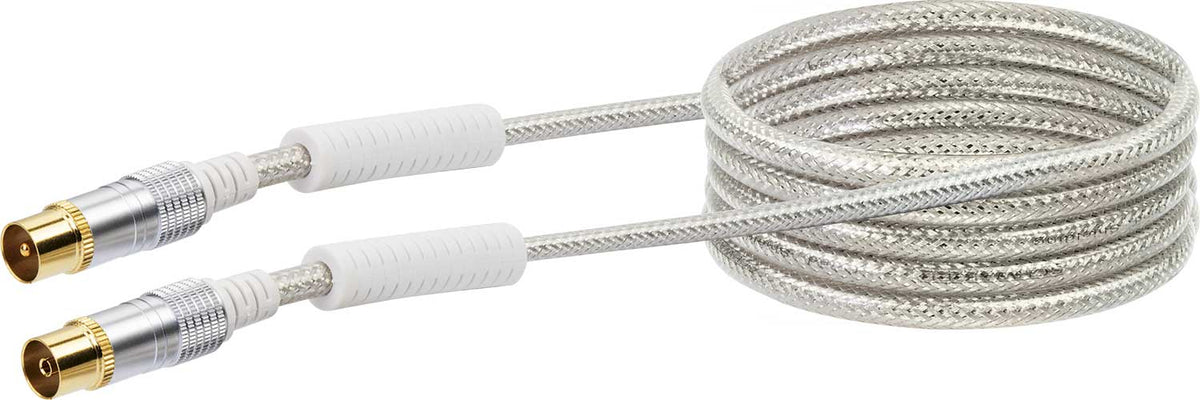

Antenna connection cable (110 dB)
SKU KVKHD100S 531
- Particularly suitable for HDTV via cable TV
- 4-fold shielding for a very good reduction of electromagnetic interference
- With ferrite core for additional suppression of standing wave interference
- Best conductivity and minimum transmission resistance thanks to gold-plated contacts
- Robust full metal plugs with cable routing
Sichere Zahlung
Passend dazu
Antenna connection cable (110 dB)
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung
This SCHWAIGER® IEC connection cable is designed for higher requirements in high-resolution image and sound transmissions. The antenna cable is ideally suited for the connection between the receiver and antenna sockets with a coax connection. The cable with ferrite core offers the highest possible protection against electromagnetic interference and radio interference of all kinds thanks to the high shielding level of 110 dB. The copper inner conductor ensures interference-free reception.
Technische Daten
| connections | 1 x IEC connector 1 x IEC socket |
| Ferrite core | Yes |
| Impedance | 75 ohms |
| Cable structure | 1 mm (inner conductor) 3.1 mm (dielectric) 6 mm (jacket) |
| Shielding | 4-fold shielded |
| Shielding measure | 110 dB |
| Shielding material | Aluminum composite foil 96 aluminum braid 128 aluminum braid Aluminum composite foil |
| Inner conductor | Cu |
| colour | Transparent (white) |
| scope of delivery | 1x antenna connection cable |
