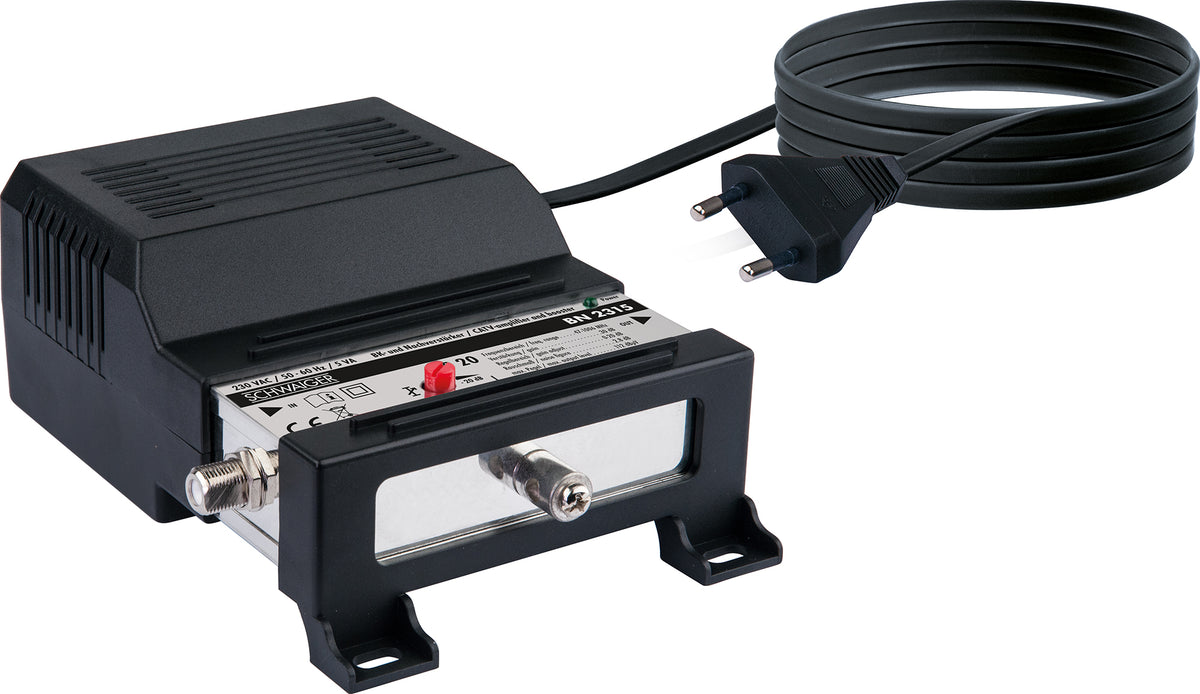

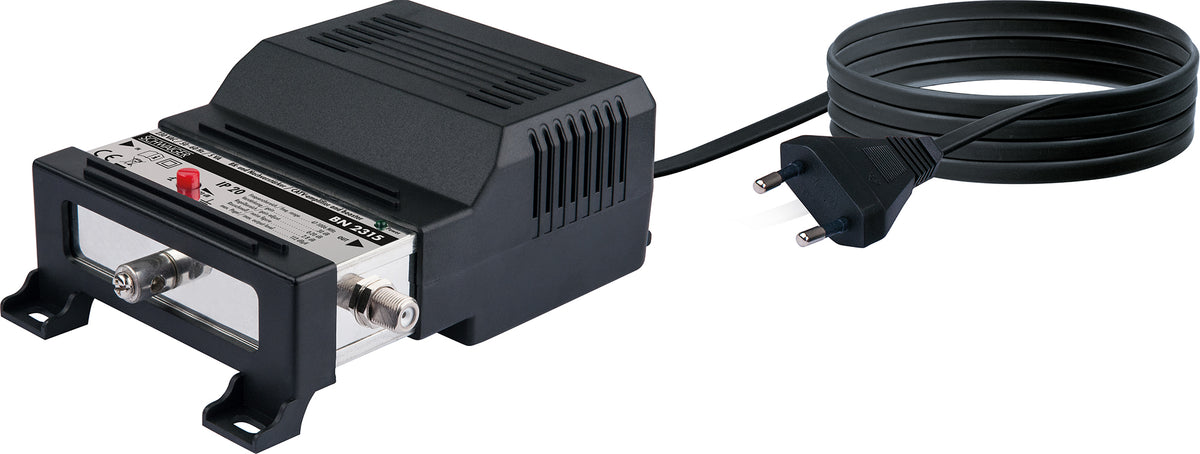

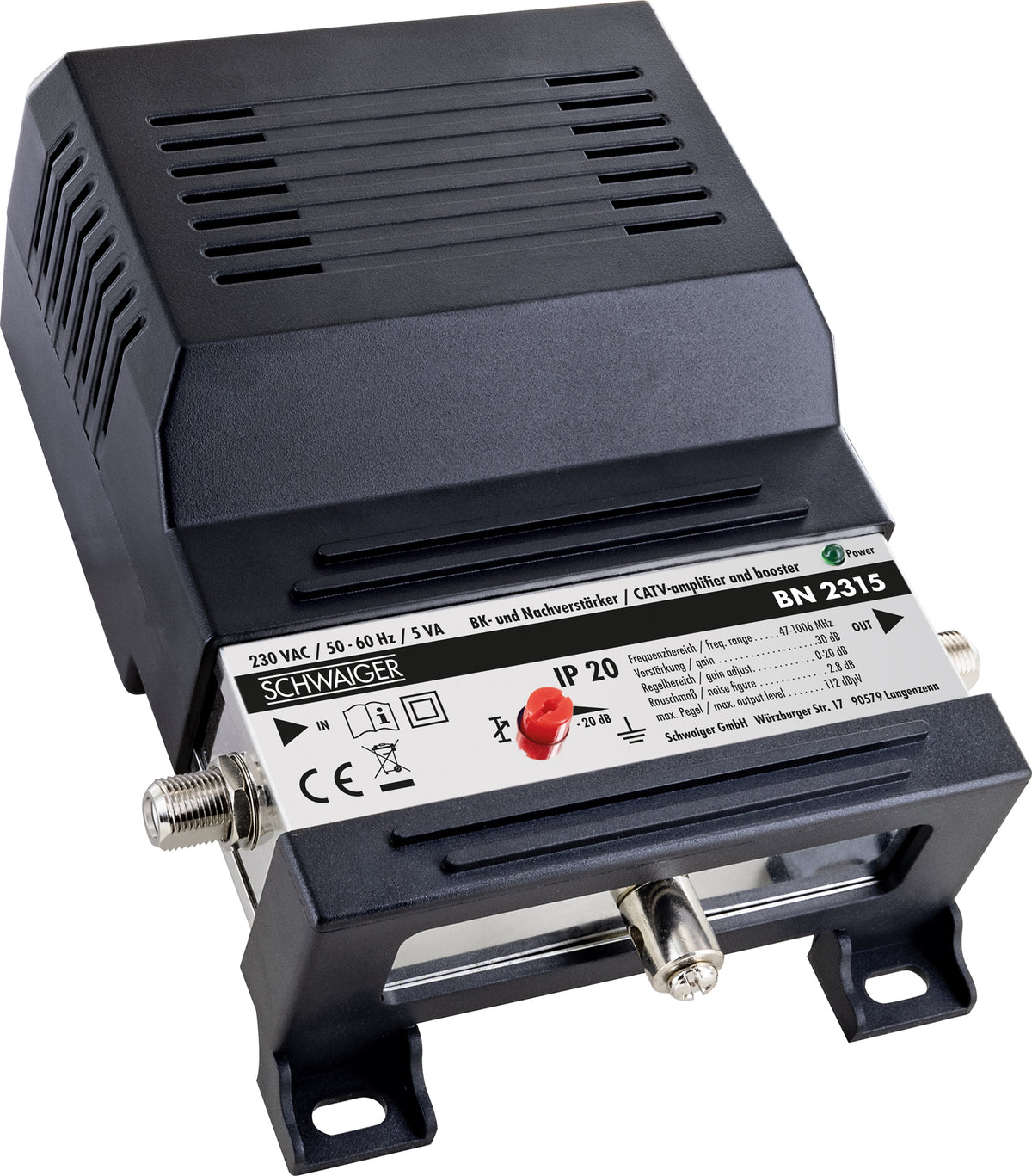

BK and post-amplifier (30 dB)
SKU BN2315 531
€132,19
- Can be used as an amplifier in communal antenna systems
- Built-in level control
Auf Lager
Sichere Zahlung
Passend dazu
BK and post-amplifier (30 dB)
€132,19
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung
This SCHWAIGER® broadband cable and post-amplifier is used in medium-sized distribution systems. It is used in a broadband cable network at the house transfer point or as a post-amplifier in communal antenna systems. In the event of overdrive (picture interference) due to strong signals at the building transfer point, adjust the level control as required.
Technische Daten
| Connections (input) | 1 x F socket (75 ohms) |
| Connections (output) | 1 x F socket (75 ohms) |
| Output level (max.) | 112 dbµV (IM 3 EN50083-3) |
| Frequency range | 47 - 862 MHz |
| Gain (typical) | 30 dB |
| Level control | 20 dB |
| Noise figure (typical) | 5 dB |
| Power supply | 230 V 50-60 Hz |
| Power consumption | 5 VA in operation |
| colour | Black silver |
| Dimensions (width) | 100 mm |
| Dimensions (height) | 160 mm |
| Dimensions (depth) | 60 mm |
| scope of delivery | 1x BK and post amplifier |
