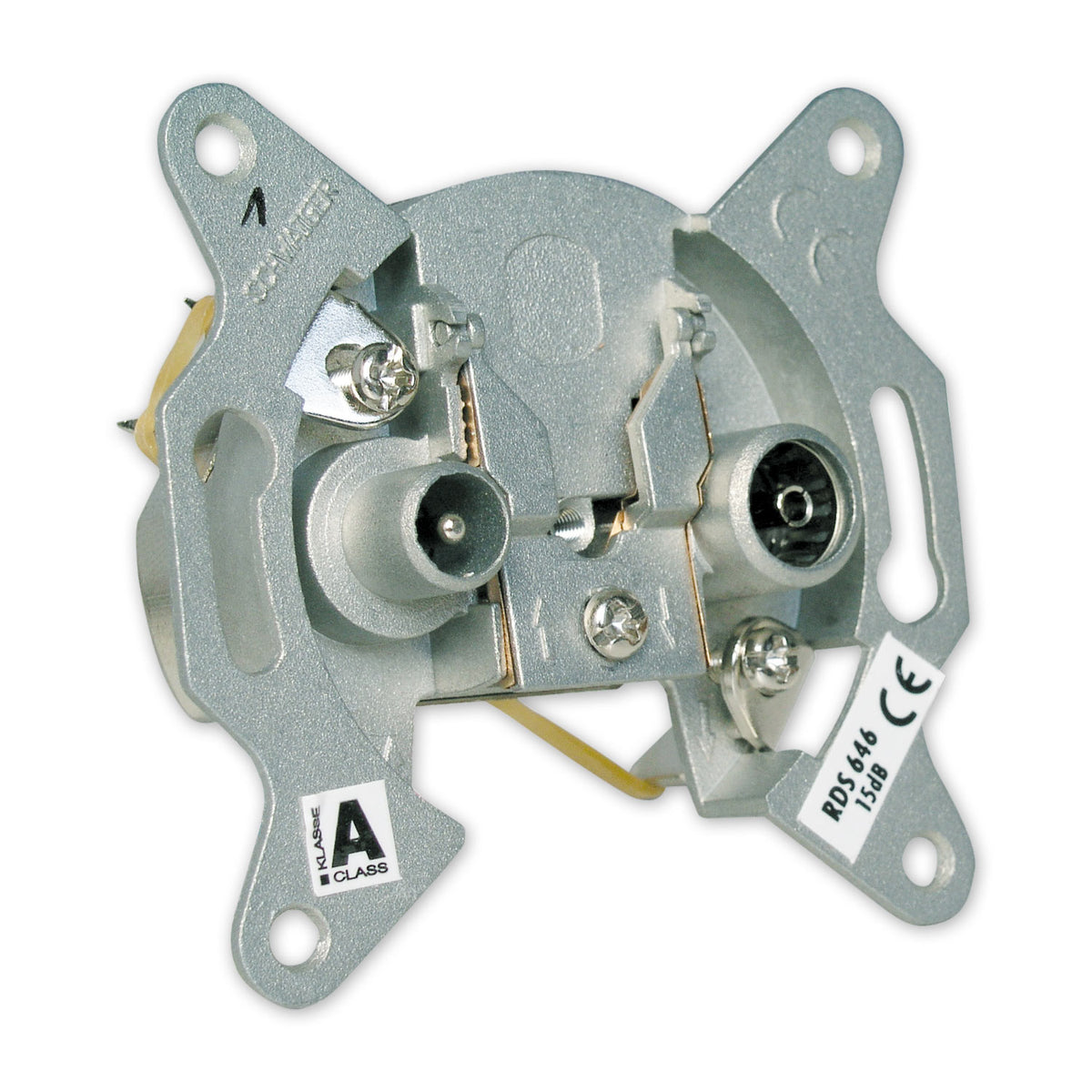

Broadband through socket (15 dB)

Broadband through socket (15 dB)

SKU RDS646/15 011
€14,99 - €14,99
€14,99
€14,99 - €14,99
€14,99
Availability:
in stock, ready to be shipped
  • PayPal
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Hinged clamp for fixing the outer conductor (max. 7.5 mm)
  • Clamping technology for screwless inner conductor fastening (∅ 0.8 - 1.3 mm)
  • Claw fastening for plaster inserts (55 mm)

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

This SCHWAIGER® straight-through socket is suitable for use on single, community antennas and broadband cable systems. This box is provided with two directional couplers. Thanks to the special clamping technology, the cable connections do not have to be screwed.

Product material Die-cast aluminum protected against corrosion
classification Class a
connections 1 x IEC socket
1 x IEC connector
Connections (input) 1 x detachable contact clamping spring
Connections (output) 1 x detachable contact clamping spring
Frequency range 5 - 2150 MHz
Decoupling up to 862 MHz> 38 dB (TV / RDF)
up to 2150 MHz> 32 dB (TV / RDF)
Connection loss (typ.) 15 dB
Through loss 5 - 862 MHz 1.2 dB (typical)
950 - 2150 MHz 2 dB (typical)
Installation depth 22 mm
colour silver
Dimensions (width) 70 mm
Dimensions (depth) 66 mm
Dimensions (height) 70 mm
scope of delivery 1x through socket
Datenblatt
