Camping satellite system for mobile use
Camping satellite system for mobile use

Camping satellite system for mobile use

SKU SATSET441

€62,09
  • Reception system for setting up 1 subscriber satellite systems
  • Independent program variety for a participant of this reception system
  • Ideal for receiving unencrypted television and radio programs via satellite
  • Especially for mobile use
  • Extensive mounting material included in delivery
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

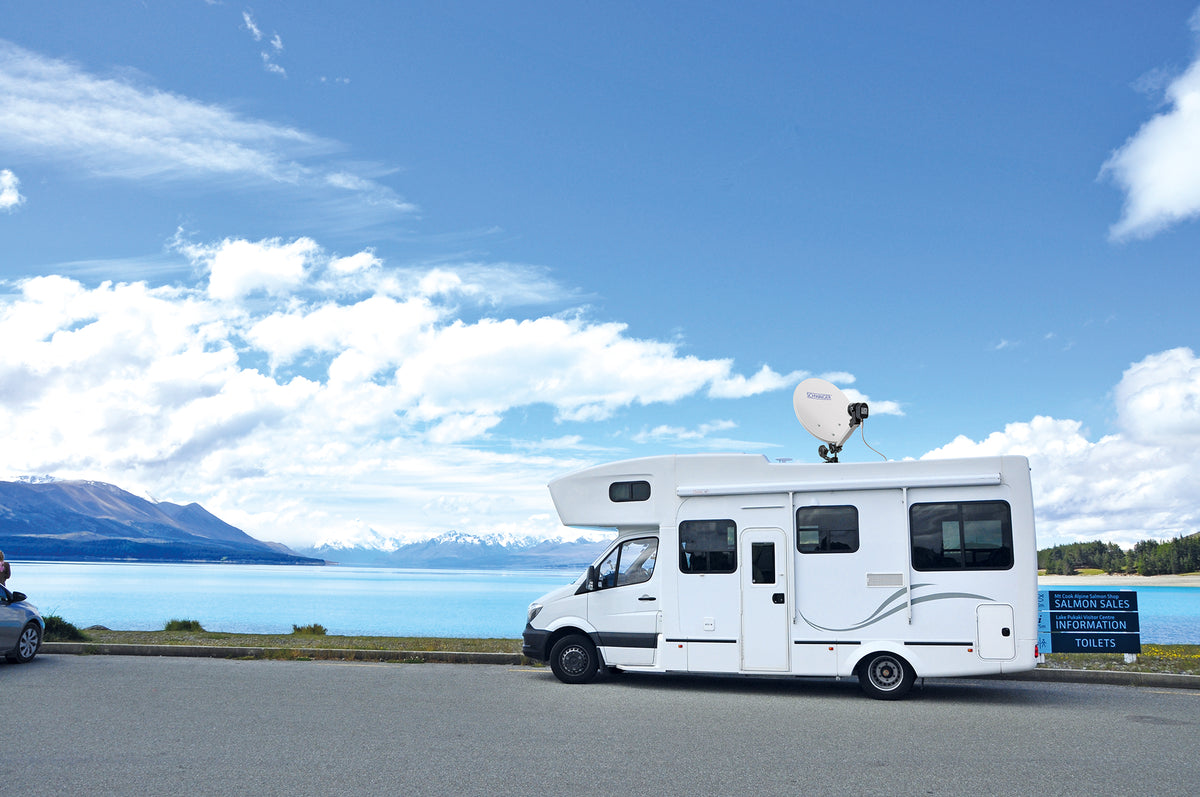

This SCHWAIGER® satellite system is specially designed for mobile use and is ideal for receiving unencrypted television and radio programs via satellite. It is a complete package for one subscriber, with all components already optimally coordinated. The compact steel dish can be easily and safely mounted on the tripod with variable extension height, while the SAT Finder can be used to effortlessly align both the dish and the LNB. A suitable connection cable rounds off the SAT set perfectly.

Technische Daten
satellite system :
reflector (width x depth) 424 mm x 424 mm
Frequency range 10.7 - 12.75 GHz
feed intake 40mm
material reflector Powder coated steel
Material LNB bracket plastic
antenna gain (max.) 32.6 dB
Adjustment range elevation 5 - 48°
offset angle 25°
Half-width 5°
clamping range mast clamp 32 - 60 mm
Digital Single LNB :
connections 1x F-socket
Input frequency 10.70 - 11.70 GHz (low) / 11.70 - 12.75 GHz (high)
Output frequency 950 - 2,150MHz
oscillation frequency 9.75GHz (low) / 10.6GHz (high)
control function 0 kHz (low) / 22 kHz (high)
polarization > 25 dB
Power supply vertical: 11.5 - 14.0 V / horizontal: 16.0 - 19.0 V
SAT Finder :
connections 2x F-socket
Advertisement 7 LED
Frequency range 950 - 2150MHz
transmission loss < 8dB
Power supply 12 - 20 V DC, 80 mA
SAT connection cable :
Cable length 10m
Impedance 75 ohms
Plug Plastic (fully shielded)
Location Outdoor area

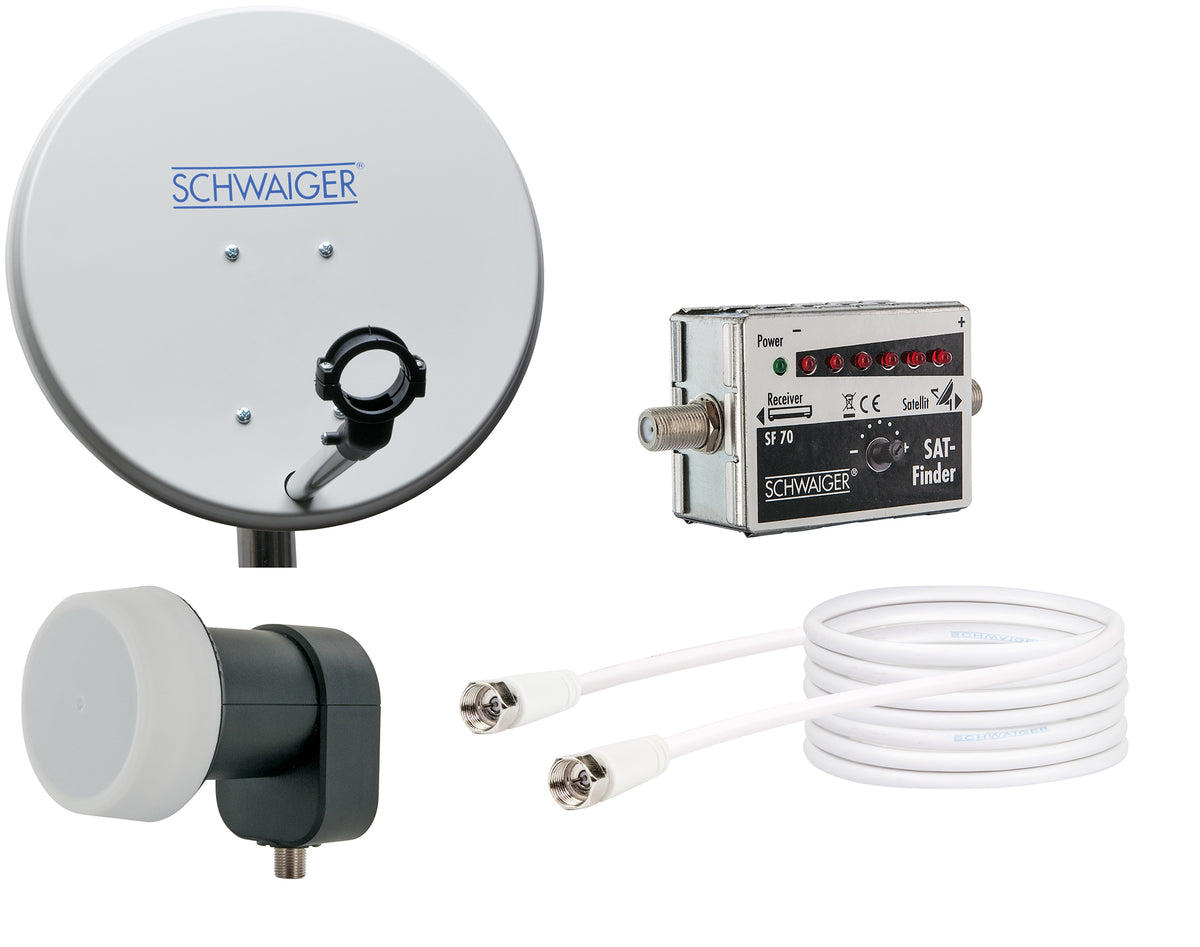

Scope of delivery Steel offset antenna (Ø 40 cm) , Sat Finder, Single LNB and a 10m coaxial cable
