Digital Quad LNB
SKU SPS6544H 531
- Reception system for setting up 4 subscriber SAT systems
- Reception system for setting up multi-subscriber SAT systems with an integrated multi-switch
- Suitable for multifeed systems

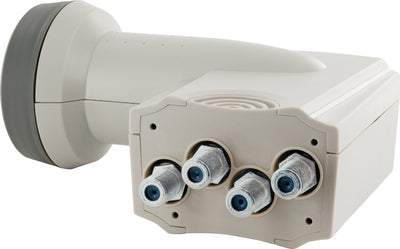

- Protection of the F-connections by pull-out weather protection cover
- Housing is completely encapsulated
Sichere Zahlung
Passend dazu
Digital Quad LNB
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produkt Details

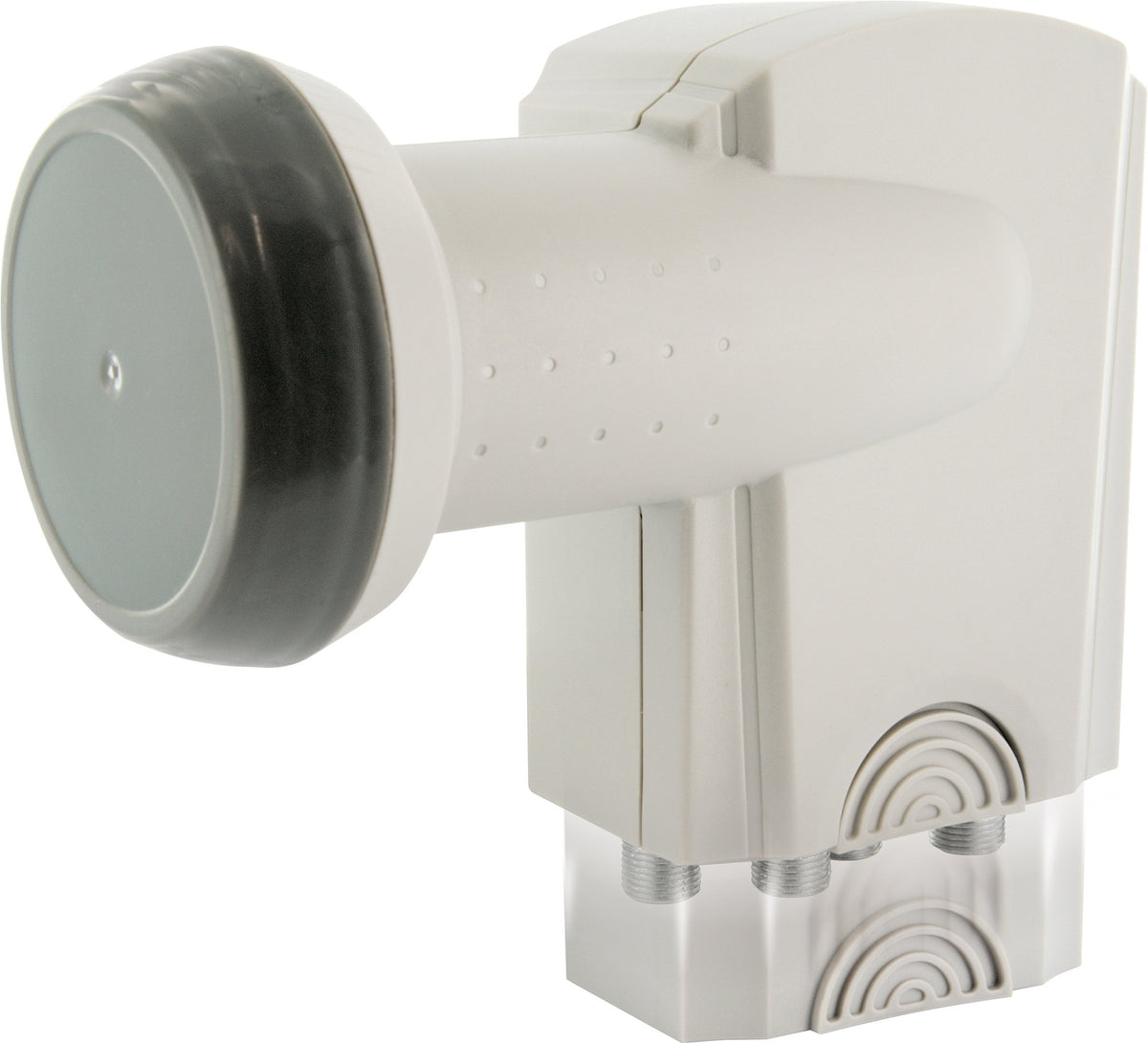

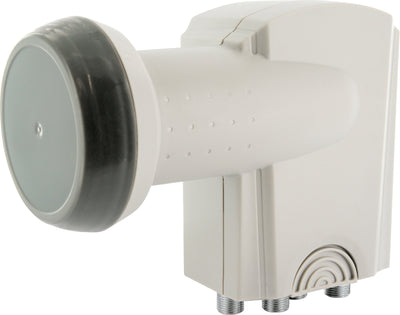

With this SCHWAIGER® Quad LNB, which is suitable for multifeed systems, a digital satellite system with up to 4 participants can be set up. The satellite receivers can be connected directly to the LNB. The pull-out weather protection cover protects the F-connections of the LNB from the weather.
Beschreibung
With this SCHWAIGER® Quad LNB, which is suitable for multifeed systems, a digital satellite system with up to 4 participants can be set up. The satellite receivers can be connected directly to the LNB. The pull-out weather protection cover protects the F-connections of the LNB from the weather.
Technische Daten
| Receiving system | QUAD (4 participants) |
| connections | 4 x F socket |
| Input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| Output frequency | 950-2,150 MHz |
| Decoupling | > 25 dB |
| Oscillation frequency | 9.75 GHz (low) 10.6 GHz (high) |
| Gain (typical) | 55 dB |
| Control function | 0 kHz (low) 22 kHz (high) |
| polarization | Decoupling:> 25 dB |
| Power supply | vertical: 11.5-14.2V horizontal: 15.8-19V |
| Power consumption | <110 mA |
| Feed intake | 40 mm |
| Product material | Weatherproof plastic |
| colour | Light gray |
| Dimensions (width) | 122 mm |
| Dimensions (height) | 79 mm |
| Dimensions (depth) | 50 mm |
| scope of delivery | 1x Quad LNB |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
