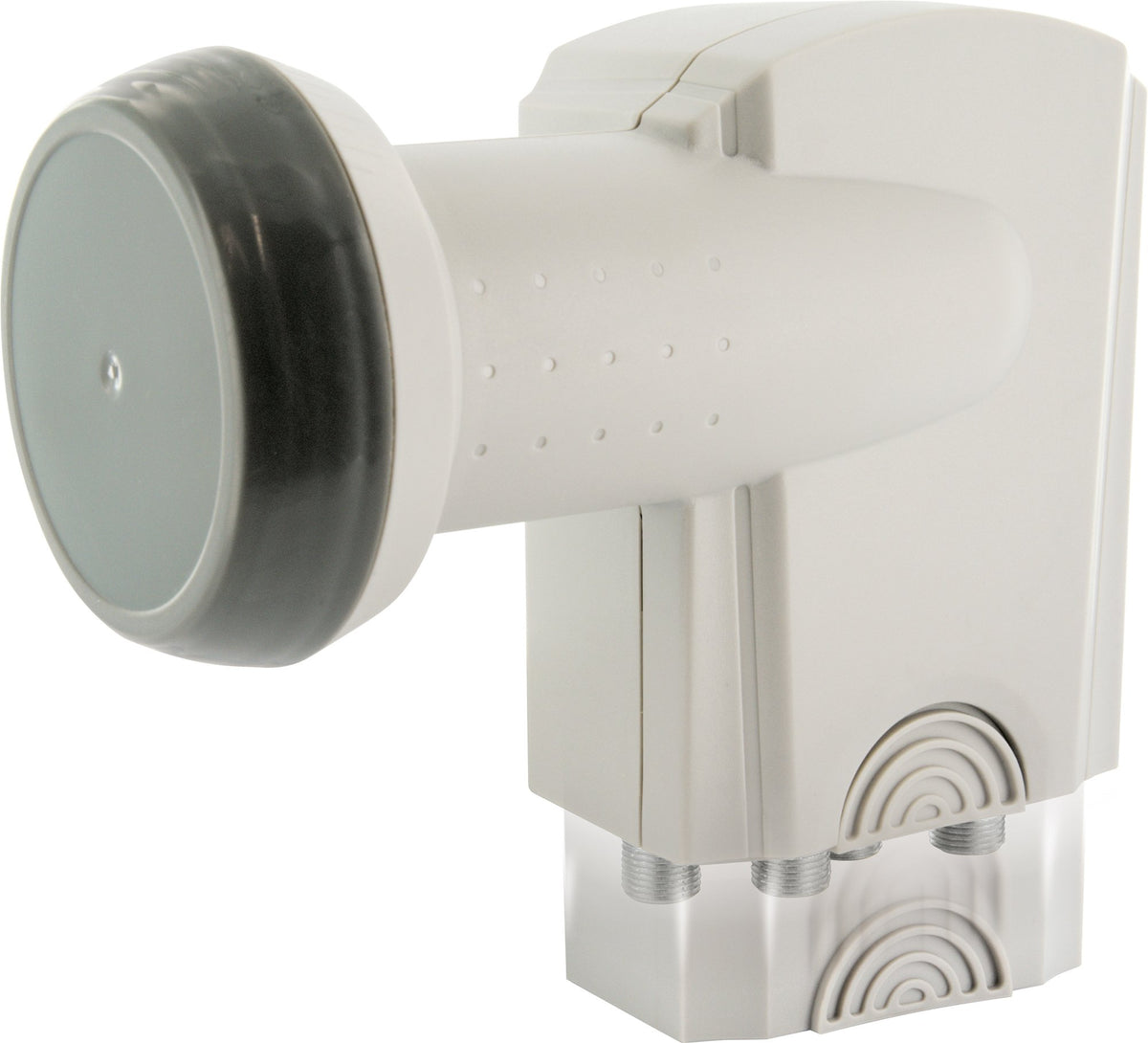

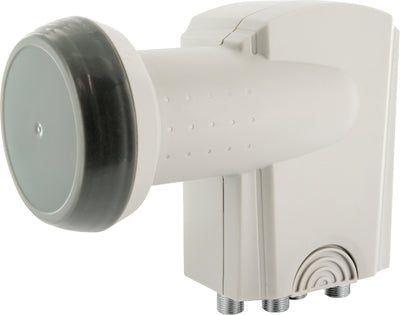

Digital Quattro LNB
Digital Quattro LNB
SKU SPS6518H 531
SKU SPS6518H 531
Reception system for setting up multi-subscriber SAT systems in conjunction with a multi-switch Suitable for multifeed systems Protection of the F-connections by pull-out weather protection cover Housing is completely encapsulated
Expert hotline(+49) 09101 702-299
Expert emailexperten@schwaiger.de

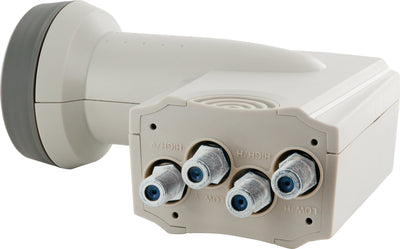

With this SCHWAIGER® Quattro LNB, which is suitable for multifeed systems, a digital satellite system can be implemented in conjunction with a SAT multiswitch for more than 4 participants. The F connections are protected by a removable weather protection cover.
Receiving system QUATTRO (4+ participants) connections 4 x F socket Input frequency 10.70 - 11.70 GHz (low) 11.70 - 12.75 GHz (high) Output frequency 950-2,150 MHz Decoupling > 25 dB Oscillation frequency 9.75 GHz (low) 10.6 GHz (high) Gain (typical) 55 dB Control function 0 kHz (low) 22 kHz (high) polarization Decoupling:> 25 dB Power supply vertical: 11.5-14.2V horizontal: 15.8-19V Power consumption <110 mA Feed intake 40 mm Product material Weatherproof plastic colour Light gray Dimensions (width) 122 mm Dimensions (height) 79 mm Dimensions (depth) 50 mm scope of delivery 1x Quattro LNB
SKU :
SPS6518H 531
Barcode :
4004005528329
