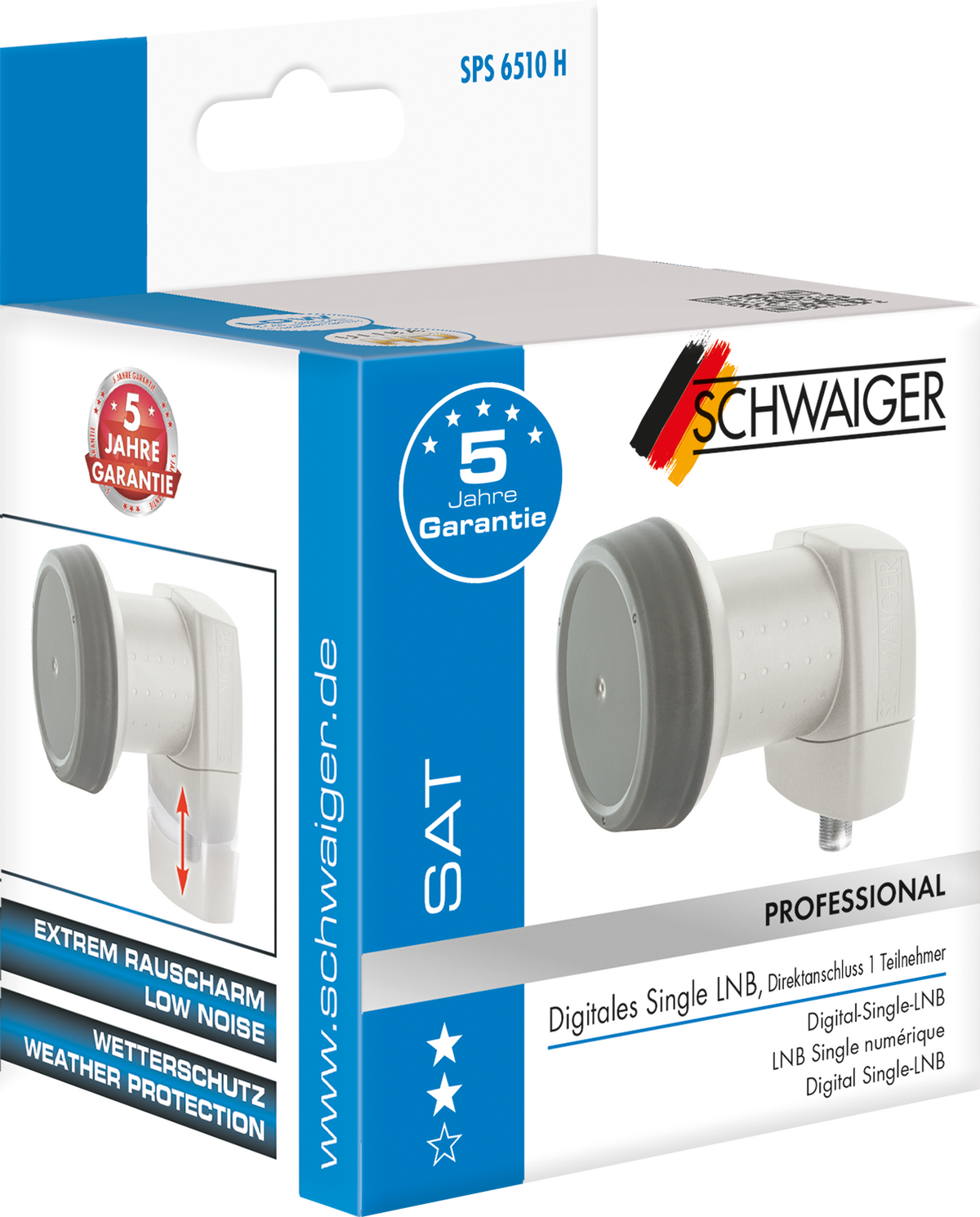

Digital single LNB
SKU SPS6510H 531
€20,99
- Reception system for the construction of 1 subscriber SAT systems
- Suitable for multifeed systems

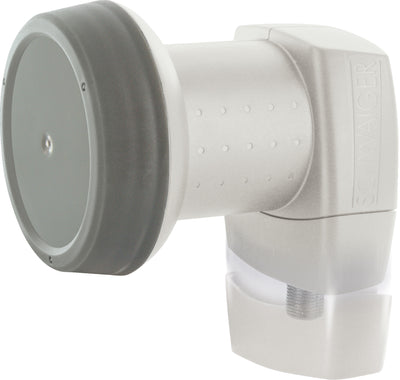

- Protection of the F-connections by pull-out weather protection cover
- Weather protection through outer housing made of weatherproof plastic
- Housing is completely encapsulated
Auf Lager
Sichere Zahlung
Passend dazu
Digital single LNB
€20,99
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produkt Details

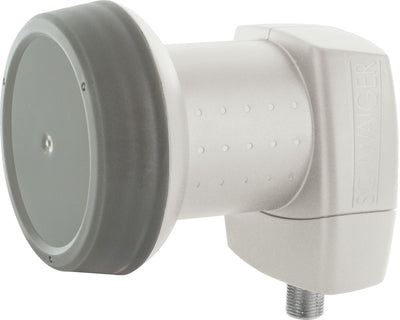

With this SCHWAIGER® Single LNB, which is suitable for multifeed systems, digital satellite systems can be set up with a maximum of one participant. The F-connection is protected by a pull-out weather protection cover.
Beschreibung
With this SCHWAIGER® Single LNB, which is suitable for multifeed systems, digital satellite systems can be set up with a maximum of one participant. The F-connection is protected by a pull-out weather protection cover.
Technische Daten
| Receiving system | SINGLE (1 TN) |
| connections | 1 x F socket |
| Input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| Output frequency | 950-2,150 MHz |
| Oscillation frequency | 9.75 GHz (low) 10.6 GHz (high) |
| Gain (typical) | 60 dB |
| Control function | 0 kHz (low) 22 kHz (high) |
| polarization | Decoupling:> 20 dB |
| Power supply | vertical: 11.5 - 14.5 V. horizontal: 15.5 - 19 V. |
| Power consumption | <90 mA |
| Feed intake | 40 mm |
| Product material | Weatherproof plastic |
| colour | Light gray |
| Dimensions (width) | 100 mm |
| Dimensions (height) | 76 mm |
| Dimensions (depth) | 33 mm |
| scope of delivery | 1x single LNB |
