Digital twin LNB
Digital twin LNB
SKU SPS6514H 531
SKU SPS6514H 531
Reception system for the construction of 2-subscriber satellite systems Suitable for multifeed systems Protection of the F-connections by pull-out weather protection cover Weather protection through outer housing made of weatherproof plastic Housing is completely encapsulated
Expert hotline(+49) 09101 702-299
Expert emailexperten@schwaiger.de

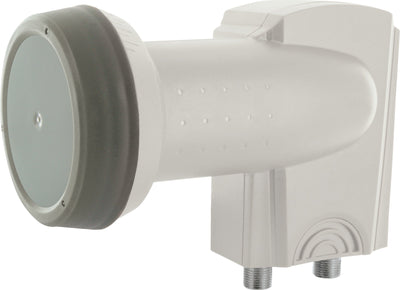

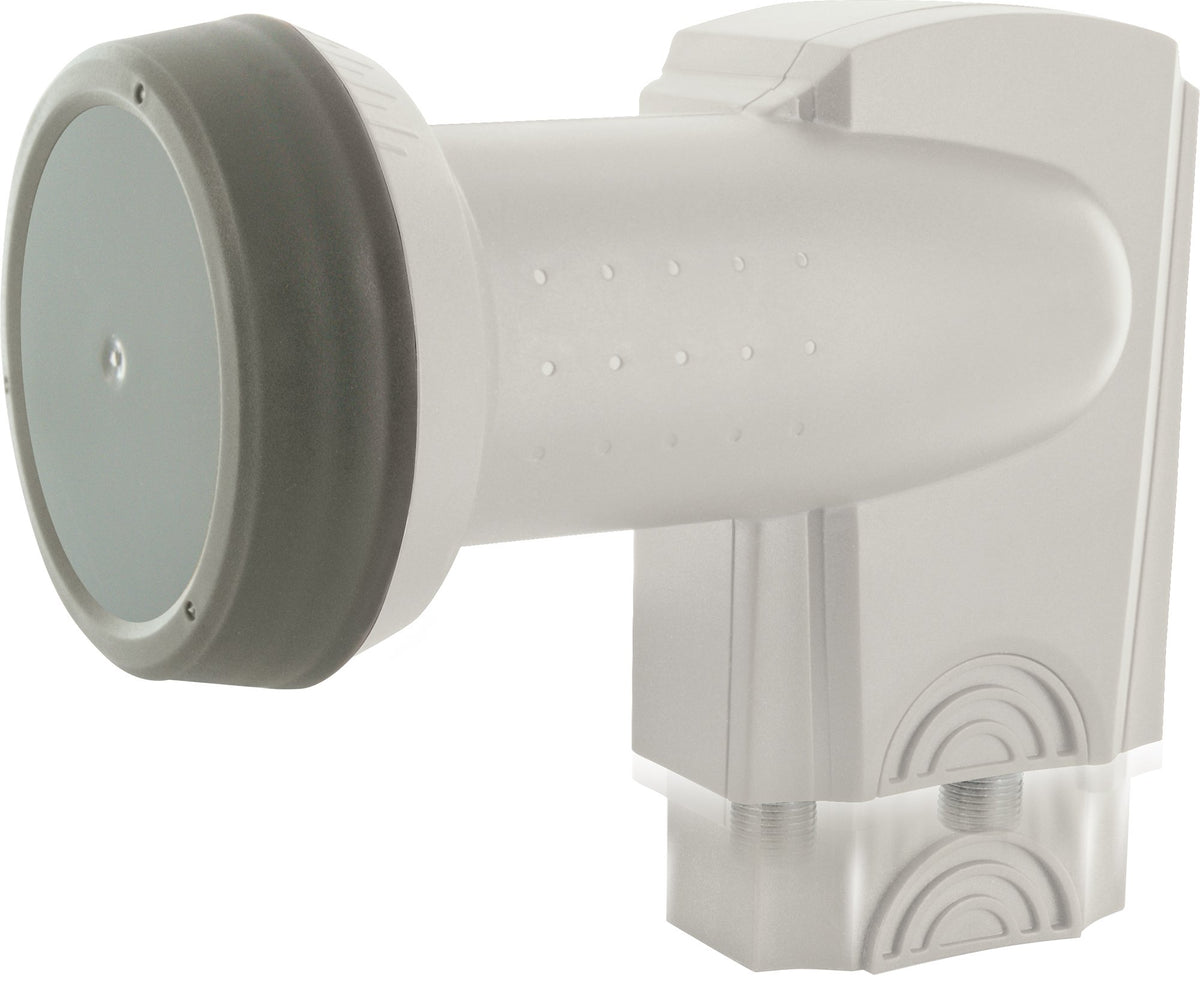

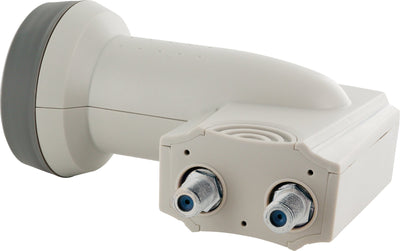

With this SCHWAIGER® Twin LNB, which is also suitable for multifeed systems, a digital satellite system can be set up with a maximum of two participants. The F connections are protected by a removable weather protection cover.
Receiving system TWIN (2 TN) connections 2 x F socket Input frequency 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) Output frequency 950-2,150 MHz Decoupling > 25 dB Oscillation frequency 9.75 GHz (low) 10.6 GHz (high) Gain (typical) > 55 dB Control function 0 kHz (low) 22 kHz (high) polarization Decoupling:> 25 dB Power supply vertical: 10.5-14V horizontal: 6 - 19 V Power consumption typ. <220 mA Feed intake 40 mm Product material Weatherproof plastic colour Light gray Dimensions (width) 112 mm Dimensions (height) 100 mm Dimensions (depth) 25 mm scope of delivery 1x twin LNB
SKU :
SPS6514H 531
Barcode :
4004005528312
