Produktbeschreibung

This SCHWAIGER® satellite receiver receives all unencrypted TV and radio programs in HD quality via satellite. The TV is connected via HDMI. The receiver offers all standard functions that simplify setup and operation. Software updates can be performed using a USB stick.

Technische Daten
Receiver type SAT (DVB-S2)

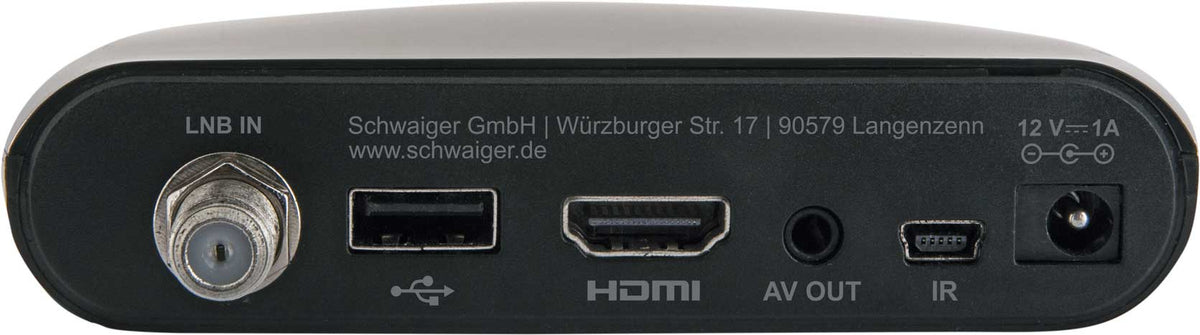

Connections 1x LNB IN (Type F)
2x USB 2.0 port
1x HDMI port
1x audio/video output
1x infrared port
Advertisement Indicator light(s)
Program memory 3000
resolution 576i
576p
720p
1080i
Full HD 1080p
Control function DiSEqC 1.0/1.1/1.2/USALS
Software Update via USB
Languages (Menu) German, English, French, Italian, Persian, Turkish
Favorites lists 8

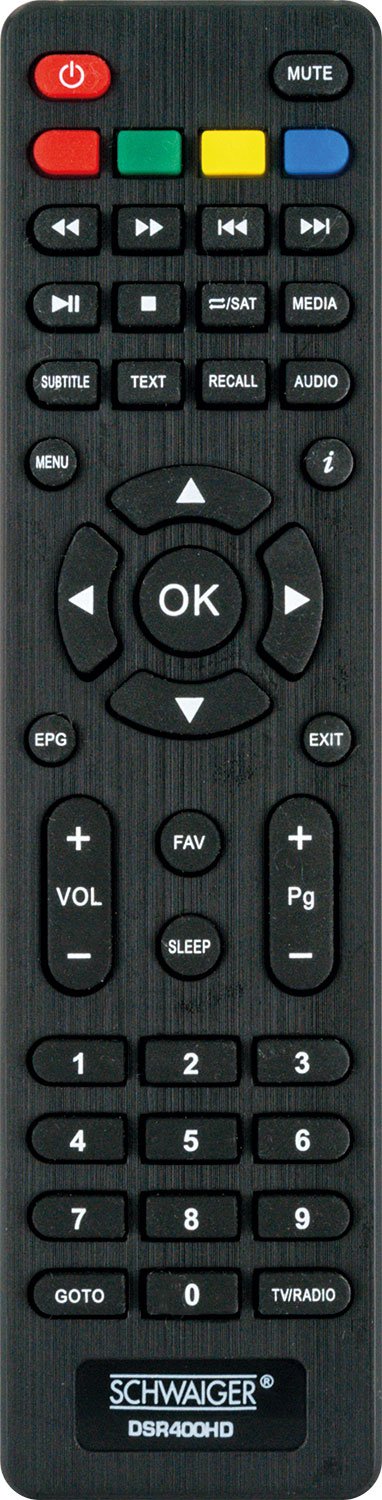

remote control Yes
Input frequency 950 - 2150 MHz
Power consumption in standby < 0.5 W
in operation < 5 W
Power supply 176 - 264 V AC, 50 Hz
Color Black
Dimensions (width) 220 mm
Dimensions (Height) 45 mm
Dimensions (depth) 135 mm
Packaging type Cardboard
Scope of delivery 1x receiver, 1x remote control, 2x batteries (1.5 V LR03 (AAA)), user manual
