DVB-T2 HD rod antenna (active)
DVB-T2 HD rod antenna (active)
SKU ANT04DTA 031
SKU ANT04DTA 031

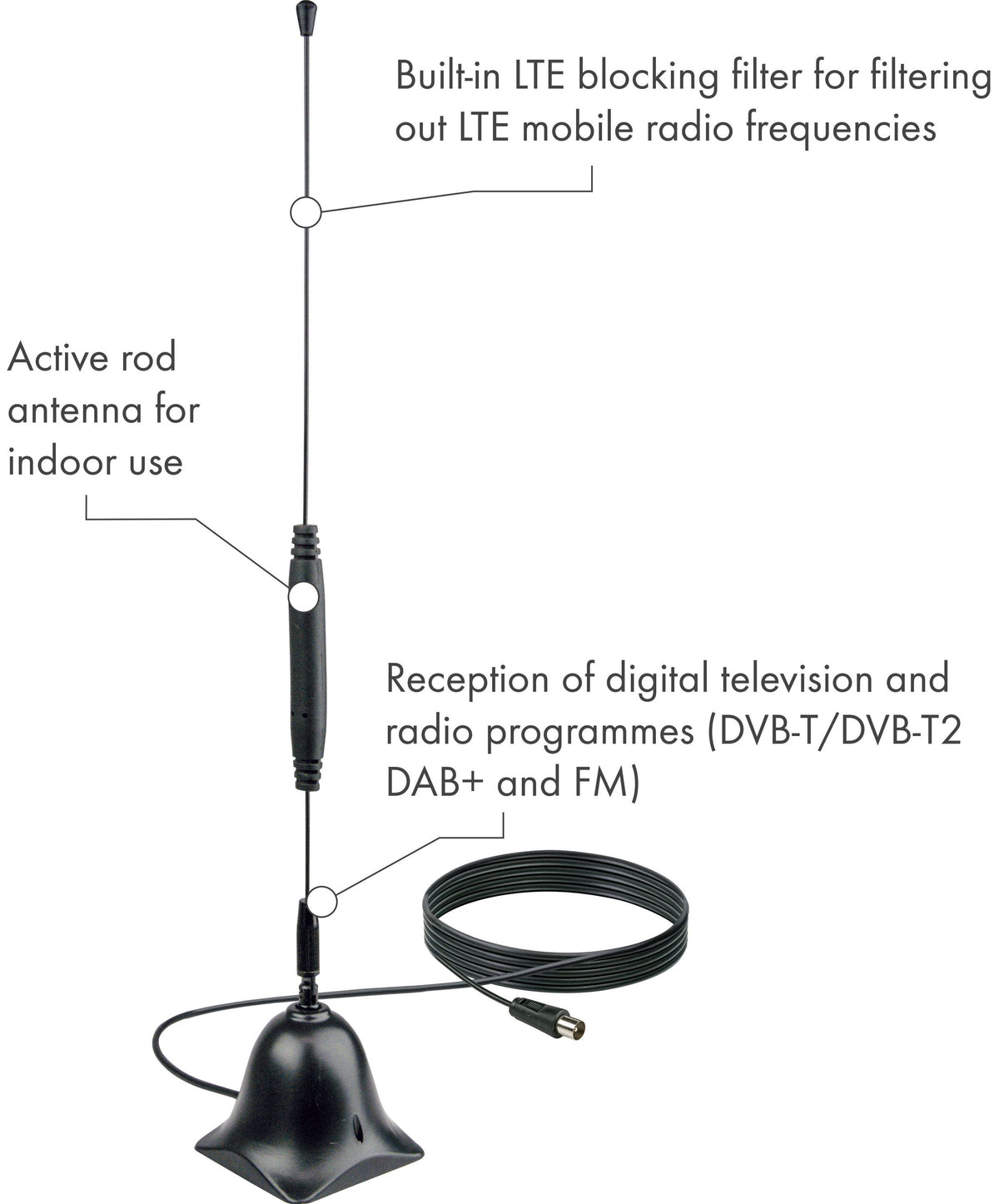

Built-in LTE blocking filter to filter out LTE cellular frequencies Reception of analog and digital television signals in the VHF and UHF range Reception of digital radio programs (DAB + and FM) Active DVB-T antenna with magnetic base and built-in amplifier Power supply directly from DVB-T receiver or television set via coaxial cable
Expert hotline(+49) 09101 702-299
Expert emailexperten@schwaiger.de

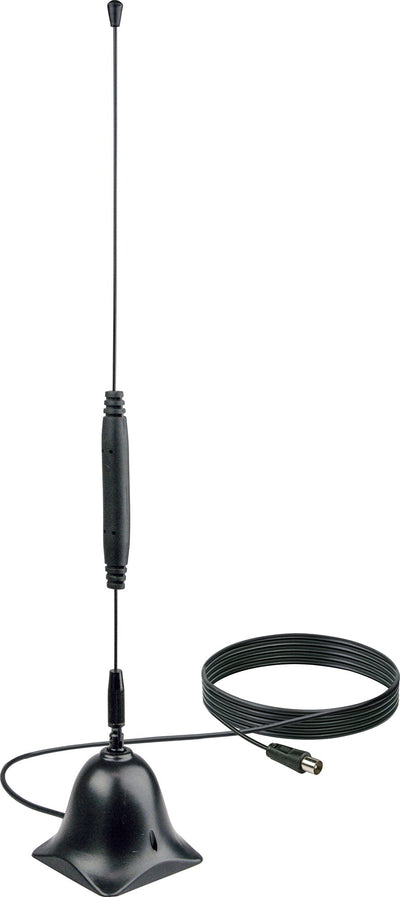

The SCHWAIGER® Rod antenna is suitable for terrestrial reception of television and radio programs. It has a built-in amplifier (22 dB) and can be used indoors and outdoors. The introduction of LTE as the standard for mobile Internet leads in some places to problems with the reception of digital terrestrial television. The antenna therefore has an LTE notch filter that filters out the LTE cellular frequency up to 790 MHz. DVB-T2 HD can thus be received without restriction.

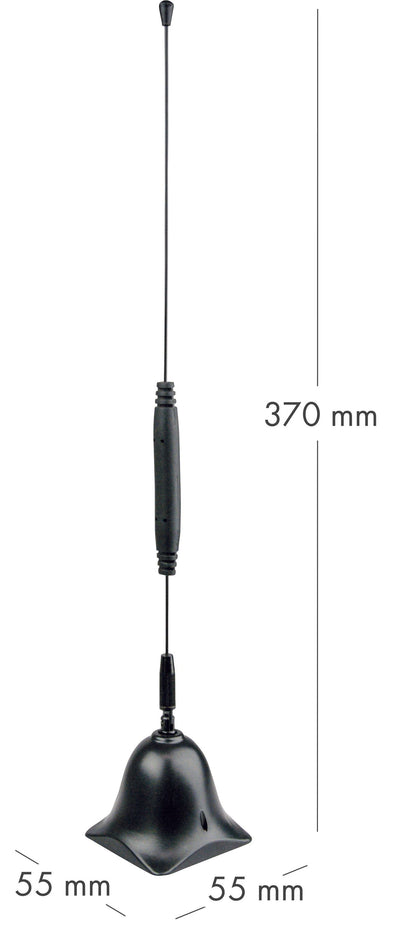

technology DVB-T Place of use Indoor and outdoor connections 1 x IEC connector elements Round bar Antenna gain (max.) 22 dB Product material metal Cable length 3 m Frequency range 87.5 - 240 MHz (VHF) 470 - 790 MHz (UHF) Power supply via coaxial cable: 5 V DC colour black Dimensions (width) 55 mm Dimensions (height) 370 mm Dimensions (depth) 55 mm scope of delivery 1x antenna, 1x antenna connection cable, safety notice
SKU :
ANT04DTA 031
Barcode :
4004005040401
