Single or branch line socket (2.5 dB) in a set

Single or branch line socket (2.5 dB) in a set

SKU DSE950 531
€39,49 - €39,49
€39,49
€39,49 - €39,49
€39,49
Availability:
in stock, ready to be shipped
  • PayPal
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • SOFORT
  • Union Pay
  • Visa
  • Clamping technology
  • screwless inner conductor fastening for quick and error-free assembly (Ø 0
  • 8 - 1
  • 3 mm)
  • Hinged clamp for fixing the outer conductor (max. 7
  • 5 mm)
  • Low installation depth
  • Long F connector for easy installation of the connection cable
  • Use only as a single can
  • Direct current passage (DC) for LNB control through the satellite receiver on the SAT connection
  • Claw fastening for plaster inserts (55 mm)
  • Norms
  • see declaration of conformity (Service & amp
  • Support)

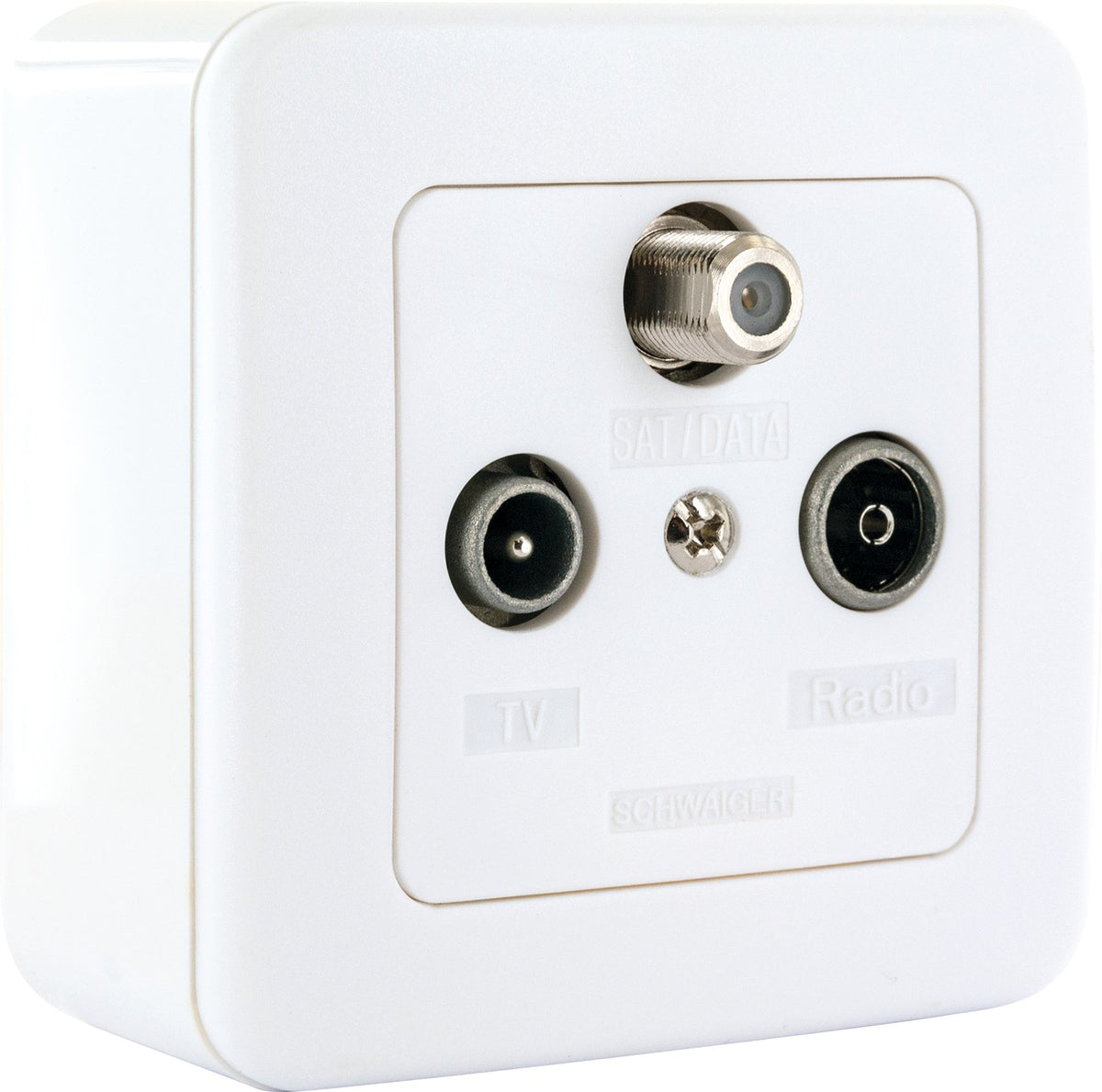

  • Included in delivery: 1x cover frame, 1x surface-mounted box

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

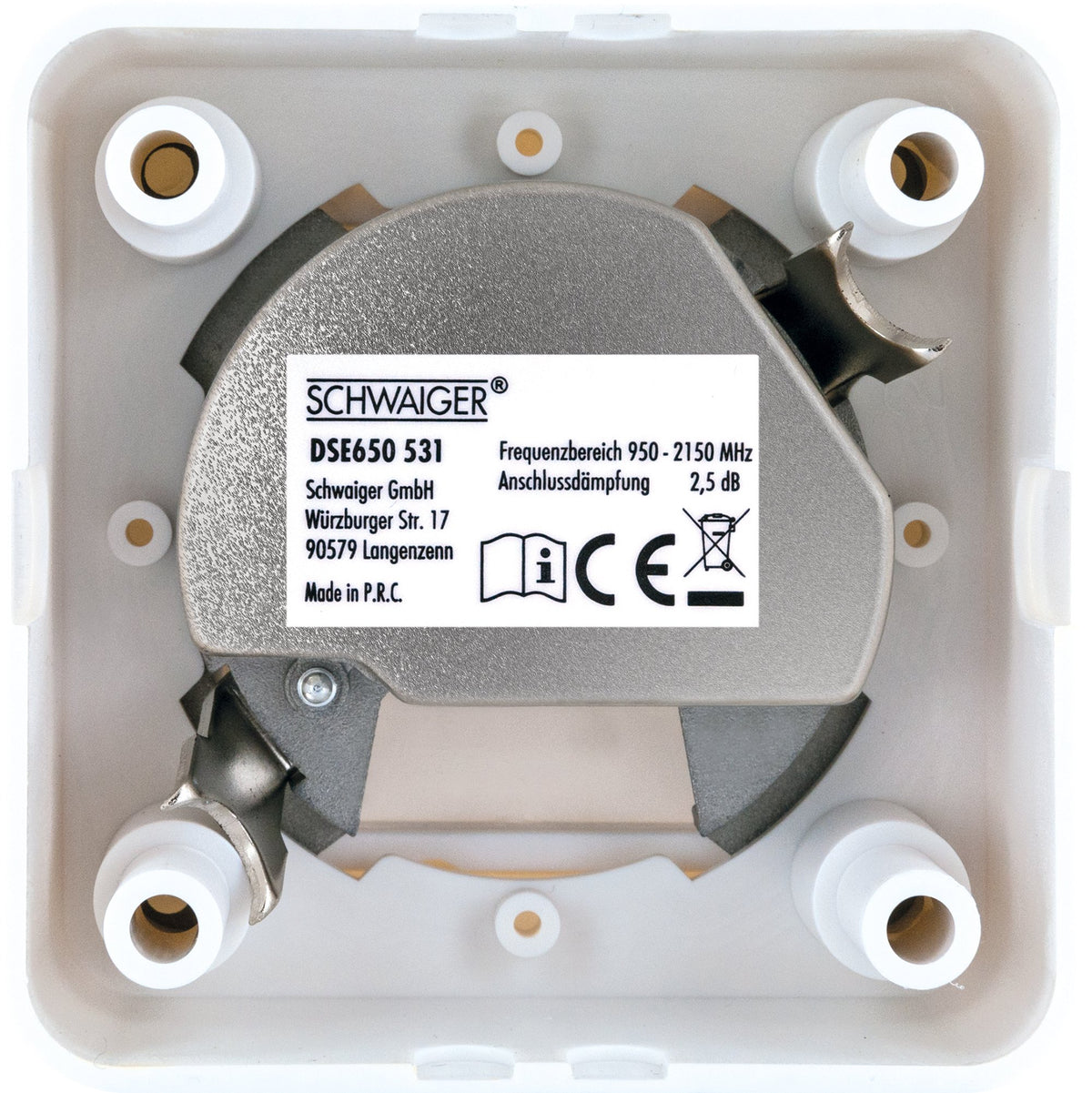

This SCHWAIGER® single socket set consists of a single or branch line socket, a surface-mounted box and a cover frame. The socket is suitable for use on single, community antenna, broadband cable and satellite systems. With the special clamping technology, the cable connections do not have to be screwed.

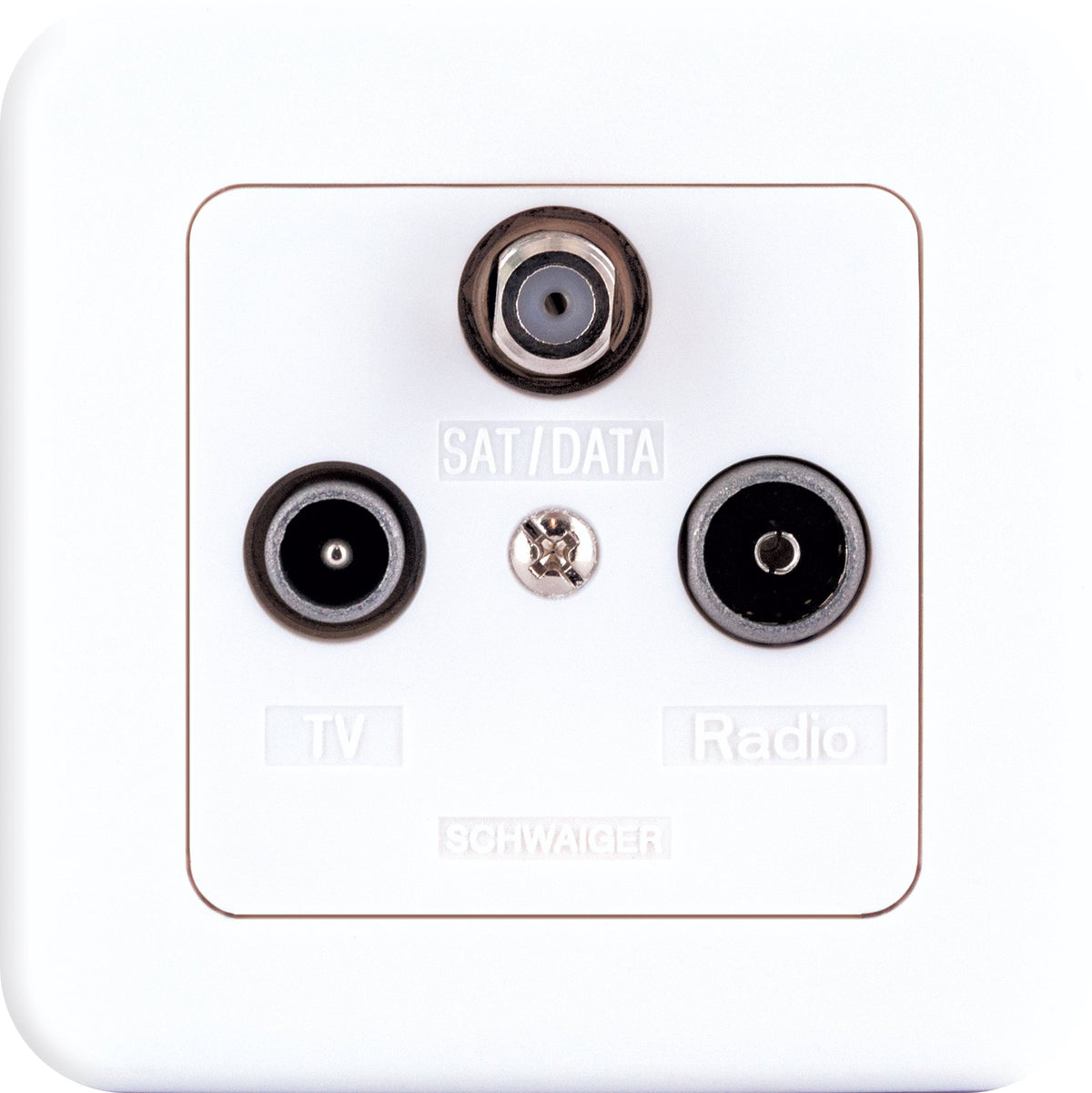

Connections (input)1 x detachable contact clamping spring
Connections (output)1 x F socket
1 x IEC socket
1 x IEC connector
Frequency range950 - 2150 MHz (SAT)
5 - 862 MHz (TV)
5 - 139 MHz (RDF)
Decoupling> 24 dB (SAT / terrestrial)
Connection loss2.5 dB (SAT)
2.5 dB (TV)
5.5 dB (RDF)
Installation depth22 mm
Product materialDie-cast aluminum protected against corrosion
colourSilver / white
