SAT coaxial cable (90 dB)

SKU KOX710 052
Original price €26,39 - Original price €68,59
Original price
€26,39
€26,39 - €68,59
Current price €26,39
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Cable length: 10 m
  • PayPal
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • SOFORT
  • Union Pay
  • Visa
  • Triple shielding for additional security against electromagnetic interference
  • High shielding properties guaranteed
  • Moisture-resistant with high long-term stability
  • High density and very good insulating properties

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

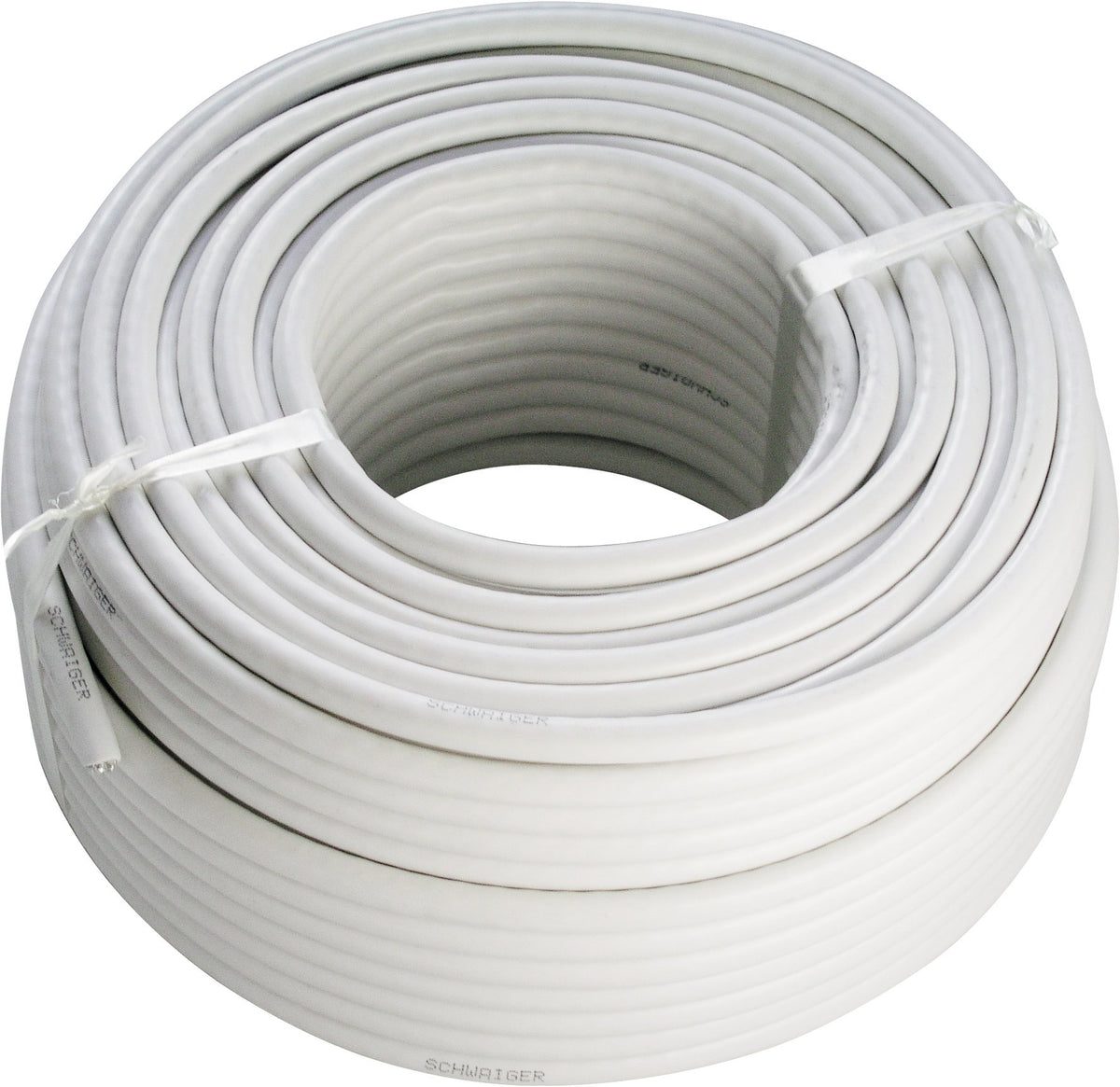

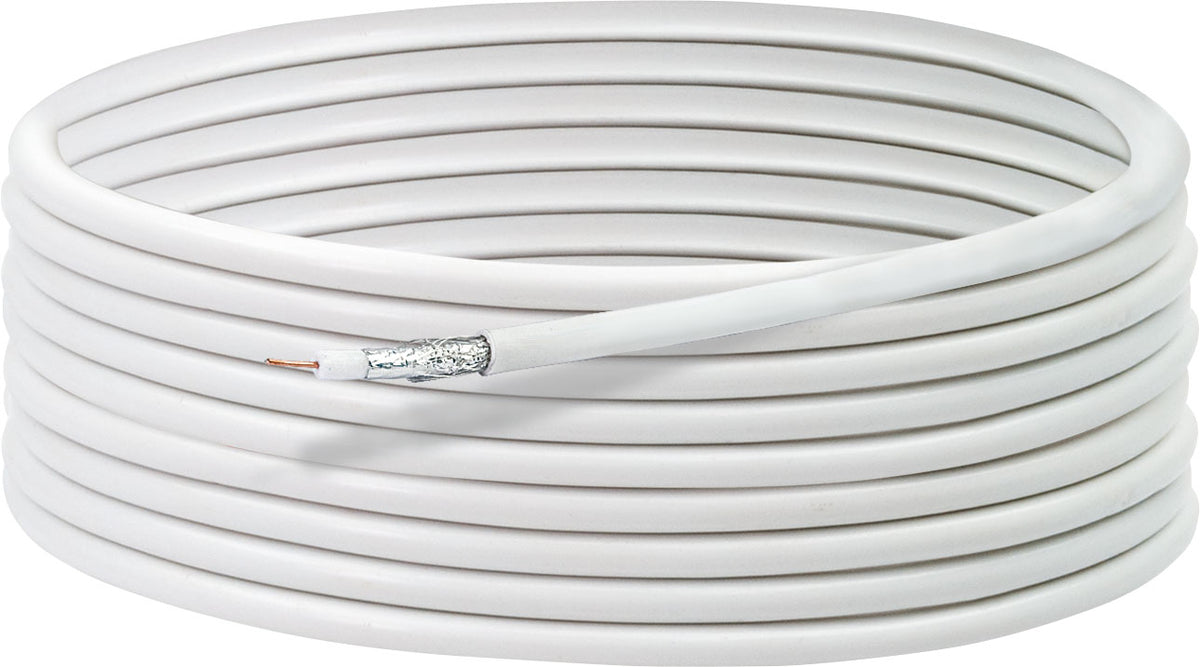

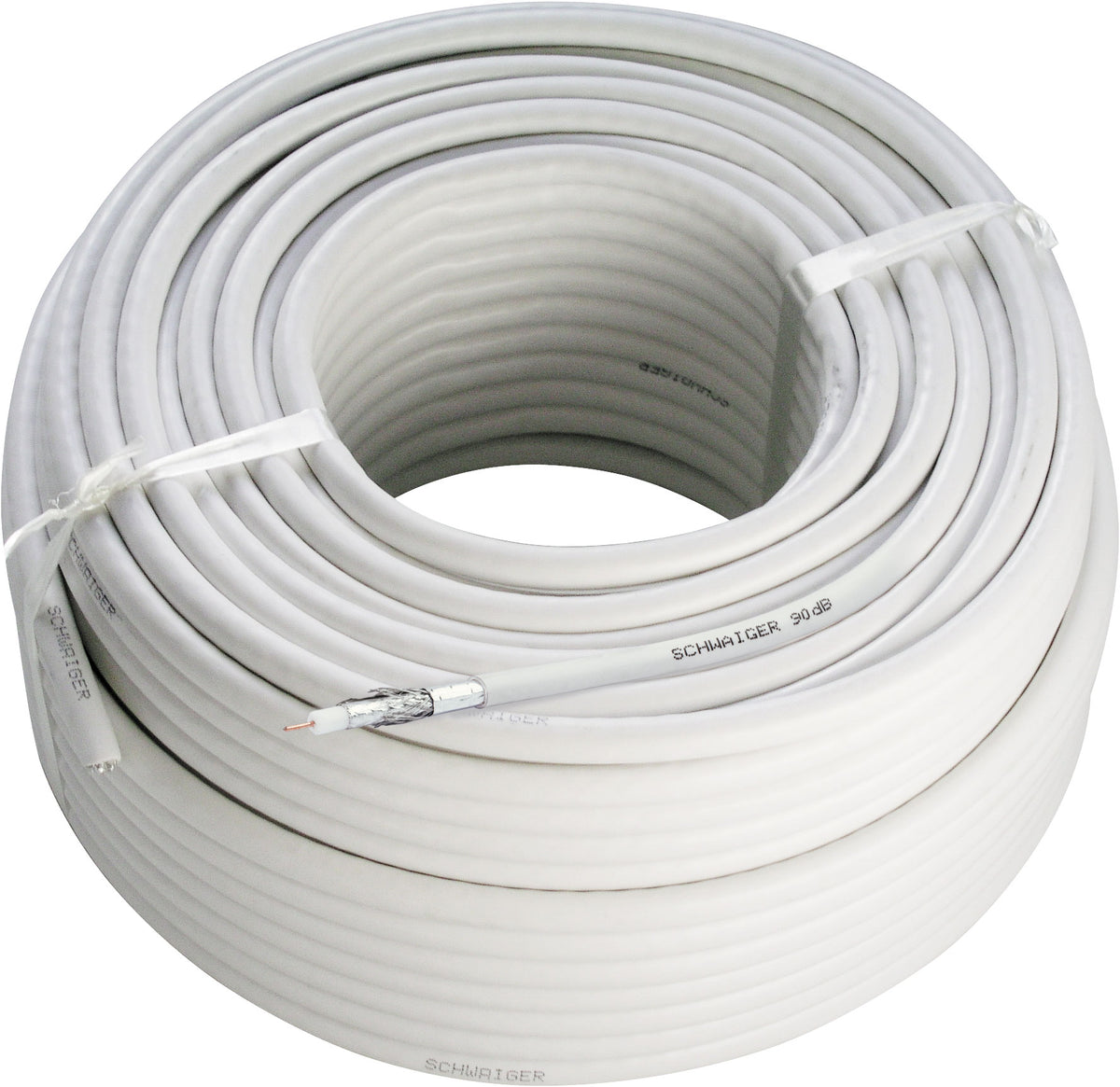

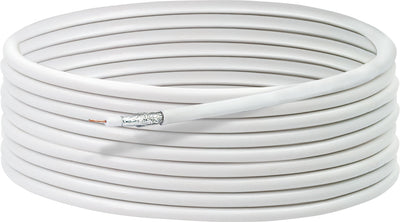

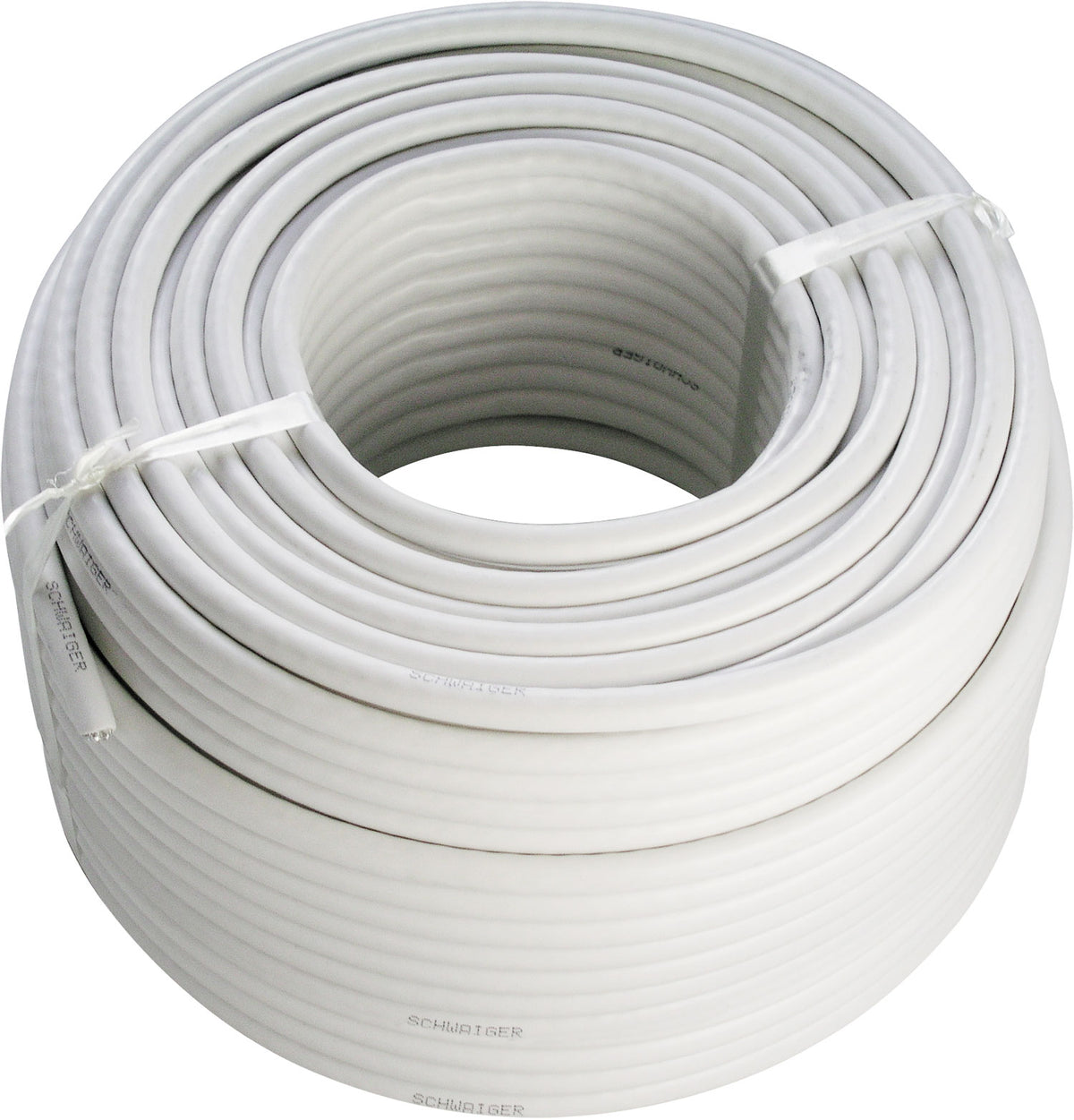

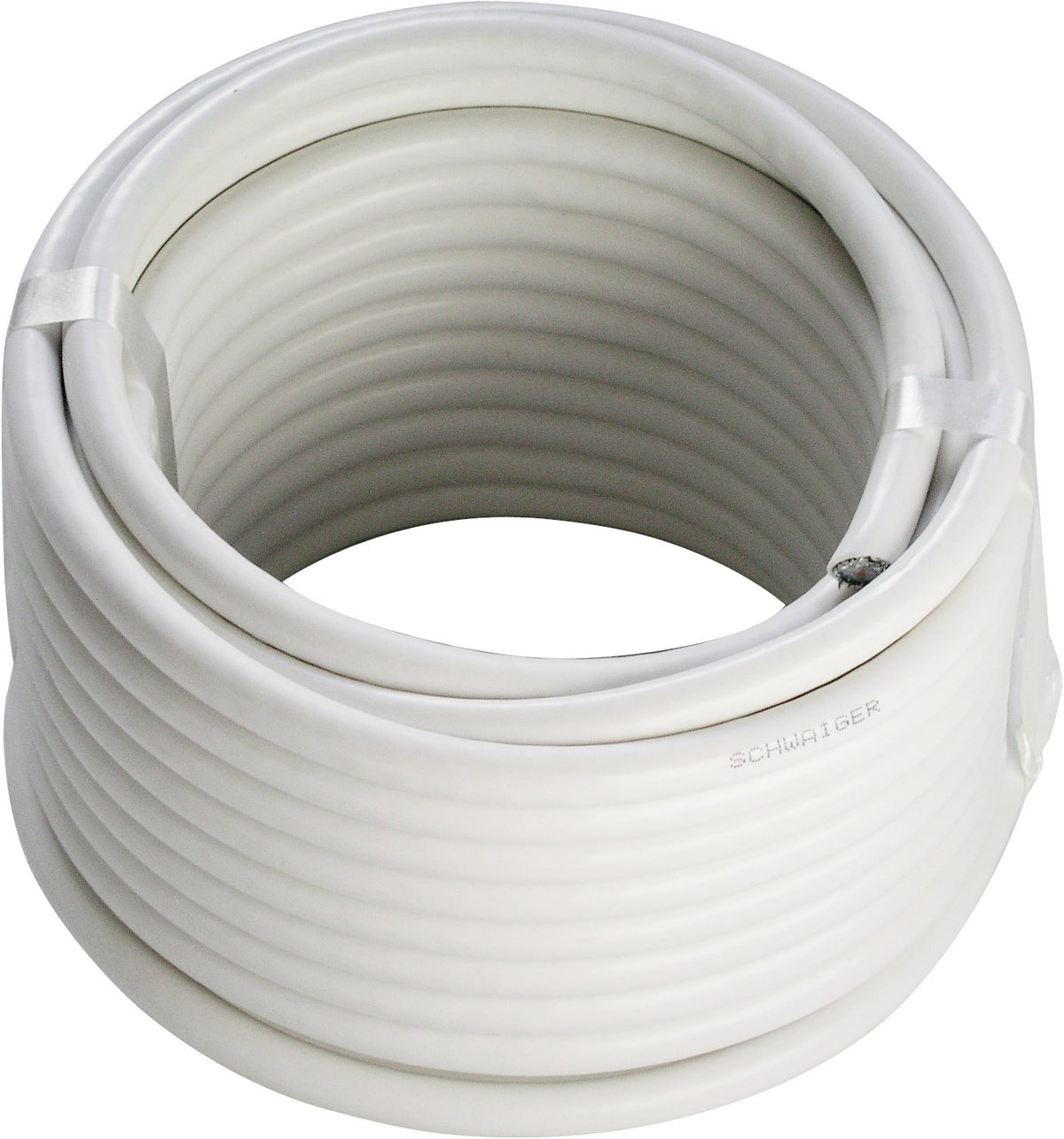

This SCHWAIGER® coaxial cable is suitable for high requirements in satellite and cable TV installations. With the increased shielding dimension of 90 dB, it offers additional security against electromagnetic interference. The cable can be shortened to any length and equipped with suitable F connectors. SCHWAIGER® offers a suitable stripping tool for this.

Impedance 75 ohms

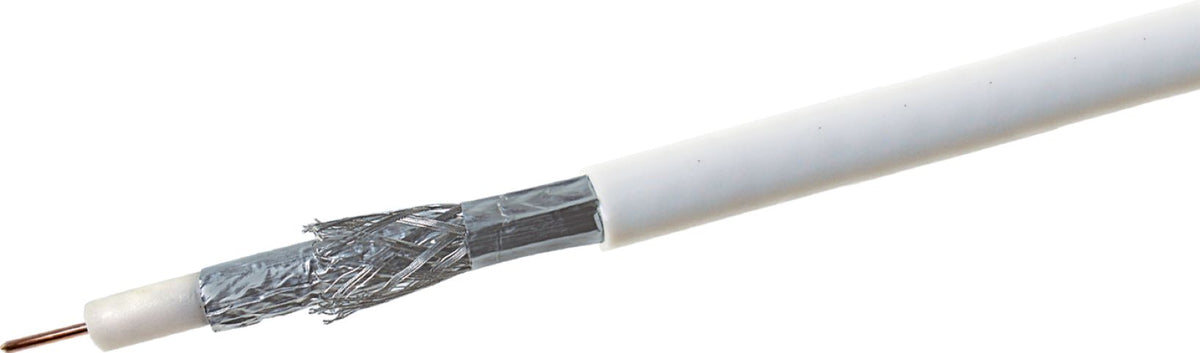

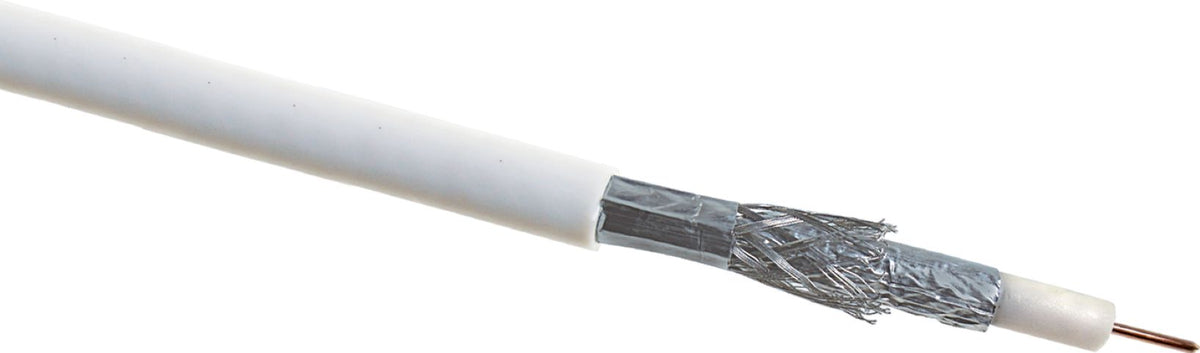

Cable structure 1.02 mm (inner conductor)
4.5 mm (dielectric)
7 mm (jacket)
Shielding 3-fold shielded
Shielding measure 90 dB
Attenuation at 100 m 4.3 dB to 50 MHz
6.1 dB to 100 MHz
13 dB to 470 MHz
18.5 dB to 860 MHz
21 dB to 950 MHz
27 dB to 1750 MHz
31 dB to 2150 MHz
Shielding material Aluminum composite foil
80s aluminum braid
Aluminum composite foil
Inner conductor CCS
Product material plastic
classification Class a
colour White
scope of delivery 1x SAT coaxial cable
