Produktbeschreibung

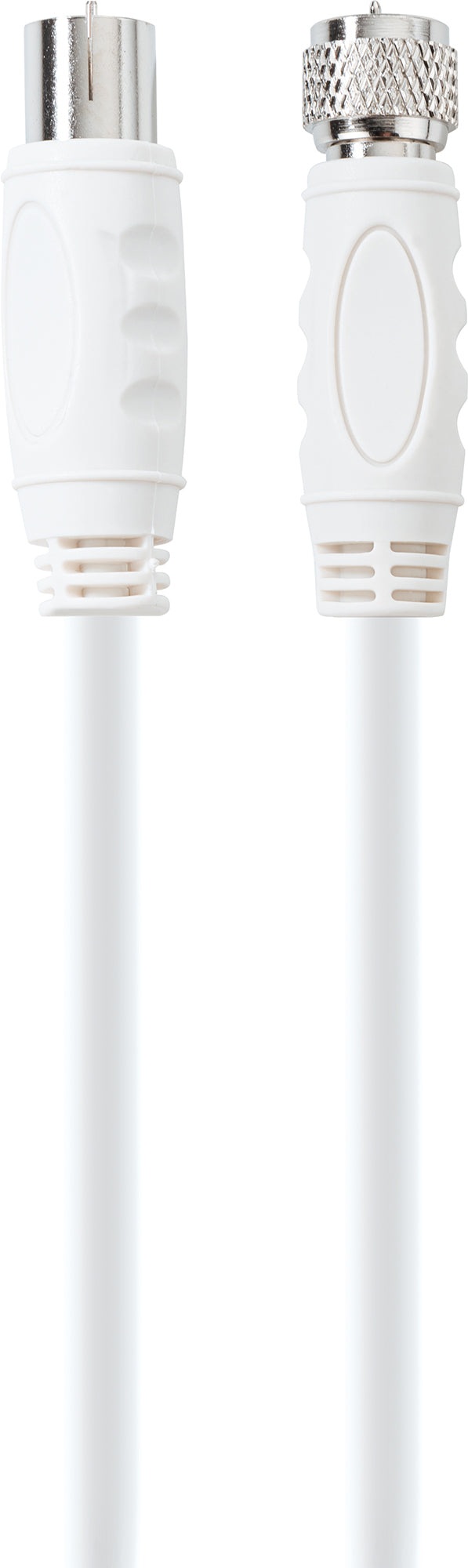

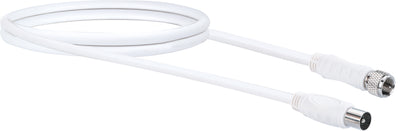

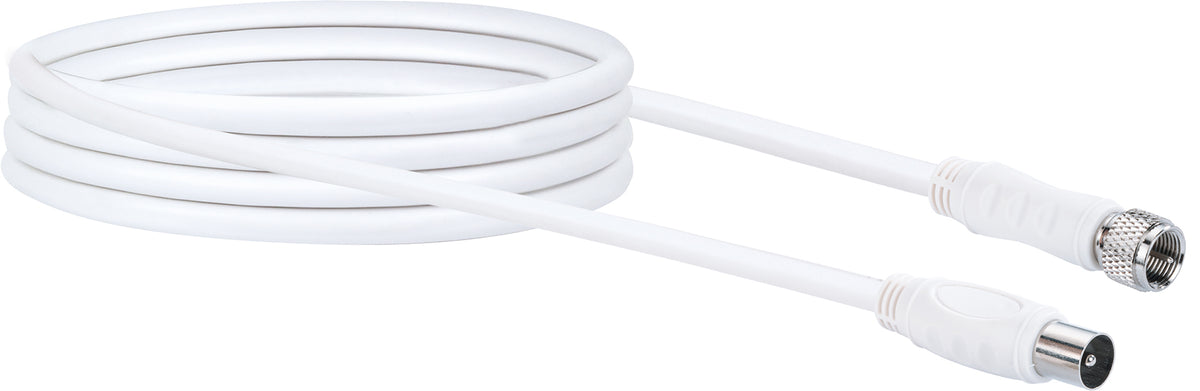

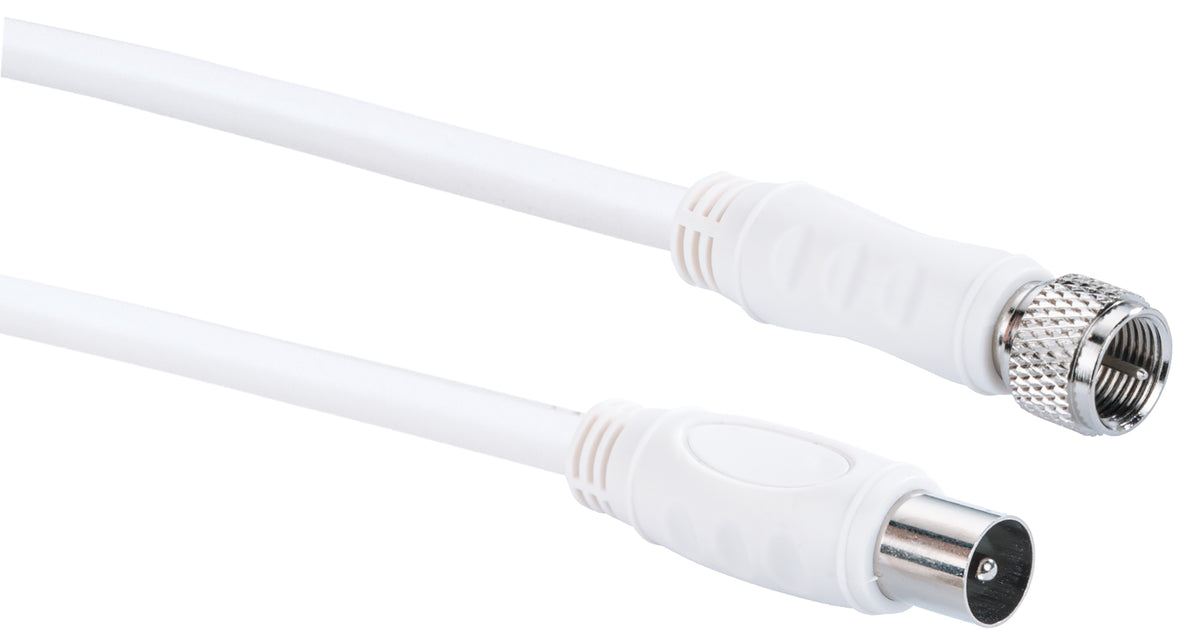

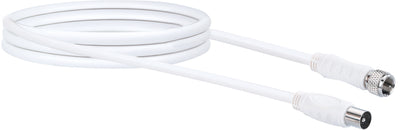

This SCHWAIGER® SAT connection cable is designed for higher requirements with high-resolution image and sound transmissions. It is ideally suited for the connection between satellite receiver and satellite socket with coaxial connection. With its high shielding of 90 dB, the cable offers the best possible protection against electromagnetic interference and radio interference of all kinds. The inner copper conductor ensures loss-free signal routing and thus interference-free reception.
Technische Daten
connections1 x F connector
1 x IEC connector
Cable length5 m
Cable structure1.02 mm (inner conductor)
4.57 mm (dielectric)
6.6 mm (jacket)
Shielding2-fold shielded
Shielding measure90 dB
Shielding materialAluminum composite foil
64 aluminum braid
colourWhite
