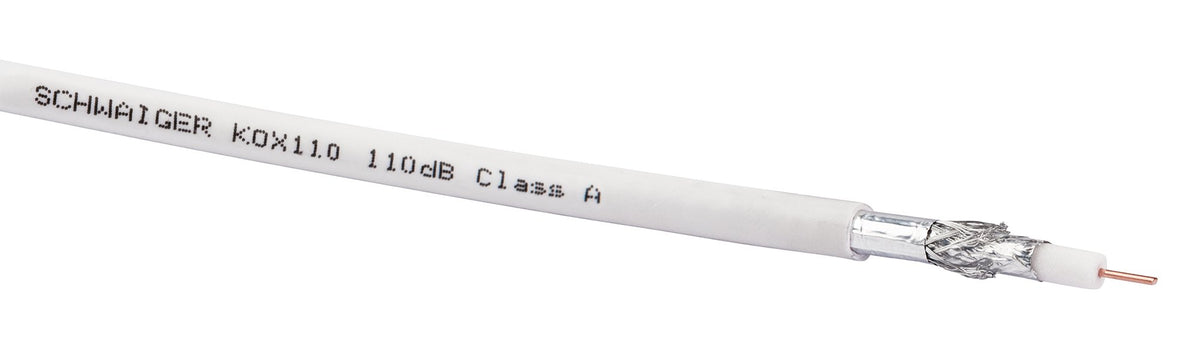

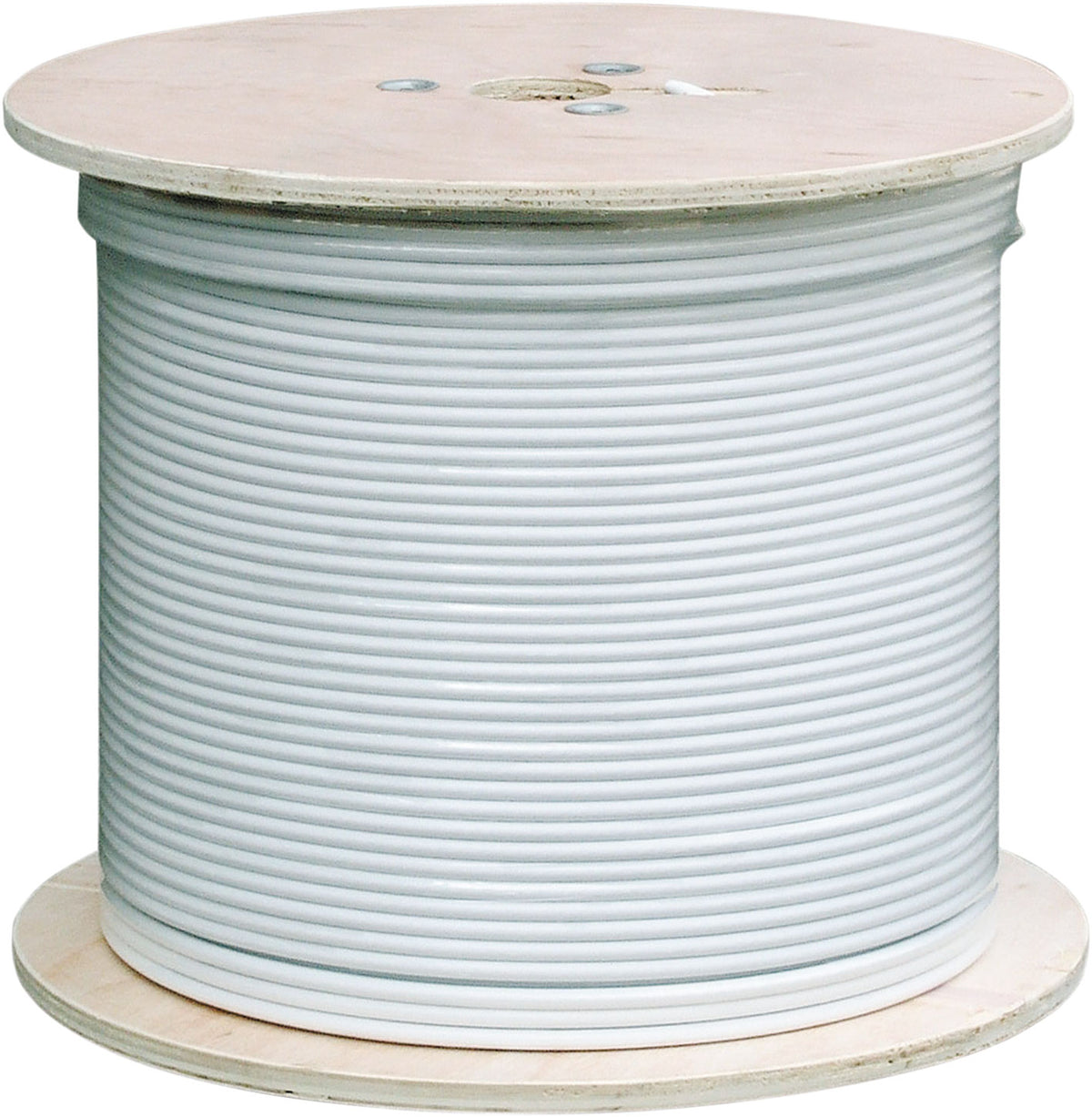

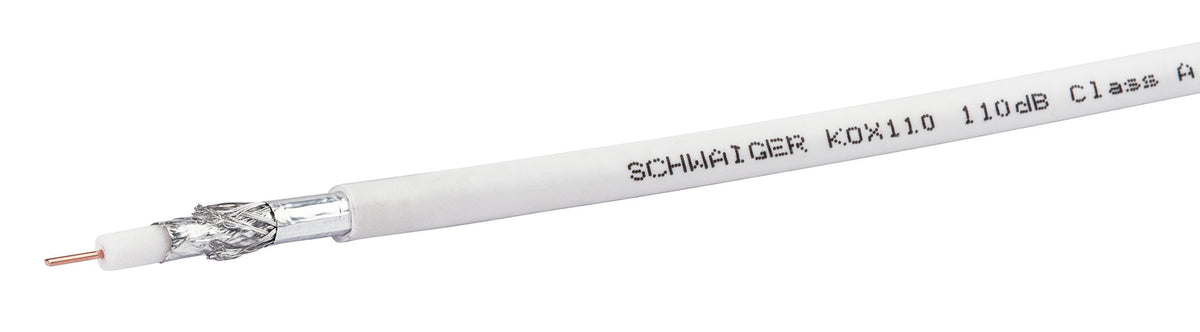

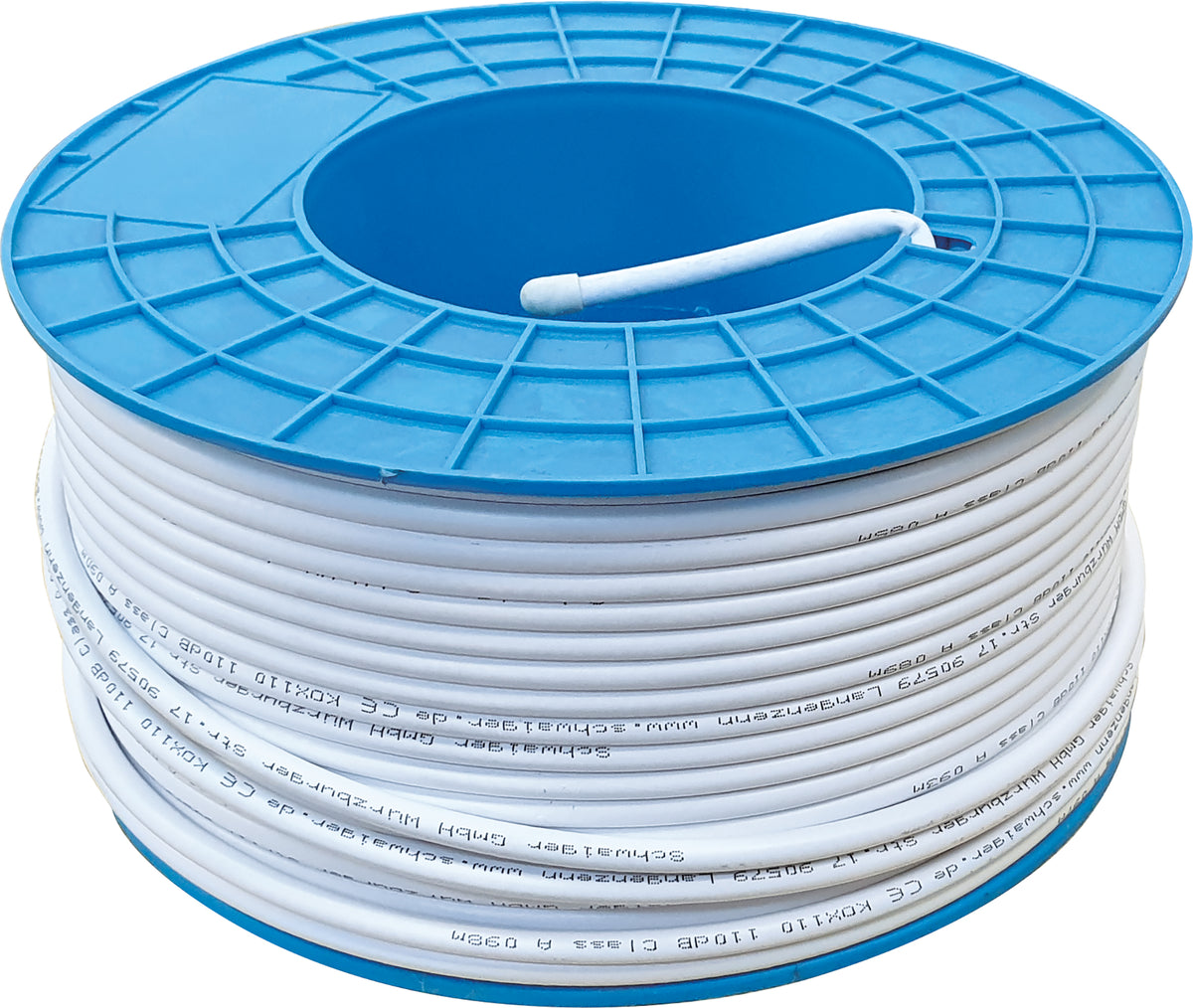

SAT coaxial cable (110 dB)
SAT coaxial cable (110 dB)
SKU KOX110 100
SKU KOX110 100

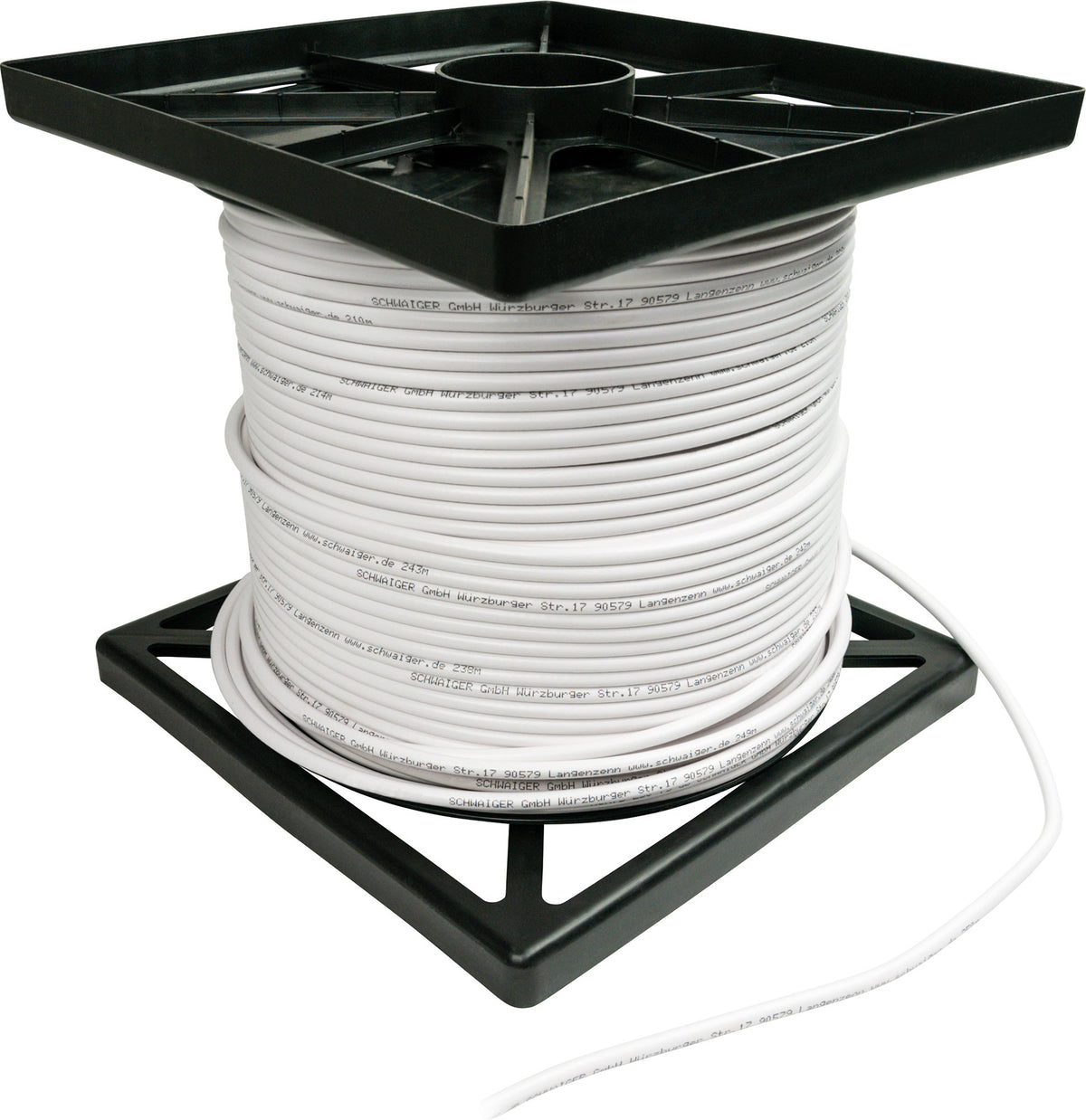

Triple shielding for additional security against electromagnetic interference Excellent stripping and installation properties Moisture-resistant with high long-term stability Provide the cable with meter coding UV-resistant cable, in a practical roll-off box
Expert hotline(+49) 09101 702-299
Expert emailexperten@schwaiger.de
This SCHWAIGER® coaxial cable is suitable for higher requirements in satellite and cable TV installations. The shielding dimension of 110 dB enables the best possible protection against electromagnetic interference. In addition, thanks to the cable structure, very low signal attenuation is achieved. The cable can be shortened to any length and equipped with appropriate F connectors. SCHWAIGER® offers a suitable stripping tool for this.
Impedance 75 ohms Cable structure 1.02 mm (inner conductor) 4.5 mm (dielectric) 7 mm (jacket) Shielding 3-fold shielded Shielding measure 30 - 1000 MHz ≥ 95 dB 1000 - 2400 MHz ≥ 95 dB Return loss 5 - 470 MHz ≥ 23 dB 470 - 862 MHz ≥ 20 dB 862 - 1000 MHz ≥ 20 dB 1000 - 2400 MHz ≥ 18 dB Attenuation at 100 m 1.9 dB to 5 MHz 5.25 dB to 50 MHz 7.56 dB to 100 MHz 14.45 dB to 450 MHz 20.04 dB to 860 MHz 21.49 dB to 1000 MHz 32.15 dB to 2150 MHz 34.68 dB to 2400 MHz Shielding material Aluminum composite foil (double) 84 aluminum braid Aluminum composite foil (double) Inner conductor Cu Product material plastic classification Class A ++ colour White scope of delivery 1x SAT coaxial cable
SKU :
KOX110 100 / KOX110 500 / KOX110 250
Barcode :
4004005110128 / 4004005110135 / 4004005029246
