Produktbeschreibung

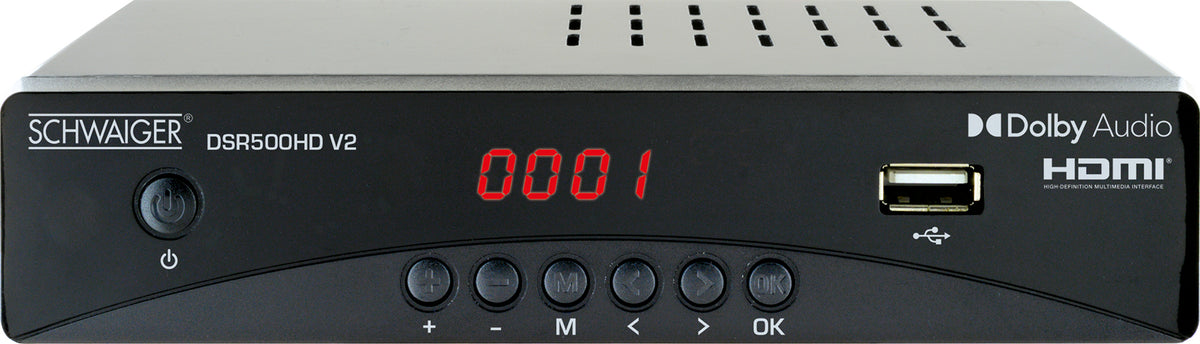

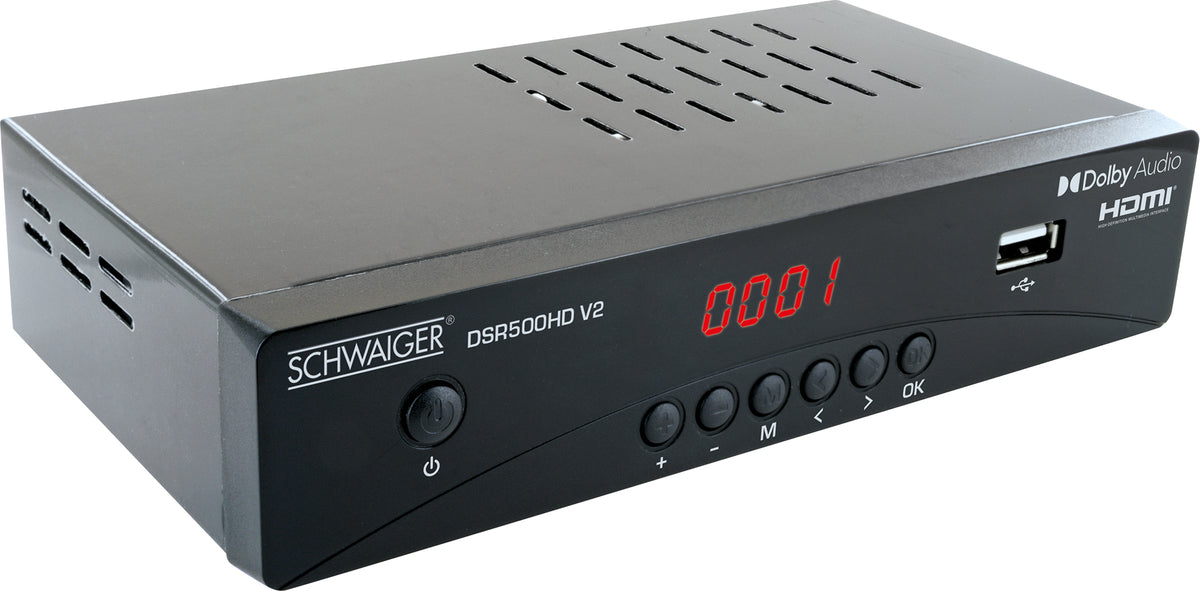

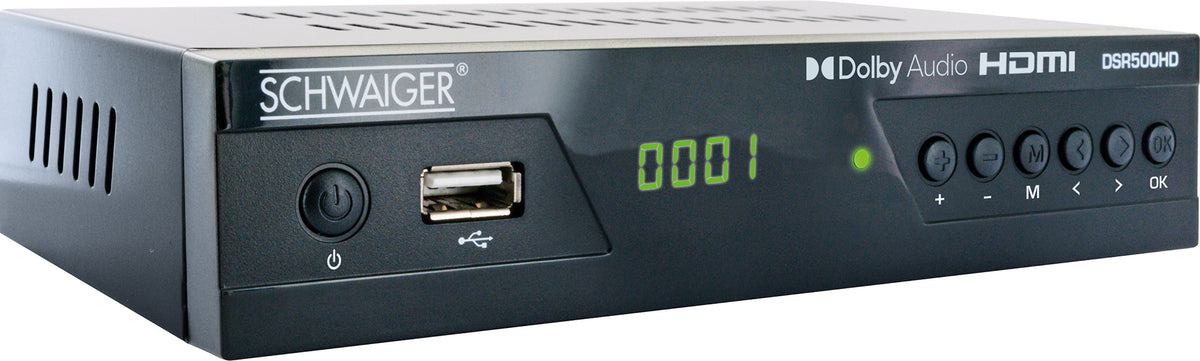

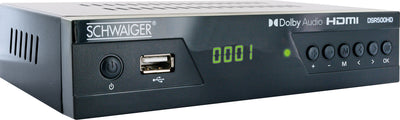

This SCHWAIGER® satellite receiver receives all unencrypted TV and radio programs in HD quality via satellite. The TV is connected via HDMI. The receiver offers all standard functions that simplify setup and operation. Software updates can be performed using a USB stick.

Technische Daten
Receiver type SAT (DVB-S2)
Advertisement Indicator light(s)
Program memory 3000

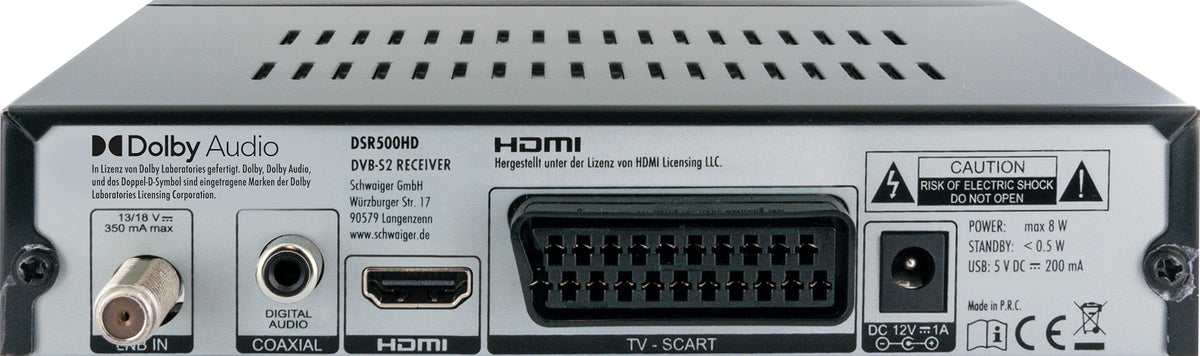

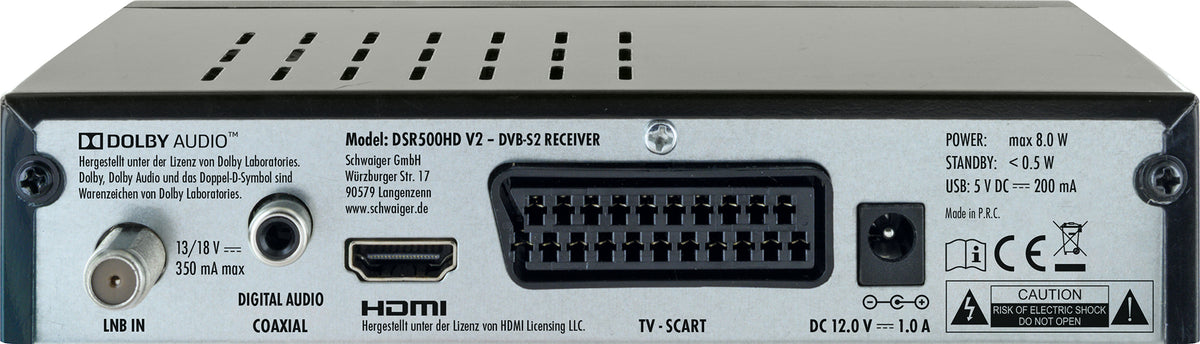

LNB IN (Type F) 1 x (back)

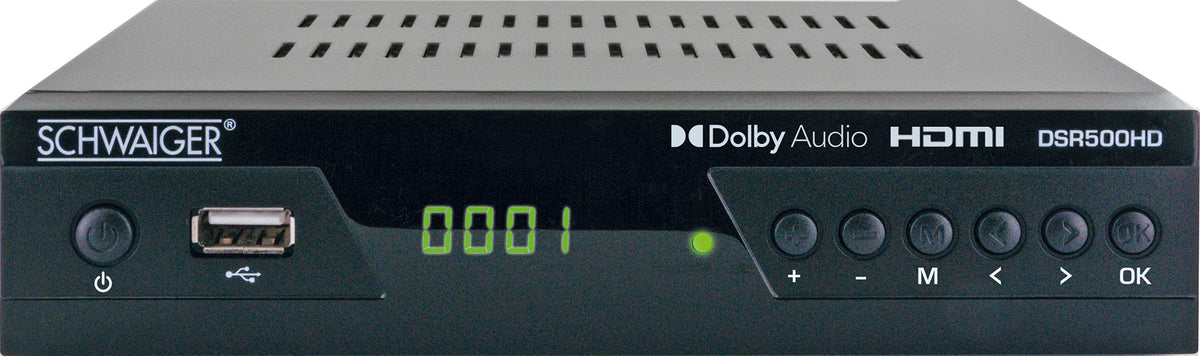

USB 2.0 port 1 x (front)
HDMI® port 1 x (back)
resolution 480p
576i
720p
1080p/i
SCART connection 1 x (back)
Digital audio output 1 x (rear) coaxial
Control function DiSEqC 1.0
1.1
Software Update via USB
Languages ​​(Menu) German
English
French
Italian
Turkish
Favorites lists 8
Input frequency 950 - 2150 MHz
Power consumption in standby < 0.5 W
in operation < 5.0 W
Power supply 100 - 240 V AC, 50/60 Hz
Color Black
Dimensions (width) 197 mm
Dimensions (Height) 92 mm
Dimensions (depth) 15 mm

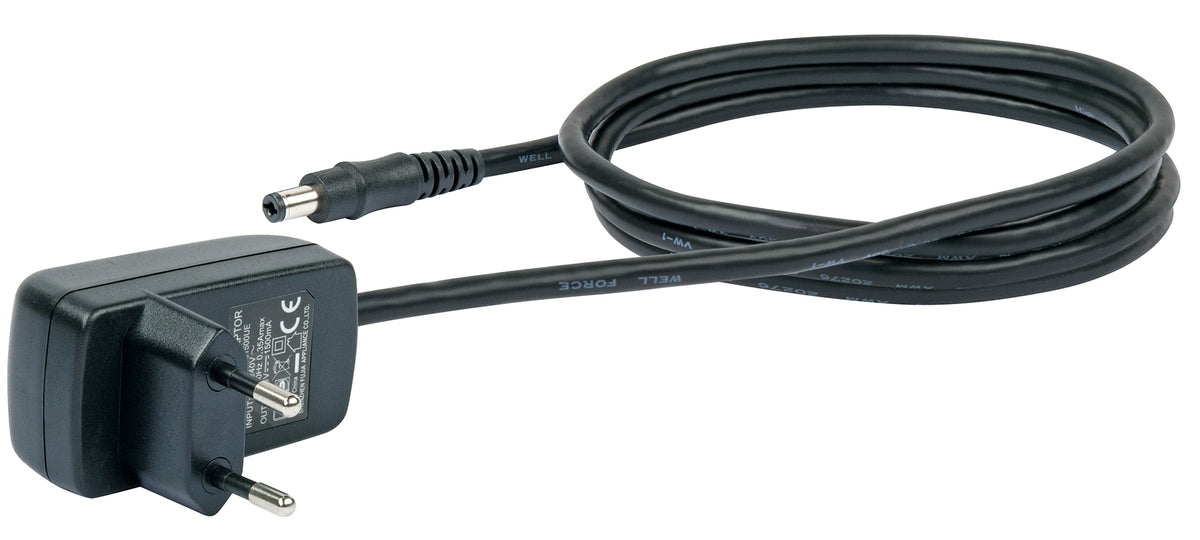

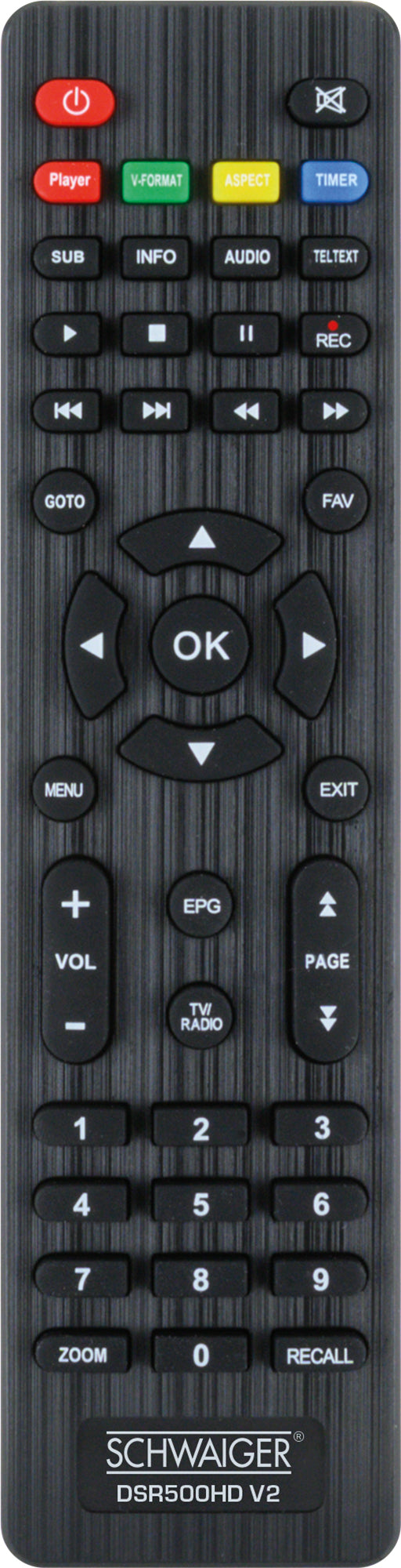

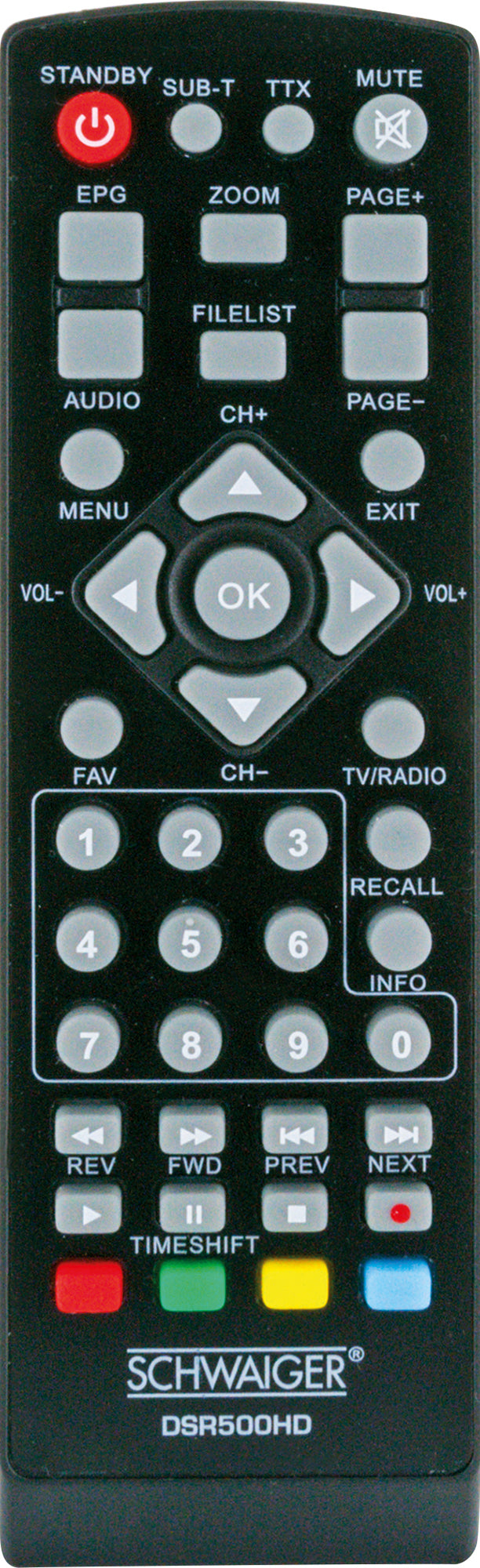

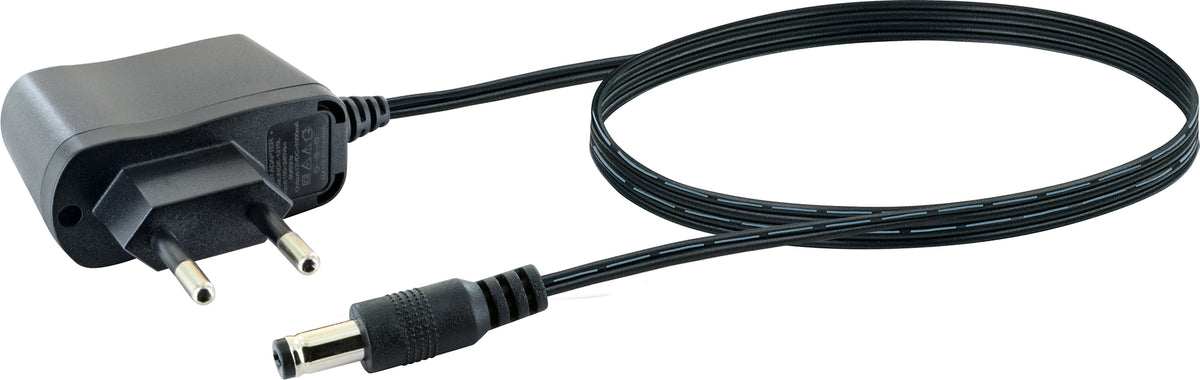

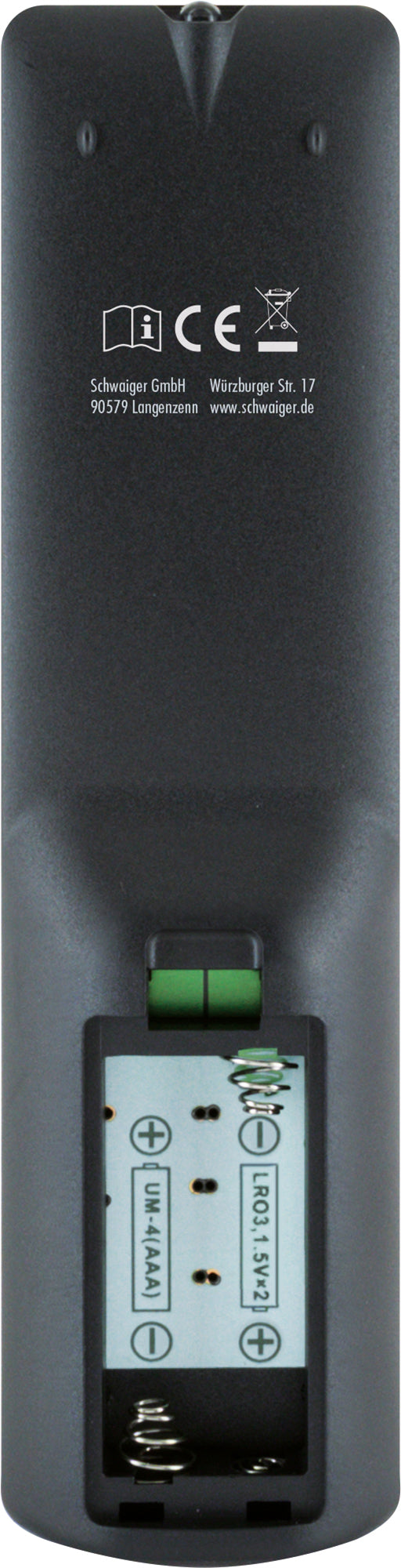

Scope of delivery Receiver, power supply, remote control, 2x batteries (1.5 V LR03 (AAA)), operating instructions
