SAT set (55 cm + LNB + connection cable)
SKU 719727
€59,99
- Reception system for setting up 1 subscriber SAT systems
- mast mounting bracket with hexagon nuts
- Single LNB with extremely heat-resistant feedhorn cap (SUN PROTECT)
- Satellite receiver receives all unencrypted TV and radio programs in HD quality
Auf Lager
Sichere Zahlung
Passend dazu
SAT set (55 cm + LNB + connection cable)
€59,99
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung

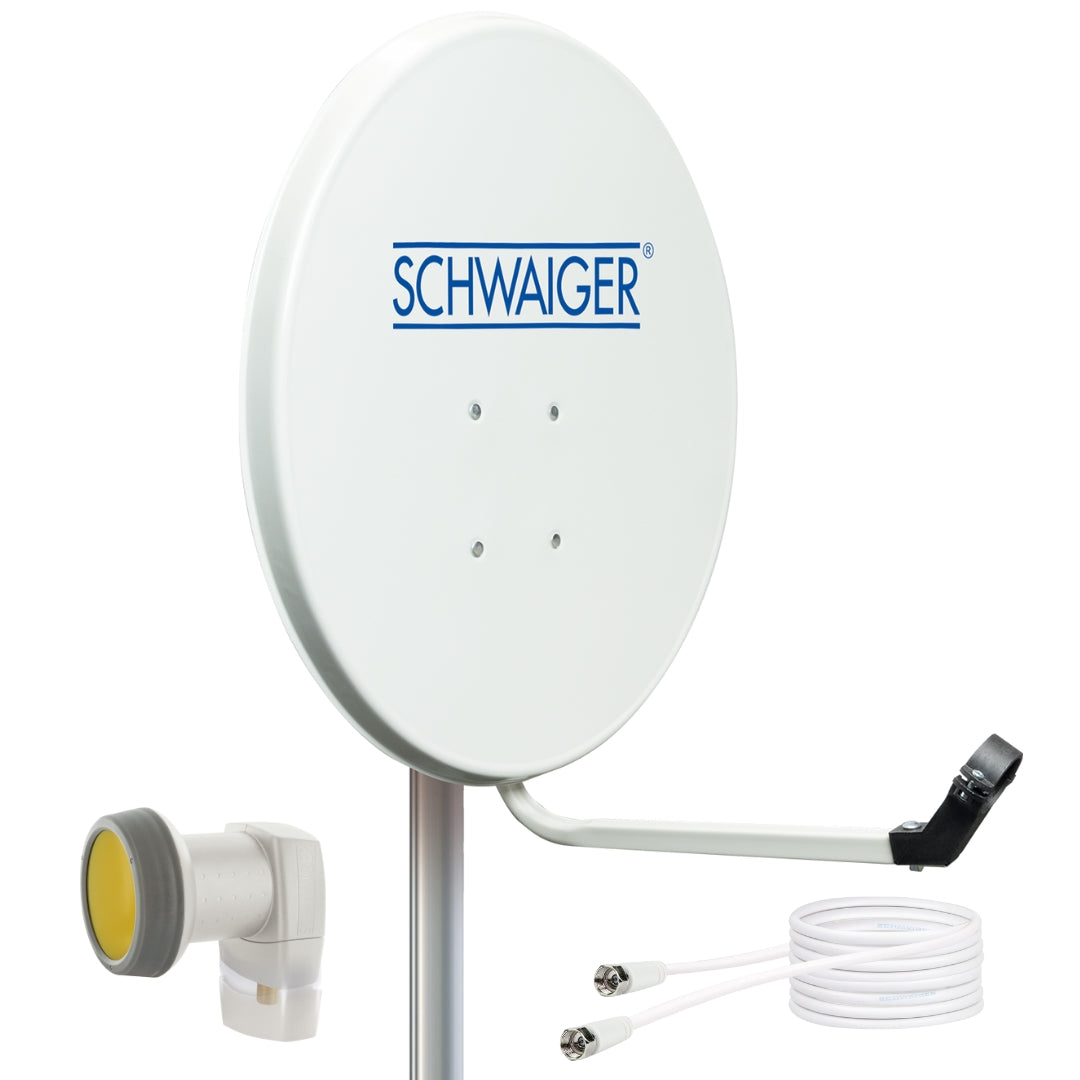

This SCHWAIGER® SAT reception set contains an offset antenna, a single LNB, a SAT connection cable and a suitable SAT finder for setting up a satellite system for 1 subscriber, corresponding to 1 receiver. The offset antenna can receive all free and encrypted television and radio programs via satellite. All components are optimally coordinated and are supplied with the necessary mounting accessories.
Technische Daten

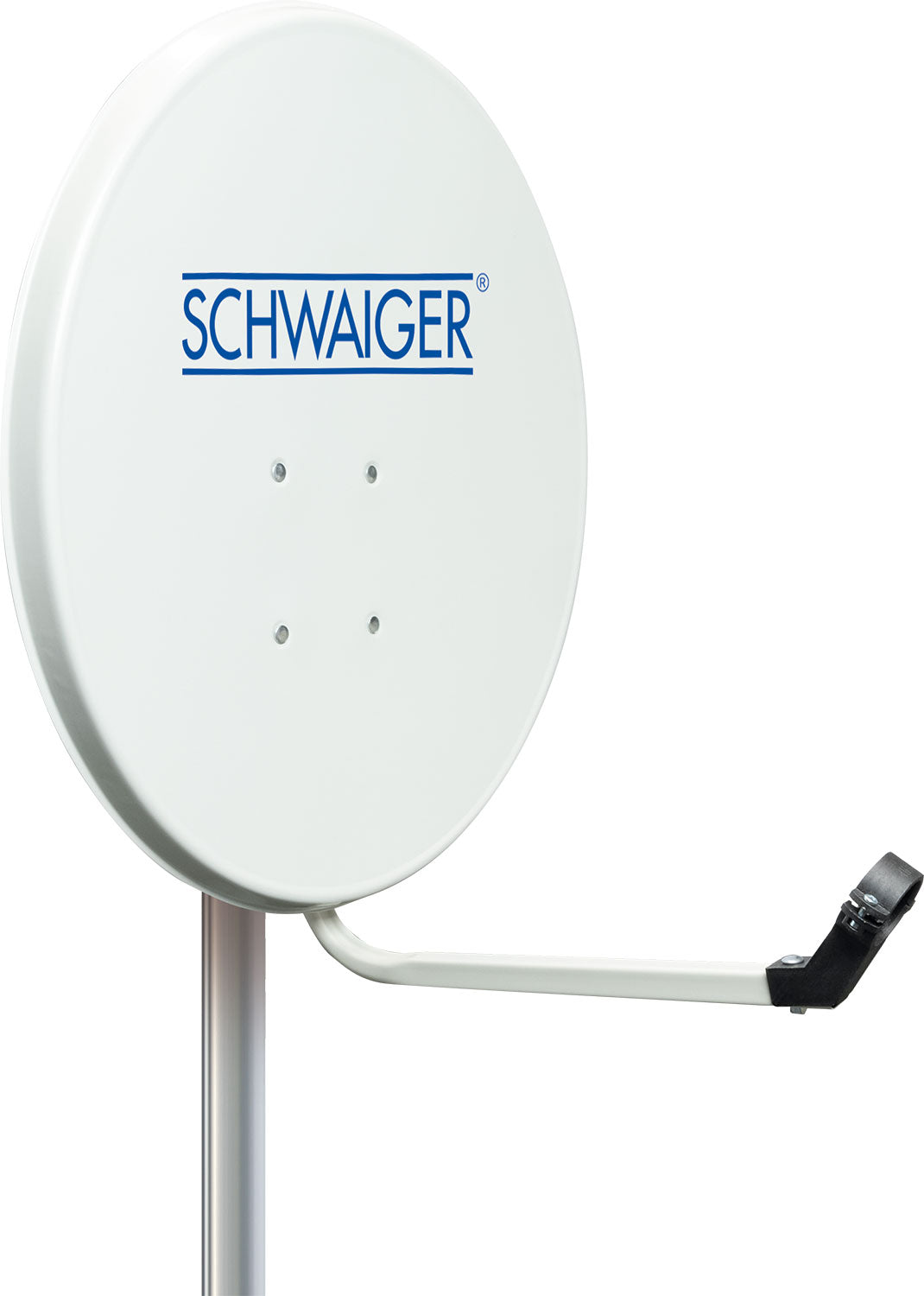

| offset antenna | |
| reflector (width) | 550 mm |
| reflector (height) | 620 mm |
| feed intake | 40mm |
| material reflector | powder-coated steel |
| material back part | plastic |
| Material LNB bracket | plastic weather-resistant |
| Material LNB support arm | aluminum |
| antenna gain (max.) | 35.2 dB |
| wind load | 285 N (EN 60728-11) |
| adjustment range elevation | 15 - 50 ° |
| clamping range mast clamp | 32 - 60 mm |
| number of mast clamps/brackets | 1 |
| Color | light gray (RAL7035) |

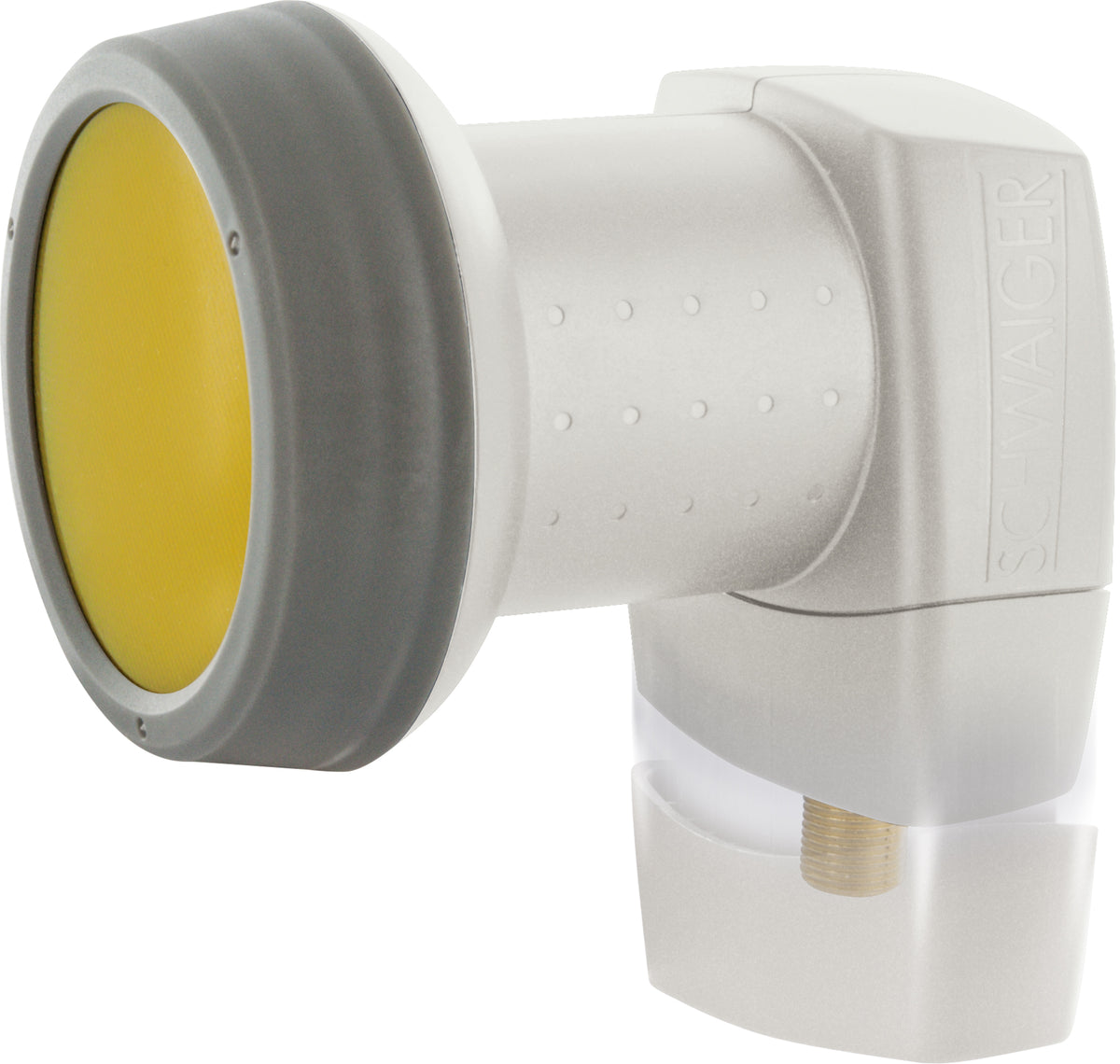

| Single LNB | |
| Connections | 1x F-book |
| Plug | metal contact gold-plated |
| input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| output frequency | 950 - 2,150 MHz |
| oscillation frequency | 9.75 GHz (low) 10.6 GHz (high) |
| reinforcement (typical) | > 55 dB |
| control function | 0 kHz (low) 22 kHz (high) |
| polarization | Decoupling: > 20 dB |
| Power supply | vertical: 11.5 - 14.5 V horizontal: 15.5 - 19 V |
| power consumption | typ. < 80 mA |
| feed intake | 40mm |
| product material | plastic weather-resistant |
| Color | Light grey |

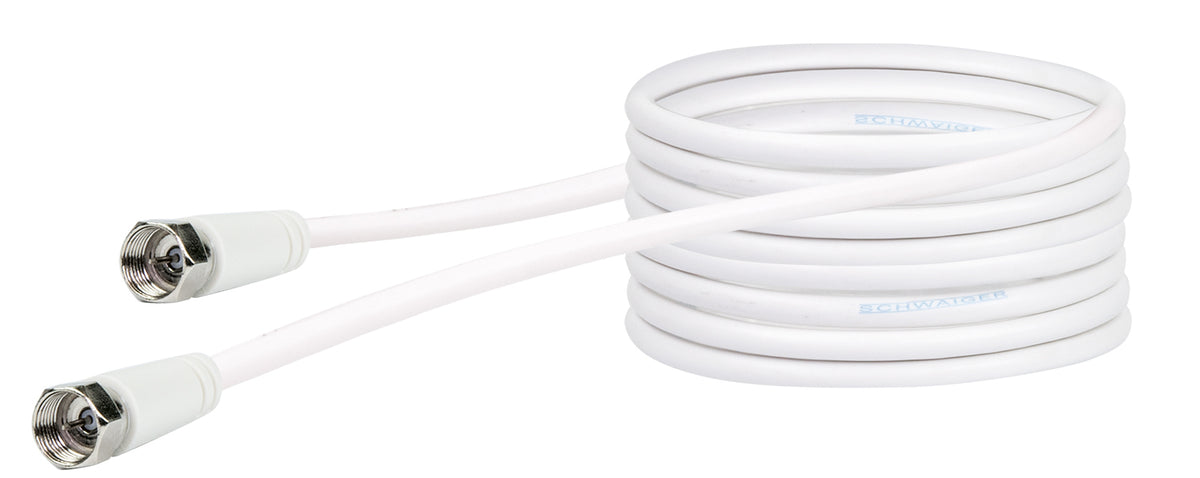

| SAT connection cable | |
| Connections | 2x F-connectors |
| Cable length | 10m |
| Impedance | 75 ohms |
| Plug | plastic fully shielded |
| cable structure | 0.5 mm (inner conductor) 2.8 mm (dielectric) 5 mm (sheath) |
| Shielding | double shielded |
| shielding factor | > 75 dB |
| shielding material | aluminum composite foil/64 mesh |
| Color | White |
| Packaging type | Cardboard |
| Scope of delivery: | 1x steel offset antenna, 1x single LNB, 1x SAT connection cable |
