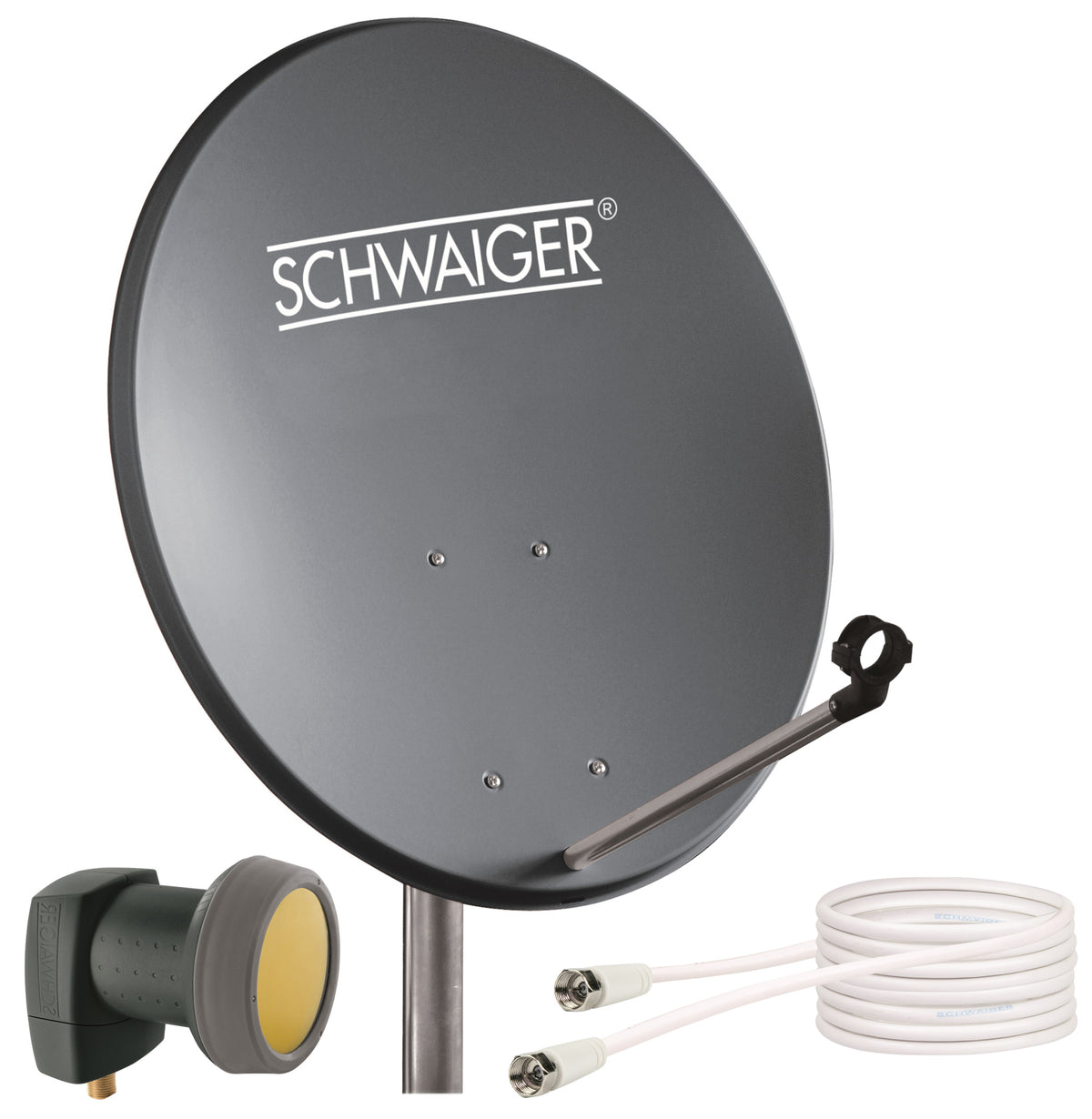

SAT set (55 cm + LNB + connection cable)
SKU 719734
€59,99
- Reception system for setting up 1 subscriber SAT systems
- Mast mounting bracket with hexagon nuts
- Single LNB with extremely heat-resistant feedhorn cap (SUN PROTECT)
- Satellite receiver receives all unencrypted TV and radio programs in HD quality
Sichere Zahlung
Passend dazu
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung
This SCHWAIGER® SAT reception set contains an offset antenna, a single LNB and a corresponding SAT connection cable for setting up a satellite system for 1 subscriber, corresponding to 1 receiver. The offset antenna can receive all free and encrypted television and radio programs via satellite. All components are optimally coordinated and are supplied with the necessary mounting accessories.
Technische Daten

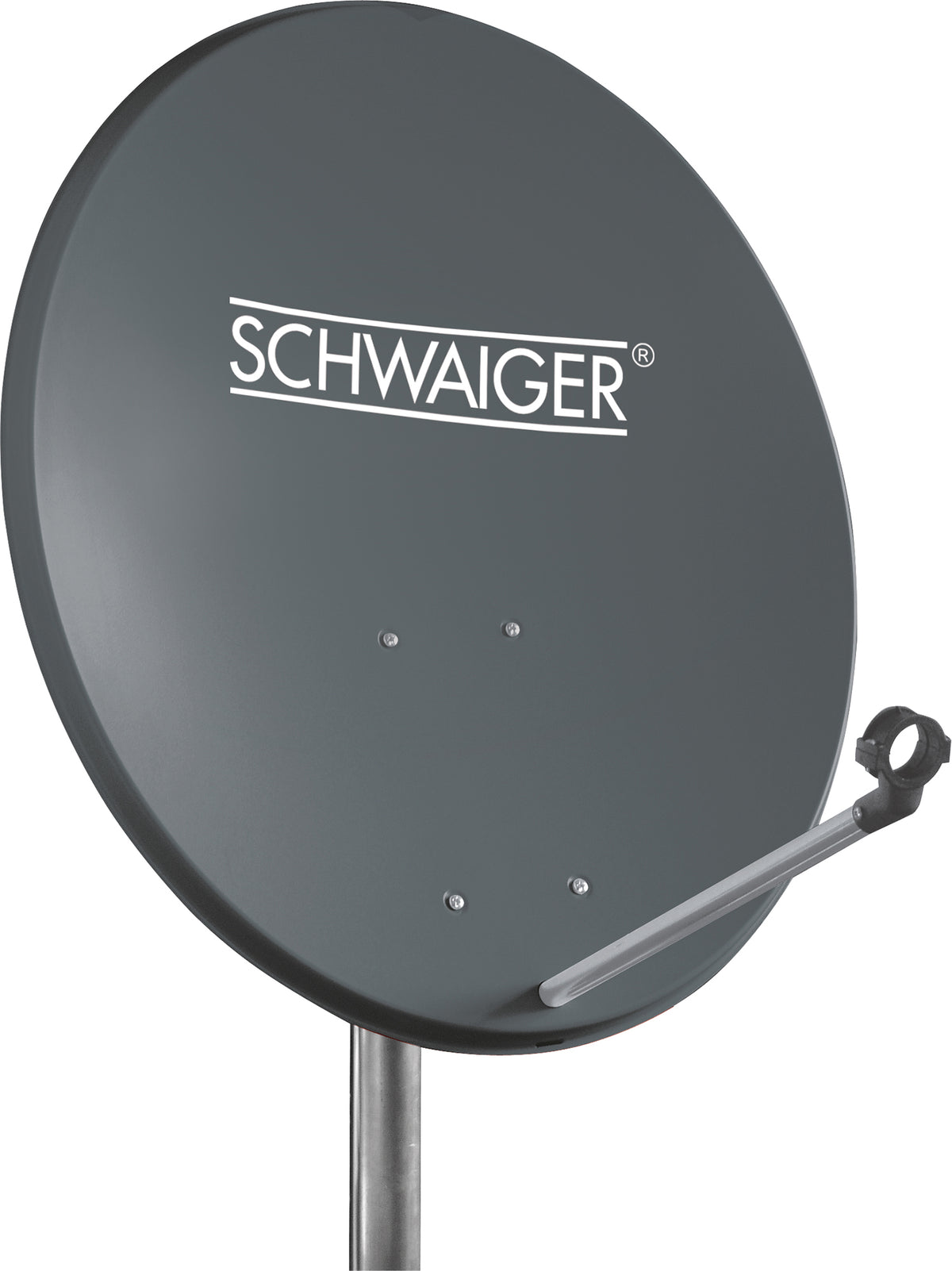

| Offset antenna | |
| Reflector (width) | 550mm |
| Reflector (height) | 620mm |
| Feed intake | 40mm |
| Material reflector | Powder coated steel |
| Material back part | plastic |
| Material LNB bracket | Plastic weatherproof |
| Material LNB support arm | aluminum |
| Antenna gain (max.) | 35.2dB |
| Wind load | 285N (EN 60728-11) |
| Adjustment range elevation | 15 - 50 ° |
| Mast clamp clamping range | 32 - 60mm |
| Number of mast clamps/brackets | 1 |
| Color | Anthracite (RAL7011) |

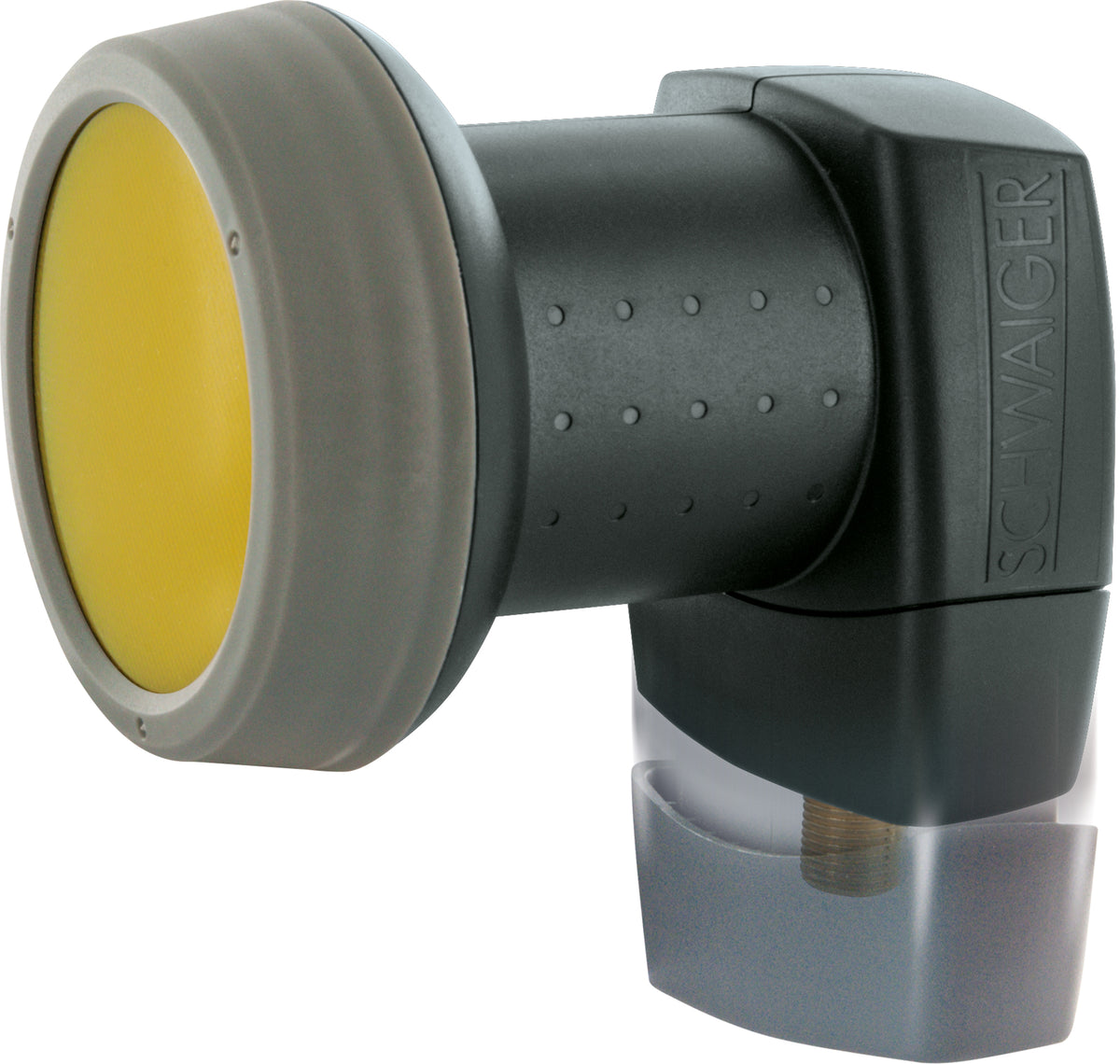

| Single LNB | |
| Connections | 1x F-socket |
| Plug | Metal contact gold plated |
| Input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| Output frequency | 950 - 2,150MHz |
| Oscillation frequency | 9.75 GHz (low) 10.6 GHz (high) |
| Gain (typical) | > 55dB |
| Control function | 0 kHz (low) 22 kHz (high) |
| polarization | Decoupling: > 20 dB |
| Power supply | vertical: 11.5 - 14.5 V horizontal: 15.5 - 19 V |
| Power consumption | typ. < 80 mA |
| Feed intake | 40mm |
| Product material | Plastic weatherproof |
| Color | anthracite |

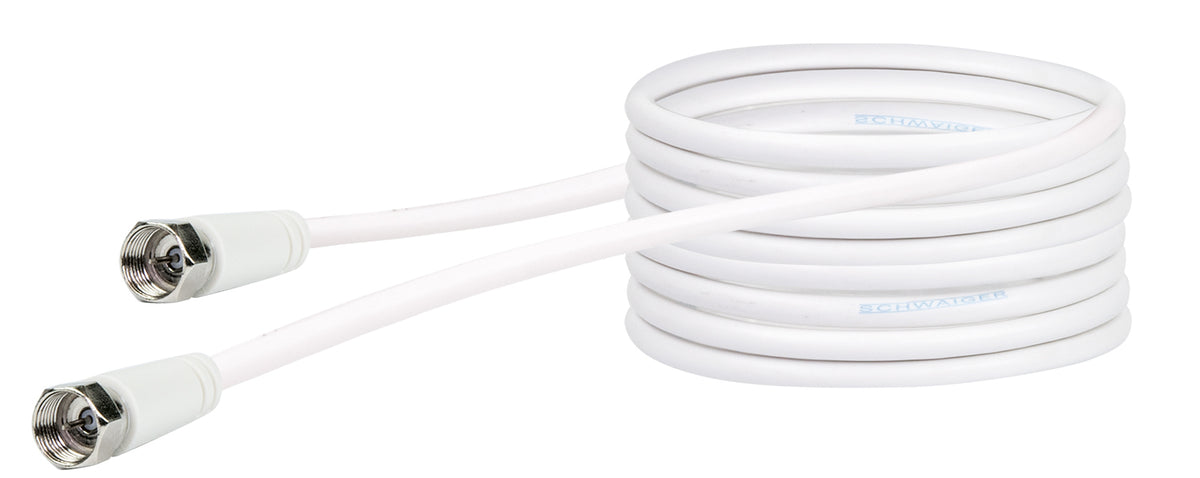

| SAT connection cable | |
| Connections | 2x F-connector |
| Cable length | 10m |
| Impedance | 75 ohms |
| Plug | Plastic fully shielded |
| Cable structure | 0.5 mm (inner conductor) 2.8 mm (dielectric) 5 mm (sheath) |
| Shielding | double shielded |
| Shielding factor | > 75dB |
| Shielding material | Aluminium composite foil/64 mesh |
| Color | White |
| Packaging type | Cardboard |
| Scope of delivery | Steel offset antenna (55cm), single LNB, satellite connection cable (10m) |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
