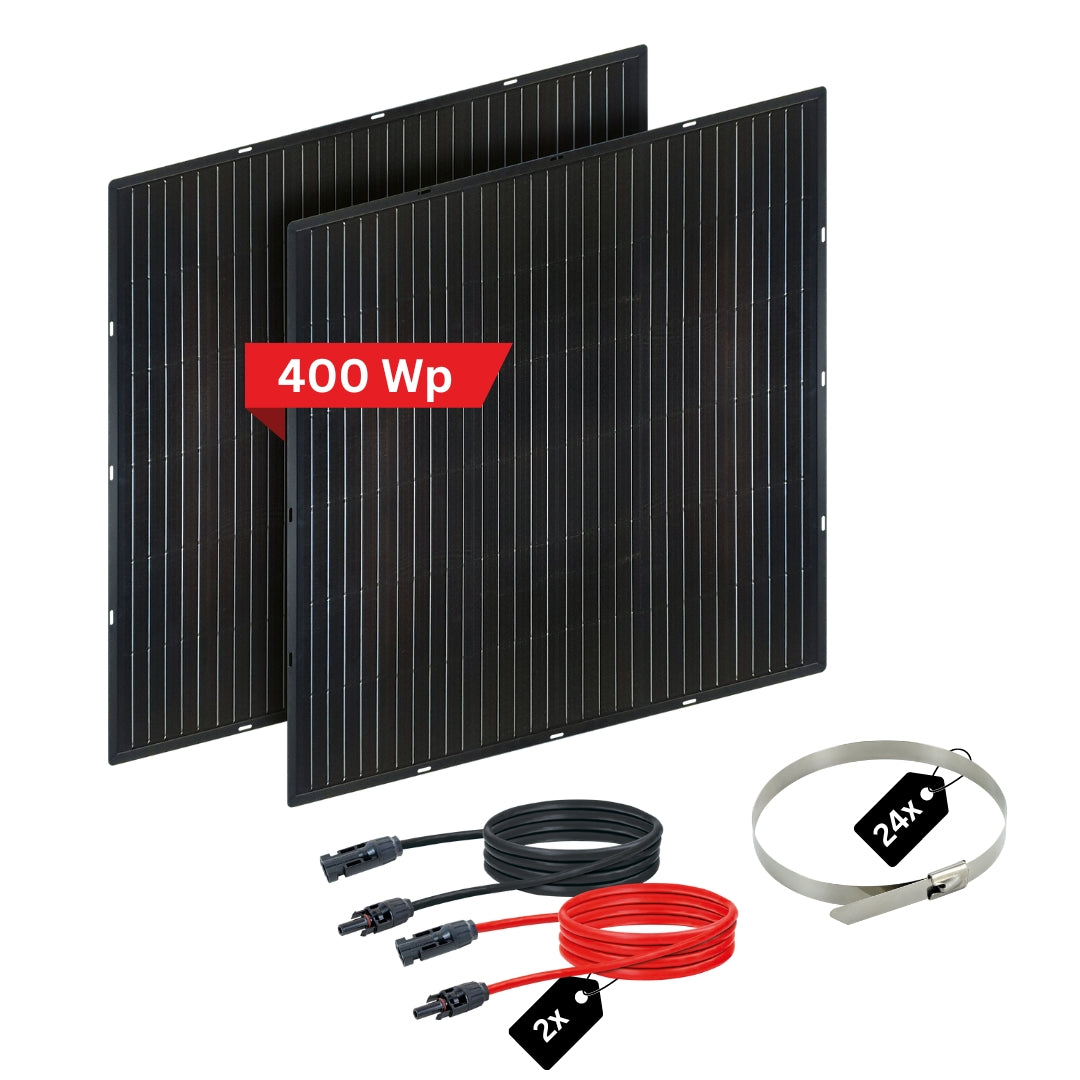

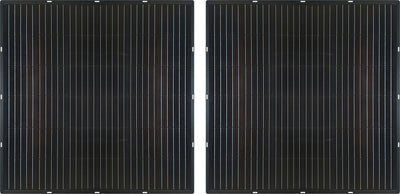

Solar module set of 2 Slim-Line 400Wp
SKU SOPA5400
€229,00

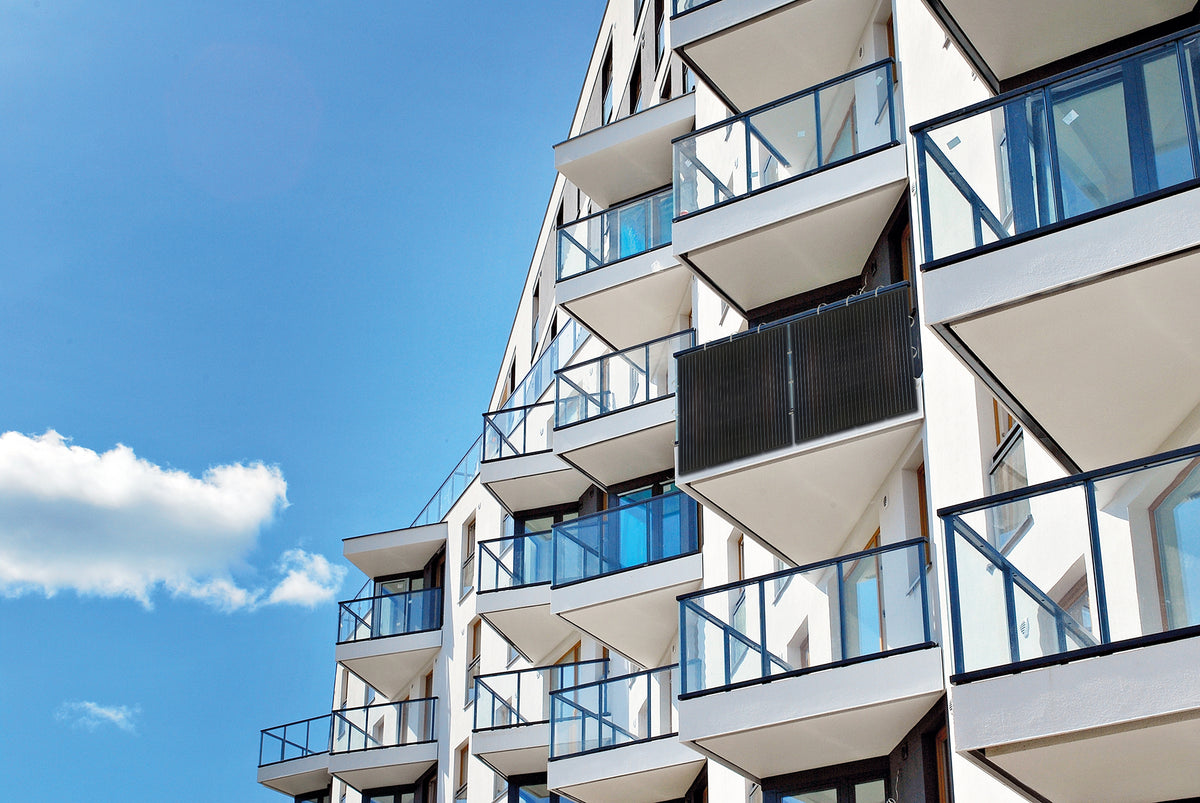

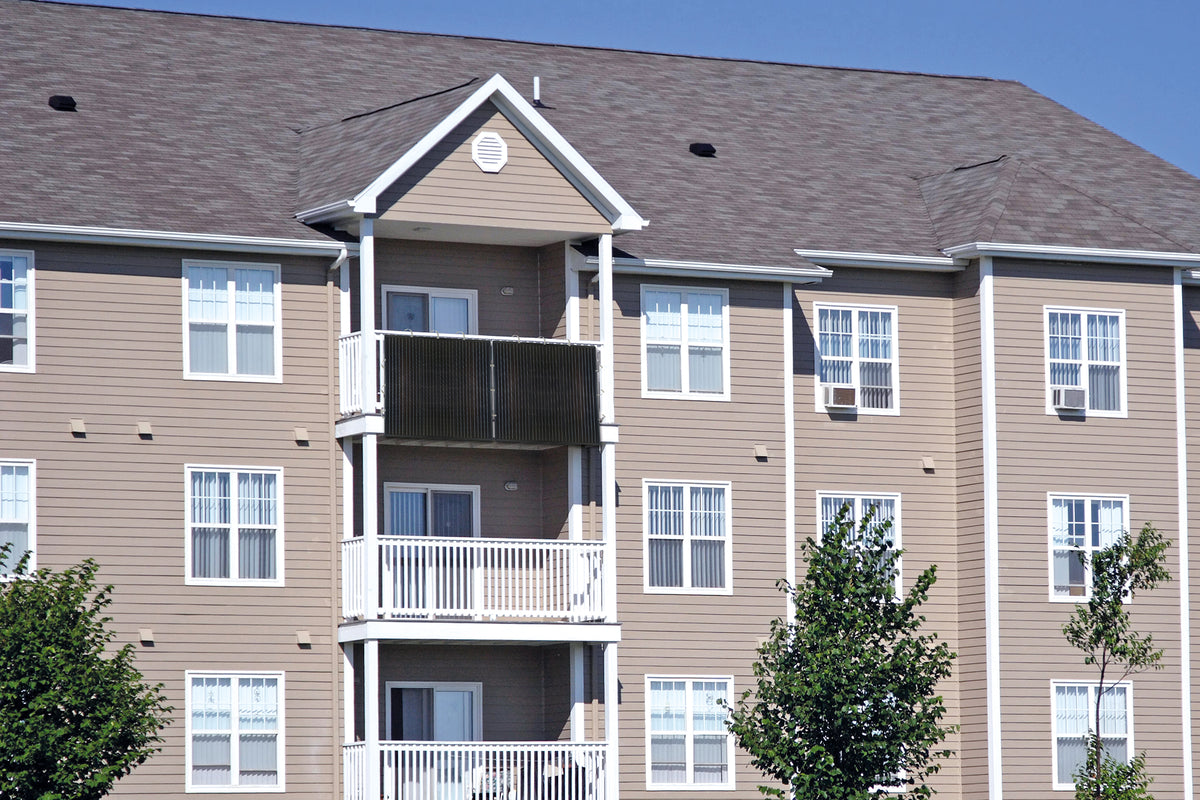

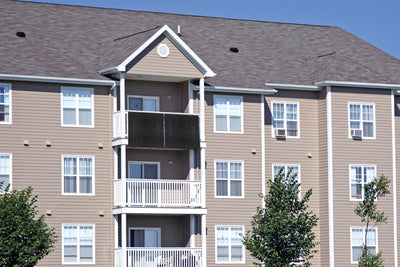

- Light and slim, especially suitable for higher floors, balconies with delicate railings, mobile homes or garden arbors
- The modules are made of heat-resistant, tempered glass and an aluminum alloy frame

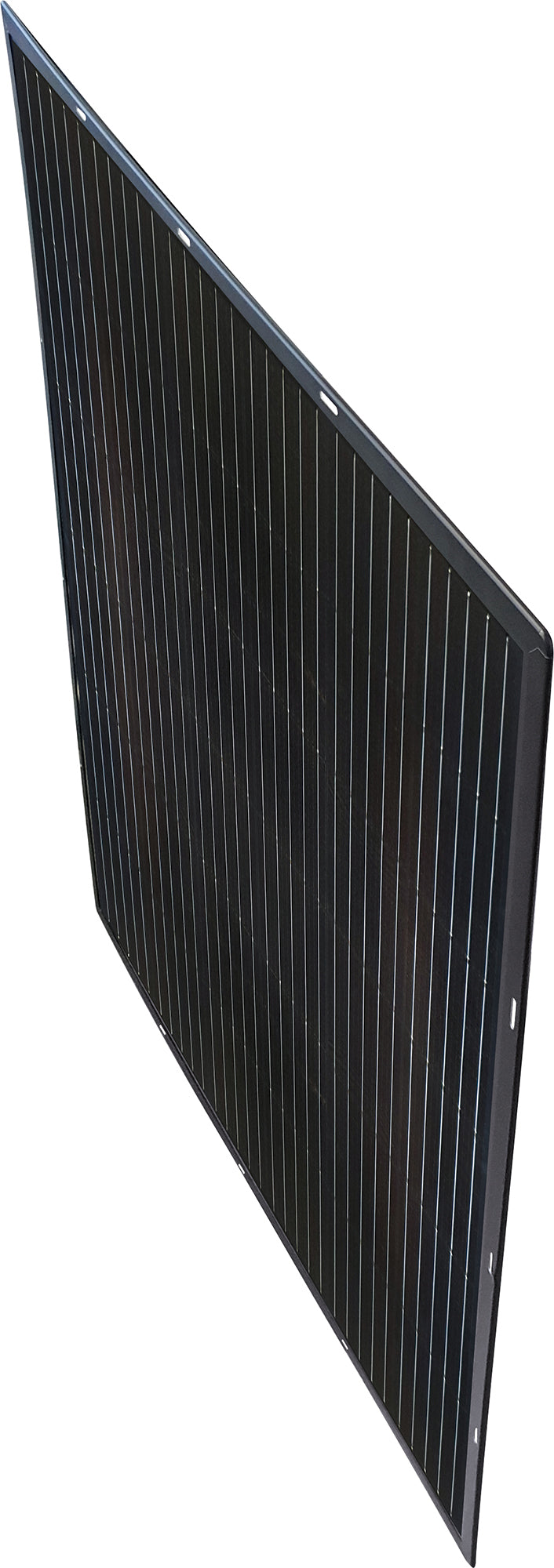

- At only ~ 6.9 kg they are light and easy to handle

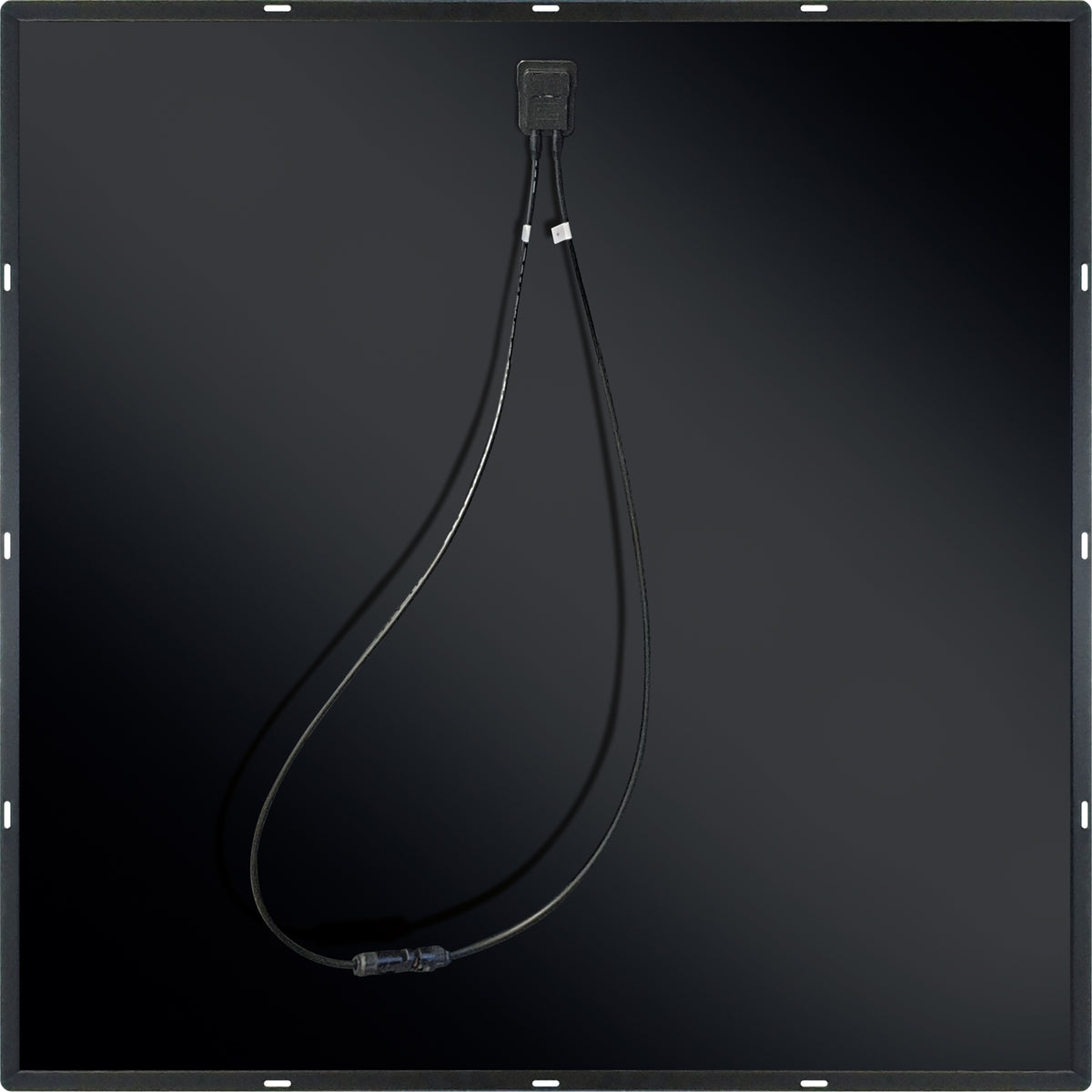

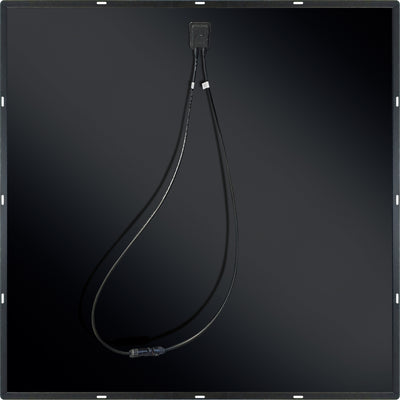

- Permanently mounted 1.6 m solar connector DC coupling connection cable
Sichere Zahlung
Passend dazu
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung

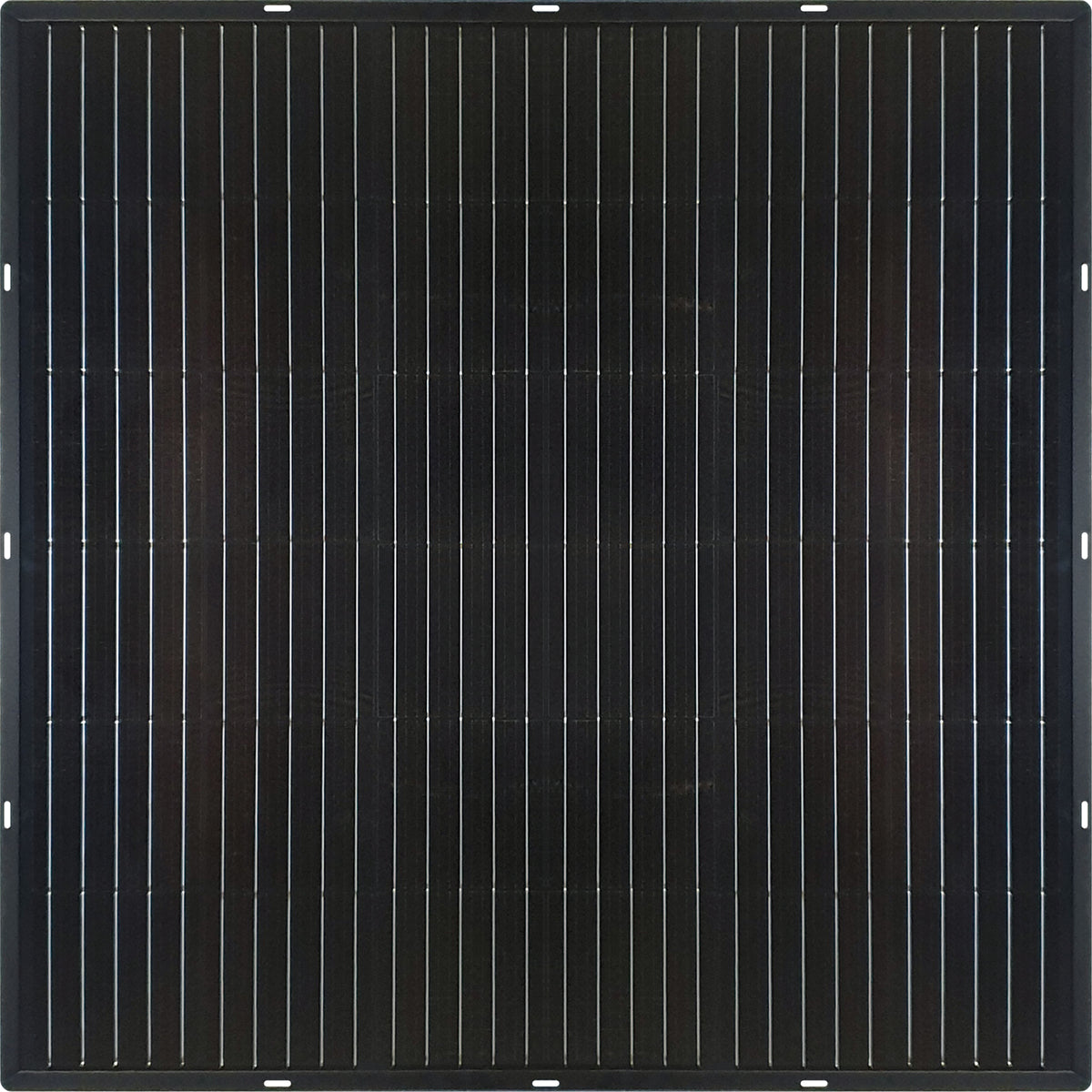

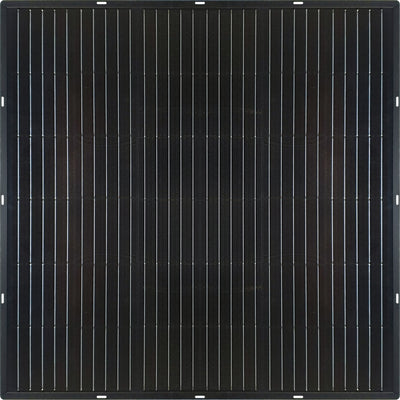

These new SCHWAIGER® 200 Wp modules are light and slim. This makes them particularly suitable for higher floors, balconies with delicate railings, mobile homes or gazebos. They fit tightly and prevent the wind from getting caught behind them.
Technische Daten

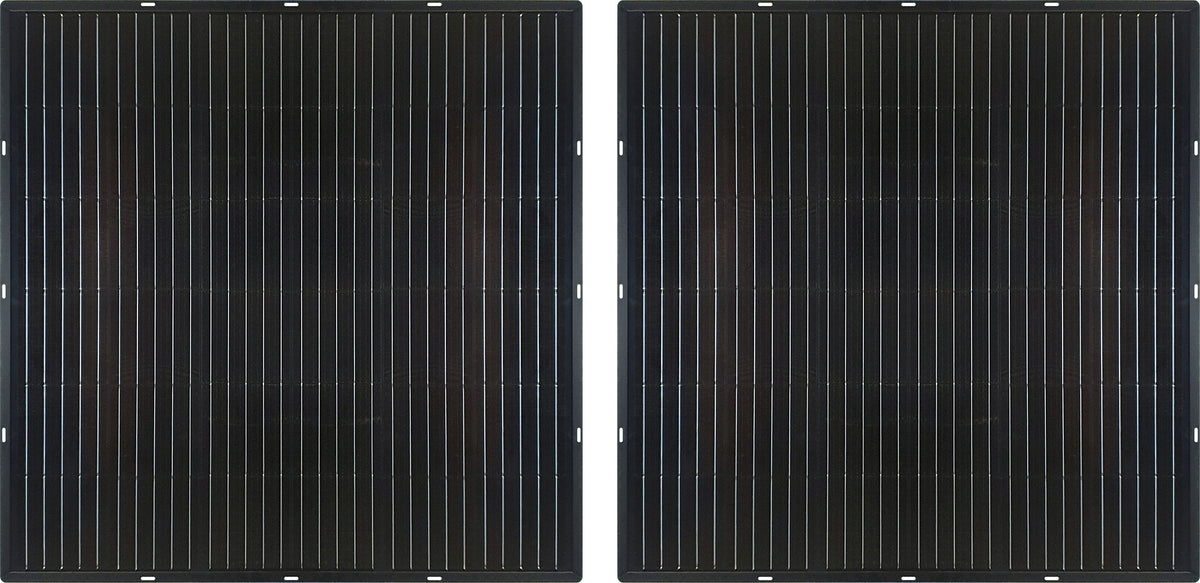

| PV modules | 2x monocrystalline PV module (200W) |
| type | Monocrystalline Perc |
| Number of cells | 2x 36 (6x6) |
| dimension | 2x 1025 x 1025 x 5 mm |
| Frame | aluminum alloy |
| IP protection class / location | IP67 |
| Color | black |
| Weight per panel | ~ 6.9 kg |
| Cable length on the panel | 0.85 m |

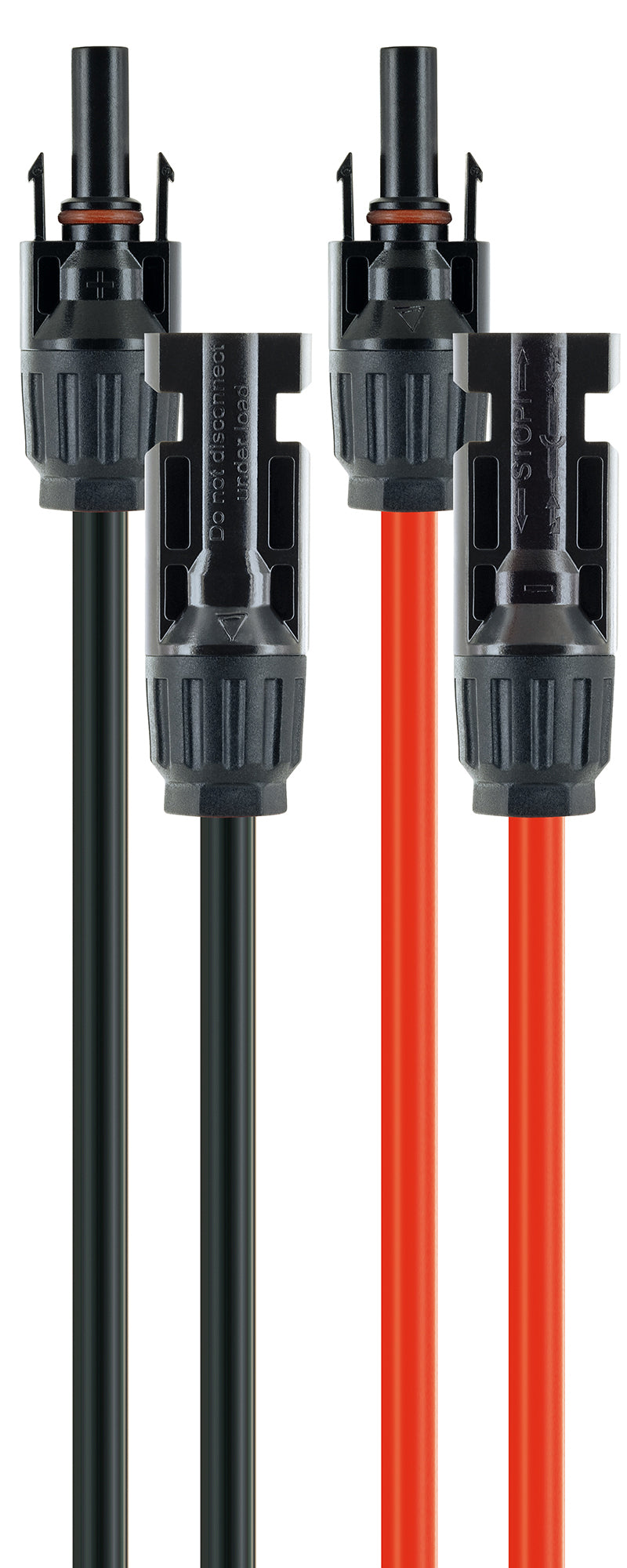

| Panel cable connection type | Solar connector DC coupling |
| Panel Pmax |
200 Wp |
| Max Power Voltage (VMP) | 17.50 V |
| Max power current (IMP) | 11.43 A |
| Open circuit voltage (VOC) | 21.50 V |
| Short-circuit current (ISC) | 12.40 A |
| Max system voltage | 1000 V DC (IEC) |
| Max. permissible series fuse (A) | 15.0 A |
| Operating temperature | -40 ~+ 85°C |
