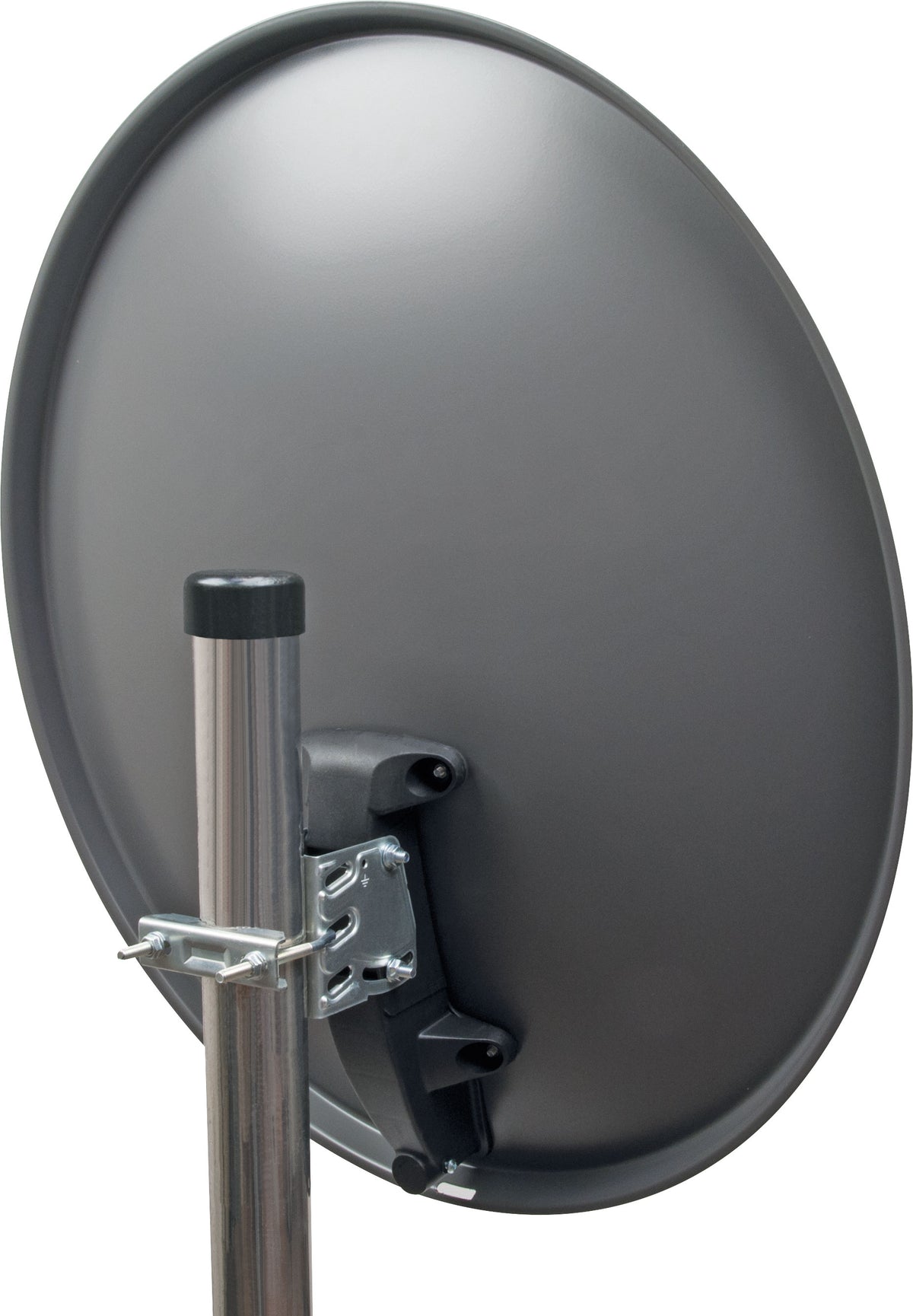

Stahl Offset Antenne (55 cm) Set
SKU 714487

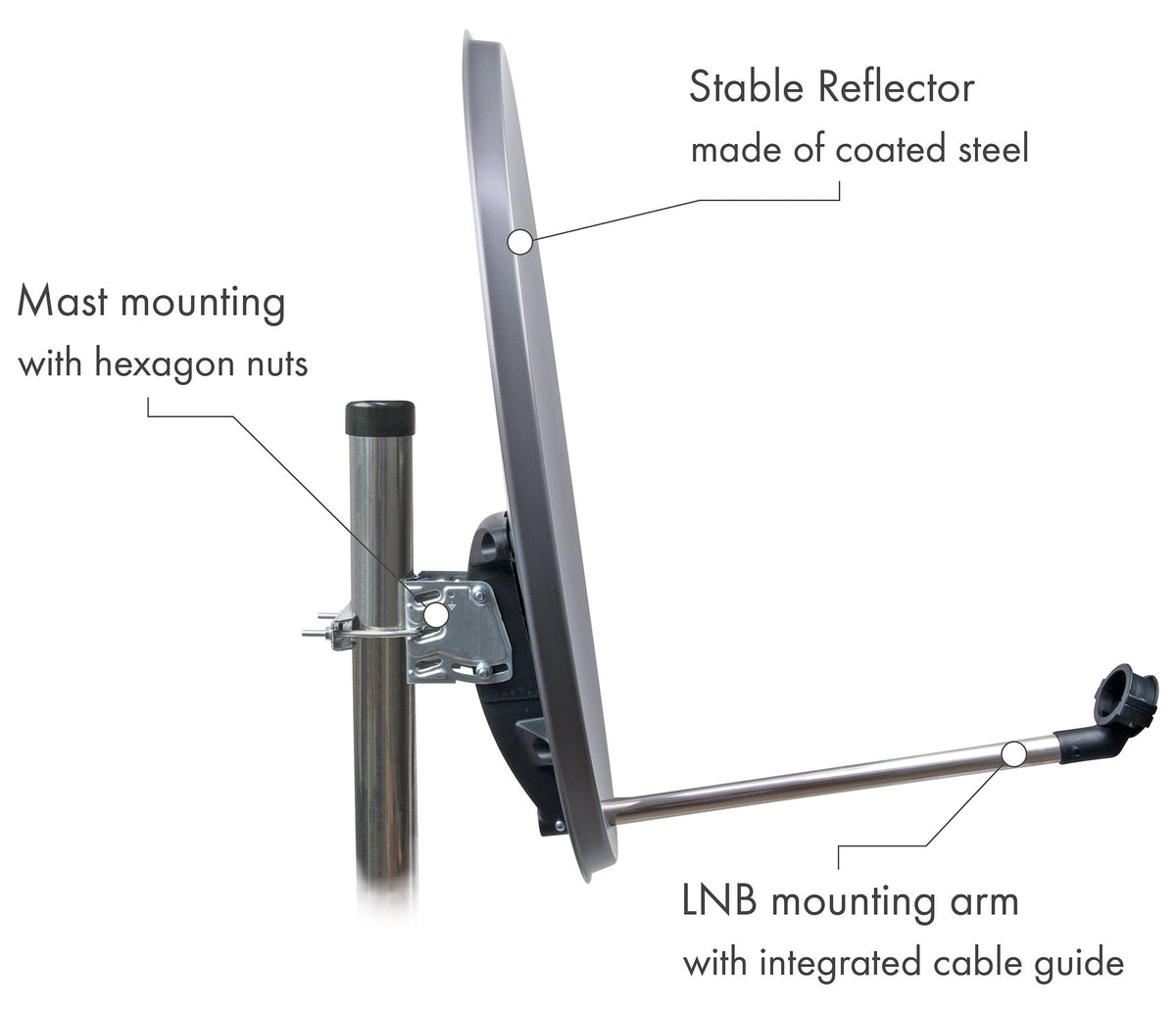

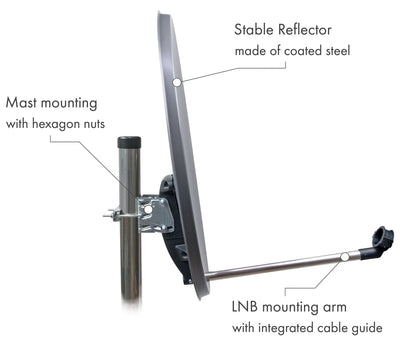

- Steel offset antenna with LNB support arm and integrated cable guide
- Twin LNB (no multiswitch required) for 2 participants with extendable weather protection cover
- For the reception of all free and encrypted television and radio programs
- With color-coded F-connectors for clear assignment of your cables
- Including mast mounting and mounting material
Sichere Zahlung
Passend dazu

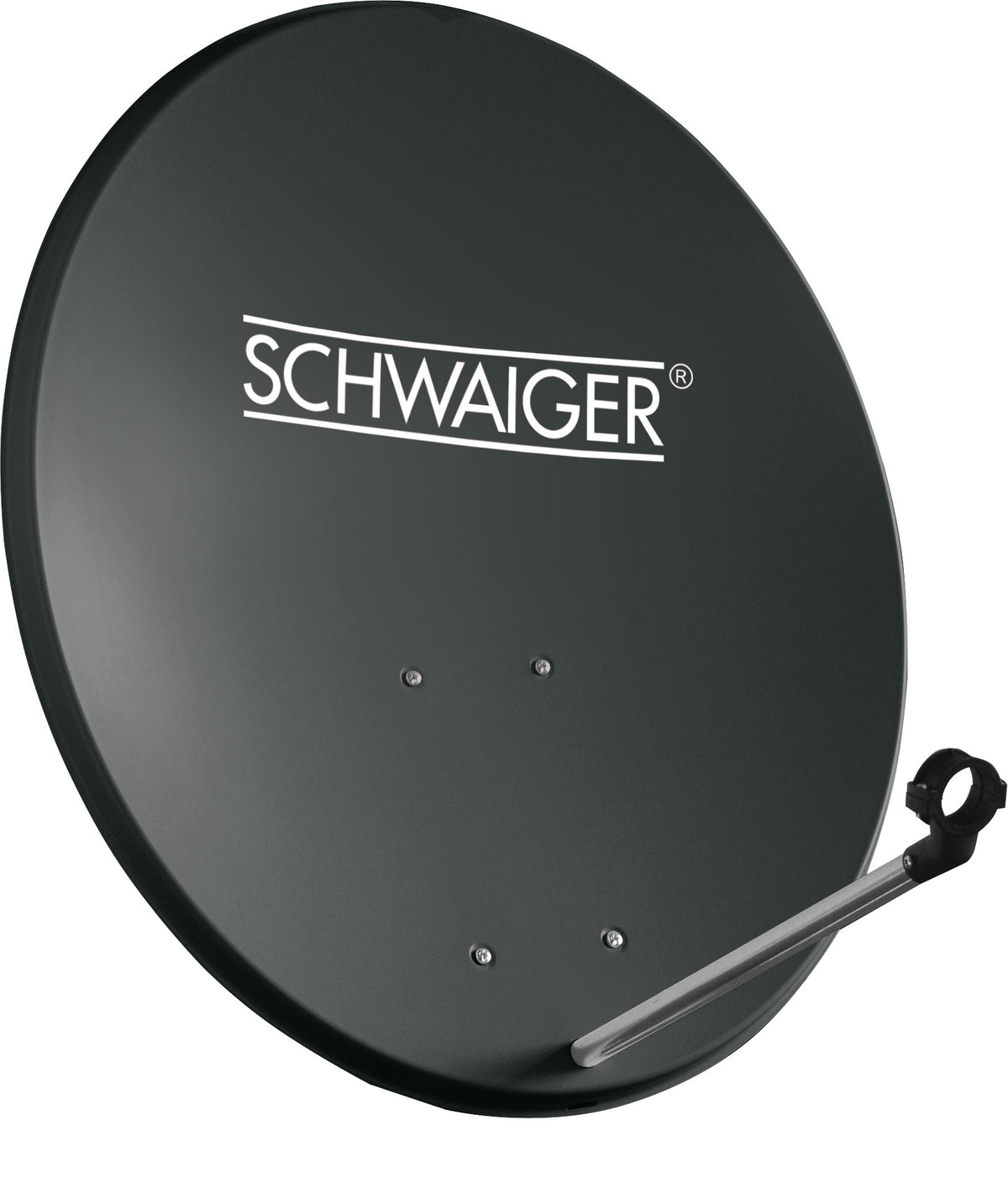

Stahl Offset Antenne (55 cm) Set
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Produktbeschreibung
The satellite dish set with twin LNB and color-coded F-connectors gives you the opportunity to receive first-class satellite television with razor-sharp picture and sound quality. With its high-quality design and practical functions, you will experience a smooth television experience. The set includes a high-quality satellite dish that is designed for optimal reception. Thanks to its generous diameter and precise alignment, you can receive signals from satellites in excellent quality. Whether you want to enjoy your favorite shows, sporting events or films, this satellite dish will provide you with reliable signal transmission.

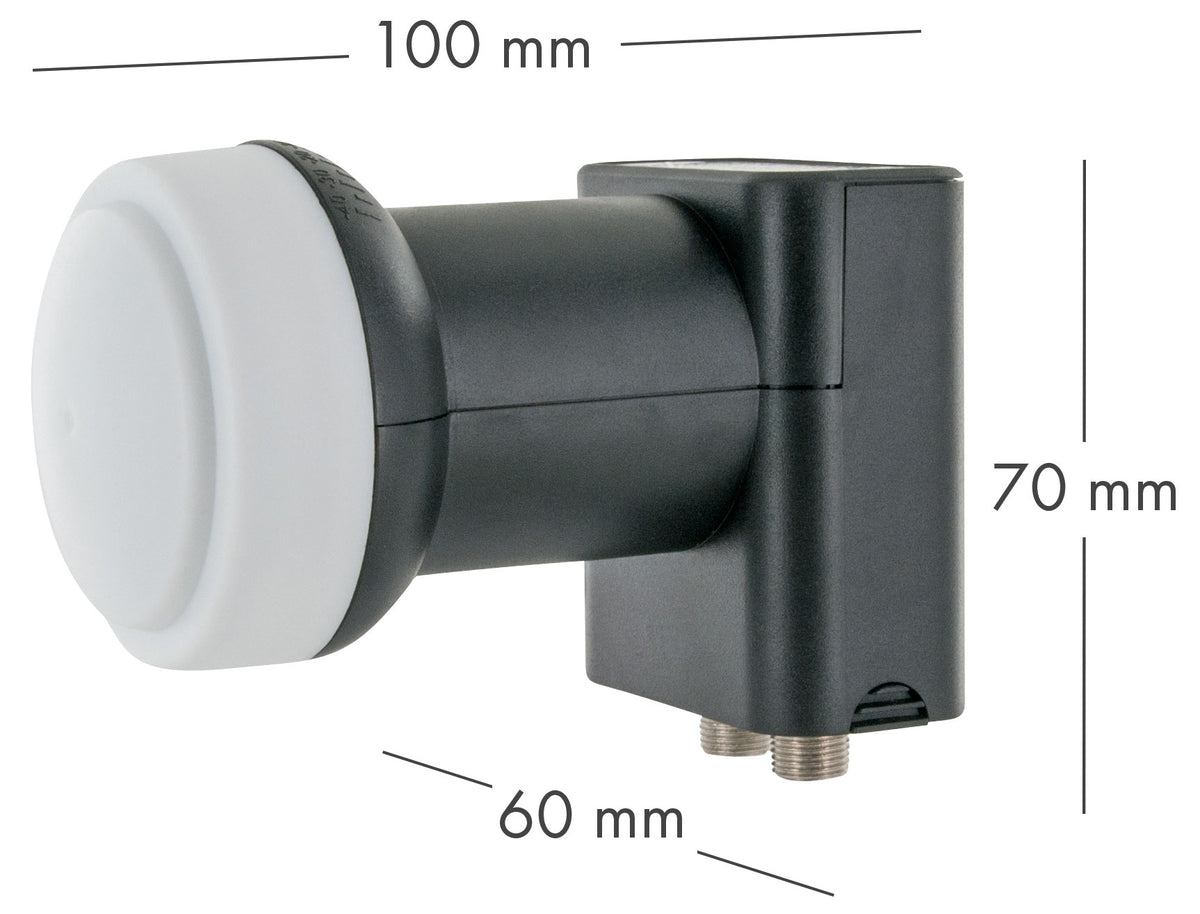

The Twin LNB (Low-Noise Block Converter) allows you to connect two receivers to a single satellite dish. This allows you to supply two televisions in your home with independent satellite signals, for example. You can watch different programs on different televisions at the same time or watch on one television while a recording is running on the other.

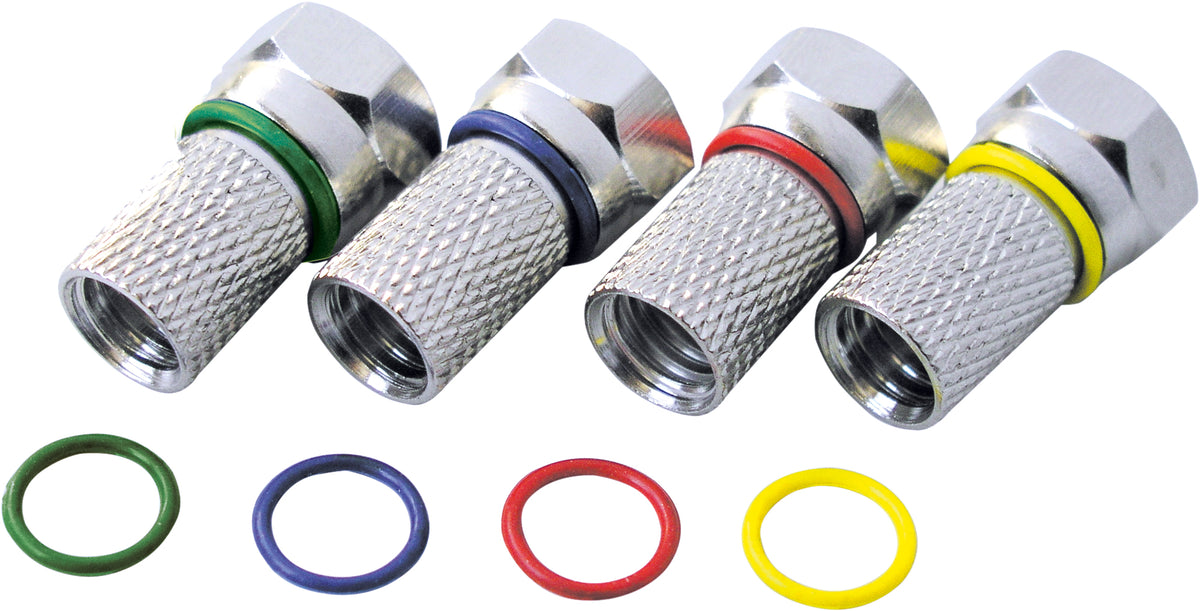

The color-coded F-connectors make installation and connection of the cables easier. Each connector is marked with a specific color to enable quick and easy identification. This allows you to set up your satellite system without any hassle, without any mix-ups or confusion. The color-coded F-connectors ensure a reliable connection and minimize signal loss.
The satellite dish kit is easy to assemble and comes with all necessary mounting materials and instructions. You can install it yourself or hire a professional to ensure that the satellite dish is correctly aligned and provides optimal reception quality.
Technische Daten
| offset antenna | |
| Antenna type | reflector |

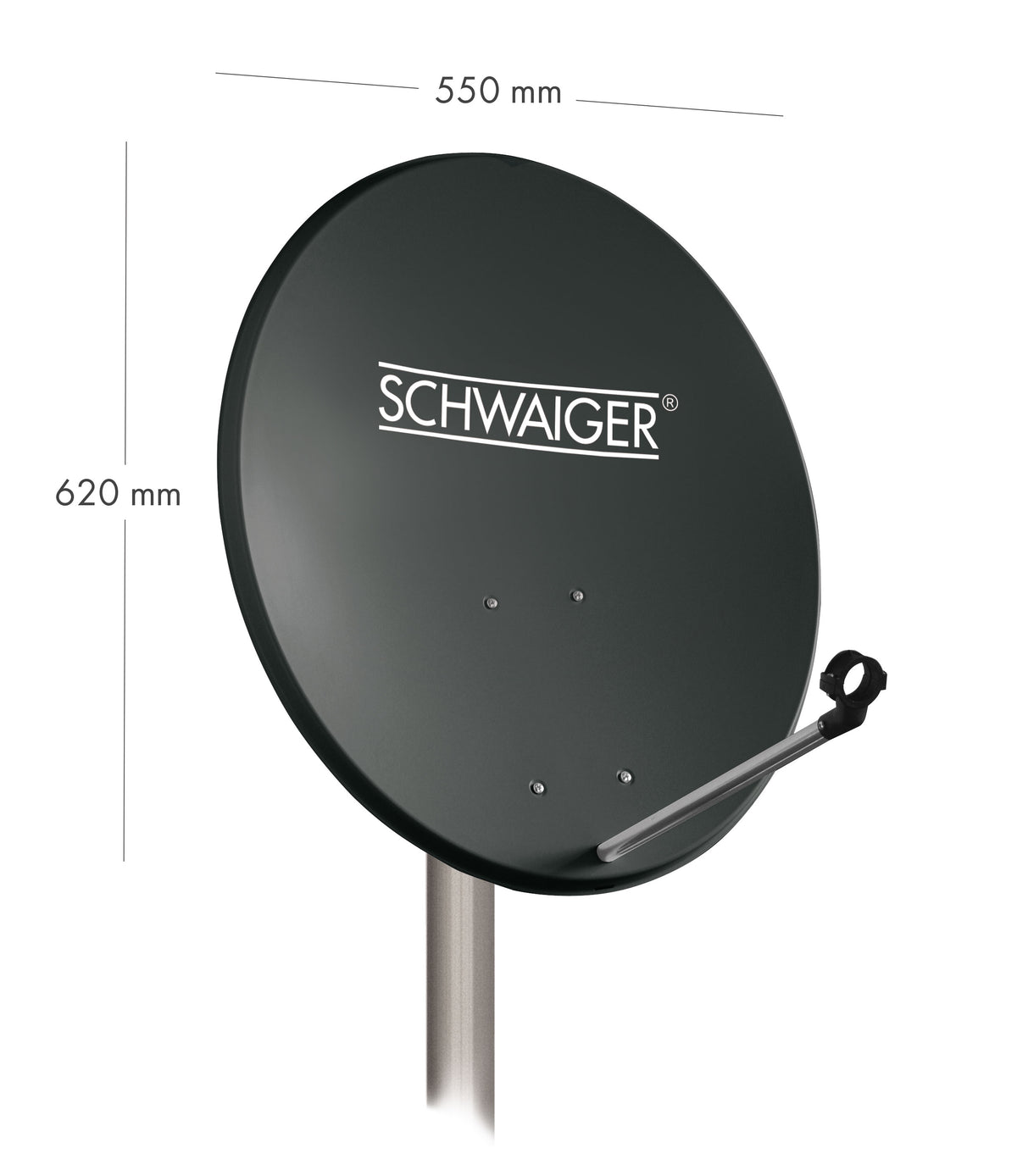

| reflector (width) | 550 mm |
| reflector (height) | 620 mm |
| feed intake | 40mm |
| material reflector | powder-coated steel |
| material back part | plastic |
| Material LNB bracket | plastic weather-resistant |
| Material LNB support arm | aluminum |
| antenna gain (max.) | 35.2 dB |
| adjustment range elevation | 15 - 50 ° |

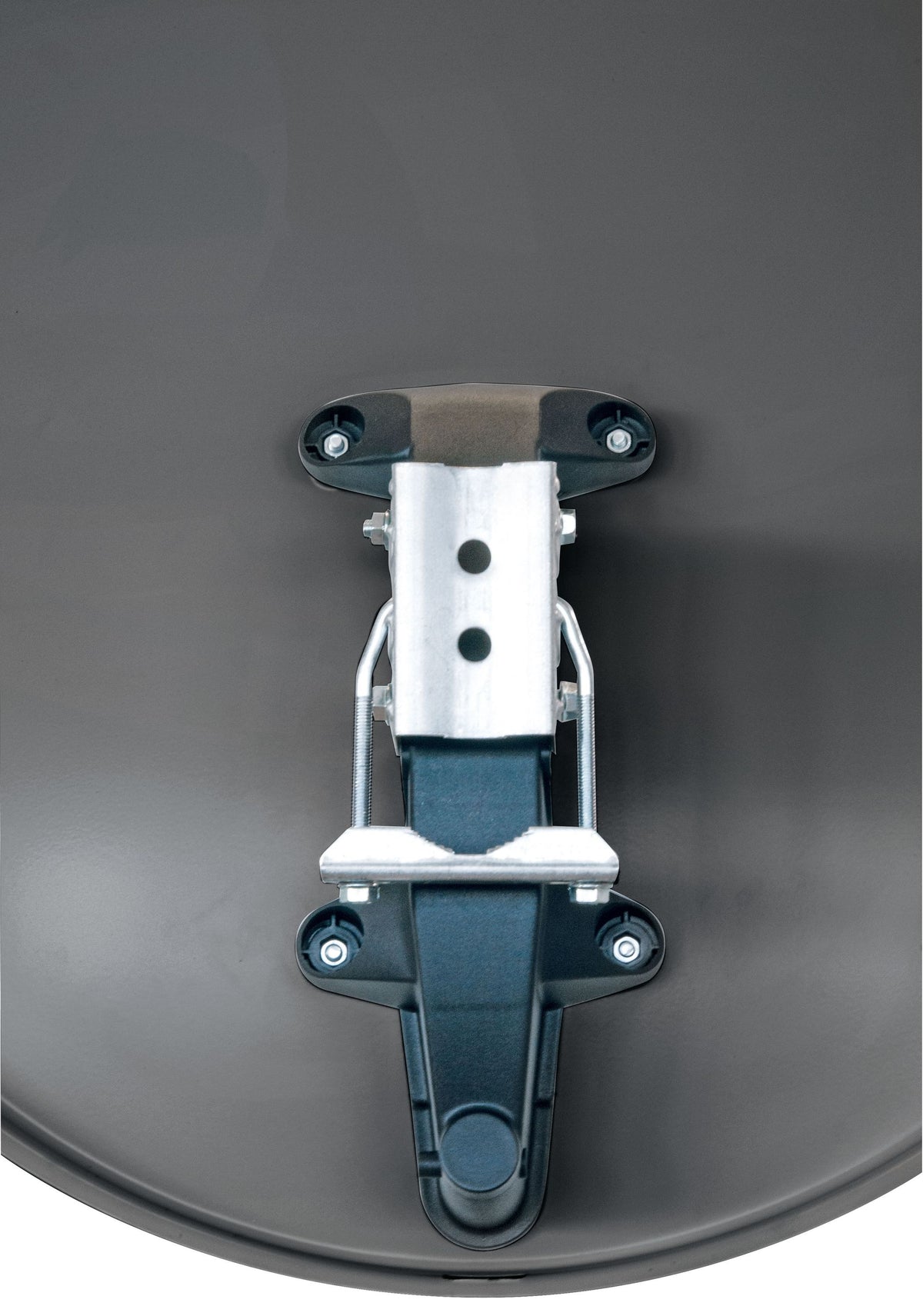

| clamping range mast clamp | 32 - 60 mm |
| number of mast clamps/brackets | 1 |
| Digital LNB | |
| reception system | TWIN (2 TN) |
| Connections | 2x F-socket |
| input frequency | 10.70 - 11.70 GHz (low) 11.70 - 12.75 GHz (high) |
| output frequency | 950 - 2,150 MHz |
| oscillation frequency | 9.75 GHz (low) 10.60 GHz (high) |
| control function | 0 kHz (low) 22 kHz (high) |
| polarization | Decoupling: > 25 dB |
| Power supply | 11.50 - 19.00 V supply voltage |
| feed intake | 40mm |
| product material | plastic weather-resistant |
| Color | Light grey |
| F-screw connector | |
| outer diameter | 7mm |
| Color | Silver |

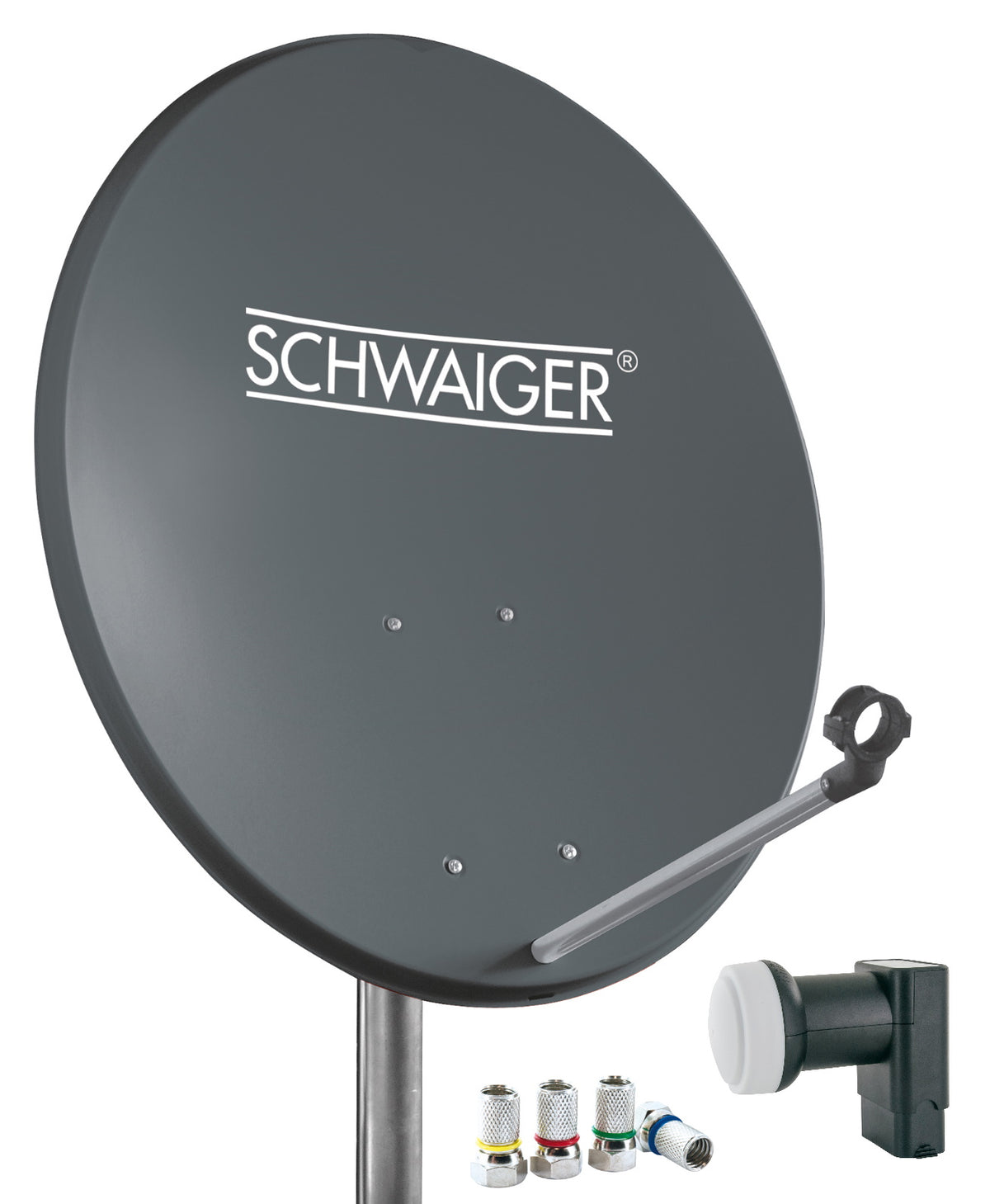

| scope of delivery | Steel offset antenna, twin LNB, mast mount, mounting accessories, 2 x 4 color-coded F-connectors |
