Octo LNB digital SUN PROTECT anthracite

Octo LNB digital SUN PROTECT anthracite

SKU 717402
€45,00 - €45,00
€45,00
€45,00 - €45,00
€45,00
Availability:
in stock, ready to be shipped

Abholung Montag bis Donnerstag zwischen 14 - 16 Uhr möglich, nach Erhalt der Abholinformationen per Mail

  • PayPal
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • Shop Pay
  • Union Pay
  • Visa
  • Reception system for setting up 8 subscriber satellite systems with integrated multiswitch
  • Independent program diversity for all participants of this reception system

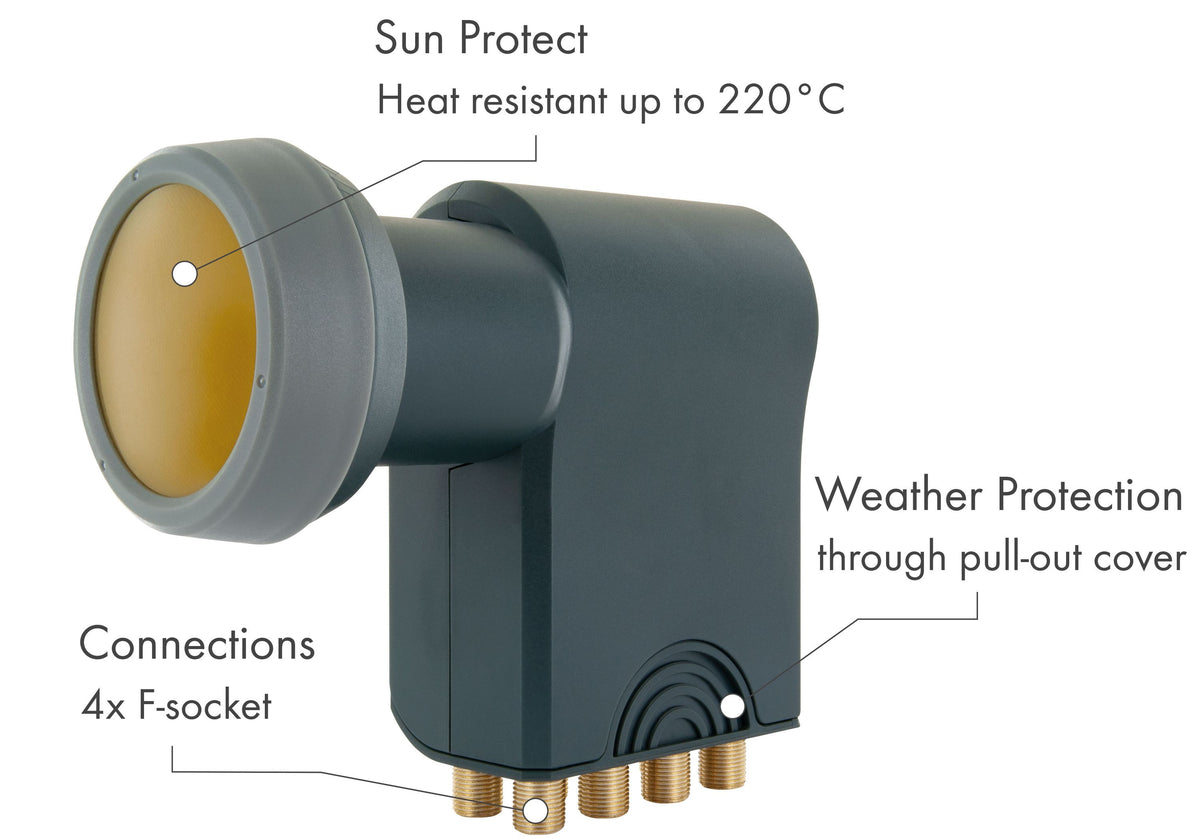

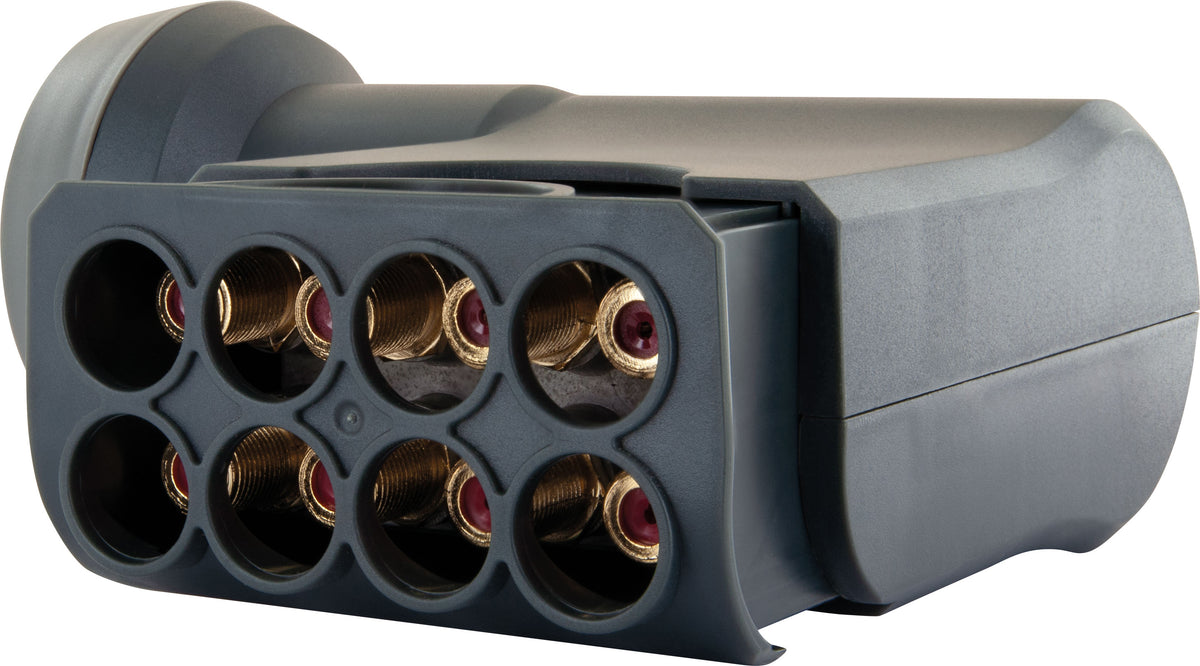

  • Protection of the F-connectors through removable weather protection cover
  • Suitable for receiving SIRIUS and AMOS (due to the low noise level)

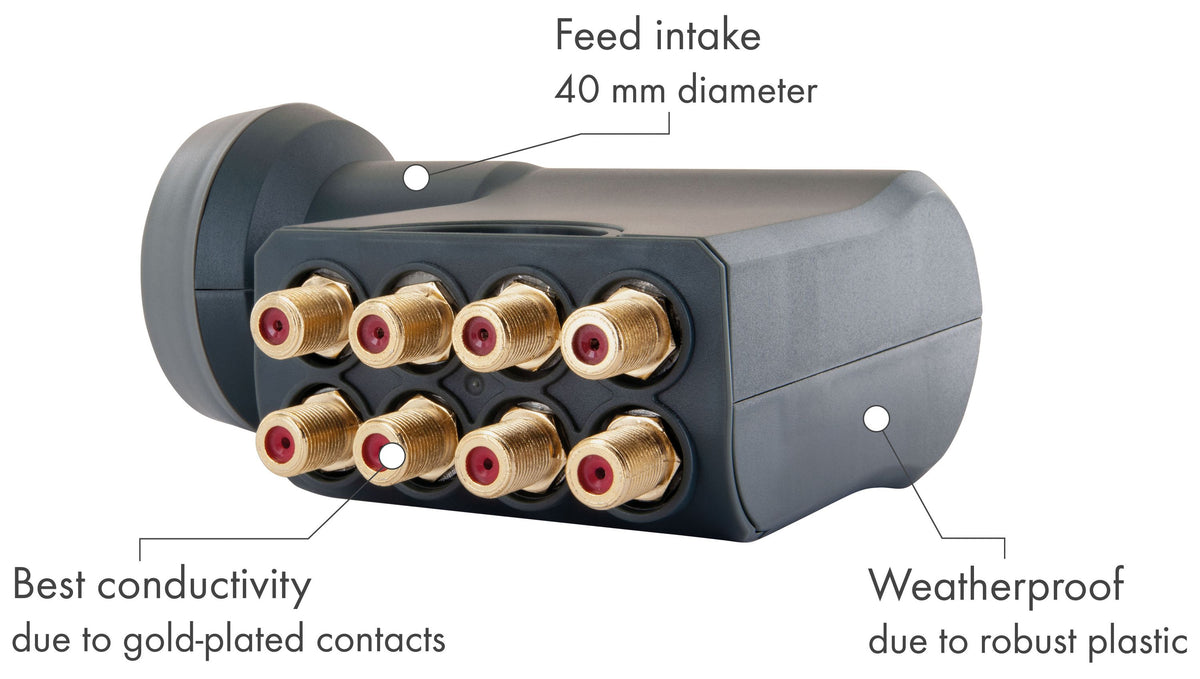

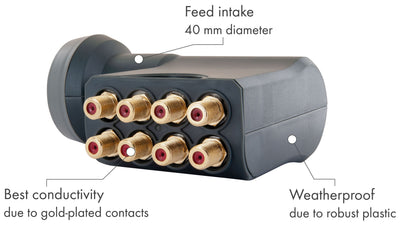

  • Best conductivity through gold-plated connectors

Do you have a technical question about our product?

Contact our experts:
(+49) 09101702-299
hotline@schwaiger.de

In clear weather, extremely high temperatures (up to 200°C) can occur on the LNB feedhorn, causing damage. The header cap of this LNB can withstand deformation within 10 minutes at over 220°C! The Octo Switch LNB from SCHWAIGER® has 8 outputs. This means that up to 8 participants can use the full range of programs independently of one another without the need for a multiswitch. The F-connectors are protected by a removable weather protection cover.

reception system OCTO Switch (8 TN)
connections 8 x F-socket
Plug gold-plated contact
Input frequency 10.7 - 11.7 GHz (low)
11.7 - 12.75 GHz (high)
Output frequency 950-2,150 MHz
decoupling > 25 dB
oscillation frequency 9.75 GHz (low)
10.6 GHz (high)
reinforcement (typical) > 60 dB
control function 0 kHz (low)
22 kHz (high)
polarization Decoupling: > 25 dB
Power supply vertical: 10.5 - 14 V
horizontal 16 - 19 V
Power consumption typ. 220 mA
Feed intake 40mm
Operating temperature -30 - +60 °C
product material plastic weather-resistant
Color anthracite
Dimensions (Width) 110mm
Dimensions (Height) 135 mm
Dimensions (depth) 40mm
Scope of delivery 1x Digital Octo-LNB Sun Protect
