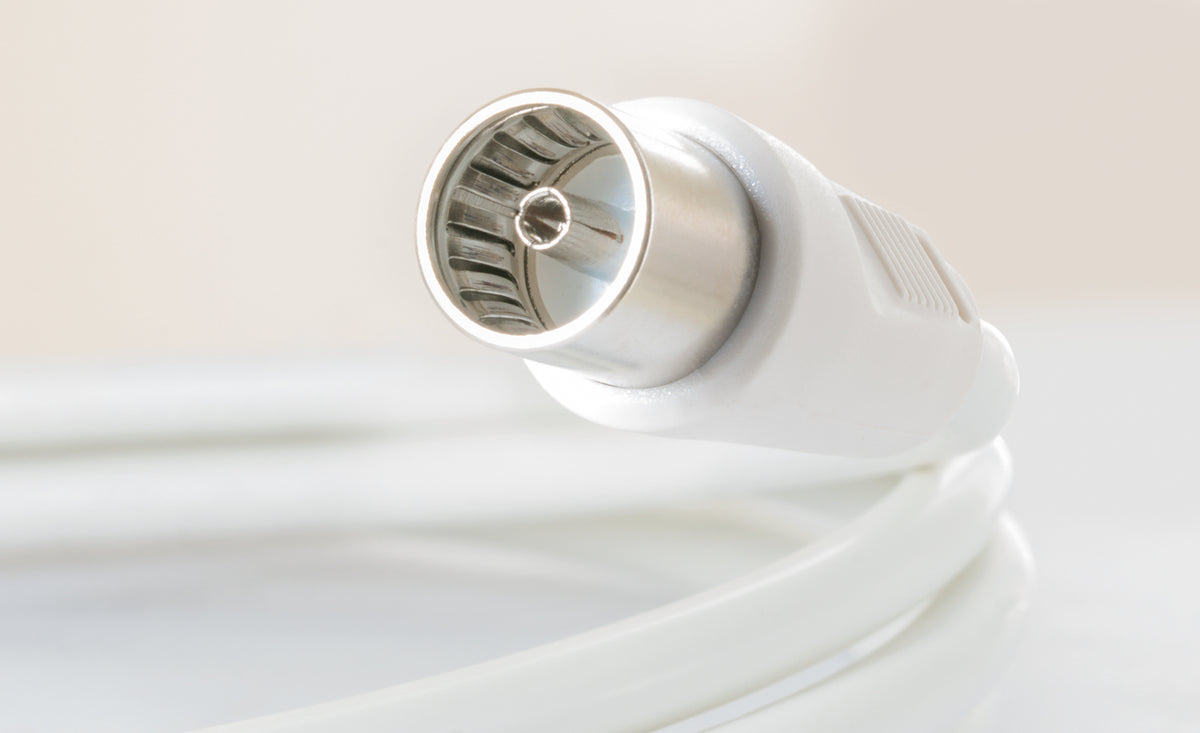

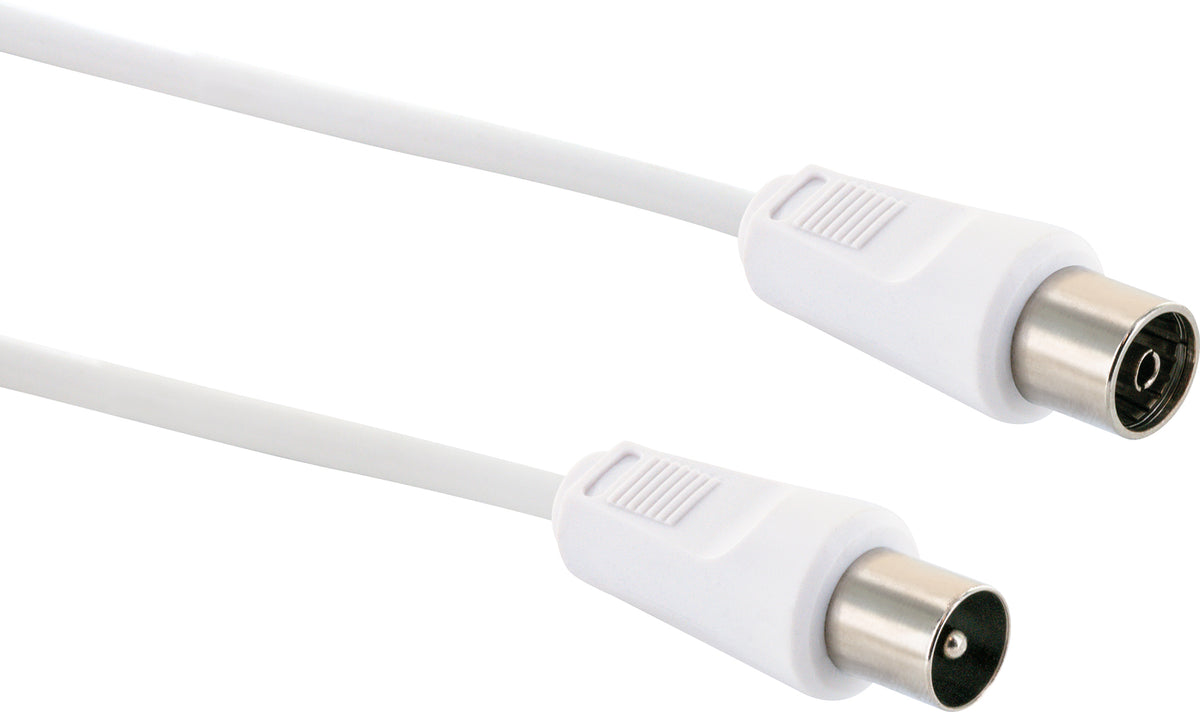

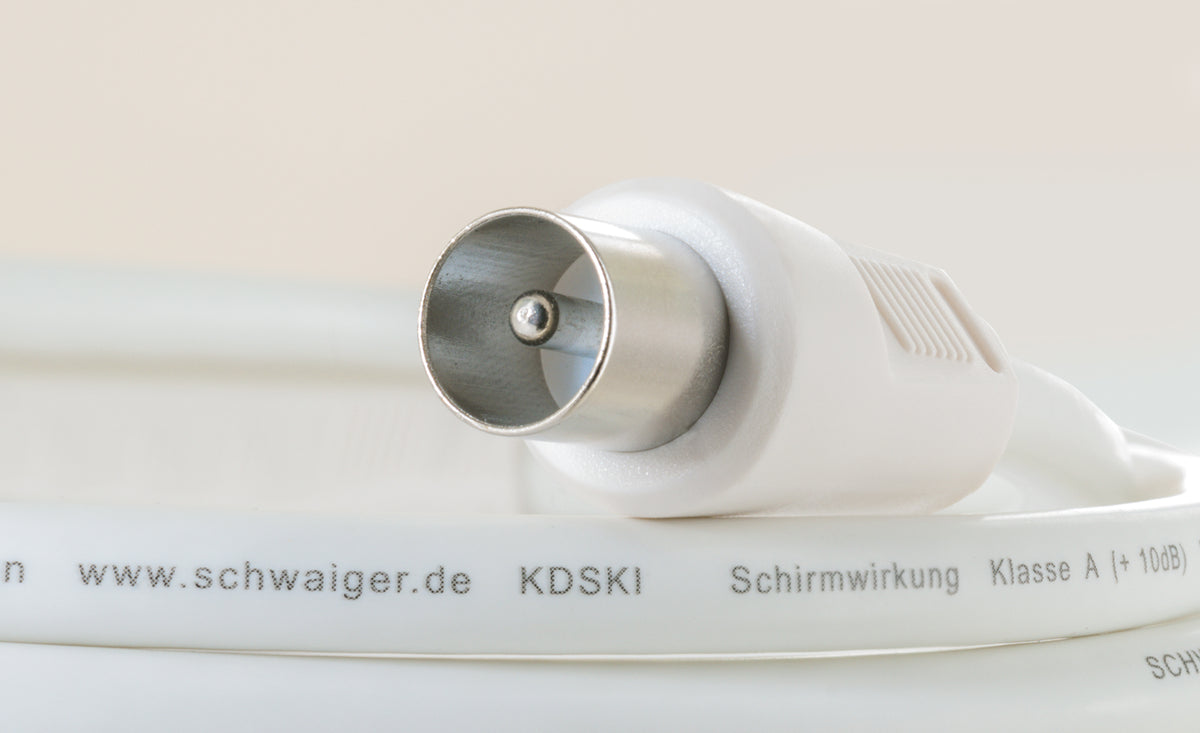

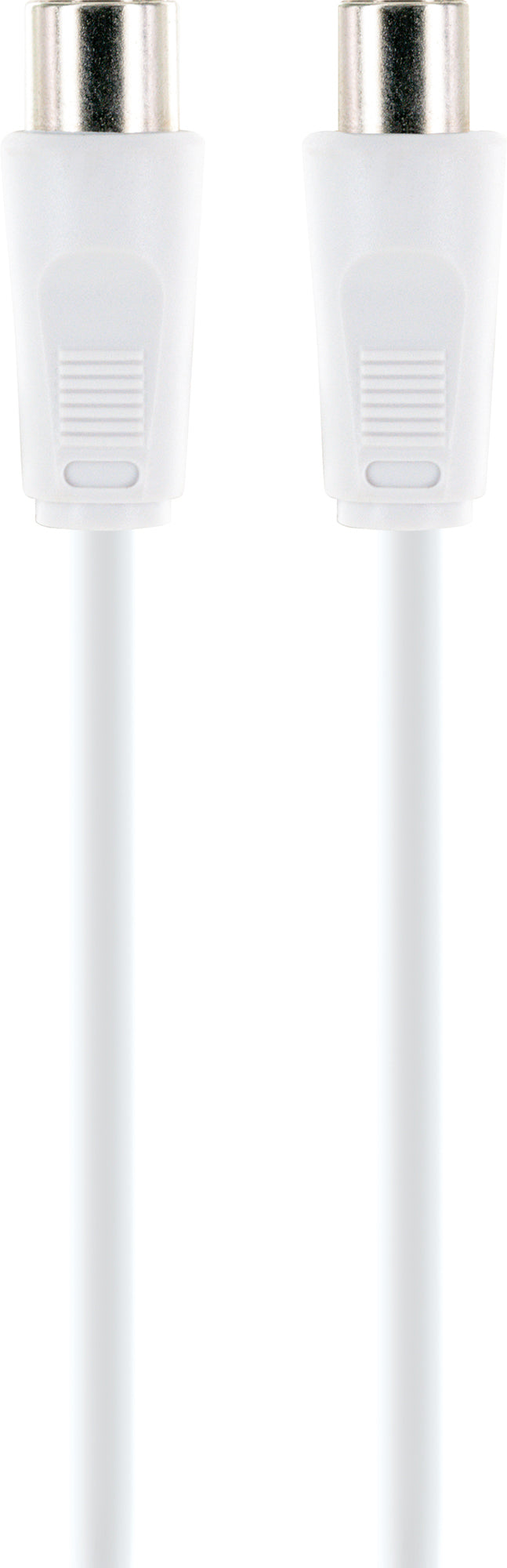

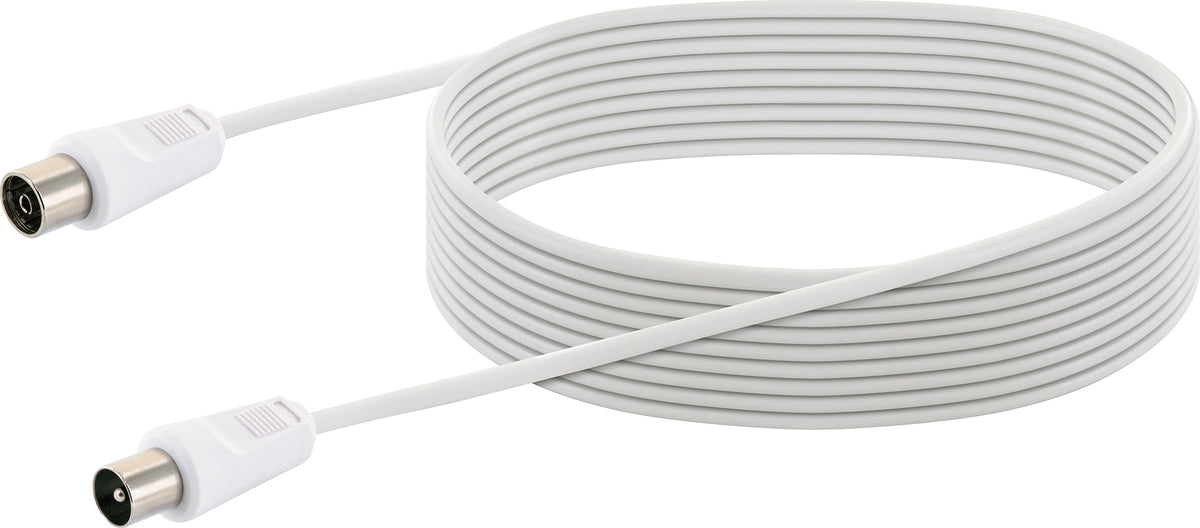

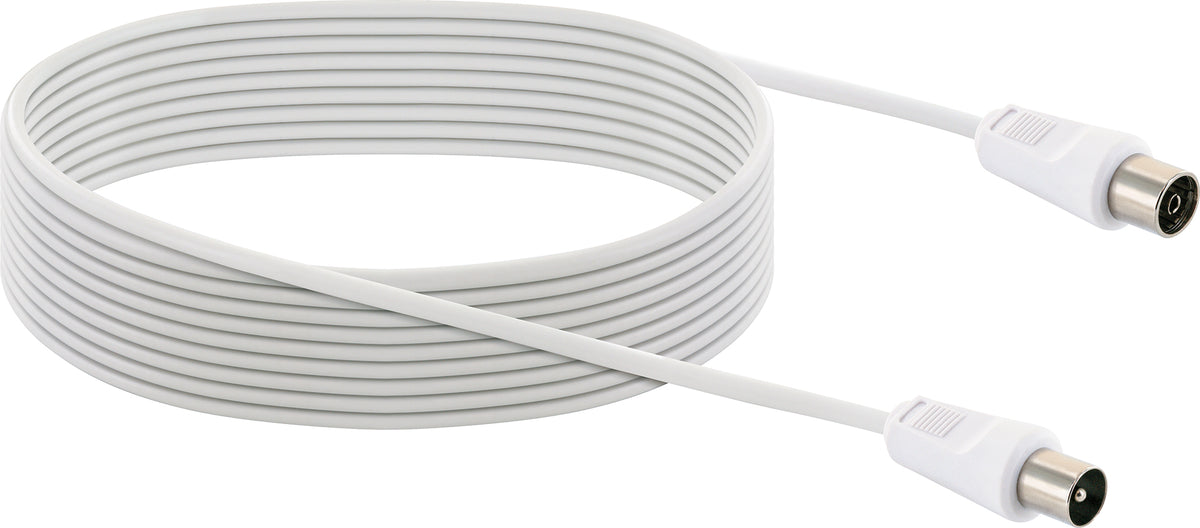

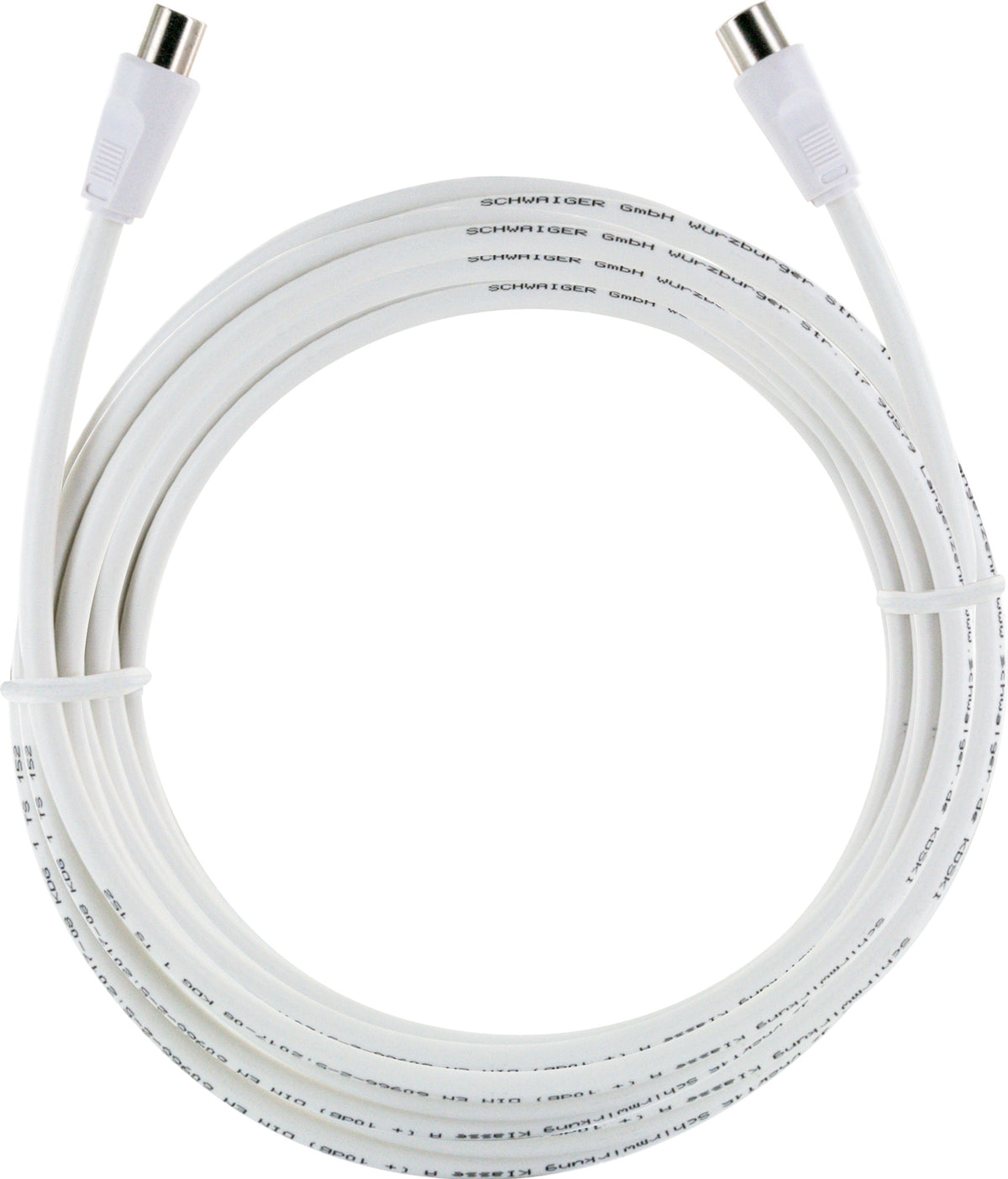

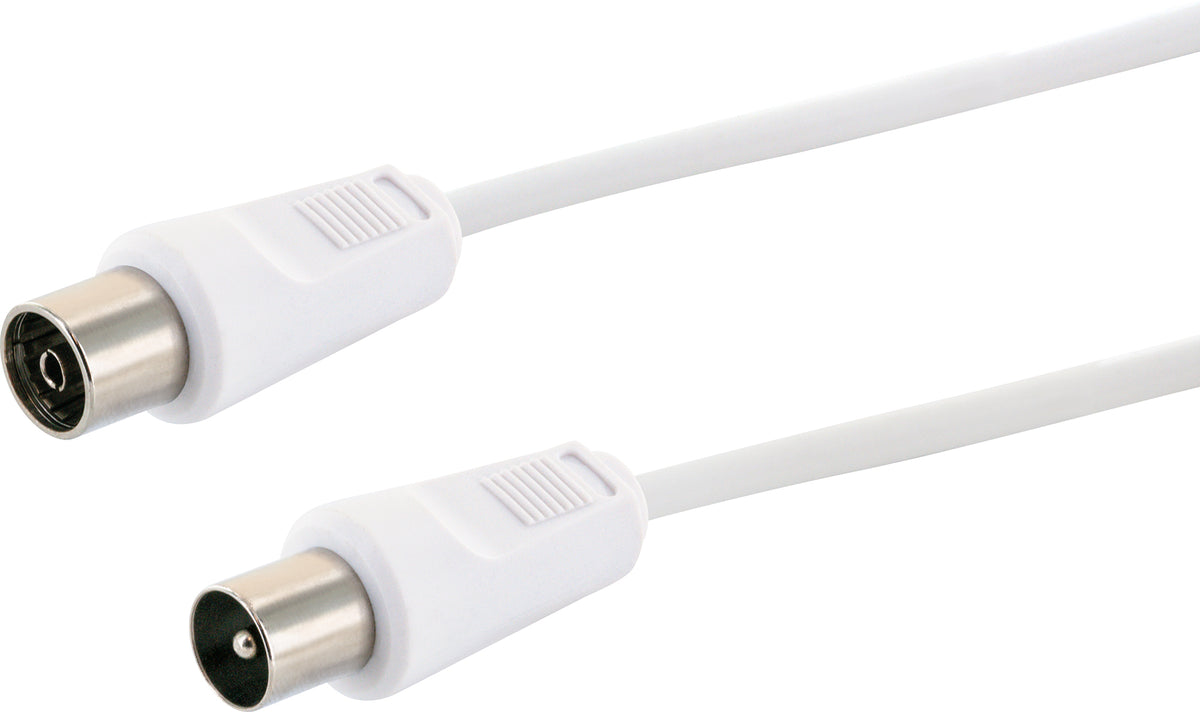

TV connection cable for self-install
SKU KDSKI75 532
€32,99
- Receiver connection cable for connecting customer terminals
- IEC plug to IEC socket
- Plug-in coupling (IEC female) with closed (unslotted) plug cylinder and internal spring cage
- Type according to specification and approved for use in cable networks of Vodafone Kabel Deutschland GmbH (Type KDG 1 TS 152)
- Triple shielding for additional protection against electromagnetic interference
Auf Lager
Sichere Zahlung
Passend dazu
TV connection cable for self-install
€32,99
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwaiger.de
Technische Daten
| Connections | 1 x IEC connector 1 x IEC socket with inner ring |
| Cable length | 7.5m |
| Impedance | 75 ohms |
| Plug | Metal with plastic contact nickel-plated |
| Cable structure | 1.08 mm (inner conductor) 3.55 mm (dielectric) 6 mm (sheath) |
| Shielding | Triple shielded |
| Shielding factor | Class A + 10 dB |
| Shielding material | Aluminium composite foil 112 aluminium mesh Aluminium composite foil |
| Inner conductor | CCS |
| Color | White |
| Scope of delivery | 1x TV connection cable |
