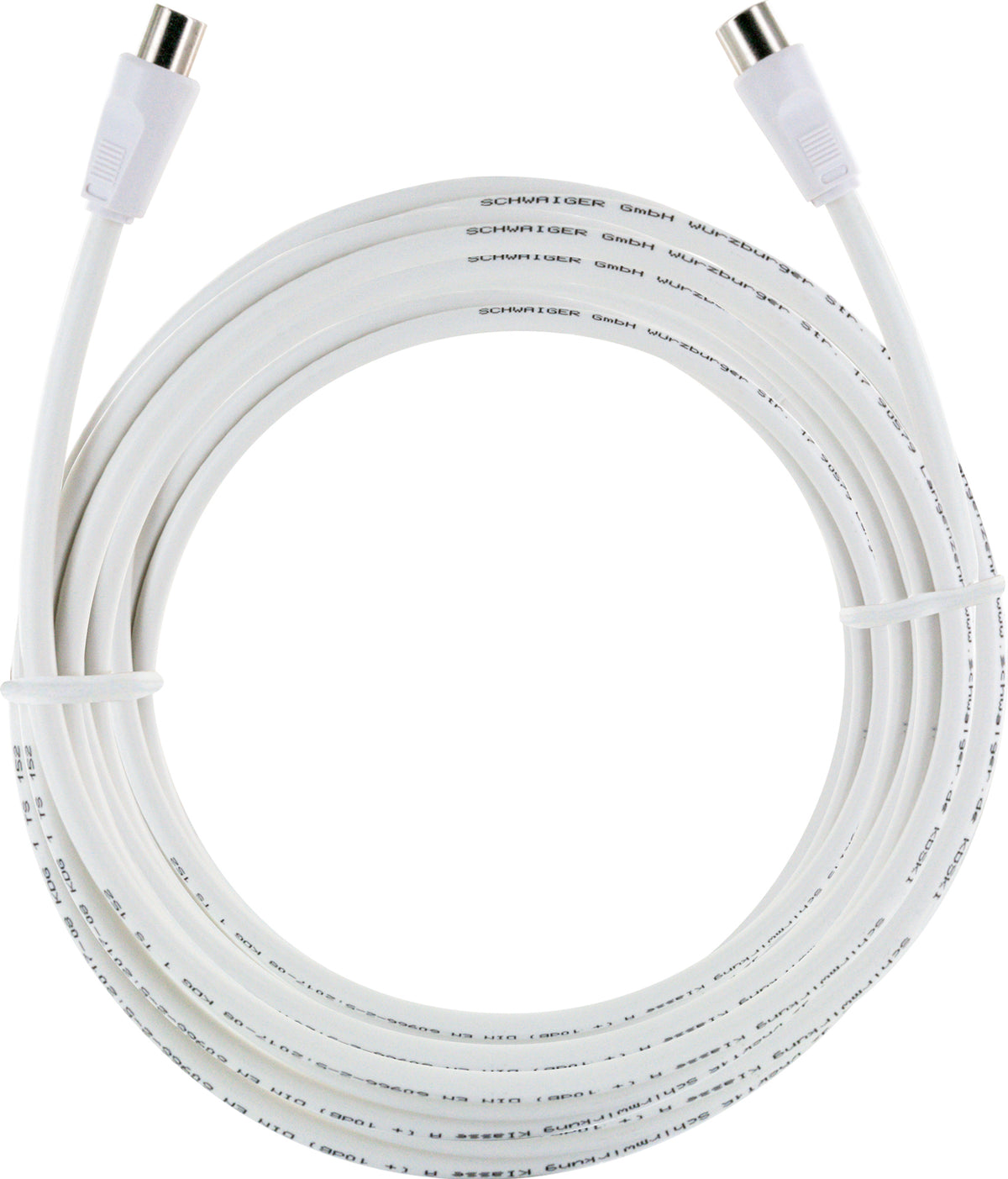

SKU KDSKI100 532

Sale price€32,89Regular price €37,99
  • Receiver connection cable for connecting customer terminals

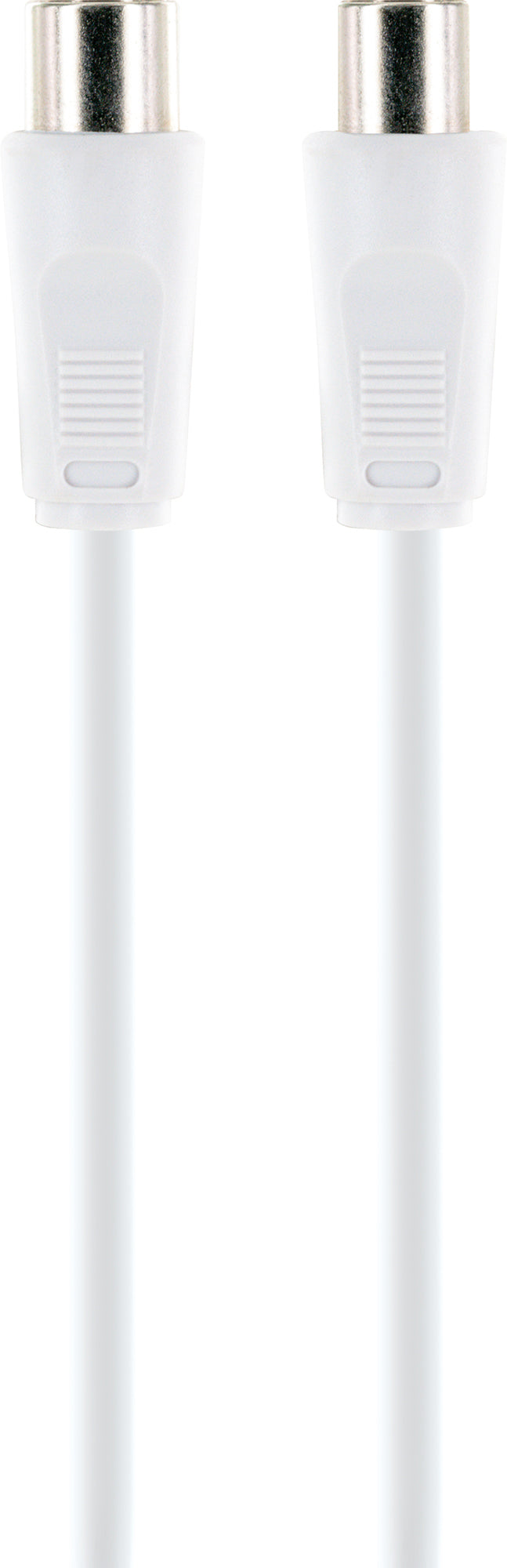

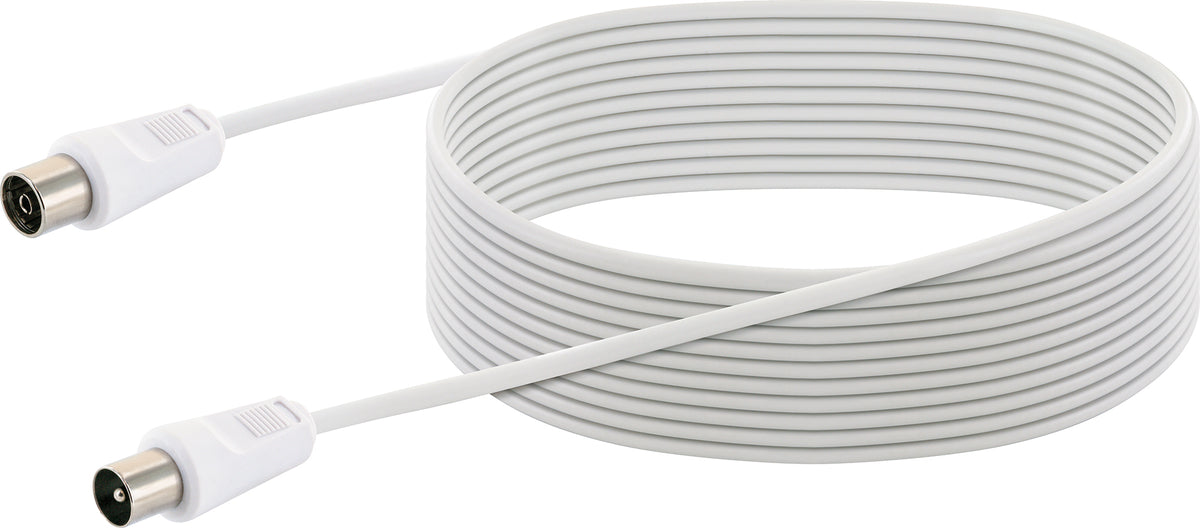

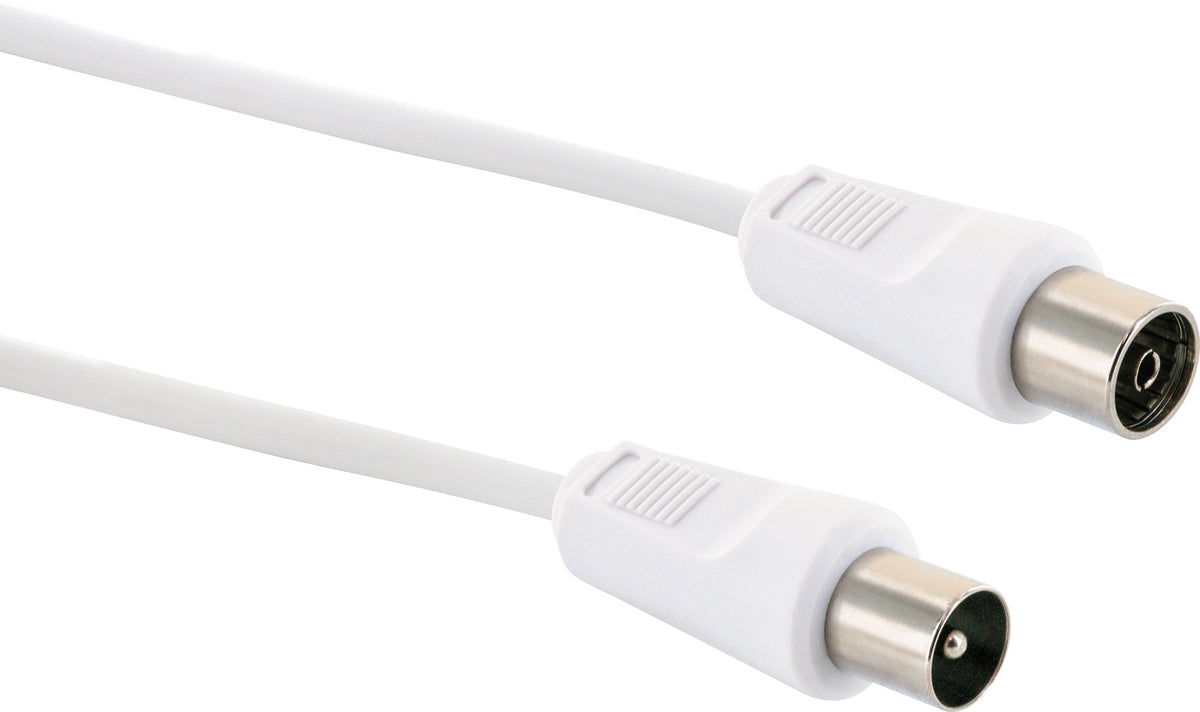

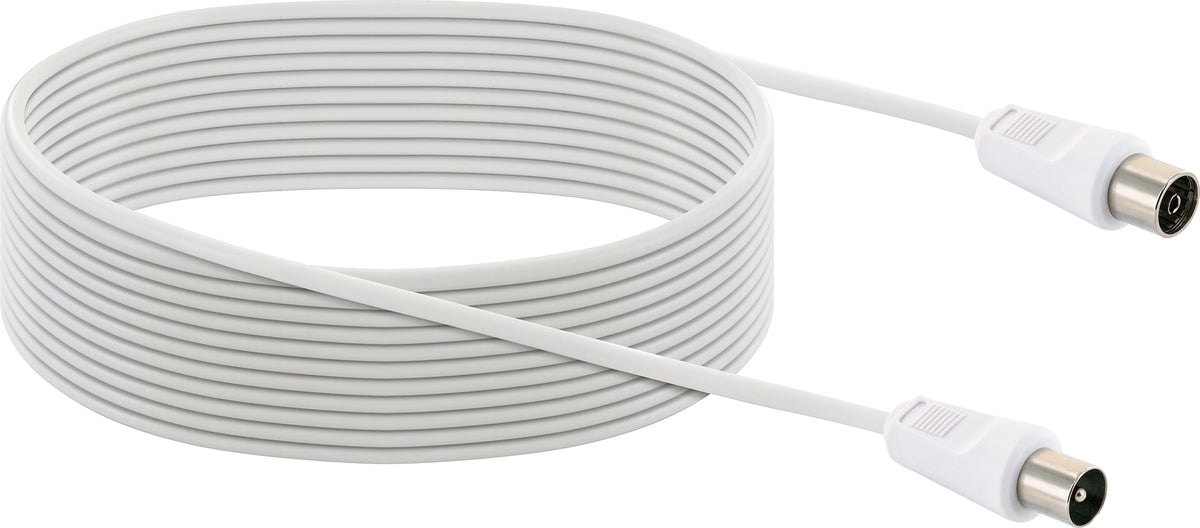

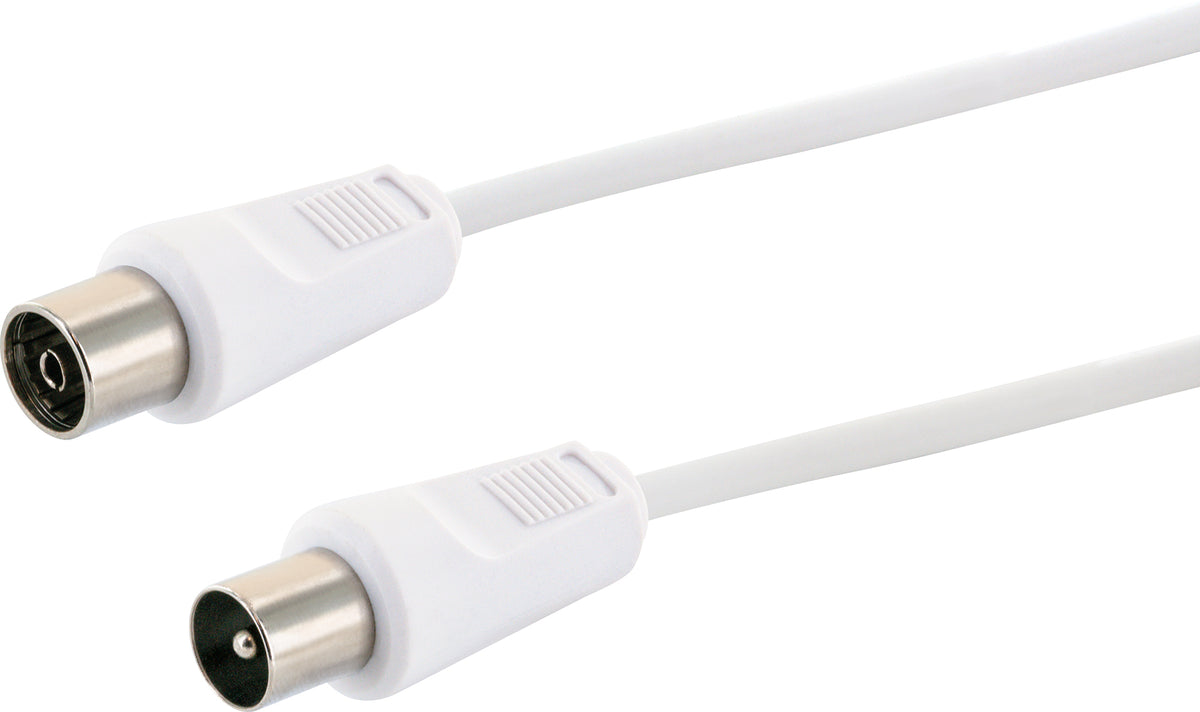

  • IEC plug to IEC socket

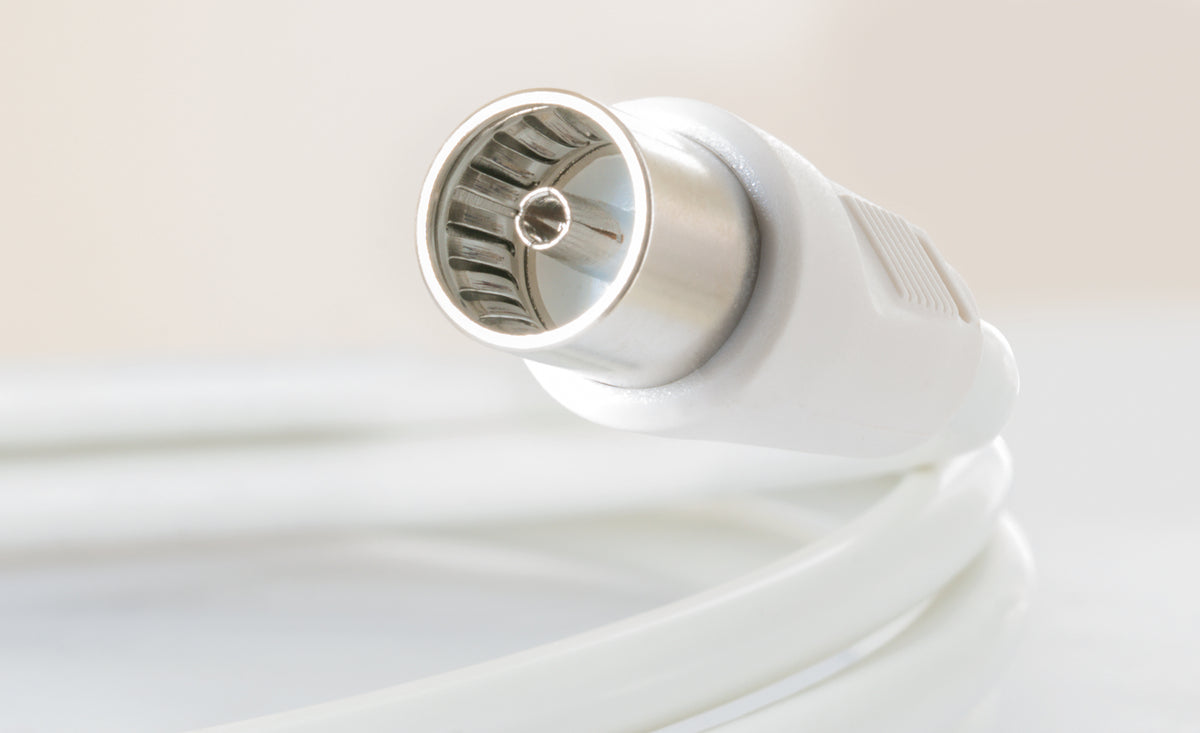

  • Plug-in coupling (IEC female) with closed (unslotted) plug cylinder and internal spring basket
  • Type according to specification and approved for use in cable networks of Vodafone Kabel Deutschland GmbH (Type KDG 1 TS 152)
  • Triple shielding for additional protection against electromagnetic interference
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

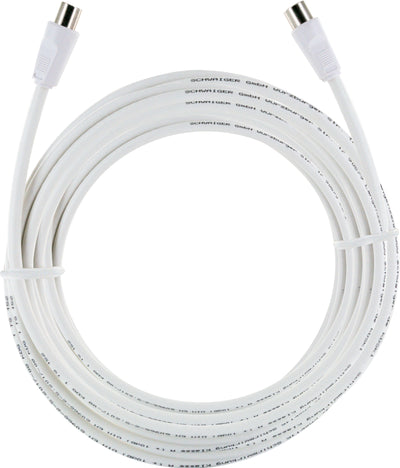

This SCHWAIGER® TV connection cable for self-installation is designed for higher demands in high-resolution image and sound transmission. The TV connection cable for self-installation is ideal for connecting TVs and multimedia sockets or receivers and antenna sockets. The cable offers the highest possible protection against electromagnetic interference and radio interference of all kinds thanks to its very high shielding level (class A + 10 dB).

Technische Daten
connections 1 x IEC connector
1 x IEC socket with inner ring
Cable length 10m
Impedance 75 ohms
Plug Metal with plastic contact nickel-plated
cable structure 1.08 mm (inner conductor)
3.55 mm (dielectric)
6 mm (sheath)
shielding triple shielded

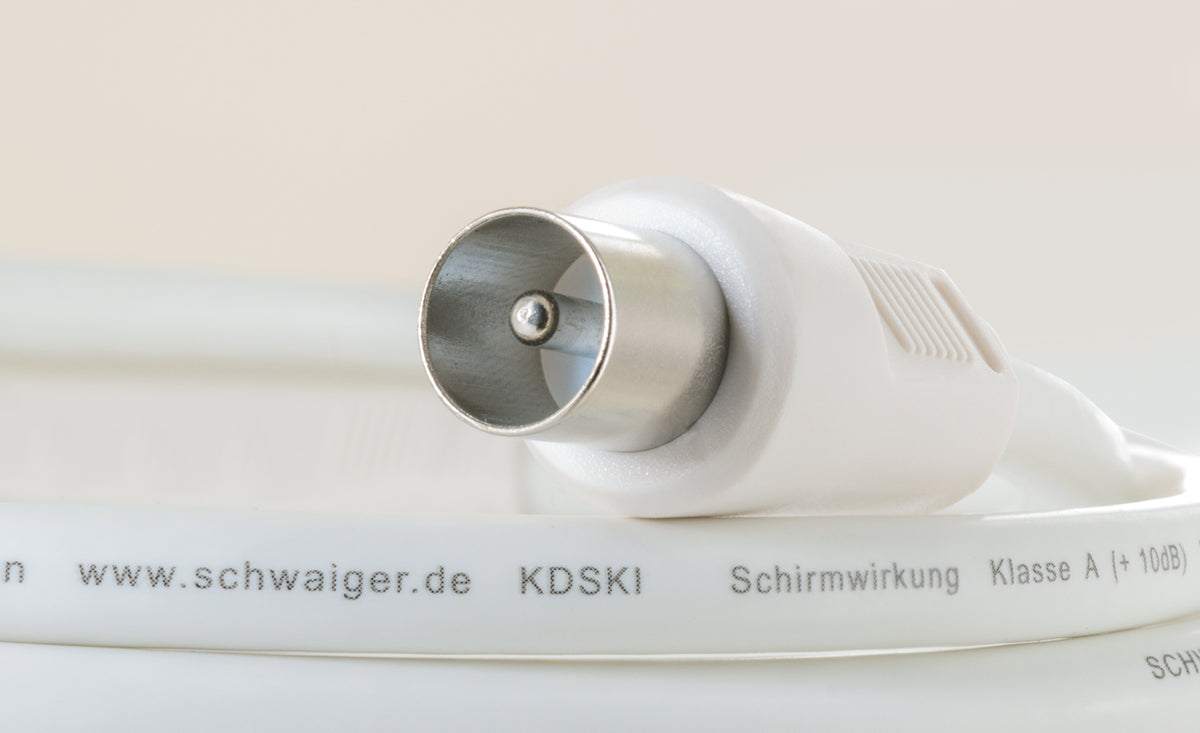

shielding factor Class A + 10 dB
shielding material aluminum composite foil
112 aluminum mesh
aluminum composite foil
inner conductor CCS
Color White
Scope of delivery 1x TV connection cable
